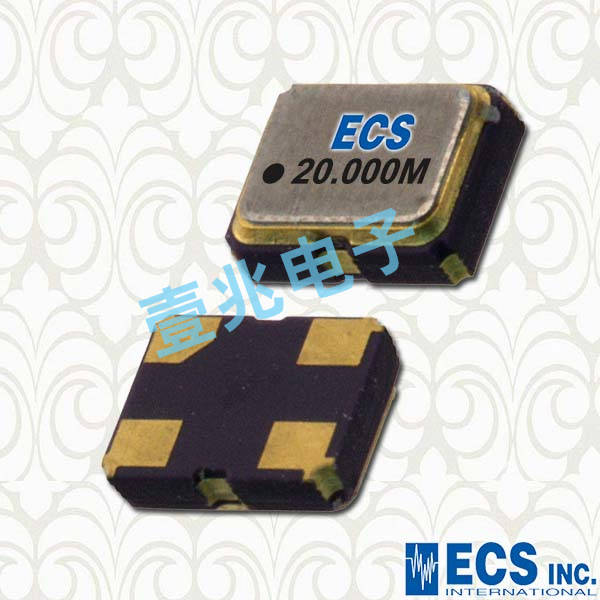

ECS-1618-240-BN-TR,ECS-1618石英晶體振蕩器,2016貼片晶振
頻率:24MHz

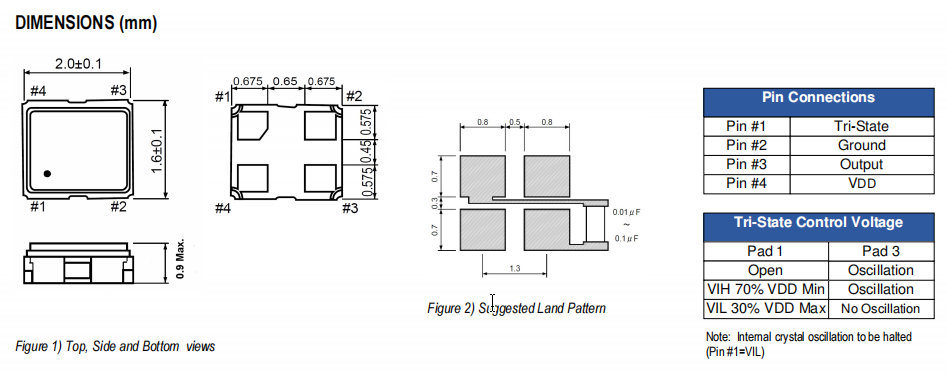

尺寸:2.0*1.6mm
ECS-1618-240-BN-TR,ECS-1618石英晶體振蕩器,2016貼片晶振,四腳貼片晶振,型號:ECS-1618系列晶振,編碼為:ECS-1618-240-BN-TR,頻率為:24MHz,尺寸:2.0*1.6mm,工作溫度為:﹣40℃ ~ 85°C,ECS-1618 SMD時鐘晶體振蕩器 ECS-1618(+1.8V)超小型貼片振蕩器非常適合 當今的高密度應用,產品被廣泛應用于,平板筆記本,GPS系統,光纖通道,千兆以太網,串行ATA,串行連接SCSI,PCI-Express的SDH/SONET發射基站等領域.符合RoHS/無鉛.
訂購熱線:0755-27876236
ECS-1618-240-BN-TR,ECS-1618石英晶體振蕩器,2016貼片晶振,四腳貼片晶振,型號:ECS-1618系列晶振,編碼為:ECS-1618-240-BN-TR,頻率為:24MHz,尺寸:2.0*1.6mm,工作溫度為:﹣40℃ ~ 85°C,ECS-1618 SMD時鐘晶體振蕩器 ECS-1618(+1.8V)超小型貼片振蕩器非常適合 當今的高密度應用,產品被廣泛應用于,平板筆記本,GPS系統,光纖通道,千兆以太網,串行ATA,串行連接SCSI,PCI-Express的SDH/SONET發射基站等領域.符合RoHS/無鉛.
ECS-1618-240-BN-TR,ECS-1618石英晶體振蕩器,2016貼片晶振,參數表
PARAMETERS | CONDITIONS | ECS-1618 (+1.8V) | UNITS | |||||||||||||
MIN | TYP | MAX | ||||||||||||||
Frequency Range |
|
24 | MHz | |||||||||||||
Operating Temperature | Standard | -10 | +70 | °C | ||||||||||||
Extended (N Option) | -40 | +85 | °C | |||||||||||||
Storage Temperature | -55 | +100 | °C | |||||||||||||
Input Voltage | VDD | +1.71 | +1.80 | +1.89 | VDC | |||||||||||
Frequency Stability * | Option A | ± 100 | ppm | |||||||||||||
Option B | ± 50 | ppm | ||||||||||||||
Option C | ± 25 | ppm | ||||||||||||||
Input Current | 1.500 to 19.90 MHz | 2.5 | mA | |||||||||||||
20.0 to 39.9 MHz | 3.0 | mA | ||||||||||||||
40.0 to 49.9 MHz | 3.5 | mA | ||||||||||||||
50.0 to 80.0 MHz | 6.5 | mA | ||||||||||||||
Stand-by Current | Pin 1 = VIL | 10.0 | µA | |||||||||||||
Output Symmetry | @ 50% VDD Level | 45/55 | % | |||||||||||||
Rise and Fall Times | 10% VDD to 90% level | 10 | ns | |||||||||||||
"0" level | VOL | 10% VDD | VDC | |||||||||||||
"1" level | VOH | 90% VDD | VDC | |||||||||||||
Output Load | CMOS | 15 | pF | |||||||||||||
Disable delay | 150 | ns | ||||||||||||||
Startup time | 10 | ms | ||||||||||||||
Aging | ±5 | ppm |
Manufacturer Part Number原廠代碼 | 壹兆晶振廠家 | Series型號 | Frequency 頻率 | Operating Temperature 工作溫度 |
ECS-1618-300-BN-TR | ECS晶振 | ECS-1618 | 30MHz | -40°C ~ 85°C |
ECS-1618-300-BN-TR | ECS晶振 | ECS-1618 | 30MHz | -40°C ~ 85°C |
ECS-1618-300-BN-TR | ECS晶振 | ECS-1618 | 30MHz | -40°C ~ 85°C |
ECS-1618-060-BN-TR | ECS晶振 | ECS-1618 | 6MHz | -40°C ~ 85°C |
ECS-1618-060-BN-TR | ECS晶振 | ECS-1618 | 6MHz | -40°C ~ 85°C |
ECS-1618-060-BN-TR | ECS晶振 | ECS-1618 | 6MHz | -40°C ~ 85°C |
ECS-1618-120-BN-TR | ECS晶振 | ECS-1618 | 12MHz | -40°C ~ 85°C |
ECS-1618-120-BN-TR | ECS晶振 | ECS-1618 | 12MHz | -40°C ~ 85°C |
ECS-1618-120-BN-TR | ECS晶振 | ECS-1618 | 12MHz | -40°C ~ 85°C |
ECS-1618-192-BN-TR | ECS晶振 | ECS-1618 | 19.2MHz | -40°C ~ 85°C |
ECS-1618-192-BN-TR | ECS晶振 | ECS-1618 | 19.2MHz | -40°C ~ 85°C |
ECS-1618-192-BN-TR | ECS晶振 | ECS-1618 | 19.2MHz | -40°C ~ 85°C |
ECS-1618-260-BN-TR | ECS晶振 | ECS-1618 | 26MHz | -40°C ~ 85°C |
ECS-1618-260-BN-TR | ECS晶振 | ECS-1618 | 26MHz | -40°C ~ 85°C |
ECS-1618-260-BN-TR | ECS晶振 | ECS-1618 | 26MHz | -40°C ~ 85°C |
ECS-1618-480-BN-TR | ECS晶振 | ECS-1618 | 48MHz | -40°C ~ 85°C |
ECS-1618-480-BN-TR | ECS晶振 | ECS-1618 | 48MHz | -40°C ~ 85°C |
ECS-1618-480-BN-TR | ECS晶振 | ECS-1618 | 48MHz | -40°C ~ 85°C |
ECS-1618-270-BN-TR | ECS晶振 | ECS-1618 | 27MHz | -40°C ~ 85°C |
ECS-1618-270-BN-TR | ECS晶振 | ECS-1618 | 27MHz | -40°C ~ 85°C |
ECS-1618-270-BN-TR | ECS晶振 | ECS-1618 | 27MHz | -40°C ~ 85°C |
ECS-1618-240-BN-TR | ECS晶振 | ECS-1618 | 24MHz | -40°C ~ 85°C |
ECS-1618-240-BN-TR | ECS晶振 | ECS-1618 | 24MHz | -40°C ~ 85°C |
ECS-1618-240-BN-TR | ECS晶振 | ECS-1618 | 24MHz | -40°C ~ 85°C |
