12.288MHz/3225mm/8pF/±50ppm/FA-238V/Q22FA23V00085

頻率:12.288MHz

尺寸:3.2x2.5mm

12.288MHz/3225mm/8pF/±50ppm/FA-238V/Q22FA23V00085,日本進口晶振,EPSON愛普生株式會社,晶振型號FA-238V,產品編碼:Q22FA23V00085,產品型號:FA-238V 12.288000MHz 8.0 ±15.0,頻率為:12.288MHz,是一款小體積晶振尺寸3.2x2.5x0.7mm四腳貼片晶振,無源晶振,石英晶振晶體諧振器,無鉛環保晶振,工作溫度范圍:-40℃至+85℃(+105),具有超小型,輕薄型,高品質,高質量,耐熱及耐環境特點,貼片晶振應用于智能手機,藍牙模塊晶振,無線局域網,ISM頻帶收音機,MPU時鐘,車載控制器,汽車音響,汽車電子控制板,醫療設備,平板電腦,數碼電子等應用。
訂購熱線:0755-27876236
QQ咨詢 點擊這里給我發消息

12.288MHz/3225mm/8pF/±50ppm/FA-238V/Q22FA23V00085,日本進口晶振,EPSON愛普生株式會社,晶振型號FA-238V,產品編碼:Q22FA23V00085,產品型號:FA-238V 12.288000MHz 8.0 ±15.0,頻率為:12.288MHz,是一款小體積晶振尺寸3.2x2.5x0.7mm四腳貼片晶振,無源晶振,石英晶振,晶體諧振器,無鉛環保晶振,工作溫度范圍:-40℃至+85℃(+105),具有超小型,輕薄型,高品質,高質量,耐熱及耐環境特點,貼片晶振應用于智能手機,藍牙模塊晶振,無線局域網,ISM頻帶收音機,MPU時鐘,車載控制器,汽車音響,汽車電子控制板,醫療設備,平板電腦,數碼電子等應用。

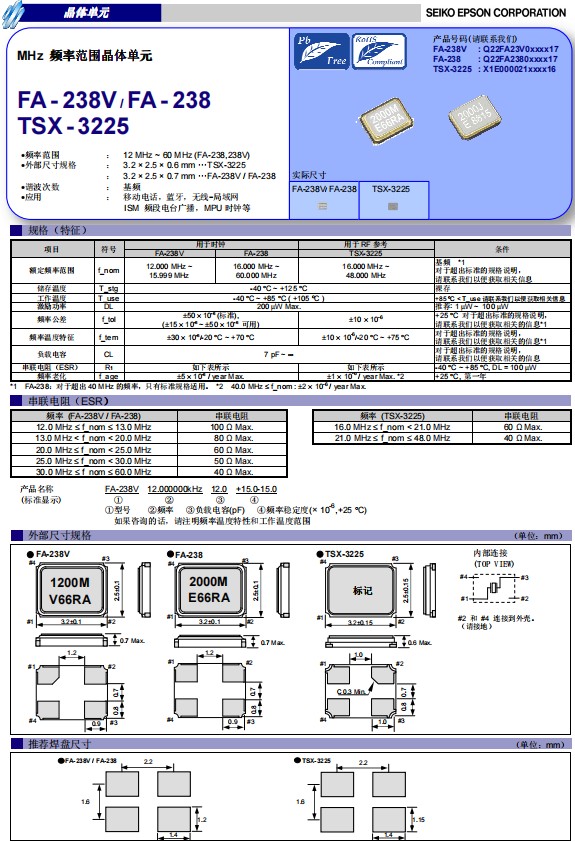

12.288MHz/3225mm/8pF/±50ppm/FA-238V/Q22FA23V00085,參數圖

Item Symbol For Clock For RF Reference
FA-238V FA-238 TSX-3225
Nominal frequency range f_nom 12 MHz to 15.999 MHz 16 MHz to 50 MHz 16 MHz to 48 MHz
Storage temperature T_stg -40 °C to +125 °C
Operating temperature T_use -40 °C to +85 °C (+105 °C)
Level of drive DL 200 µW Max.
Frequency tolerance f_tol ±50 × 10-6 (standard), ±10 × 10-6
(±15 × 10-6 to ±50 × 10-6 is available)
Frequency versus temperature characteristics f_tem ±30 × 10-6/-20 °C to +70 °C ±10 × 10-6/-20 °C to +75 °C
Load capacitance CL 7 pF to
Motional resistance (ESR) R1 As per table below As per table below
Frequency aging f_age ±× 10-6 / year Max. ±× 10-6 / year Max.*2

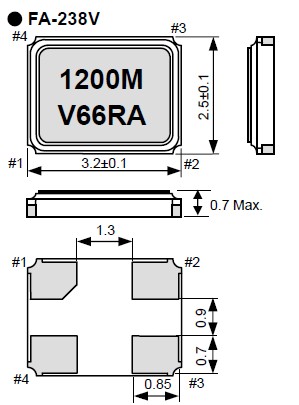

12.288MHz/3225mm/8pF/±50ppm/FA-238V/Q22FA23V00085,尺寸圖

FA-238V

日產晶振 尺寸 型號 頻率 負載 頻率 @+25°C
Q22FA23V00012 3.2 x 2.5 x 0.7mm FA-238V 13.560000 MHz 12 pF +/-50 ppm
Q22FA23V00018 3.2 x 2.5 x 0.7mm FA-238V 12.288000 MHz 12 pF +/-50 ppm
Q22FA23V00022 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 10 pF +/-30 ppm
Q22FA23V00026 3.2 x 2.5 x 0.7mm FA-238V 13.000000 MHz 10 pF +/-50 ppm
Q22FA23V00027 3.2 x 2.5 x 0.7mm FA-238V 14.745600 MHz 20 pF +/-50 ppm
Q22FA23V00028 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 15 pF +/-50 ppm
Q22FA23V00029 3.2 x 2.5 x 0.7mm FA-238V 13.000000 MHz 20 pF +/-50 ppm
Q22FA23V00030 3.2 x 2.5 x 0.7mm FA-238V 13.000000 MHz 20 pF +/-30 ppm
Q22FA23V00033 3.2 x 2.5 x 0.7mm FA-238V 12.288000 MHz 12 pF +/-30 ppm
Q22FA23V00037 3.2 x 2.5 x 0.7mm FA-238V 14.318180 MHz 20 pF +/-50 ppm
Q22FA23V00044 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 20 pF +/-50 ppm
Q22FA23V00048 3.2 x 2.5 x 0.7mm FA-238V 13.000000 MHz 7 pF +/-50 ppm
Q22FA23V00052 3.2 x 2.5 x 0.7mm FA-238V 13.560000 MHz 10 pF +/-50 ppm
Q22FA23V00068 3.2 x 2.5 x 0.7mm FA-238V 14.318000 MHz 12 pF +/-50 ppm
Q22FA23V00069 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 10 pF +/-15 ppm
Q22FA23V00082 3.2 x 2.5 x 0.7mm FA-238V 14.318180 MHz 16 pF +/-50 ppm
Q22FA23V00085 3.2 x 2.5 x 0.7mm FA-238V 12.288000 MHz 8 pF +/-50 ppm
Q22FA23V00086 3.2 x 2.5 x 0.7mm FA-238V 14.745600 MHz 12 pF +/-50 ppm
Q22FA23V00095 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 16 pF +/-50 ppm
Q22FA23V00103 3.2 x 2.5 x 0.7mm FA-238V 14.318180 MHz 12.5 pF +/-30 ppm
Q22FA23V00106 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 11 pF +/-30 ppm
Q22FA23V00107 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 10 pF +/-50 ppm
Q22FA23V00114 3.2 x 2.5 x 0.7mm FA-238V 14.318180 MHz 18 pF +/-50 ppm
Q22FA23V00119 3.2 x 2.5 x 0.7mm FA-238V 12.500000 MHz 16 pF +/-50 ppm
Q22FA23V00123 3.2 x 2.5 x 0.7mm FA-238V 13.560000 MHz 12 pF +/-20 ppm
Q22FA23V00131 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 18 pF +/-50 ppm
Q22FA23V00136 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 8 pF +/-50 ppm
Q22FA23V00144 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 10 pF +/-15 ppm
Q22FA23V00149 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 20 pF +/-30 ppm
Q22FA23V00150 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 10 pF +/-10 ppm
Q22FA23V00160 愛普生晶振 FA-238V 12.000000 MHz 16 pF +/-30 ppm
Q22FA23V00162 3.2 x 2.5 x 0.7mm FA-238V 12.288000 MHz 10 pF +/-50 ppm
Q22FA23V00164 3.2 x 2.5 x 0.7mm FA-238V 14.318180 MHz 9 pF +/-50 ppm
Q22FA23V00170 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 12 pF +/-30 ppm
Q22FA23V00178 3.2 x 2.5 x 0.7mm FA-238V 13.560000 MHz 18 pF +/-50 ppm
Q22FA23V00179 3.2 x 2.5 x 0.7mm FA-238V 12.500000 MHz 10 pF +/-50 ppm
Q22FA23V00180 3.2 x 2.5 x 0.7mm FA-238V 14.745600 MHz 16 pF +/-50 ppm
Q22FA23V00192 3.2 x 2.5 x 0.7mm FA-238V 12.288000 MHz 10 pF +/-30 ppm
Q22FA23V00193 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 12.5 pF +/-50 ppm
Q22FA23V00195 3.2 x 2.5 x 0.7mm FA-238V 13.000000 MHz 9 pF +/-20 ppm
Q22FA23V00197 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 8 pF +/-15 ppm
Q22FA23V00205 3.2 x 2.5 x 0.7mm FA-238V 14.745600 MHz 8 pF +/-50 ppm
Q22FA23V00210 3.2 x 2.5 x 0.7mm FA-238V 14.745600 MHz 18 pF +/-50 ppm
Q22FA23V00233 3.2 x 2.5 x 0.7mm FA-238V 14.318180 MHz 10 pF +/-20 ppm
Q22FA23V00235 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 9 pF +/-30 ppm
Q22FA23V00239 3.2 x 2.5 x 0.7mm FA-238V 14.318000 MHz 10 pF +/-50 ppm
Q22FA23V00241 3.2 x 2.5 x 0.7mm FA-238V 14.318180 MHz 10 pF +/-50 ppm
Q22FA23V00245 3.2 x 2.5 x 0.7mm FA-238V 14.318000 MHz 16 pF +/-50 ppm
Q22FA23V00247 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 10 pF +/-20 ppm
Q22FA23V00255 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 12 pF +/-20 ppm
FA-238V,F(xiàn)A-238,TSX-3225
