TCXO|X1G0054210037|16.384000MHz|2520mm|-40~+85℃|TG2520SMN

頻率:10~55MHz

尺寸:2.5x2.0mm

TCXO|X1G0054210037|16.384000MHz|2520mm|-40~+85℃|TG2520SMN,愛普生晶振型號TG2520SMN,產品編碼:X1G0054210037,產品型號:TG2520SMN16.384000MHzTCGNNM有源晶振,是一款小體積晶振尺寸2.5x2.0mm四腳貼片晶振,電源電壓:1.8V~3.3V,工作溫度:-40~+85℃,石英晶振,溫補晶體振蕩器,是高穩定性和低相位噪聲的TCXO晶振,使用Epson開發和制造的IC和MHz基晶體。相位噪聲是愛普生緊湊的TCXO產品系列中最低的,使其成為GNSS和其他無線通信設備的理想?yún)⒖紩r(shí)鐘。具有超小型,輕薄型,低抖動,低功耗,低耗能,低電源電壓,低損耗,低電平,低相位噪聲等特點,被應用于GNSS射頻無線通信設備LTE、WiMAX、Wi-Fi、W-LAN網聯網,無線網絡,藍牙模塊等.
訂購熱線:0755-27876236
QQ咨詢 點擊這里給我發消息

TCXO|X1G0054210037|16.384000MHz|2520mm|-40~+85℃|TG2520SMN,愛普生晶振型號TG2520SMN,產品編碼:X1G0054210037,產品型號:TG2520SMN16.384000MHzTCGNNM有源晶振,是一款小體積晶振尺寸2.5x2.0mm四腳貼片晶振,電源電壓:1.8V~3.3V,工作溫度:-40~+85℃,石英晶振,溫補晶體振蕩器,是高穩定性和低相位噪聲的TCXO晶振,使用Epson開發和制造的IC和MHz基晶體。相位噪聲是愛普生緊湊的TCXO產品系列中最低的,使其成為GNSS和其他無線通信設備的理想?yún)⒖紩r(shí)鐘。具有超小型,輕薄型,低抖動,低功耗,低耗能,低電源電壓,低損耗,低電平,低相位噪聲等特點,被應用于GNSS射頻無線通信設備LTE、WiMAX、Wi-Fi、W-LAN網聯網,無線網絡,藍牙模塊等。

TCXO|X1G0054210037|16.384000MHz|2520mm|-40~+85℃|TG2520SMN,參數圖

TG2016SMN/
TG2520SMN
Symbol VC-TCXO TCXO Conditions / Remarks
輸出頻率范圍 f0 10 MHz to 55MHz
16.368 MHz, 16.369 MHz, 19.2 MHz, 26 MHz, 32 MHz, 38.4 MHz and 40 MHz Standard frequency
電源電壓 VCC 1.8 V ±0.1 V / 2.8 V ±5 % /
 3.0 V
±5 % / 3.3 V ±5 %
Supply voltage range :1.7 V to 3.63 V
儲存溫度 T_stg -40 °C to +90 °C Storage as single product.
工作溫度 T_use G: -40 °C to +85 °C
頻率容差 f_tol ±1.5 ´ 10-6 Max. After reflow, +25 °C
頻率/溫度特性 f0-TC C: ±0.5 ´ 10-6 Max. / G: -40 °C to +85 °C
 F:
±2.0 ´ 10-6 Max. / G: -40 °C to +85 °C
Standard stability version
頻率/負載系數 f0-Load ±0.1 ´ 10-6 Max. 10 k// 10 pF ±10 %
頻率/電壓系數 f0-VCC ±0.1 ´ 10-6 Max. VCC ± 5 %
頻率老化 f_age ±0.5 ´ 10-6  Max.  +25 °C, First year, 10MHz,
12 MHz≤ f0 ≤20 MHz,
24 MHz≤ f0 ≤40 MHz
±1.5 ´ 10-6  Max.  +25 °C ,First year,
10 MHz< f0 <12 MHz,
20 MHz< f0 <24 MHz,
40 MHz< f0 ≤55 MHz
電流消耗 1.5 mA Max. 10 MHz≤ f0 ≤26 MHz
ICC 1.8 mA Max. 26 MHz< f0 ≤40 MHz
2.0 mA Max. 40 MHz< f0 ≤50 MHz
2.1 mA Max. 50 MHz< f0 ≤55 MHz
輸入電阻 Rin 500 kMin. - VC - GND (DC)
頻率控制范圍 f_cont ±8.0 ´ 10-6
to ±12.0 ´ 10-6
- B: VC =0.9 V ±0.6 V (VCC =1.8 V) or
C: VC =1.4 V ±1.0 V (VCC =2.8 V) or
D: VC =1.5 V ±1.0 V (VCC =3.0 V) or
E: VC =1.65 V ±1.0 V (VCC =3.3 V)
頻率變化極性 - Positive polarity -
對稱性 SYM 45 % to 55 % GND level (DC cut)
輸出電壓 VPP 0.8 V Min. Peak to Peak
啟動時間 t_str 1.0 ms Max. T=0 at 90% Vcc
輸出負載條件 Load_R 10 kW DC cut capacitor = 0.01 mF
Load_C 10 pF

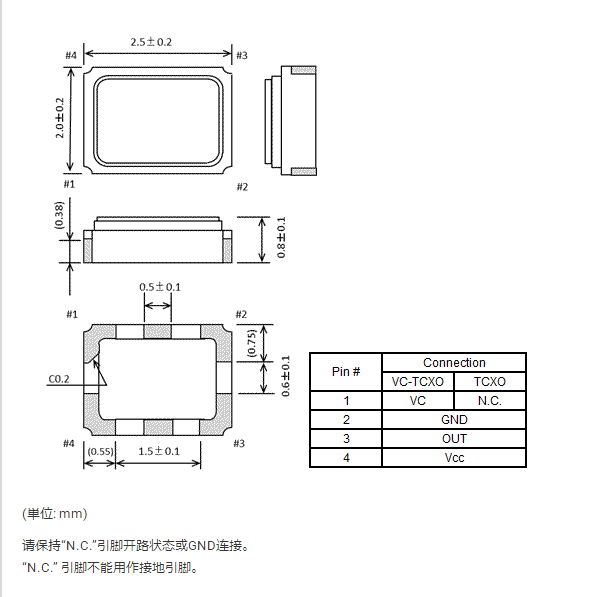

TCXO|X1G0054210037|16.384000MHz|2520mm|-40~+85℃|TG2520SMN,尺寸圖

TG2520SMN

編碼 愛普生晶振 頻率 尺寸 輸出 電壓
X1G0054210029 TG2520SMN 19.200000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 3.135 to 3.465 V
X1G0054210030 TG2520SMN 12.000000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 3.135 to 3.465 V
X1G0054210037 TG2520SMN 16.384000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 1.700 to 1.900 V
X1G0054210038 TG2520SMN 16.384000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 2.260 to 3.465 V
X1G0054210201 TG2520SMN 16.368000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 1.700 to 1.900 V
X1G0054210202 TG2520SMN 16.369000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 1.700 to 1.900 V
X1G0054210203 TG2520SMN 19.200000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 1.700 to 1.900 V
X1G0054210204 TG2520SMN 26.000000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 1.700 to 1.900 V
X1G0054210205 TG2520SMN 32.000000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 1.700 to 1.900 V
X1G0054210206 TG2520SMN 38.400000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 1.700 to 1.900 V
X1G0054210207 TG2520SMN 40.000000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 1.700 to 1.900 V
X1G0054210208 TG2520SMN 16.000000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 1.700 to 1.900 V
X1G0054210211 TG2520SMN 20.000000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 1.700 to 1.900 V
X1G0054210212 TG2520SMN 24.000000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 1.700 to 1.900 V
X1G0054210213 TG2520SMN 25.000000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 1.700 to 1.900 V
X1G0054210214 TG2520SMN 27.000000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 1.700 to 1.900 V
X1G0054210215 TG2520SMN 30.000000 MHz 2.50 x 2.00 x 0.80 mm 溫補晶振 1.700 to 1.900 V
X1G0054210216 TG2520SMN 48.000000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 1.700 to 1.900 V
X1G0054210220 TG2520SMN 52.000000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 1.700 to 1.900 V
X1G0054210221 TG2520SMN 27.600000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 1.700 to 1.900 V
X1G0054210222 TG2520SMN 50.000000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 1.700 to 1.900 V
X1G0054210301 TG2520SMN 16.368000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 2.660 to 3.465 V
X1G0054210302 TG2520SMN 16.369000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 2.660 to 3.465 V
X1G0054210303 TG2520SMN 19.200000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 2.660 to 3.465 V
X1G0054210304 TG2520SMN 26.000000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 2.660 to 3.465 V
X1G0054210305 TG2520SMN 32.000000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 2.660 to 3.465 V
X1G0054210306 TG2520SMN 38.400000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 2.660 to 3.465 V
X1G0054210307 TG2520SMN 40.000000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 2.660 to 3.465 V
X1G0054210308 TG2520SMN 16.000000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 2.660 to 3.465 V
X1G0054210311 TG2520SMN 20.000000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 2.660 to 3.465 V
X1G0054210312 TG2520SMN 24.000000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 2.660 to 3.465 V
X1G0054210313 TG2520SMN 25.000000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 2.660 to 3.465 V
X1G0054210314 TG2520SMN 27.000000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 2.660 to 3.465 V
X1G0054210315 TG2520SMN 30.000000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 2.660 to 3.465 V
