短程無線設備應用晶振NX2520SA-24.576000MHZ

返回列表 來源:壹兆電子 查看手機網址
掃一掃!短程無線設備應用晶振NX2520SA-24.576000MHZ掃一掃!
瀏覽:- 發布日期:2023-06-06 17:26:36【
分享到:

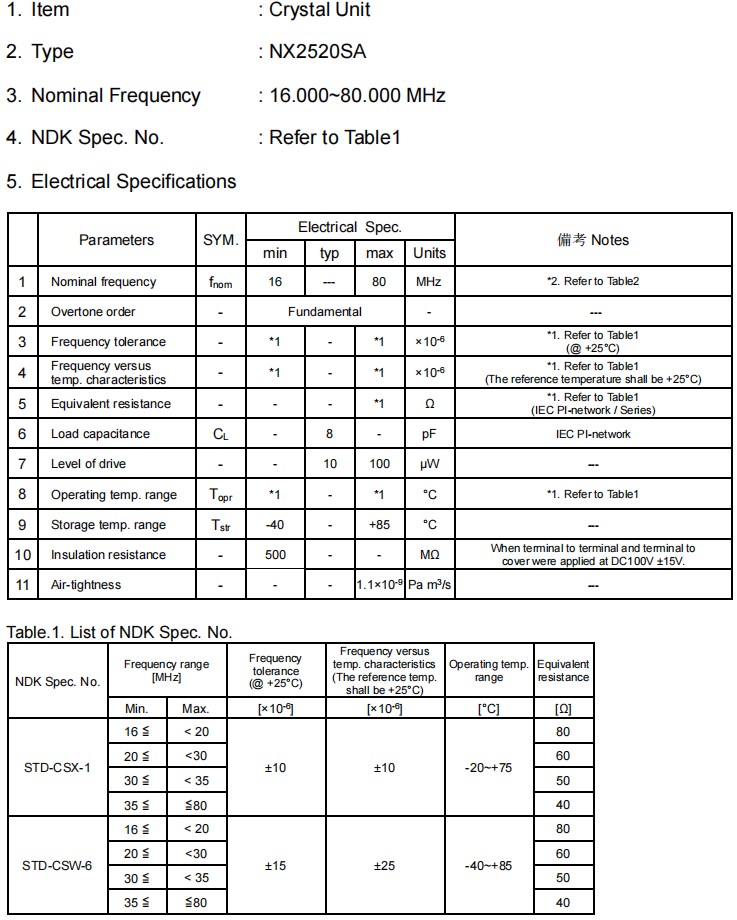

日本電波工業株式NDK晶振,進口晶振型號NX2520SA,是一款小體積晶振尺寸2.5x2.0x0.50mm四腳貼片晶振,石英晶振,無源晶振,晶體諧振器,無鉛環保晶振,頻率范圍:16.000MHz~80.000MHz,具有超小型,輕薄型,優異的耐環境性能,耐熱和耐沖擊性,回流溫度曲線(可用于無鉛焊接),應用于:電信設備,消費電子產品晶振,藍牙石英晶振,短程無線設備,短程無線設備、Wi-Fi,以及參考時鐘源如智能手機和平板電腦等應用。短程無線設備應用晶振NX2520SA-24.576000MHZ

NX2520SA-1

原廠編碼 品牌 型號 頻率 頻率穩定度 包裝/封裝
NX2520SA-16MHZ-STD-CSW-4 NDK晶振 NX2520SA 16MHz ±15ppm 4-SMD, 貼片晶振
NX2520SA-16.000000MHZ NDK晶振 NX2520SA 16MHz ±10ppm 4-SMD, No Lead
NX2520SA-24.000000MHZ NDK晶振 NX2520SA 24MHz ±10ppm 4-SMD, No Lead
NX2520SA-24.000000MHZ-B8 NDK晶振 NX2520SA 24MHz ±10ppm 4-SMD, No Lead
NX2520SA-48.000000MHZ NDK晶振 NX2520SA 48MHz ±10ppm 4-SMD, No Lead
NX2520SA-16MHZ-EXS00A-CS05116 NDK晶振 NX2520SA 16MHz ±15ppm 4-SMD, No Lead
NX2520SA-25.000M-STD-CSW-5 NDK晶振 NX2520SA 25MHz ±25ppm 4-SMD, No Lead
NX2520SA-26MHZ-STD-CSX-1 NDK晶振 NX2520SA 26MHz ±10ppm 4-SMD, No Lead
NX2520SA-26.000000MHZ NDK晶振 NX2520SA 26MHz ±10ppm 4-SMD, No Lead
NX2520SA-30.000000MHZ NDK晶振 NX2520SA 30MHz ±10ppm 4-SMD, No Lead
NX2520SA-24.576000MHZ NDK晶振 NX2520SA 24.576MHz ±10ppm 4-SMD, No Lead
NX2520SA-20.000000MHZ NDK晶振 NX2520SA 20MHz ±10ppm 4-SMD, No Lead
NX2520SA-32.000000MHZ NDK晶振 NX2520SA 32MHz ±10ppm 4-SMD, No Lead
NX2520SA-44.000000MHZ NDK晶振 NX2520SA 44MHz ±10ppm 4-SMD, No Lead
NX2520SA-26.000000MHZ-B9 NDK晶振 NX2520SA 26MHz ±10ppm 4-SMD, No Lead
EXS00A-CS05400 NDK晶振 NX2520SA 19.2MHz ±30ppm 4-SMD, No Lead
NX2520SA-16MHZ-STD-CSW-5 NDK晶振 NX2520SA 16MHz ±25ppm 4-SMD, No Lead
NX2520SA-16.000000MHZ-W1 NDK晶振 NX2520SA 16MHz ±20ppm 4-SMD, No Lead
NX2520SA-40.000000MHZ NDK晶振 NX2520SA 40MHz ±10ppm 4-SMD, No Lead
NX2520SA-40.000000MHZ-W2 NDK晶振 NX2520SA 40MHz ±10ppm 4-SMD, No Lead
NX2520SA-40.000000MHZ-W3 NDK晶振 NX2520SA 40MHz ±10ppm 4-SMD, No Lead
NX2520SA-26MHZ-EXS00A-CS05497 NDK晶振 NX2520SA 26MHz ±10ppm 4-SMD, No Lead

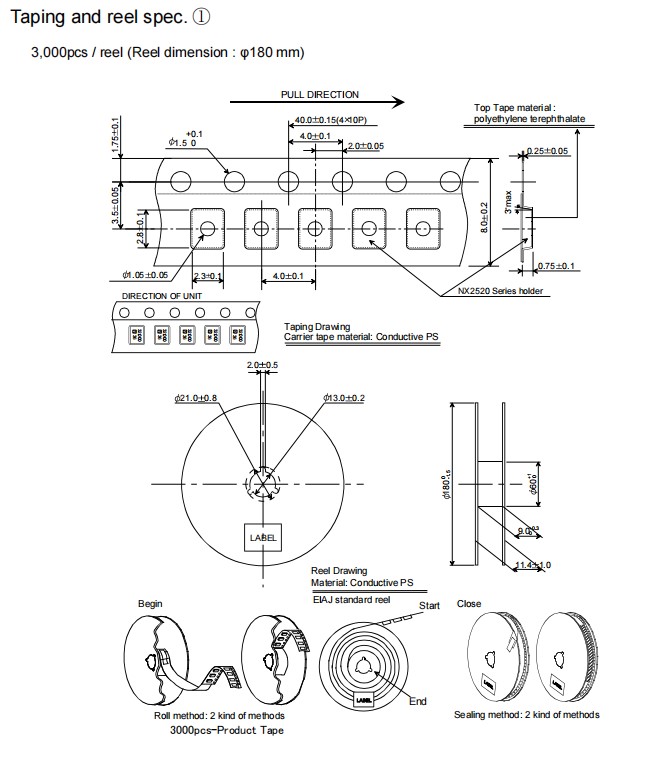

短程無線設備應用晶振NX2520SA-24.576000MHZ,2520mm體積的晶振,可以說是目前小型數碼產品的福音,目前超小型的智能手機里面所應用的就是小型的石英晶振,該產品最適用于無線通訊系統,無線局域網,已實現低相位噪聲,低電壓,低消費電流和高穩定度,超小型,質量輕等產品特點,產品本身編帶包裝方式,可對應自動高速貼片機應用,以及高溫回流焊接(產品無鉛對應),為無鉛產品.

NX2520SA-2

短程無線設備應用晶振NX2520SA-24.576000MHZ

安裝條件:

請確保在以下條件下使用該產品。否則,可能會導致產品的特性惡化或破壞。

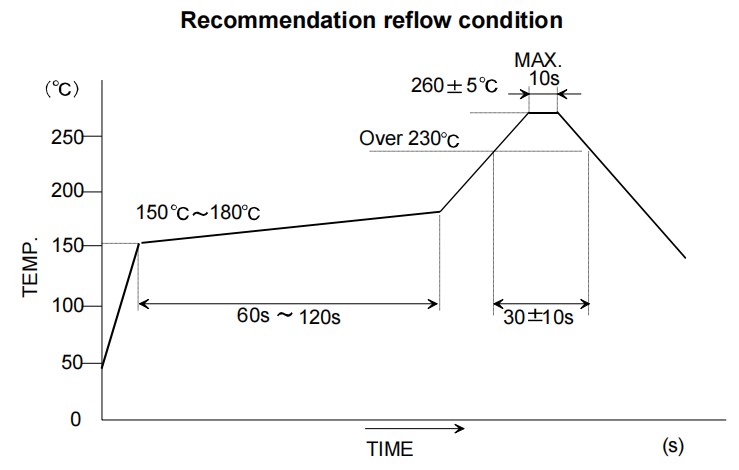

(1)回流焊耐熱峰值溫度:265℃, 10sec,加熱:230℃或更高,40秒,預熱:150~180℃,120秒,回流通道次數:2次

(2)手動焊接耐熱性將400°C的焊鐵壓在終端電極上4秒(兩次)

NX2520SA-3
