溫補晶體振蕩器,12.71003 KXO-81晶振,格耶晶體振蕩器
頻率:16.3680MHz
尺寸:2.0mmx1.6mm
溫補晶體振蕩器,12.71003 KXO-81晶振,格耶晶體振蕩器,公差:±2.0 ppm,工作溫度:-30°C~+85°C,儲存溫度范圍:-30°C~+85°C,尺寸:2.0mmx1.6mm,頻率:16.3680MHz,進口溫補晶體振蕩器,表貼式晶振,石英晶振,有源晶振,2016晶振,具有:超小型,輕薄型,高質量,耐磨損等特點,應用于:時鐘,車載遙控器,汽車音響,藍牙模塊晶振,安防系統等。
質量是GEYER晶振成功案例的基礎。作為提供陶瓷面晶振產品領域的國際活躍專家,我們深知全面客戶服務的意義和以客戶需求為中心的物流設計。通過集中我們在亞洲工廠的主要生產,德國的高端生產以及專業和高性能的開發和服務團隊,我們是可靠的合作伙伴。另外,根據DIN ISO 9001:2008,GEYER ELECTRONIC當然也獲得了認證。GEYER晶振,貼片晶振,KX-C晶振。

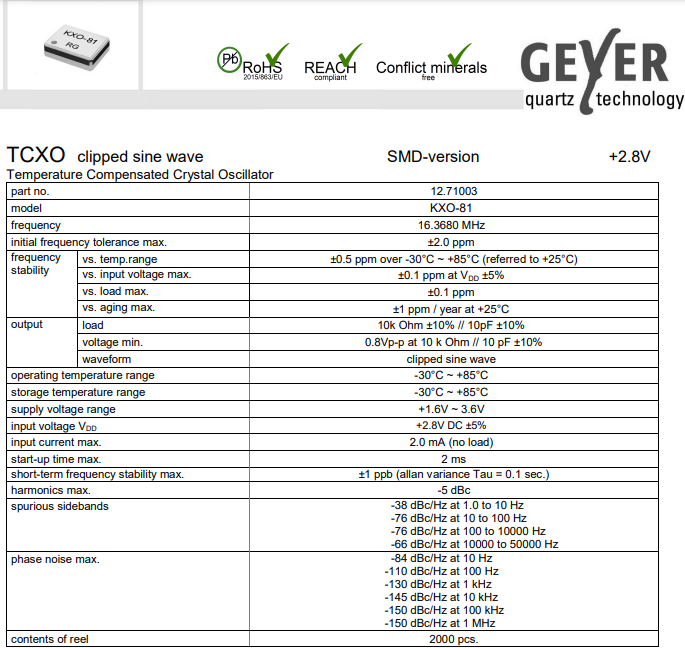

溫補晶體振蕩器,12.71003 KXO-81晶振,格耶晶體振蕩器,參數表
part no.
12.71003
model貼片晶振
KXO-81
frequency
16.3680 MHz
initial frequency tolerance max.
±2.0 ppm
vs. temp.range
±0.5 ppm over -30°C ~ +85°C (referred to +25°C)
vs. input voltage max.
±0. 1 ppm at VDD ±5%
vs. load max.
±0. 1 ppm
vs. aging max.
±1 ppm / year at +25°C
output
load
10k Ohm ±10% // 10pF ±10%
voltage min.
0.8Vp-p at 10 k Ohm // 10 pF ±10%
waveform
clipped sine wave
operating temperature range
-30°C ~ +85°C
storage temperature range
-30°C ~ +85°C
supply voltage range
+1.6V ~ 3.6V
input voltage VDD
+2.8V DC ±5%
input current max.
2.0 mA (no load)
start-up time max.
2 ms
short-term frequency stability max.
±1 ppb (allan variance Tau = 0.1 sec.)
harmonics max.
-5 dBc
spurious sidebands
phase noise max.
contents of reel
2000 pcs.

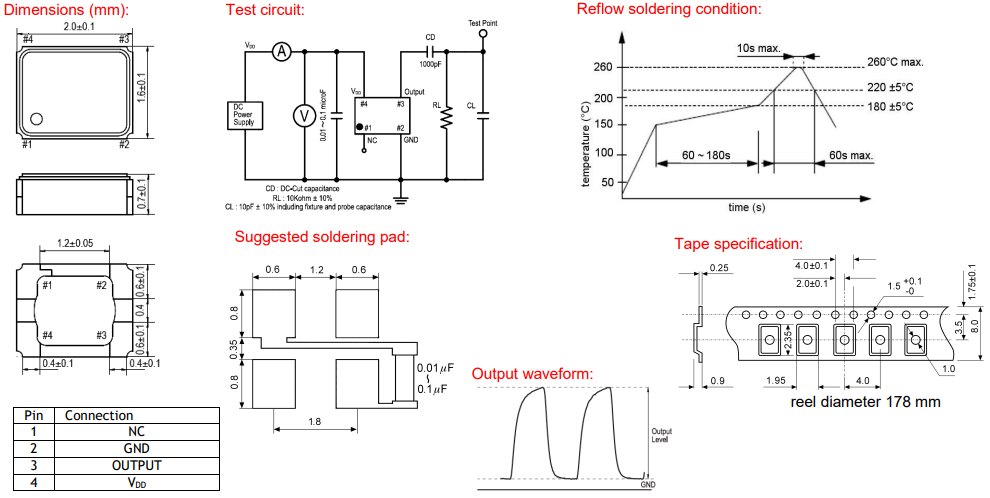

溫補晶體振蕩器,12.71003 KXO-81晶振,格耶晶體振蕩器,尺寸圖
編碼 | 晶振廠家 | 描述 | 型號 | 標準頻率 | 頻率容差 | 工作溫度 |
12.95582 | Geyer 晶振 | XTAL OSC XO 14.7456MHZ SMD | KXO-V95 | 14.7456 MHz | ±50ppm | -40°C ~ 85°C |
12.95549 | Geyer 晶振 | XTAL OSC XO 32.0000MHZ SMD | KXO-V95T | 32 MHz | ±50ppm | -40°C ~ 85°C |
12.95531 | Geyer 晶振 | XTAL OSC XO 3.6864MHZ SMD | KXO-V95T | 3.6864 MHz | ±50ppm | -40°C ~ 85°C |
12.90328 | Geyer 晶振 | XTAL OSC XO 16.0000MHZ CMOS SMD | KXO-V94T | 16 MHz | ±50ppm | -40°C ~ 85°C |
12.90321 | Geyer 晶振 | XTAL OSC XO 14.7456MHZ HCMOS SMD | KXO-V94 | 14.7456 MHz | ±50ppm | -40°C ~ 85°C |
12.95545 | Geyer 晶振 | XTAL OSC XO 20.0000MHZ SMD | KXO-V95T | 20 MHz | ±50ppm | -40°C ~ 85°C |
12.95103 | Geyer 晶振 | XTAL OSC XO 32.0000MHZ SMD | KXO-V96T | 32 MHz | ±50ppm | -40°C ~ 85°C |
12.9558 | Geyer 晶振 | XTAL OSC XO 3.579545MHZ SMD | KXO-V95 | 3.579545 MHz | ±50ppm | -20°C ~ 70°C |
12.95094 | Geyer 晶振 | XTAL OSC XO 14.31818MHZ SMD | KXO-V96T | 14.31818 MHz | ±50ppm | -40°C ~ 85°C |
12.95034 | Geyer 晶振 | XTAL OSC XO 20.0000MHZ SMD | KXO-V96T | 20 MHz | ±50ppm | -40°C ~ 85°C |
12.95542 | Geyer 晶振 | XTAL OSC XO 12.0000MHZ SMD | KXO-V95T | 12 MHz | ±50ppm | -40°C ~ 85°C |
12.94474 | Geyer 晶振 | XTAL OSC XO 27.0000MHZ SMD | KXO-V97T | 27 MHz | ±100ppm | -40°C ~ 85°C |
12.90343 | Geyer 晶振 | XTAL OSC XO 12.0000MHZ SMD | KXO-V94T | 12 MHz | ±50ppm | -40°C ~ 85°C |
12.90325 | Geyer 晶振 | XTAL OSC XO 3.6864MHZ HCMOS SMD | KXO-V94 | 3.6864 MHz | ±50ppm | -40°C ~ 85°C |
12.90311 | Geyer 晶振 | XTAL OSC XO 14.7456MHZ HCMOS SMD | KXO-V94 | 14.7456 MHz | ±100ppm | -40°C ~ 85°C |
12.95128 | Geyer 晶振 | XTAL OSC XO 27.0000MHZ SMD | KXO-V96E | 27 MHz | ±50ppm | -40°C ~ 85°C |
12.95102 | Geyer 晶振 | XTAL OSC XO 80.0000MHZ SMD | KXO-V96T | 80 MHz | ±50ppm | -40°C ~ 85°C |
12.90333 | Geyer 晶振 | XTAL OSC XO 40.0000MHZ SMD | KXO-V94T | 40 MHz | ±50ppm | -40°C ~ 85°C |
12.90337 | Geyer 晶振 | XTAL OSC XO 26.0000MHZ SMD | KXO-V94T | 26 MHz | ±50ppm | -40°C ~ 85°C |
12.94273 | Geyer 晶振 | XTAL OSC XO 32.0000MHZ SMD | KXO-V97T | 32 MHz | ±100ppm | -40°C ~ 85°C |
12.94365 | Geyer 晶振 | XTAL OSC XO 14.31818MHZ SMD | KXO-V97T | 14.31818 MHz | ±100ppm | -40°C ~ 85°C |
12.95546 | Geyer 晶振 | XTAL OSC XO 26.0000MHZ SMD | KXO-V95T | 26 MHz | ±50ppm | -40°C ~ 85°C |
12.92106 | Geyer 晶振 | XTAL OSC XO 65.0000MHZ SMD | KXO-V97T | 65 MHz | ±100ppm | -40°C ~ 85°C |
12.95571 | Geyer 晶振 | XTAL OSC XO 32.7680KHZ SMD | KXO-V95T | 32.768 kHz | ±30ppm | -40°C ~ 85°C |
12.90344 | Geyer 晶振 | XTAL OSC XO 4.0000MHZ SMD | KXO-V94T | 4 MHz | ±50ppm | -40°C ~ 85°C |
12.95538 | Geyer 晶振 | XTAL OSC XO 27.1200MHZ SMD | KXO-V95 | 27.12 MHz | ±50ppm | -20°C ~ 70°C |
12.94364 | Geyer 晶振 | XTAL OSC XO 48.0000MHZ SMD | KXO-V97T | 48 MHz | ±100ppm | -40°C ~ 85°C |
12.95568 | Geyer 晶振 | XTAL OSC XO 48.0000MHZ SMD | KXO-V95F | 48 MHz | ±50ppm | -40°C ~ 85°C |
12.90324 | Geyer 晶振 | XTAL OSC XO 27.0000MHZ HCMOS SMD | KXO-V94 | 27 MHz | ±50ppm | -40°C ~ 85°C |
12.94609 | Geyer 晶振 | XTAL OSC XO 1.0000MHZ SMD | KXO-V99 | 1 MHz | ±50ppm | -40°C ~ 85°C |
12.95101 | Geyer 晶振 | XTAL OSC XO 48.0000MHZ SMD | KXO-V96T | 48 MHz | ±50ppm | -40°C ~ 85°C |
12.92146 | Geyer 晶振 | XTAL OSC XO 22.1184MHZ SMD | KXO-V97T | 22.1184 MHz | ±100ppm | -40°C ~ 85°C |
12.90327 | Geyer 晶振 | XTAL OSC XO 48.0000MHZ HCMOS SMD | KXO-V94T | 48 MHz | ±50ppm | -40°C ~ 85°C |
12.95091 | Geyer 晶振 | XTAL OSC XO 10.0000MHZ SMD | KXO-V96T | 10 MHz | ±50ppm | -40°C ~ 85°C |
12.94449 | Geyer 晶振 | XTAL OSC XO 18.4320MHZ SMD | KXO-V97T | 18.432 MHz | ±100ppm | -40°C ~ 85°C |
12.94456 | Geyer 晶振 | XTAL OSC XO 3.6864MHZ SMD | KXO-V97T | 3.6864 MHz | ±100ppm | -40°C ~ 85°C |
12.95551 | Geyer 晶振 | XTAL OSC XO 48.0000MHZ SMD | KXO-V95T | 48 MHz | ±50ppm | -40°C ~ 85°C |
12.90322 | 表貼式晶振 | XTAL OSC XO 20.0000MHZ CMOS SMD | KXO-V94T | 20 MHz | ±50ppm | -40°C ~ 85°C |
12.95524 | Geyer 晶振 | XTAL OSC XO 25.0000MHZ SMD | KXO-V95E | 25 MHz | ±100ppm | -40°C ~ 85°C |
12.9034 | Geyer 晶振 | XTAL OSC XO 32.7680KHZ SMD | KXO-V94T | 32.768 kHz | ±20ppm | -40°C ~ 85°C |
12.95543 | Geyer 晶振 | XTAL OSC XO 14.31818MHZ SMD | KXO-V95T | 14.31818 MHz | ±50ppm | -40°C ~ 85°C |
12.95104 | Geyer 晶振 | XTAL OSC XO 32.7680KHZ SMD | KXO-V96-18 | 32.768 kHz | ±50ppm | -20°C ~ 70°C |
12.94422 | Geyer 晶振 | XTAL OSC XO 11.0592MHZ SMD | KXO-V97T | 11.0592 MHz | ±100ppm | -40°C ~ 85°C |
12.95548 | Geyer 晶振 | XTAL OSC XO 4.0000MHZ SMD | KXO-V95T | 4 MHz | ±50ppm | -40°C ~ 85°C |
12.90307 | Geyer 晶振 | XTAL OSC XO 1.8432MHZ HCMOS SMD | KXO-V94 | 1.8432 MHz | ±50ppm | -40°C ~ 85°C |
