以太網交換機常用的晶振SG7050CCN編碼X1G004501005700

返回列表 來源：壹兆電子 查看手機網址
掃一掃!以太網交換機常用的晶振SG7050CCN編碼X1G004501005700掃一掃!
 瀏覽：- 發布日期：2022-10-11 17:14:37【大 中 小】
分享到：
  以太網是全球使用最廣泛的局域網技術，而已經被淘汰的撥號上網（ADSL）、十年前左右的寬度上網/貓（PPPOE）、現在的光纖上網/光貓（EPON/GPON）、以及平時所說的交換機（以太網交換機），都屬于廣域網技術。由于以太網的強大，無線wifi技術也借鑒了以太網的思想，比如wifi中的mac地址，就是來自于以太網；還有wifi跟局域網一樣，也是廣播類型的網絡。所以無線中也有以太網的身影。

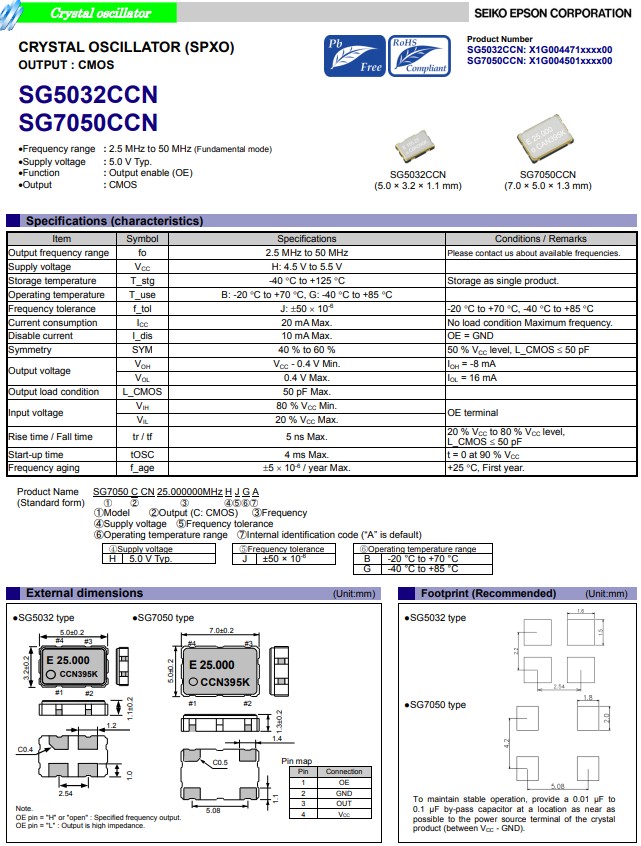

愛普生晶振SG7050CCN是一款CMOS輸出石英晶體振蕩器，小體積尺寸7.0x5.0mm有源晶振，四腳貼片晶振，電源電壓4.5V至5.5V，頻率范圍2.5MHz至50MHz，工作溫度范圍-40℃至+85℃，具有小體積輕薄型，低抖動，低功耗，高性能，高品質等特點，SG7050CCN貼片晶振適用于以太網，移動通訊，無線藍牙，工業控制，消費電子，智能安防，物聯網，車載電子，光電技術及各種變頻調速設備等通訊設備。

以太網交換機常用的晶振SG7050CCN編碼X1G004501005700

產品編碼 型號 頻率 愛普生晶振 輸出波 電源電壓 工作溫度
X1G004501000100 SG7050CCN 4.000000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501000300 SG7050CCN 16.000000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501000400 SG7050CCN 48.000000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501000500 SG7050CCN 11.059200MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501000600 SG7050CCN 20.000000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501000800 SG7050CCN 25.000000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501000900 SG7050CCN 33.000000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501001000 SG7050CCN 40.000000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501001100 SG7050CCN 44.000000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501001200 SG7050CCN 49.152000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501001400 SG7050CCN 4.915200MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501001500 SG7050CCN 8.000000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501001600 SG7050CCN 5.000000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501001700 SG7050CCN 24.000000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501001800 SG7050CCN 3.579545MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501001900 SG7050CCN 3.686400MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501002000 SG7050CCN 6.000000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501002100 SG7050CCN 12.000000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501002600 SG7050CCN 14.745600MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501002800 SG7050CCN 27.095000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501002900 SG7050CCN 29.500000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C

SG5032CCN，SG7050CCN

X1G004501003000 SG7050CCN 3.072000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501003100 SG7050CCN 10.000000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501003200 SG7050CCN 12.288000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501003300 SG7050CCN 18.432000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501003400 SG7050CCN 19.660800MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501004000 SG7050CCN 7.372800MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501004800 SG7050CCN 15.000000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501005000 SG7050CCN 6.600000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501005700 SG7050CCN 20.000000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -20 to 70°C
X1G004501006000 SG7050CCN 8.192000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501006100 SG7050CCN 9.830400MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501007900 SG7050CCN 7.000000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501008300 SG7050CCN 6.144000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501008400 SG7050CCN 14.318180MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501008600 SG7050CCN 32.768000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -20 to 70°C
X1G004501008900 SG7050CCN 33.330000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501009000 SG7050CCN 40.960000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501009100 SG7050CCN 13.560000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -20 to 70°C
X1G004501009200 SG7050CCN 33.333000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501009300 SG7050CCN 9.170000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C
X1G004501009600 SG7050CCN 36.864000MHz 7.00x5.00x1.50mm CMOS 4.500 to 5.500V -40 to 85°C

以太網交換機常用的晶振SG7050CCN編碼X1G004501005700

石英晶振作為電子產品不可或缺的一部分，應用領域非常廣泛，特別是在通信產品使用上，以太網的出現無疑是對石英晶振應用市場起到了擴大的作用，然而在以太網交換機中或是各模塊上使用石英晶振的性能需求都比較高，大多都為有源晶振系列產品。
石英晶振的高度穩定的振蕩頻率，保證整體設備完全發揮功能特性，低電壓可降低功耗，并繼續保持交換機帶寬的擴展能力，高精度，耐高溫，確保數據中心對經濟高效互聯，提高數據傳輸帶寬。
