通訊設備專用晶振XO57CTEHNA2M4576時鐘振蕩器

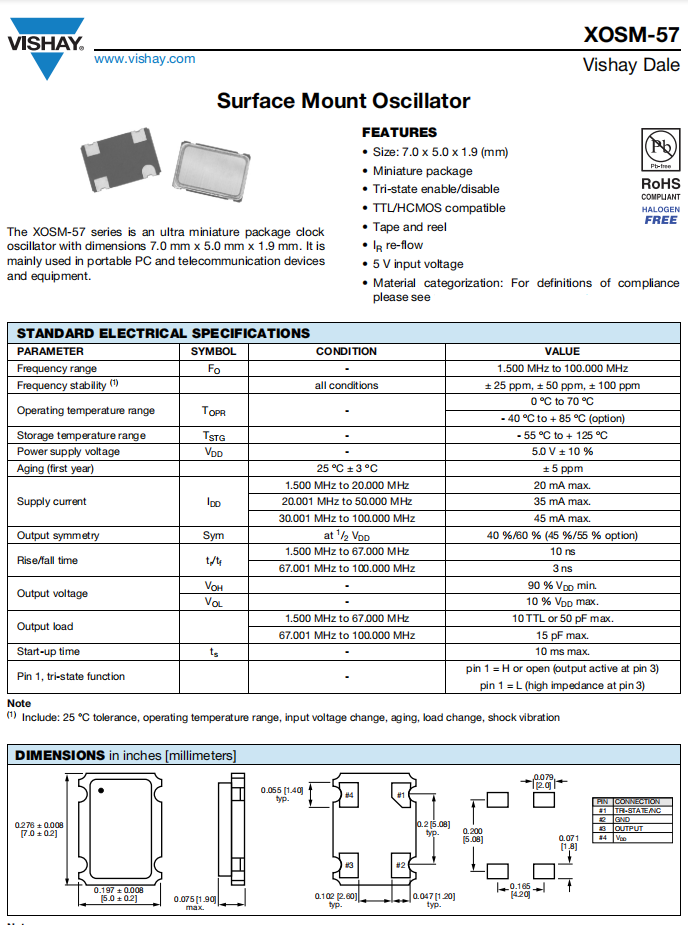

Vishay威世晶振XOSM-57系列是一個超微型封裝時鐘晶體振蕩器，小體積晶振尺寸為7.0x5.0x1.9mm微型表面安裝振蕩器，四腳貼片晶振，有源晶振，石英晶振，無鉛環保晶振，石英晶體振蕩器，頻率范圍：1.500MHz至100.000MHz，工作溫度范圍：- 40℃至+85℃，供電電壓：5.0V ±10 %，適用于通訊設備，工業級晶振，便攜式電腦，電信設備，無線網絡，藍牙模塊，物聯網等應用。通訊設備專用晶振XO57CTEHNA2M4576時鐘振蕩器
| 元器件詳情 | 頻率 | 頻率溫度性 | 電源電壓 | 工作溫度 | 尺寸 |
| XO57CTECNA12M | 12MHz | ±100ppm | 5V | 0°C to 70°C | 7 x 5 x 1.9 mm |
| Vishay | |||||
| XO57 系列 7 x 5 x 1.9 mm 12 MHz 3.3 V ±100 ppm 表面貼裝 振蕩器 | |||||
| XO37CRECNA50M | 50MHz | ±100ppm | 5V | -40°C to +85°C | 7 x 5 x 1.9 mm |
| Vishay | |||||
| XOSM-573 Series 50 MHz 7 x 5 mm 5 V ±100 ppm Surface Mount Clock Oscillator | |||||
| XO37DREHNA18M432貼片晶振 | 18.432MHz | ±100ppm | 3.3V | -40°C to +85°C | 7 x 5 x 1.9 mm |
| Vishay | |||||
| XOSM-573 Series 18.432 MHz 7 x 5 mm 5 V ±50 ppm Surface Mount Clock Oscillator | |||||
| XO37DTEHNA30M | 30MHz | ±50ppm | 5V | 0°C to 70°C | 7 x 5 x 1.9 mm |
| Vishay | |||||
| XOSM-573 Series 30 MHz 7 x 5 mm 5 V ±50 ppm Surface Mount Clock Oscillator | |||||
| XO37DTEHNA33M33 | 33.33MHz | ±50ppm | 5V | 0°C to 70°C | 7 x 5 x 1.9 mm |
| Vishay | |||||
| XOSM-573 Series 33.33 MHz 7 x 5 mm 5 V ±50 ppm Surface Mount Clock Oscillator | |||||
| XO57CTECNA12M | 12MHz | ±100ppm | 5V | 0°C to 70°C | 7 x 5 x 1.9 mm |
| Vishay | |||||
| XO57 系列 7 x 5 x 1.9 mm 12 MHz 3.3 V ±100 ppm 表面貼裝 振蕩器 | |||||
| XO57CTEHNA2M4576 | 2.4576MHz | ±100ppm | 5V | 0°C to 70°C | 7 x 5 x 1.9 mm |
| Vishay | |||||
| XOSM-57 Series 2.4576 MHZ 7 x 5 mm 5 V ±100 ppm Surface Mount Clock Oscillator | |||||
| XO57DRECNA14M7456 | 14.7456M | ±100ppm | 5V | 0°C to 70°C | 7 x 5 x 1.9 mm |
| Vishay | |||||
| XOSM-57 Series 14.756 MHz 7 x 5 mm 5 V ±50 ppm Surface Mount Clock Oscillator | |||||
| XO57DTECNA19M6608 | 19.6608MHz | ±50ppm | 5V | 0°C to 70°C | 7 x 5 x 1.9 mm |
| Vishay | |||||
| XOSM-57 Series 19.6608 MHz 7 x 5 mm 5 V ±50 ppm Surface Mount Clock Oscillator | |||||
| XO63DTEHNA30M | 30MHz | ±50ppm | 5V | 0°C to 70°C | 7 x 5 x 1.9 mm |
| Vishay | |||||
| XO63 30 MHz 50 PPM 表面貼裝 振蕩器 | |||||
| XOSM-573-B-E-40M | 40MHz | ±100ppm | 5V | 0°C to 70°C | 7 x 5 x 1.9 mm |
| Vishay | |||||
| XOSM-573 40.000 MHz 7.0 x 5.0 x 1.6 mm 3.3 V 表面貼裝 振蕩器 | |||||
| XOSM-573-B-E-40M | 40MHz | ±100ppm | 5V | 0°C to 70°C | 7 x 5 x 1.9 mm |
| Vishay | |||||
| XOSM-573 40.000 MHz 7.0 x 5.0 x 1.6 mm 3.3 V 表面貼裝 振蕩器 | |||||
| XOSM-573AARE25M有源晶振 | 25MHz | ±25ppm | 5V | -40°C to +85°C | 7 x 5 x 1.9 mm |
| Vishay | |||||
| XOSM 25.000 MHz 7 x 5 mm 3.3 V 振蕩器 | |||||
| XOSM-57AARE6.0000M | 6MHz | ±25ppm | 5V | -40°C to +85°C | 7 x 5 x 1.9 mm |
| Vishay | |||||
| XOSM-57 Series 6 MHz 7 x 5 mm 5 V ±25 ppm Surface Mount Clock Oscillator | |||||
| XOVC1CDNA1M | 1MHz | ±100ppm | 5V | 0°C to 70°C | 20.4x12.9x5.08mm |
| Vishay | |||||
| XOVC-23 系列 1 MHz 5 V 100 ppm 全尺寸 壓控晶體振蕩器 |
