Pletronics低功耗SM2245KE-32.768K-T3K晶體振蕩器的精度和功率效率
Pletronics低功耗SM2245KE-32.768K-T3K晶體振蕩器的精度和功率效率
Pletronics公司一直是頻率控制和定時產品市場的創新者。晶體、振蕩器、(VC)TCXO、GPS模塊、OCXO和迷你烤箱的產品套件提供從初始設計到生產的解決方案和支持,以適應各種應用。Pletronics為Cardinal Components和Isotemp品牌提供動力,作為一個集團,我們的使命是通過在整個應用生命周期內為頻率控制產品和RF技術解決方案提供一流的質量、服務和協作支持,幫助客戶在其細分市場中取得優勢。
Pletronics晶振公司投資于石英晶體技術,為那些需要頻率控制設備的用戶提供最新的大批量產品。Pletronics成立了合資企業和子公司,以提供最高頻率、最高質量的零件。Pletronics,Inc .致力于通過提高產量、降低成本、提高客戶滿意度和滿足員工對培訓、安全和士氣的期望來持續提高質量。

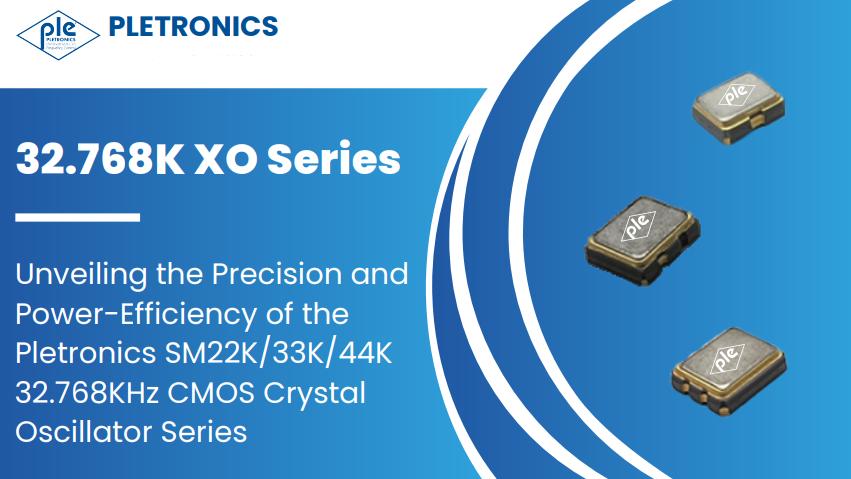

Pletronics SM22K/33K/44K 32.768KHz CMOS晶體振蕩器系列的精度和功率效率
在便攜式、可穿戴和電池驅動設備不斷發展的格局中,對緊湊、節能組件的需求從未如此之大。Pletronics SM22K/SM33K/SM44K 32.768KHz CMOS石英晶體振蕩器系列以其多樣化的封裝尺寸陣容、出色的頻率穩定性和顯著的低功耗而成為精度的燈塔。本文探討了該系列的關鍵特性,強調了它作為現代電子應用的高級實時時鐘參考的作用。
1,微小尺寸(SM22K:2.05x1.65mm)
Pletronics普銳特SM22K/SM33K/SM44K系列石英晶振擁有多功能的封裝尺寸陣容,滿足設計工程師的各種需求。這些振蕩器具有2.05x1.65mm、2.5x2.0mm和3.2x2.5mm晶振的緊湊尺寸,在不影響性能的情況下提供靈活性。封裝尺寸的范圍確保了無縫集成到廣泛的應用程序中,從微型可穿戴設備到更堅固的便攜式設備。
2,優異的頻率穩定性(-40°C至85°C時高達±20ppm)
該振蕩器系列的核心在于其卓越的頻率穩定性,為精確計時樹立了新的基準。該系列的頻率穩定性低至±20ppm,可提供無與倫比的精度,確保在各種操作條件下保持可靠和一致的計時。這一功能使其成為醫療設備、工業傳感器和通信設備等精度至上的應用的理想選擇。
3,低功耗(最大電流消耗:35µA)
32.768K晶體CMOS晶體振蕩器系列的一個決定性特征是其顯著的低功耗。這些振蕩器的最大電流消耗僅為35µa,大大提高了電子設備的整體能效。這對于電池操作和可穿戴設備尤為重要,因?yàn)樵谶@些設備中,節能直接影響設備的壽命和可用性。
實時時鐘參考
該系列的精確頻率穩定性和低功耗使其成為現代電子中實時時鐘參考的絕佳選擇。從健身追蹤器和智能手表到物聯網設備和醫療監視器,實時時鐘對于保持準確的計時至關重要。SM22K/33K/44K 32.768K CMOS石英晶體振蕩器系列確保這些設備能夠精確工作,同時最大限度地延長電池壽命。
結論
總之,有源晶振SM22K/SM33K/SM44K 32.768KHz CMOS晶體振蕩器系列在便攜式、可穿戴和電池操作設備的精確計時領域脫穎而出。其多樣化的封裝尺寸陣容、出色的頻率穩定性和低功耗使其成為設計工程師為其尖端應用尋找頂級組件的絕佳選擇。隨著技術的不斷進步,該振蕩器系列為各個行業的更可靠、更節能的電子設備鋪平了道路。
Pletronics低功耗SM2245KE-32.768K-T3K晶體振蕩器的精度和功率效率
Unveiling the Precision and Power-Efficiency of the Pletronics SM22K/33K/44K 32.768KHz CMOS Crystal Oscillator Series
In the ever-evolving landscape of portable, wearable, and battery-operated devices, the demand for compact, energy-efficient components has never been greater. Pletronics SM22K/33K/44K 32.768KHz CMOS Crystal Oscillator series emerges as a beacon of precision, featuring a diverse package size lineup, outstanding frequency stability, and remarkably low power consumption. This article explores the key attributes of this series, emphasizing its role as a superior real-time clock reference for modern electronic applications.
1. Tiny Size (SM22K: 2.05 x 1.65mm)
The SM22K/33K/44K series boasts a versatile package size lineup, catering to the diverse needs of design engineers. Available in compact dimensions of 2.05 x 1.65mm, 2.5 x 2.0mm, and 3.2 x 2.5mm, these oscillators provide flexibility without compromising on performance. The range of package sizes ensures seamless integration into a wide array of applications, from tiny wearables to more substantial portable devices.
2. Excellent Frequency Stability (as good as ±20ppm for -40°C to 85°C)
At the heart of this oscillator series lies its exceptional frequency stability, setting new benchmarks in precision timekeeping. With frequency stability as low as ±20ppm, this series delivers unparalleled accuracy, ensuring reliable and consistent timekeeping in various operating conditions. This feature makes it an ideal choice for applications where precision is paramount, such as medical devices, industrial sensors, and communication equipment.
3. Low Power Consumption (Max Current Consumption: 35µA)
One of the defining characteristics of the 32.768KHz CMOS Crystal Oscillator series is its remarkably low power consumption. Operating with a maximum current consumption of just 35µA, these oscillators contribute significantly to the overall energy efficiency of electronic devices. This is particularly crucial for battery-operated and wearable devices, where power conservation directly impacts the device's lifespan and usability
Real-Time Clock Reference
The series' precise frequency stability and low power consumption make it an excellent choice as a real-time clock reference in modern electronics. Real-time clocks are critical for maintaining accurate timekeeping in applications ranging from fitness trackers and smartwatches to IoT devices and medical monitors. The SM22K/33K/44K 32.768KHz CMOS Crystal Oscillator series ensures that these devices can operate with precision while maximizing battery life.
Conclusion
In conclusion, the SM22K/33K/44K 32.768KHz CMOS Crystal Oscillator series stands out as a powerhouse in the realm of precision timekeeping for portable, wearable, and battery-operated devices. Its diverse package size lineup, outstanding frequency stability, and low power consumption make it a compelling choice for design engineers seeking top-notch components for their cutting-edge applications. As technology continues to advance, this oscillator series paves the way for more reliable and energy-efficient electronic devices across various industries.
Pletronics低功耗SM2245KE-32.768K-T3K晶體振蕩器的精度和功率效率
