表貼式晶振,12.86512 KX-6晶振,GEYER晶振
頻率:27.12MHz

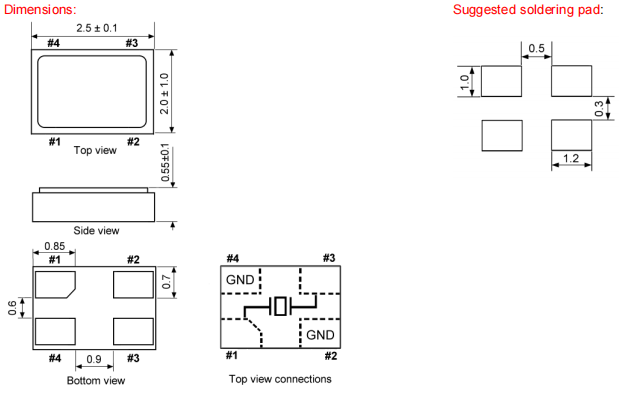

尺寸:2.5x2.0mm
表貼式晶振,12.86512 KX-6晶振,GEYER晶振,尺寸:2.5x2.0mm,頻率:27.12MHz,精度:±30ppm,工作溫度方范圍:-20°C ~ 70°C。四腳貼片晶振,石英晶體晶振,貼片晶振,表貼式晶振,安防系統晶振,具有輕薄型,低磨損等特征,應用于:安防設備晶振,電子設備晶振等方面,石英晶振的研磨技術:通過對晶振切割整形后的晶片進行研磨,使石英晶振的晶片達到(厚度/頻率)的一定范圍。2520晶振晶片厚度與頻率的關系為:在壓電晶體行業,生產晶振頻率的高低是顯示鴻星技術水平的一個方面,通過理論與實際相結合,累積多年的晶振研磨經驗,通過深入細致地完善石英晶振研磨工藝技術,注重貼片晶振研磨過程.
表貼式晶振,12.86512 KX-6晶振,GEYER晶振,

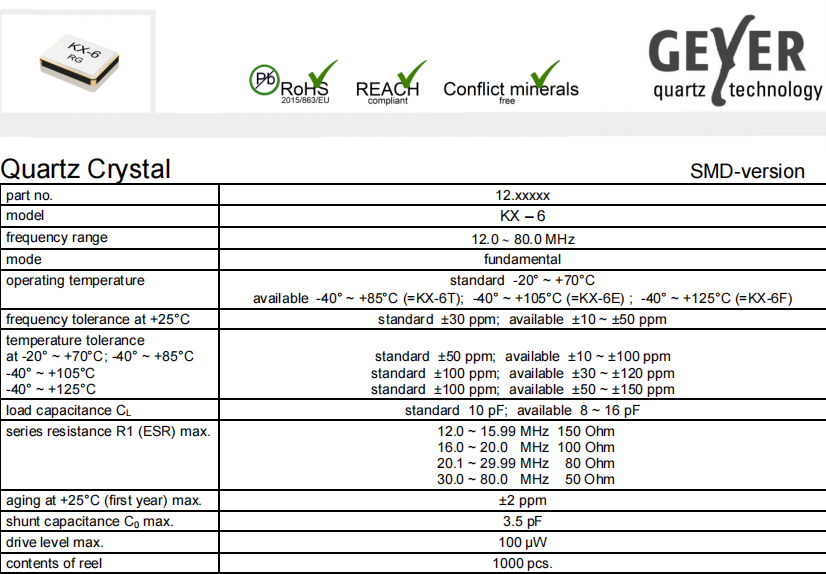

part no. | 12.86512 | |||
model | KX – 6石英晶振 | |||
frequency range | 27.12MHz | |||
mode | fundamental | |||
operating temperature |
standard -20° ~ +70°C available -40° ~ +85°C (=KX-6T); -40° ~ +105°C (=KX-6E) ; -40° ~ +125°C (=KX-6F) |
|||
frequency tolerance at +25°C | standard ±30 ppm; available ±10 ~ ±50 ppm | |||
temperature tolerance at -20° ~ +70°C; -40° ~ +85°C -40° ~ +105°C -40° ~ +125°C |
standard ±50 ppm; available ±10 ~ ±100 ppm standard ±100 ppm; available ±30 ~ ±120 ppm standard ±100 ppm; available ±50 ~ ±150 ppm |
|||
load capacitance CL | standard 10 pF; available 8 ~ 16 pF | |||
series resistance R1 (ESR) max. |
12.0 ~ 15.99 MHz 150 Ohm 16.0 ~ 20.0 MHz 100 Ohm 20.1 ~ 29.99 MHz 80 Ohm 30.0 ~ 80.0 MHz 50 Ohm |
|||
aging at +25°C (first year) max. | ±2 ppm | |||
shunt capacitance C0 max. | 3.5 pF | |||
drive level max. | 100 µW | |||
contents of reel | 1000 pcs. |
原廠編碼 | 參數描述 | 供應商 | 型號 | 頻率穩定性 | 工作溫度范圍 | STANDARD PACKAGE NA… |
12.86509 | Geyer 晶振 | Cystal 48.0Mhz 10pF SMD | KX-6 | ±30ppm | -20°C ~ 70°C | 4-SMD, No Lead |
12.86531 | Geyer 晶振 | Cystal 16.0Mhz 10pF SMD | KX-6T | ±30ppm | -40°C ~ 85°C | 4-SMD, No Lead |
12.86512 | Geyer 晶振 | Cystal 20.0Mhz 10pF SMD | KX-6 | ±30ppm | -20°C ~ 70°C | 4-SMD, No Lead |
12.8655 | Geyer 晶振 | Crystal 16.0Mhz 10pF SMD | KX-6E | ±30ppm | -40°C ~ 105°C | 4-SMD, No Lead |
12.86526 | Geyer 晶振 | Cystal 26.0Mhz 10pF SMD | KX-6T | ±10ppm | -40°C ~ 85°C | 4-SMD, No Lead |
12.86517 | Geyer 晶振 | Cystal 24.0Mhz 10pF SMD | KX-6 | ±30ppm | -20°C ~ 70°C | 4-SMD, No Lead |
12.86533 | Geyer 晶振 | Cystal 26.0Mhz 10pF SMD | KX-6T | ±30ppm | -40°C ~ 85°C | 4-SMD, No Lead |
12.8652 | Geyer 晶振 | Cystal 27.0Mhz 10pF SMD | KX-6 | ±30ppm | -20°C ~ 70°C | 4-SMD, No Lead |
12.86574 | Geyer 晶振 | Crystal 27.0Mhz 8pF SMD | KX-6F | ±30ppm | -40°C ~ 125°C | 4-SMD, No Lead |
12.86527 | Geyer 晶振 | Cystal 20.0Mhz 10pF SMD | KX-6T | ±10ppm | -40°C ~ 85°C | 4-SMD, No Lead |
12.86505 | Geyer 晶振 | Cystal 26.0Mhz 10pF SMD | KX-6 | ±30ppm | -20°C ~ 70°C | 4-SMD, No Lead |
12.86556 | Geyer 晶振 | Crystal 40.0Mhz 8pF SMD | KX-6T | ±10ppm | -40°C ~ 85°C | 4-SMD, No Lead |
12.86511 | Geyer 晶振 | Crystal 18.4320Mhz 10pF SMD | KX-6 | ±30ppm | -20°C ~ 70°C | 4-SMD, No Lead |
12.86536 | Geyer 晶振 | Crystal 14.318180Mhz 10pF SMD | KX-6 | ±30ppm | -20°C ~ 70°C | 4-SMD, No Lead |
12.86561 | Geyer 晶振 | Crystal 40.0Mhz 10pF SMD | KX-6T | ±10ppm | -40°C ~ 85°C | 4-SMD, No Lead |
12.86564 | Geyer 晶振 | Crystal 14.318180Mhz 10pF SMD | KX-6T | ±30ppm | -40°C ~ 85°C | 4-SMD, No Lead |
12.86592 | Geyer 晶振 | Crystal 25.0Mhz SMD KX-6T 12pF, | KX-6T | ±10ppm | -40°C ~ 85°C | 4-SMD, No Lead |
