有源晶振,12.97053 KXO-86晶振,格耶晶體振蕩器
頻率:8.0MHz
尺寸:2.5mmx2.0mm
有源晶振,12.97053 KXO-86晶振,格耶晶體振蕩器,公差:±2 ppm,工作溫度:-40°C~+85°C,儲存溫度范圍:-55°C~+125°C,尺寸:2.5mmx2.0mm,頻率:8.0MHz,溫度補償晶體振蕩器,有源石英晶振,SMD晶體振蕩器,醫療設備晶振,具有:穩定性,高精度,高質量,耐高溫,耐磨損等特點,應用于:醫療方面,藍牙音響,汽車電子控制板,安防設備,無線局域網等。
GEYER晶振,貼片晶振,KX-C晶振,GEYER ELECTRONIC成立于1964年,總部位于慕尼黑/德國.幾十年來,GEYER ELECTRONIC一直是頻率產品,石英晶體,振蕩器和陶瓷諧振器的領先制造商之一。另外,我們還生產品牌電池,蓄電池(可充電電池)和負載技術。最高的質量,創造力和安全性是我們創新解決方案的特點。

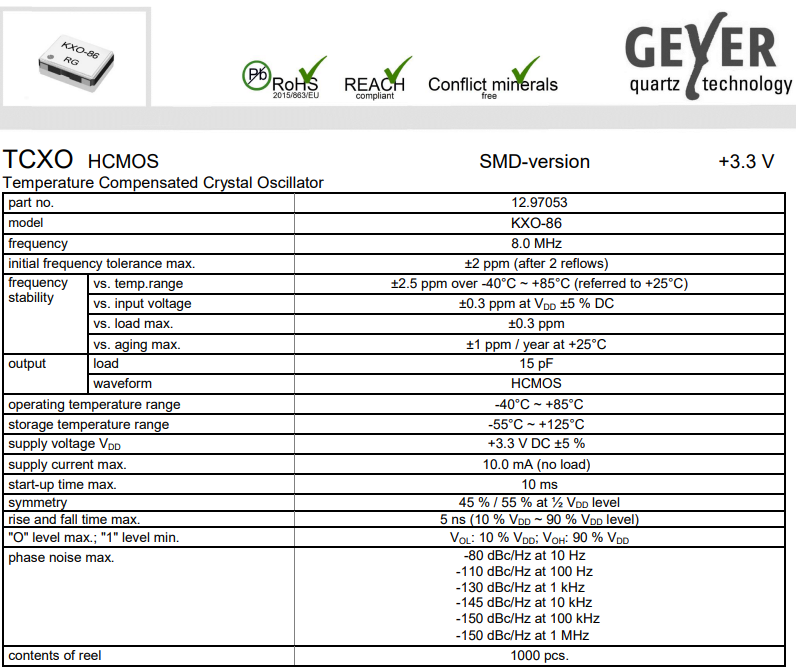

有源晶振,12.97053 KXO-86晶振,格耶晶體振蕩器,參數表
part no.
12.97053
model石英晶振振蕩器
KXO-86
frequency
8.0 MHz
initial frequency tolerance max.
±2 ppm (after 2 reflows)
vs. temp.range
±2.5 ppm over -40°C ~ +85°C (referred to +25°C)
vs. input voltage
±0.3 ppm at VDD ±5 % DC
vs. load max.
±0.3 ppm
vs. aging max.
± 1 ppm / year at +25°C
output
load
15 pF
waveform
HCMOS
operating temperature range
-40°C ~ +85°C
storage temperature range
-55°C ~ +125°C
supply voltage VDD
+3.3 V DC ±5 %
supply current max.
10.0 mA (no load)
start-up time max.
10 ms
symmetry
45 % / 55 % at ½ VDD level
rise and fall time max.
5 ns ( 10 % VDD ~ 90 % VDD level)
"O" level max.; "1" level min.
VOL : 10 % VDD ; VOH : 90 % VDD
phase noise max.
contents of reel
1000 pcs.

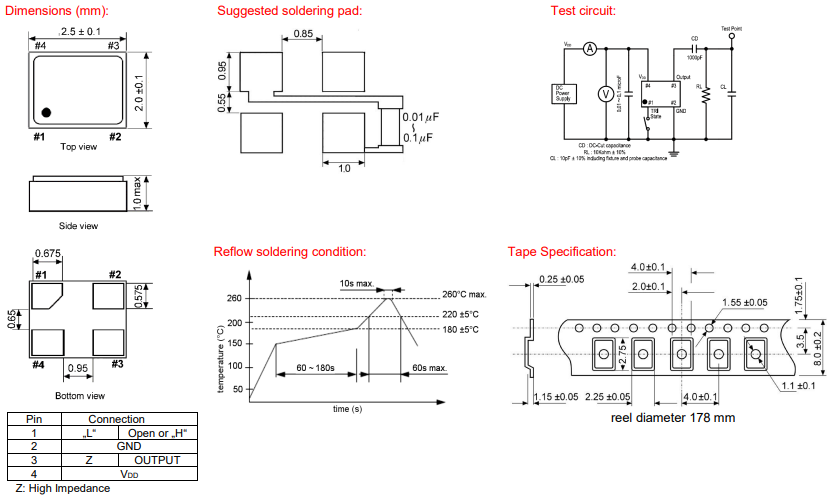

有源晶振,12.97053 KXO-86晶振,格耶晶體振蕩器,尺寸圖
編碼 | 晶振廠家 | 描述 | 型號 | 標準頻率 | 頻率容差 | 工作溫度 |
12.95582 | SMD晶體振蕩器 | XTAL OSC XO 14.7456MHZ SMD | KXO-V95 | 14.7456 MHz | ±50ppm | -40°C ~ 85°C |
12.95549 | Geyer 晶振 | XTAL OSC XO 32.0000MHZ SMD | KXO-V95T | 32 MHz | ±50ppm | -40°C ~ 85°C |
12.95531 | Geyer 晶振 | XTAL OSC XO 3.6864MHZ SMD | KXO-V95T | 3.6864 MHz | ±50ppm | -40°C ~ 85°C |
12.90328 | Geyer 晶振 | XTAL OSC XO 16.0000MHZ CMOS SMD | KXO-V94T | 16 MHz | ±50ppm | -40°C ~ 85°C |
12.90321 | Geyer 晶振 | XTAL OSC XO 14.7456MHZ HCMOS SMD | KXO-V94 | 14.7456 MHz | ±50ppm | -40°C ~ 85°C |
12.95545 | Geyer 晶振 | XTAL OSC XO 20.0000MHZ SMD | KXO-V95T | 20 MHz | ±50ppm | -40°C ~ 85°C |
12.95103 | Geyer 晶振 | XTAL OSC XO 32.0000MHZ SMD | KXO-V96T | 32 MHz | ±50ppm | -40°C ~ 85°C |
12.9558 | Geyer 晶振 | XTAL OSC XO 3.579545MHZ SMD | KXO-V95 | 3.579545 MHz | ±50ppm | -20°C ~ 70°C |
12.95094 | Geyer 晶振 | XTAL OSC XO 14.31818MHZ SMD | KXO-V96T | 14.31818 MHz | ±50ppm | -40°C ~ 85°C |
12.95034 | Geyer 晶振 | XTAL OSC XO 20.0000MHZ SMD | KXO-V96T | 20 MHz | ±50ppm | -40°C ~ 85°C |
12.95542 | Geyer 晶振 | XTAL OSC XO 12.0000MHZ SMD | KXO-V95T | 12 MHz | ±50ppm | -40°C ~ 85°C |
12.94474 | Geyer 晶振 | XTAL OSC XO 27.0000MHZ SMD | KXO-V97T | 27 MHz | ±100ppm | -40°C ~ 85°C |
12.90343 | Geyer 晶振 | XTAL OSC XO 12.0000MHZ SMD | KXO-V94T | 12 MHz | ±50ppm | -40°C ~ 85°C |
12.90325 | Geyer 晶振 | XTAL OSC XO 3.6864MHZ HCMOS SMD | KXO-V94 | 3.6864 MHz | ±50ppm | -40°C ~ 85°C |
12.90311 | Geyer 晶振 | XTAL OSC XO 14.7456MHZ HCMOS SMD | KXO-V94 | 14.7456 MHz | ±100ppm | -40°C ~ 85°C |
12.95128 | Geyer 晶振 | XTAL OSC XO 27.0000MHZ SMD | KXO-V96E | 27 MHz | ±50ppm | -40°C ~ 85°C |
12.95102 | Geyer 晶振 | XTAL OSC XO 80.0000MHZ SMD | KXO-V96T | 80 MHz | ±50ppm | -40°C ~ 85°C |
12.90333 | Geyer 晶振 | XTAL OSC XO 40.0000MHZ SMD | KXO-V94T | 40 MHz | ±50ppm | -40°C ~ 85°C |
12.90337 | Geyer 晶振 | XTAL OSC XO 26.0000MHZ SMD | KXO-V94T | 26 MHz | ±50ppm | -40°C ~ 85°C |
12.94273 | Geyer 晶振 | XTAL OSC XO 32.0000MHZ SMD | KXO-V97T | 32 MHz | ±100ppm | -40°C ~ 85°C |
12.94365 | Geyer 晶振 | XTAL OSC XO 14.31818MHZ SMD | KXO-V97T | 14.31818 MHz | ±100ppm | -40°C ~ 85°C |
12.95546 | Geyer 晶振 | XTAL OSC XO 26.0000MHZ SMD | KXO-V95T | 26 MHz | ±50ppm | -40°C ~ 85°C |
12.92106 | Geyer 晶振 | XTAL OSC XO 65.0000MHZ SMD | KXO-V97T | 65 MHz | ±100ppm | -40°C ~ 85°C |
12.95571 | Geyer 晶振 | XTAL OSC XO 32.7680KHZ SMD | KXO-V95T | 32.768 kHz | ±30ppm | -40°C ~ 85°C |
12.90344 | Geyer 晶振 | XTAL OSC XO 4.0000MHZ SMD | KXO-V94T | 4 MHz | ±50ppm | -40°C ~ 85°C |
12.95538 | Geyer 晶振 | XTAL OSC XO 27.1200MHZ SMD | KXO-V95 | 27.12 MHz | ±50ppm | -20°C ~ 70°C |
12.94364 | Geyer 晶振 | XTAL OSC XO 48.0000MHZ SMD | KXO-V97T | 48 MHz | ±100ppm | -40°C ~ 85°C |
12.95568 | Geyer 晶振 | XTAL OSC XO 48.0000MHZ SMD | KXO-V95F | 48 MHz | ±50ppm | -40°C ~ 85°C |
12.90324 | Geyer 晶振 | XTAL OSC XO 27.0000MHZ HCMOS SMD | KXO-V94 | 27 MHz | ±50ppm | -40°C ~ 85°C |
12.94609 | Geyer 晶振 | XTAL OSC XO 1.0000MHZ SMD | KXO-V99 | 1 MHz | ±50ppm | -40°C ~ 85°C |
12.95101 | Geyer 晶振 | XTAL OSC XO 48.0000MHZ SMD | KXO-V96T | 48 MHz | ±50ppm | -40°C ~ 85°C |
12.92146 | Geyer 晶振 | XTAL OSC XO 22.1184MHZ SMD | KXO-V97T | 22.1184 MHz | ±100ppm | -40°C ~ 85°C |
12.90327 | Geyer 晶振 | XTAL OSC XO 48.0000MHZ HCMOS SMD | KXO-V94T | 48 MHz | ±50ppm | -40°C ~ 85°C |
12.95091 | Geyer 晶振 | XTAL OSC XO 10.0000MHZ SMD | KXO-V96T | 10 MHz | ±50ppm | -40°C ~ 85°C |
12.94449 | Geyer 晶振 | XTAL OSC XO 18.4320MHZ SMD | KXO-V97T | 18.432 MHz | ±100ppm | -40°C ~ 85°C |
12.94456 | Geyer 晶振 | XTAL OSC XO 3.6864MHZ SMD | KXO-V97T | 3.6864 MHz | ±100ppm | -40°C ~ 85°C |
12.95551 | Geyer 晶振 | XTAL OSC XO 48.0000MHZ SMD | KXO-V95T | 48 MHz | ±50ppm | -40°C ~ 85°C |
12.90322 | Geyer 晶振 | XTAL OSC XO 20.0000MHZ CMOS SMD | KXO-V94T | 20 MHz | ±50ppm | -40°C ~ 85°C |
12.95524 | Geyer 晶振 | XTAL OSC XO 25.0000MHZ SMD | KXO-V95E | 25 MHz | ±100ppm | -40°C ~ 85°C |
12.9034 | Geyer 晶振 | XTAL OSC XO 32.7680KHZ SMD | KXO-V94T | 32.768 kHz | ±20ppm | -40°C ~ 85°C |
12.95543 | Geyer 晶振 | XTAL OSC XO 14.31818MHZ SMD | KXO-V95T | 14.31818 MHz | ±50ppm | -40°C ~ 85°C |
12.95104 | Geyer 晶振 | XTAL OSC XO 32.7680KHZ SMD | KXO-V96-18 | 32.768 kHz | ±50ppm | -20°C ~ 70°C |
12.94422 | Geyer 晶振 | XTAL OSC XO 11.0592MHZ SMD | KXO-V97T | 11.0592 MHz | ±100ppm | -40°C ~ 85°C |
12.95548 | Geyer 晶振 | XTAL OSC XO 4.0000MHZ SMD | KXO-V95T | 4 MHz | ±50ppm | -40°C ~ 85°C |
12.90307 | Geyer 晶振 | XTAL OSC XO 1.8432MHZ HCMOS SMD | KXO-V94 | 1.8432 MHz | ±50ppm | -40°C ~ 85°C |
