HXQ-CMOS系列汽車級高溫CMOS晶體振蕩器,HX2513F0026.000000,汽車電子晶振,ECERA晶振

2022-07-01 15:53:11 壹兆電子

晶體振蕩器(XO)-汽車,我們的汽車兼容晶體振蕩器(XO)旨在滿足汽車應用的嚴格要求,并在其部件號中以“Q”區分。它們是在經過嚴格IATF 16949標準認證的設施中制造的,并且能夠根據VDA6.3進行客戶審核。這些零件均受 PPAP(生產零件批準流程)文檔支持,從而滿足汽車電子行業的所有要求。
此外,車載級晶振,所有符合汽車標準的晶體振蕩器(XO)均已使用AECQ-200和QAP-81進行了認證,以涵蓋石英諧振器和XO IC,而不是使用AEC-Q100(僅針對 IC 定義)。我們計劃在2021年開始為我們新的符合汽車標準的 XO 產品逐步采用AECQ-104認證標準,但它不會將以前符合 AECQ-200+QAP-81的產品重新認證為AEC-Q104(AECQ-200+QAP-81資格標準和AECQ-0104資格標準是測試數量和添加X射線檢查)。

HXQ-CMOS系列汽車級高溫CMOS晶體振蕩器,HX2513F0026.000000,汽車電子晶振,ECERA晶振

Manufacturer Part Number原廠代碼 Manufacturer品牌 Series型號 Frequency 頻率 Frequency Stability頻率穩定度 Operating Temperature 工作溫度
FNETHE025 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 25MHz ±25ppm -20°C ~ 70°C
FNETHE025 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 25MHz ±25ppm -20°C ~ 70°C
FNETHE025 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 25MHz ±25ppm -20°C ~ 70°C
FNSURV027 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 27MHz ±30ppm -20°C ~ 70°C
FNSURV027 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 27MHz ±30ppm -20°C ~ 70°C
FNSURV027 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 27MHz ±30ppm -20°C ~ 70°C
FNGEPO002 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 2.048MHz ±50ppm -20°C ~ 70°C
FNGEPO002 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 2.048MHz ±50ppm -20°C ~ 70°C
FNGEPO002 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 2.048MHz ±50ppm -20°C ~ 70°C
FKSSD1025 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 25MHz ±25ppm -10°C ~ 70°C
FKSSD1025 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 25MHz ±25ppm -10°C ~ 70°C
FKSSD1025 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 25MHz ±25ppm -10°C ~ 70°C
UJWIFI026 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 26MHz ±20ppm -30°C ~ 85°C
UJWIFI026 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 26MHz ±20ppm -30°C ~ 85°C
UJWIFI026 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 26MHz ±20ppm -30°C ~ 85°C
FNEPON125 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 125MHz ±50ppm -20°C ~ 70°C
FNEPON125 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 125MHz ±50ppm -20°C ~ 70°C
FNEPON125 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 125MHz ±50ppm -20°C ~ 70°C
FK1330001Z Diodes Incorporated SaRonix-eCera™ FK 13.3333MHz ±25ppm -40°C ~ 85°C
FK1330001Z Diodes Incorporated SaRonix-eCera™ FK 13.3333MHz ±25ppm -40°C ~ 85°C
FK1330001Z Diodes Incorporated SaRonix-eCera™ FK 13.3333MHz ±25ppm -40°C ~ 85°C
FJ2400011 Diodes Incorporated SaRonix-eCera™ FJ 24MHz ±50ppm -40°C ~ 85°C
FJ2400011 Diodes Incorporated SaRonix-eCera™ FJ 24MHz ±50ppm -40°C ~ 85°C
FJ2400011 Diodes Incorporated SaRonix-eCera™ FJ 24MHz ±50ppm -40°C ~ 85°C
FJ2400002 Diodes Incorporated SaRonix-eCera™ FJ 24MHz ±50ppm -40°C ~ 85°C
FJ2400002 Diodes Incorporated SaRonix-eCera™ FJ 24MHz ±50ppm -40°C ~ 85°C
FJ2400002 Diodes Incorporated SaRonix-eCera™ FJ 24MHz ±50ppm -40°C ~ 85°C
FN2500149 Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -40°C ~ 85°C
FN2500149 Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -40°C ~ 85°C
HXQ-CMOS系列汽車級高溫CMOS晶體振蕩器,HX2513F0026.000000,汽車電子晶振,ECERA晶振

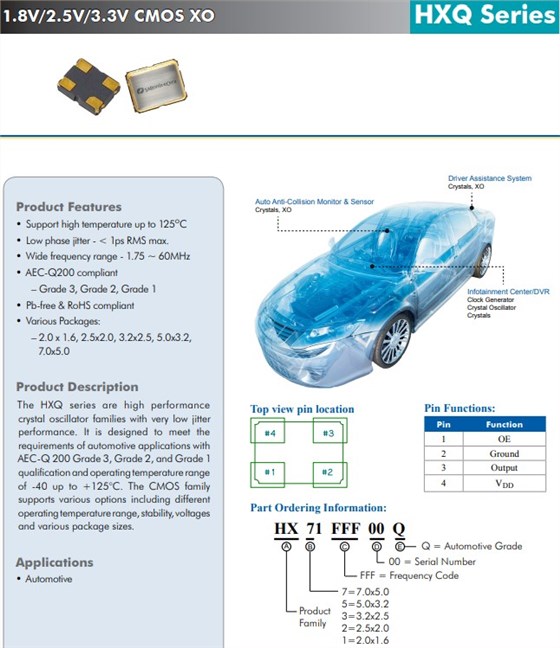

HXQ-CMOS-系列3225,1.8V/2.5V/3.3V、3.2x2.5mm、汽車級、高溫CMOS晶體振蕩器,HXQ系列是具有極低抖動的高性能SMD晶體振蕩器系列.它旨在滿足汽車應用的要求,AEC-Q200 3級、2級和1級認證和工作溫度范圍,-40℃至+125CMOS系列支持各種選項,包括不同的,工作溫度范圍、穩定性、電壓和各種封裝尺寸。

產品特點:
支持高達125的高溫
低相位抖動 - < 1ps RMS最大值。
寬頻率范圍 - 1.75 ~ 60MHz
符合 AEC-Q200 標準
– 3 級、2 級、1 級
無鉛且符合 RoHS 標準
各種軟件包:2.0x1.6、2.5x2.0、3.2x2.5、5.0x3.2、7.0x5.0mm
應用于汽車

FN2500149 Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -40°C ~ 85°C
SXGPON155 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 155.52MHz ±50ppm -40°C ~ 85°C
SXGPON155 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 155.52MHz ±50ppm -40°C ~ 85°C
SXGPON155 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 155.52MHz ±50ppm -40°C ~ 85°C
HX2513F0026.000000 Diodes Incorporated SaRonix-eCera™ HX 26MHz ±50ppm -40°C ~ 105°C
HX2513F0026.000000 Diodes Incorporated SaRonix-eCera™ HX 26MHz ±50ppm -40°C ~ 105°C
HX2513F0026.000000 Diodes Incorporated SaRonix-eCera™ HX 26MHz ±50ppm -40°C ~ 105°C
HX3125006Q Diodes Incorporated SaRonix-eCera™ HX 25MHz ±30ppm -40°C ~ 105°C
HX3125006Q Diodes Incorporated SaRonix-eCera™ HX 25MHz ±30ppm -40°C ~ 105°C
HX3125006Q Diodes Incorporated SaRonix-eCera™ HX 25MHz ±30ppm -40°C ~ 105°C
NX3211C0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm -20°C ~ 70°C
NX3211C0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm -20°C ~ 70°C
NX3211C0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm -20°C ~ 70°C
FJ1600002 Diodes Incorporated SaRonix-eCera™ FJ 16MHz ±50ppm -20°C ~ 70°C
FJ1600002 Diodes Incorporated SaRonix-eCera™ FJ 16MHz ±50ppm -20°C ~ 70°C
FJ1600002 Diodes Incorporated SaRonix-eCera™ FJ 16MHz ±50ppm -20°C ~ 70°C
JX7011D0070.656000 Diodes Incorporated SaRonix-eCera™ JX 70.656MHz ±25ppm -40°C ~ 85°C
JX7011D0070.656000 Diodes Incorporated SaRonix-eCera™ JX 70.656MHz ±25ppm -40°C ~ 85°C
JX7011D0070.656000 Diodes Incorporated SaRonix-eCera™ JX 70.656MHz ±25ppm -40°C ~ 85°C
UJ2600007Z Diodes Incorporated SaRonix-eCera™ UJ 26MHz ±20ppm -20°C ~ 70°C
UJ2600007Z Diodes Incorporated SaRonix-eCera™ UJ 26MHz ±20ppm -20°C ~ 70°C
UJ2600007Z Diodes Incorporated SaRonix-eCera™ UJ 26MHz ±20ppm -20°C ~ 70°C
FJ1120001Z Diodes Incorporated SaRonix-eCera™ FJ 11.2896MHz ±25ppm -40°C ~ 85°C
FJ1120001Z Diodes Incorporated SaRonix-eCera™ FJ 11.2896MHz ±25ppm -40°C ~ 85°C
FJ1120001Z Diodes Incorporated SaRonix-eCera™ FJ 11.2896MHz ±25ppm -40°C ~ 85°C
FDC500026 Diodes Incorporated SaRonix-eCera™ FD 125MHz ±50ppm -20°C ~ 70°C
FDC500026 Diodes Incorporated SaRonix-eCera™ FD 125MHz ±50ppm -20°C ~ 70°C
FDC500026 Diodes Incorporated SaRonix-eCera™ FD 125MHz ±50ppm -20°C ~ 70°C
HX7011C0025.000000 Diodes Incorporated SaRonix-eCera™ HX 25MHz ±25ppm -40°C ~ 105°C
HX7011C0025.000000 Diodes Incorporated SaRonix-eCera™ HX 25MHz ±25ppm -40°C ~ 105°C

Product Parameters

Subfamily High Temp XO
Product Series HXQ-CMOS
Compliance(Only Automotive supports PPAP) Automotive
Freq Range (MHz) 1 to 135 (1.8V); 1 to 162 (2.5V/3.3V)
Jitter RMS (ps) <1 ps RMS
Stability (PPM) 20to50
Package Size (mm) 3.2 x 2.5
PkgType Ceramic Seam
Output Logic CMOS
Supply Voltage (V) 3.3, 2.5, 1.8
Pads 4

HXQ-CMOS系列汽車級高溫CMOS晶體振蕩器,HX2513F0026.000000,汽車電子晶振,ECERA晶振

產品參數:
亞科 高溫XO
產品系列 HXQ-CMOS
合規性(僅汽車支持 PPAP)汽車
頻率范圍 (MHz) 1至135 (1.8V); 1至162 (2.5V/3.3V)
抖動均方根 (ps) <1 ps RMS
穩定性 20PPM到50PPM
包裝尺寸 3.2x2.5mm 有源晶振
包裝類型 陶瓷縫
輸出邏輯 CMOS
電源電壓 3.3V, 2.5V, 1.8V
墊 4

HX7011C0025.000000 Diodes Incorporated SaRonix-eCera™ HX 25MHz ±25ppm -40°C ~ 105°C
NX5011B0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±25ppm -20°C ~ 70°C
NX5011B0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±25ppm -20°C ~ 70°C
NX5011B0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±25ppm -20°C ~ 70°C
FNA000088Z Diodes Incorporated SaRonix-eCera™ FN 100MHz ±50ppm -40°C ~ 85°C
FNA000088Z Diodes Incorporated SaRonix-eCera™ FN 100MHz ±50ppm -40°C ~ 85°C
FNA000088Z Diodes Incorporated SaRonix-eCera™ FN 100MHz ±50ppm -40°C ~ 85°C
FNA000065 Diodes Incorporated SaRonix-eCera™ FN 100MHz ±25ppm -20°C ~ 70°C
FNA000065 Diodes Incorporated SaRonix-eCera™ FN 100MHz ±25ppm -20°C ~ 70°C
FNA000065 Diodes Incorporated SaRonix-eCera™ FN 100MHz ±25ppm -20°C ~ 70°C
NX71C50003 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±25ppm -40°C ~ 85°C
NX71C50003 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±25ppm -40°C ~ 85°C
NX71C50003 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±25ppm -40°C ~ 85°C
FNC500131 Diodes Incorporated SaRonix-eCera™ FN 125MHz ±50ppm -40°C ~ 85°C
FNC500131 Diodes Incorporated SaRonix-eCera™ FN 125MHz ±50ppm -40°C ~ 85°C
FNC500131 Diodes Incorporated SaRonix-eCera™ FN 125MHz ±50ppm -40°C ~ 85°C
NX71C50001 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±20ppm -20°C ~ 70°C
NX71C50001 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±20ppm -20°C ~ 70°C
NX71C50001 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±20ppm -20°C ~ 70°C
FM3900001Z Diodes Incorporated SaRonix-eCera™ FM 39.0625MHz ±50ppm -40°C ~ 85°C
FM3900001Z Diodes Incorporated SaRonix-eCera™ FM 39.0625MHz ±50ppm -40°C ~ 85°C
FM3900001Z Diodes Incorporated SaRonix-eCera™ FM 39.0625MHz ±50ppm -40°C ~ 85°C
FKA000018Z Diodes Incorporated SaRonix-eCera™ FK 100MHz ±50ppm -40°C ~ 85°C
FKA000018Z Diodes Incorporated SaRonix-eCera™ FK 100MHz ±50ppm -40°C ~ 85°C
FKA000018Z Diodes Incorporated SaRonix-eCera™ FK 100MHz ±50ppm -40°C ~ 85°C
HX3124501Q Diodes Incorporated SaRonix-eCera™ HX 24.545452MHz ±25ppm -40°C ~ 105°C
HX3124501Q Diodes Incorporated SaRonix-eCera™ HX 24.545452MHz ±25ppm -40°C ~ 105°C
HX3124501Q Diodes Incorporated SaRonix-eCera™ HX 24.545452MHz ±25ppm -40°C ~ 105°C
HX31330001 Diodes Incorporated SaRonix-eCera™ HX 33MHz ±50ppm -40°C ~ 90°C
HX31330001 Diodes Incorporated SaRonix-eCera™ HX 33MHz ±50ppm -40°C ~ 90°C
HX31330001 Diodes Incorporated SaRonix-eCera™ HX 33MHz ±50ppm -40°C ~ 90°C
HX3212F0040.000000 Diodes Incorporated SaRonix-eCera™ HX 40MHz ±50ppm -40°C ~ 105°C
HX3212F0040.000000 Diodes Incorporated SaRonix-eCera™ HX 40MHz ±50ppm -40°C ~ 105°C
HX3212F0040.000000 Diodes Incorporated SaRonix-eCera™ HX 40MHz ±50ppm -40°C ~ 105°C
SX10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
SX10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
SX10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
HX3127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm -40°C ~ 105°C
HX3127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm -40°C ~ 105°C
HX3127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm -40°C ~ 105°C

1

HXQ-CMOS系列汽車級高溫CMOS晶體振蕩器,HX2513F0026.000000,汽車電子晶振,ECERA晶振

HXQ-CMOS-系列 3225 20~50 3.2 x 2.5 CMOS 3.32.51.8 4 1.8V/2.5V/3.3V、3.2x2.5mm、汽車級、高溫CMOS晶體振蕩器
HXQ-CMOS-系列 2016 20~50 2.0 x 1.6 CMOS 3.32.51.8 4 1.8V/2.5V/3.3V、2.0x1.6mm、汽車級、高溫CMOS晶體振蕩器
HXQ-CMOS-系列 2520 20~50 2.5 x 2.0 CMOS 3.32.51.8 4 1.8V/2.5V/3.3V、2.5x2.0mm、汽車級、高溫CMOS晶體振蕩器
HXQ-CMOS-系列 5032 20~50 5.0 x 3.2 CMOS 3.32.51.8 4 1.8V/2.5V/3.3V、5.0x3.2mm、汽車級、高溫CMOS晶體振蕩器
HXQ-CMOS-系列 7050 20~50 7.0 x 5.0 CMOS 3.32.51.8 4 1.8V/2.5V/3.3V、7.0x5.0mm、汽車級、高溫CMOS晶體振蕩器
HXQ-LVDS-系列 3225 20~50 3.2 x 2.5 LVDS 3.32.5 6 2.5V/3.3V、3.2x2.5mm、汽車級、高溫 LVDS 晶體振蕩器
HXQ-LVDS-系列 5032 20~50 5.0 x 3.2 LVDS 3.32.5 6 2.5V/3.3V、5.0x3.2mm、汽車級、高溫 LVDS 晶體振蕩器
HXQ-LVDS-系列 7050 20~50 7.0 x 5.0 LVDS 3.32.5 6 2.5V/3.3V、7.0x5.0mm、汽車級、高溫 LVDS 晶體振蕩器
HXQ-LVPECL-系列 3225 20~50 3.2 x 2.5 LVPECL 3.32.5 6 2.5V/3.3V、3.2x2.5mm、汽車級、高溫 LVPECL 晶體振蕩器
HXQ-LVPECL-5032系列 20~50 5.0 x 3.2 LVPECL 3.32.5 6 2.5V/3.3V、5.0x3.2mm、汽車級、高溫 LVPECL 晶體振蕩器
HXQ-LVPECL-7050系列 20~50 7.0 x 5.0 LVPECL 3.32.5 6 2.5V/3.3V、7.0x5.0mm、汽車級、高溫 LVPECL 晶體振蕩器
