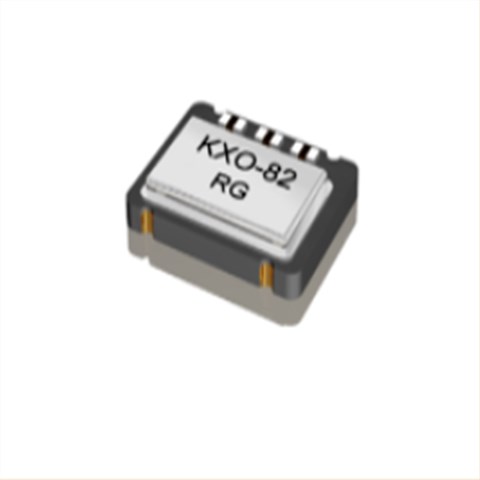

壓控溫補晶體振蕩器,12.97103 KXO-82晶振,GEYER晶體振蕩器

產品簡介

壓控溫補晶體振蕩器,12.97103 KXO-82晶振,GEYER晶體振蕩器，公差:±2.5 ppm，工作溫度：-30°C~+80°C，儲存溫度范圍：-40°C~+85°C，尺寸：7.0mmx5.0mm，頻率：13.0MHz，進口晶振，壓控溫補晶振，貼片晶振，石英晶振，具有：低抖動，低電壓，低損耗，小型，輕薄型等特點，應用于：智能手機，藍牙模塊晶振，汽車音響等。

產品詳情

GEYER晶振作為電池和頻率的大體積貼片晶振產品生產經驗豐富的國際運營專家，我們自然了解對客戶至關重要的一切：從最初的咨詢到生產和交付的一流質量。高素質的開發和服務團隊以及德國的高端生產確保我們?cè)谌魏螘r(shí)候都能完全滿足這一要求。因此，我們公司通過了DIN ISO 9001：2008認證，這幾乎是不言而喻的

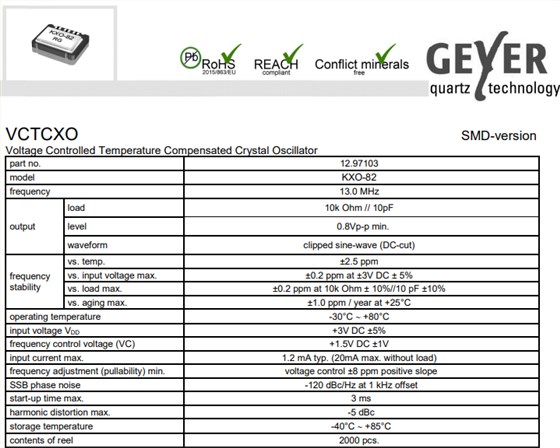

壓控溫補晶體振蕩器,12.97103 KXO-82晶振,GEYER晶體振蕩器，參數表

part no.		12.97103
model貼片晶振		KXO-82
frequency		13.0 MHz
output	load	10k Ohm // 10pF
	level	0.8Vp-p min.
	waveform	clipped sine-wave (DC-cut)
frequency stability	vs. temp.	±2.5 ppm
	vs. input voltage max.	±0.2 ppm at ±3V DC ± 5%
	vs. load max.	±0.2 ppm at 10k Ohm ± 10%//10 pF ± 10%
	vs. aging max.	± 1.0 ppm / year at +25°C
operating temperature		-30°C~+80°C
input voltage VDD		+3V DC ±5%
frequency control voltage (VC)		+1.5V DC ± 1V
input current max.		1.2 mA typ. (20mA max. without load)
frequency adjustment (pullability) min.		voltage control ±8 ppm positive slope
SSB phase noise		- 120 dBc/Hz at 1 kHz offse
start-up time max.		3 ms
harmonic distortion max.		-5 dBc
storage temperature		-40°C~+85°C
contents of reel		2000 pcs.

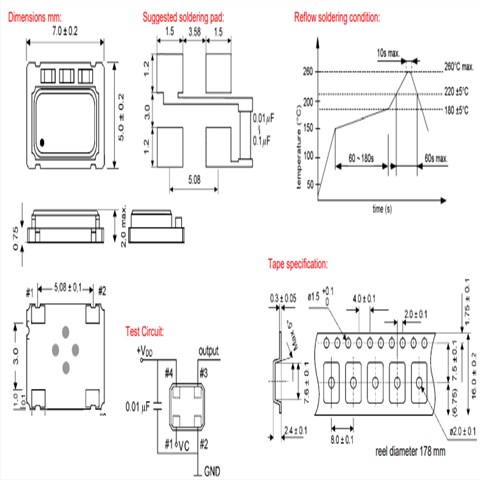

壓控溫補晶體振蕩器,12.97103 KXO-82晶振,GEYER晶體振蕩器，尺寸圖

KXO-82

編碼	晶振廠家	描述	型號	標準頻率	頻率容差	工作溫度
12.95582	Geyer 晶振	XTAL OSC XO 14.7456MHZ SMD	KXO-V95	14.7456 MHz	±50ppm	-40°C ~ 85°C
12.95549	Geyer 晶振	XTAL OSC XO 32.0000MHZ SMD	KXO-V95T	32 MHz	±50ppm	-40°C ~ 85°C
12.95531	Geyer 晶振	XTAL OSC XO 3.6864MHZ SMD	KXO-V95T	3.6864 MHz	±50ppm	-40°C ~ 85°C
12.90328	Geyer 晶振	XTAL OSC XO 16.0000MHZ CMOS SMD	KXO-V94T	16 MHz	±50ppm	-40°C ~ 85°C
12.90321	Geyer 晶振	XTAL OSC XO 14.7456MHZ HCMOS SMD	KXO-V94	14.7456 MHz	±50ppm	-40°C ~ 85°C
12.95545	Geyer 晶振	XTAL OSC XO 20.0000MHZ SMD	KXO-V95T	20 MHz	±50ppm	-40°C ~ 85°C
12.95103	Geyer 晶振	XTAL OSC XO 32.0000MHZ SMD	KXO-V96T	32 MHz	±50ppm	-40°C ~ 85°C
12.9558	Geyer 晶振	XTAL OSC XO 3.579545MHZ SMD	KXO-V95	3.579545 MHz	±50ppm	-20°C ~ 70°C
12.95094	Geyer 晶振	XTAL OSC XO 14.31818MHZ SMD	KXO-V96T	14.31818 MHz	±50ppm	-40°C ~ 85°C
12.95034	Geyer 晶振	XTAL OSC XO 20.0000MHZ SMD	KXO-V96T	20 MHz	±50ppm	-40°C ~ 85°C
12.95542	Geyer 晶振	XTAL OSC XO 12.0000MHZ SMD	KXO-V95T	12 MHz	±50ppm	-40°C ~ 85°C
12.94474	Geyer 晶振	XTAL OSC XO 27.0000MHZ SMD	KXO-V97T	27 MHz	±100ppm	-40°C ~ 85°C
12.90343	Geyer 晶振	XTAL OSC XO 12.0000MHZ SMD	KXO-V94T	12 MHz	±50ppm	-40°C ~ 85°C
12.90325	晶振廠家	XTAL OSC XO 3.6864MHZ HCMOS SMD	KXO-V94	3.6864 MHz	±50ppm	-40°C ~ 85°C
12.90311	Geyer 晶振	XTAL OSC XO 14.7456MHZ HCMOS SMD	KXO-V94	14.7456 MHz	±100ppm	-40°C ~ 85°C
12.95128	Geyer 晶振	XTAL OSC XO 27.0000MHZ SMD	KXO-V96E	27 MHz	±50ppm	-40°C ~ 85°C
12.95102	Geyer 晶振	XTAL OSC XO 80.0000MHZ SMD	KXO-V96T	80 MHz	±50ppm	-40°C ~ 85°C
12.90333	Geyer 晶振	XTAL OSC XO 40.0000MHZ SMD	KXO-V94T	40 MHz	±50ppm	-40°C ~ 85°C
12.90337	Geyer 晶振	XTAL OSC XO 26.0000MHZ SMD	KXO-V94T	26 MHz	±50ppm	-40°C ~ 85°C
12.94273	Geyer 晶振	XTAL OSC XO 32.0000MHZ SMD	KXO-V97T	32 MHz	±100ppm	-40°C ~ 85°C
12.94365	Geyer 晶振	XTAL OSC XO 14.31818MHZ SMD	KXO-V97T	14.31818 MHz	±100ppm	-40°C ~ 85°C
12.95546	Geyer 晶振	XTAL OSC XO 26.0000MHZ SMD	KXO-V95T	26 MHz	±50ppm	-40°C ~ 85°C
12.92106	Geyer 晶振	XTAL OSC XO 65.0000MHZ SMD	KXO-V97T	65 MHz	±100ppm	-40°C ~ 85°C
12.95571	Geyer 晶振	XTAL OSC XO 32.7680KHZ SMD	KXO-V95T	32.768 kHz	±30ppm	-40°C ~ 85°C
