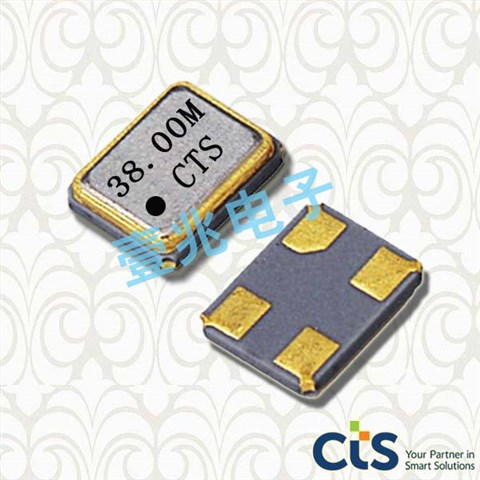

2520石英晶體諧振器,425F22A024M5760,美國進口CTS晶振

產品簡介

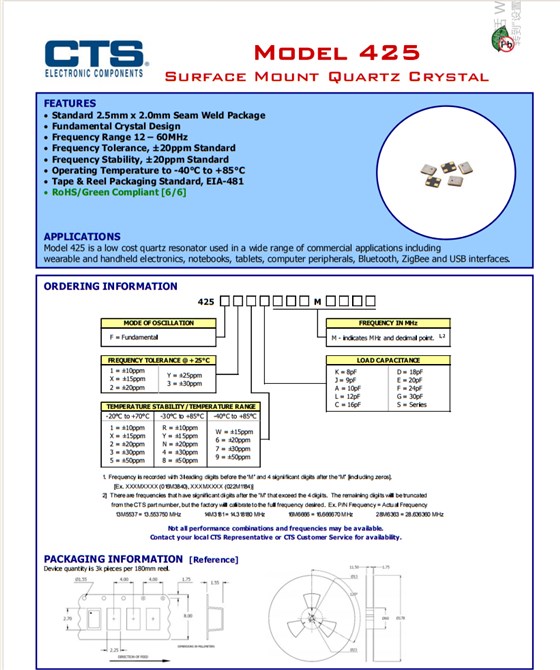

2520石英晶體諧振器,425F22A024M5760,美國進口CTS晶振，編碼：425F22A024M5760，型號：425系列晶振，工作溫度：-20°C ~ 70°C，尺寸：2.5*2.0mm，頻率：24.576MHz，負載電容：10pF，精度：±20ppm，標準2.5毫米x 2.0mm毫米縫焊包基本晶體設計頻率范圍12–60 MHz 頻率容差，20ppm標準頻率穩定性，20ppm標準工作溫度為-40℃至+85℃ 膠帶和卷軸包裝標準，EIA-481，425型是一種低成本石英晶體諧振器，廣泛應用于商業領域，包括可穿戴和手持電子產品、筆記本電腦、平板電腦、計算機外設、藍牙、ZigBee和USB接口。

產品詳情

2520石英晶體諧振器,425F22A024M5760,美國進口CTS晶振，參數表

原廠編碼	425F22A024M5760
品牌	CTS晶振
型號	425
頻率	24.576MHz
頻率偏差	±20ppm
負載電容	10pF
工作溫度	-20°C ~ 70°C

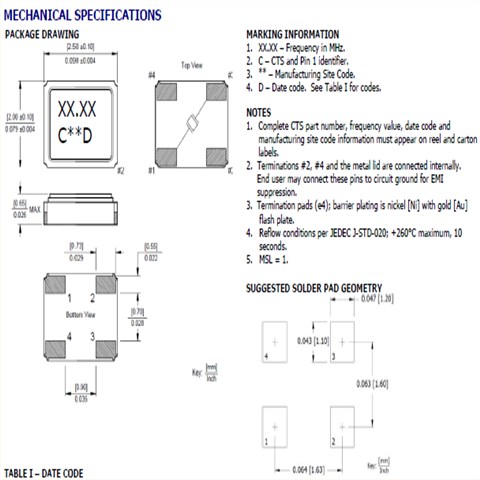

2520石英晶體諧振器,425F22A024M5760,美國進口CTS晶振，尺寸圖

Manufacturer Part Number原廠編碼	壹兆晶振廠家	Series型號	Frequency	Frequency Tolerance頻率偏差	Load Capacitance負載電容	Operating Temperature工作溫度
425F22A024M5760	CTS-Frequency Controls	425	24.576MHz	±20ppm	10pF	-20°C ~ 70°C
425F22A024M5760	CTS-Frequency Controls	425	24.576MHz	±20ppm	10pF	-20°C ~ 70°C
425F22A024M5760	CTS-Frequency Controls	425	24.576MHz	±20ppm	10pF	-20°C ~ 70°C
425F22A016M3676	CTS-Frequency Controls	425	16.3676MHz	±20ppm	10pF	-20°C ~ 70°C
425F22A016M3676	CTS-Frequency Controls	425	16.3676MHz	±20ppm	10pF	-20°C ~ 70°C
425F22A016M3676	CTS-Frequency Controls	425	16.3676MHz	±20ppm	10pF	-20°C ~ 70°C
425F22A025M0000	CTS-Frequency Controls	425	25MHz	±20ppm	10pF	-20°C ~ 70°C
425F22A025M0000	CTS-Frequency Controls	425	25MHz	±20ppm	10pF	-20°C ~ 70°C
425F22A025M0000	CTS-Frequency Controls	425	25MHz	±20ppm	10pF	-20°C ~ 70°C
425F22A027M0000	CTS-Frequency Controls	425	27MHz	±20ppm	10pF	-20°C ~ 70°C
425F22A027M0000	CTS-Frequency Controls	425	27MHz	±20ppm	10pF	-20°C ~ 70°C
425F22A027M0000	CTS-Frequency Controls	425	27MHz	±20ppm	10pF	-20°C ~ 70°C
425F22A030M0000	CTS-Frequency Controls	425	30MHz	±20ppm	10pF	-20°C ~ 70°C
425F22A030M0000	CTS-Frequency Controls	425	30MHz	±20ppm	10pF	-20°C ~ 70°C
425F22A030M0000	CTS-Frequency Controls	425	30MHz	±20ppm	10pF	-20°C ~ 70°C
425F22A048M0000	CTS-Frequency Controls	425	48MHz	±20ppm	10pF	-20°C ~ 70°C
425F22A048M0000	CTS-Frequency Controls	425	48MHz	±20ppm	10pF	-20°C ~ 70°C
425F22A048M0000	CTS-Frequency Controls	425	48MHz	±20ppm	10pF	-20°C ~ 70°C
425F35E027M0000	CTS-Frequency Controls	425	27MHz	±30ppm	20pF	-20°C ~ 70°C
425F35E027M0000	CTS-Frequency Controls	425	27MHz	±30ppm	20pF	-20°C ~ 70°C
425F35E027M0000	CTS-Frequency Controls	425	27MHz	±30ppm	20pF	-20°C ~ 70°C
425F35B020M0000	CTS-Frequency Controls	425	20MHz	±30ppm	13pF	-20°C ~ 70°C
425F35B020M0000	CTS-Frequency Controls	425	20MHz	±30ppm	13pF	-20°C ~ 70°C
425F35B020M0000	CTS-Frequency Controls	425	20MHz	±30ppm	13pF	-20°C ~ 70°C
