LFXTAL003000,貼片晶振32.768K,IQD晶振

產品簡介

LFXTAL003000,貼片晶振32.768K,IQD晶振，編碼：LFXTAL003000，型號：85SMX，工作溫度：-40C ~ 85°C，尺寸：8.7mm*3.8mm，頻率：32.768 kHz，精度：±20ppm，負載電容：12.5pF，美國進口晶振，無源貼片晶振，貼片石英晶體，石英晶振，SMD晶體，貼片晶振32.768K，石英晶體諧振器，行業標準SMD封裝，引腳間距為5.5毫米，適合實時時鐘應用，塑料封裝，產品廣泛應用于時鐘鐘表，智能手機，智能手表，數碼相機，手機導航，GPS，醫療設備等用途。

產品詳情

LFXTAL003000,貼片晶振32.768K,IQD晶振，參數表

編碼	LFXTAL003000
品牌	IQD
型號	85SMX
頻率	32.768 kHz
精度	±20ppm
負載電容	12.5pF
工作溫度	-40C ~ 85°C
尺寸	8.7mm*3.8mm

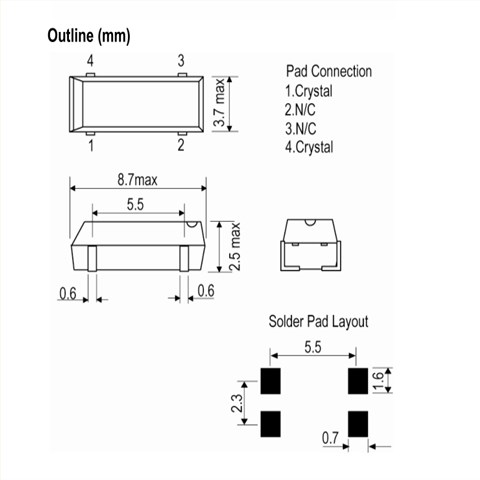

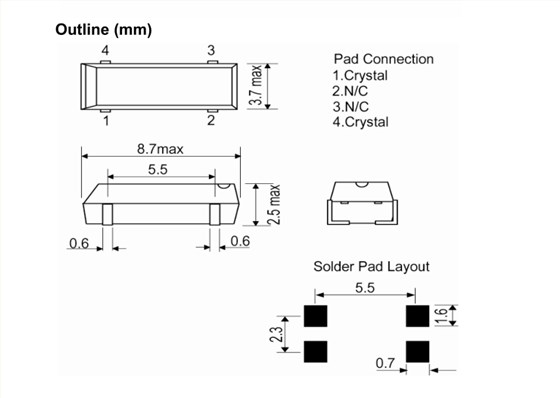

LFXTAL003000,貼片晶振32.768K,IQD晶振，尺寸圖

Mfr Part #	晶體諧振器	Series	Frequency	Frequency Tolerance	Load Capacitance	Operating Temperature
LFXTAL003000	IQD Frequency Products	85SMX	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
LFXTAL069395RL3K	IQD Frequency Products	CFPX-218	16.384 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL009678	IQD Frequency Products	CFPX-217	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
LFXTAL055299REEL	IQD Frequency Products	CFPX-180	25 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL053099REEL	IQD Frequency Products	CFPX-180	27.12 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL055663REEL	IQD Frequency Products	CFPX-104	8 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL069383REEL	IQD Frequency Products	CFPX-218	24 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL035264REEL	IQD Frequency Products	CFPX-180	16 MHz	±50ppm	16pF	-10°C ~ 60°C
LFXTAL069944REEL	IQD Frequency Products	CFPX-180	12 MHz	±20ppm	15pF	-40°C ~ 85°C
LFXTAL035268REEL	IQD Frequency Products	CFPX-180	25 MHz	±50ppm	16pF	-10°C ~ 60°C
LFXTAL061627REEL	IQD Frequency Products	CFPX-104	8 MHz	±20ppm	16pF	-40°C ~ 85°C
LFXTAL055901REEL	IQD Frequency Products	CFPX-104	8 MHz	±20ppm	18pF	-20°C ~ 70°C
LFXTAL059158REEL	IQD Frequency Products	CFPX-104	8 MHz	±30ppm	16pF	-40°C ~ 85°C
LFXTAL055663BULK	IQD Frequency Products	CFPX-104	8 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL082071RL3K	IQD Frequency Products	CFPX-180	16 MHz	±10ppm	8pF	-40°C ~ 85°C
LFXTAL082069RL3K	IQD Frequency Products	CFPX-180	12 MHz	±10ppm	8pF	-40°C ~ 85°C
LFXTAL058637RL3K	IQD Frequency Products	CFPX-180	25 MHz	±30ppm	12pF	-40°C ~ 85°C
LFXTAL063334REEL	IQD Frequency Products	CFPX-218	25 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL055474REEL	IQD Frequency Products	CFPX-180	25 MHz	±50ppm	16pF	-40°C ~ 85°C
LFXTAL059648REEL	IQD Frequency Products	CFPX-180	40 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL072604REEL	IQD Frequency Products	CFPX-180	25 MHz	±10ppm	8pF	-40°C ~ 85°C
LFXTAL069882REEL	IQD Frequency Products	CFPX-180	12 MHz	±30ppm	10pF	-40°C ~ 125°C
LFXTAL070065REEL	IQD Frequency Products	CFPX-180	24 MHz	±10ppm	9pF	-40°C ~ 85°C
LFXTAL055293REEL	IQD Frequency Products	CFPX-180	14.7456 MHz	±50ppm	18pF	-40°C ~ 85°C
LFXTAL009650REEL	IQD Frequency Products	CFPX-180	16 MHz	±10ppm	16pF	-40°C ~ 85°C
LFXTAL055295REEL	IQD Frequency Products	CFPX-180	12 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL082076REEL	IQD Frequency Products	CFPX-180	32 MHz	±10ppm	8pF	-40°C ~ 85°C
LFXTAL057997REEL	IQD Frequency Products	CFPX-180	16 MHz	±10ppm	10pF	-40°C ~ 85°C
LFXTAL056346REEL	IQD Frequency Products	CFPX-180	12 MHz	±30ppm	18pF	-40°C ~ 85°C
LFXTAL083138RL3K	IQD Frequency Products	CFPX-180	8 MHz	±30ppm	12pF	-40°C ~ 85°C
LFXTAL030819REEL	IQD Frequency Products	CFPX-104	16 MHz	±50ppm	18pF	-10°C ~ 60°C
LFXTAL059530REEL	IQD Frequency Products	CFPX-104	24 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL061633REEL	IQD Frequency Products	CFPX-104	13.56 MHz	±20ppm	16pF	-40°C ~ 85°C
