X3S027000BA1H-U,HSX321S晶體諧振器,3225進口晶振

產品簡介

X3S027000BA1H-U,HSX321S晶體諧振器,3225進口晶振，編碼：X3S027000BA1H-U，型號：HSX321S，工作溫度：-30°C ~ 85°C，尺寸：3.2mm*2.5mm，頻率：27MHz，精度：±10ppm，負載電容：10pF，進口貼片晶振，無源晶振，晶體諧振器，HELE貼片晶體，貼片石英晶體，貼片晶振外觀完全使用金屬材料封裝的,產品本身采用全自動石英晶體檢測儀,以及跌落,漏氣等苛刻實驗.產品本身具有高穩定性,高可靠性的石英晶體諧振器,焊接方面支持表面貼裝,外觀采用金屬封裝,具有充分的密封性能，產品廣泛應用于時鐘鐘表，智能手機，智能手表，無線電話，網絡設備，工業設備，車載設備等用途。

產品詳情

X3S027000BA1H-U,HSX321S晶體諧振器,3225進口晶振，參數表

編碼	X3S027000BA1H-U
品牌	HELE
型號	HSX321S
頻率	27MHz
精度	±10ppm
負載電容	10pF
工作溫度	-30°C ~ 85°C
尺寸	3.2mm*2.5mm

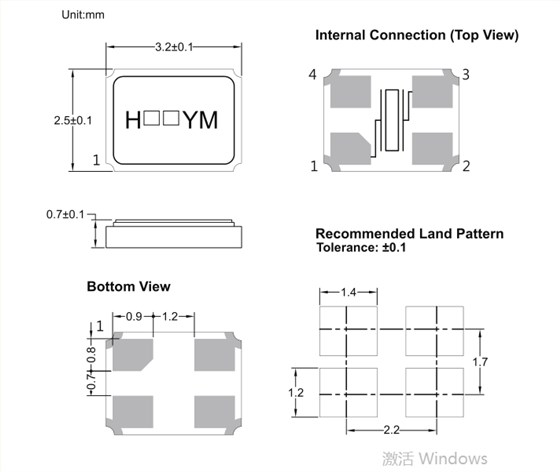

X3S027000BA1H-U,HSX321S晶體諧振器,3225進口晶振，尺寸圖

Mfr Part #	HELE貼片晶體	Series	Frequency	Frequency Tolerance	Load Capacitance
X3S027000BA1H-U	Harmony Electronics Corp / H.ELE.	HSX321S	27 MHz	±10ppm	10pF
X3S024000B91H-HS	Harmony Electronics Corp / H.ELE.	HSX321S	24 MHz	±10ppm	9pF
X3S027120BA1H-X	Harmony Electronics Corp / H.ELE.	HSX321S	27.12 MHz	±10ppm	10pF
X3S032000BC1HA-CHPZ	Harmony Electronics Corp / H.ELE.	HSX321S	32 MHz	±10ppm	12pF
X3S016000DI1H-HW	Harmony Electronics Corp / H.ELE.	HSX321S	16 MHz	±20ppm	18pF
X3S012000FI1H-HV	Harmony Electronics Corp / H.ELE.	HSX321S	12 MHz	±30ppm	18pF
X3S025000D81H-HU	Harmony Electronics Corp / H.ELE.	HSX321S	25 MHz	±20ppm	8pF
X3S026000B91H-NZ	Harmony Electronics Corp / H.ELE.	HSX321S	26 MHz	±10ppm	9pF
X2B026000M81H-HS	Harmony Electronics Corp / H.ELE.	HSX221SA	26 MHz	±7ppm	8pF
X2B016000BA1H-U	Harmony Electronics Corp / H.ELE.	HSX221SA	16 MHz	±10ppm	10pF
X2B012000BC1H-U	Harmony Electronics Corp / H.ELE.	HSX221SA	12 MHz	±10ppm	12pF
X2B040000BC1H-DHZ	Harmony Electronics Corp / H.ELE.	HSX221SA	40 MHz	±10ppm	12pF
X2C025000DZ1H-U	Harmony Electronics Corp / H.ELE.	HSX211S	25 MHz	±20ppm	6pF
X2C032000BA1H-HZ	Harmony Electronics Corp / H.ELE.	HSX211S	32 MHz	±10ppm	10pF
X2C024000DZ1H-HU	Harmony Electronics Corp / H.ELE.	HSX211S	24 MHz	±20ppm	6pF
X2C016000B81H-R	Harmony Electronics Corp / H.ELE.	HSX211S	16 MHz	±10ppm	8pF
X2C026000BC1H-Z	Harmony Electronics Corp / H.ELE.	HSX211S	26 MHz	±10ppm	12pF
X1C032000B81H-HR	Harmony Electronics Corp / H.ELE.	HSX111S	32 MHz	±10ppm	8pF
X1C024000B81H-HV	Harmony Electronics Corp / H.ELE.	HSX111S	24 MHz	±10ppm	8pF
X2C048000L71HH-CEHZ	Harmony Electronics Corp / H.ELE.	HSX211S	48 MHz	±8ppm	11.1pF
X2R026000BZ1HAZ-DHPZ	Harmony Electronics Corp / H.ELE.	HSX221SR	26 MHz	±10ppm	7pF
X1R038400B81HA-CEHPZ	Harmony Electronics Corp / H.ELE.	HSX111SR	38.4 MHz	-	8pF
X2U026000B81HBZ-DHPZ	Harmony Electronics Corp / H.ELE.	HSX211SR	26 MHz	±10ppm	8pF
X2R026000B91HZ-DEHPZ	Harmony Electronics Corp / H.ELE.	HSX221SR	26 MHz	±10ppm	9pF
X2R019200BZ1H-CHZ	Harmony Electronics Corp / H.ELE.	HSX221SR	19.2 MHz	±10ppm	7pF
X2U019200BZ1H-CEHQZ	Harmony Electronics Corp / H.ELE.	HSX211SR	19.2 MHz	±10ppm	7pF
X2U038400B81H-EPQZ	Harmony Electronics Corp / H.ELE.	HSX211SR	38.4 MHz	±10ppm	8pF
X1R052000B81HZ-DEHPZ	Harmony Electronics Corp / H.ELE.	HSX111SR	52 MHz	-	8pF
X12A040000BZ1H-HZ	Harmony Electronics Corp / H.ELE.	HSX1210A	40 MHz	±12ppm	6pF
