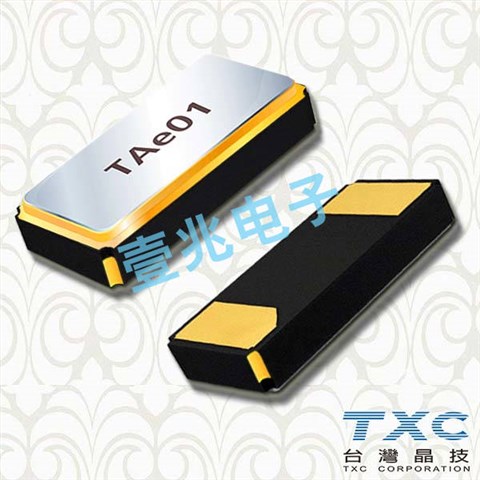

9H03270042石英晶體諧振器,3215貼片晶體

產品簡介

9H03270042石英晶體諧振器,3215貼片晶體 ，編碼：9H03270042，型號：9HT10，工作溫度：-40°C ~ 85°，尺寸：3.2mm*1.5mm，頻率：32.768kHz，精度：±20ppm，負載電容：12.5pF，3.2x1.5晶振，石英晶體諧振器，無源貼片晶振，進口石英晶振，SMD晶體，陶瓷表面貼裝封裝，在手機、筆記本和DSC中的應用，符合RoHS標準/無鉛。晶振高精密點膠技術：石英晶振晶片膠點的位置、大?。何恢脺?zhǔn)確度以及膠點大小一致性，通過圖像識別及高精密度數字定位系統的運用、使石英晶振晶片的點膠的精度在±0.02mm之內。將被上銀電極的晶片裝在彈簧支架上，點上導電膠，并高溫固化，通過彈簧即可引出電信號。

產品詳情

9H03270042石英晶體諧振器,3215貼片晶體，編碼：9H03270042，型號：9HT10，工作溫度：-40°C ~ 85°，尺寸：3.2mm*1.5mm，頻率：32.768kHz，精度：±20ppm，負載電容：12.5pF，3.2x1.5晶振，石英晶體諧振器，無源貼片晶振，進口石英晶振，SMD晶體，陶瓷表面貼裝封裝，在手機、筆記本和DSC中的應用，符合RoHS標準/無鉛。晶振高精密點膠技術：石英晶振晶片膠點的位置、大小：位置準確度以及膠點大小一致性，通過圖像識別及高精密度數字定位系統的運用、使石英晶振晶片的點膠的精度在±0.02mm之內。將被上銀電極的晶片裝在彈簧支架上，點上導電膠，并高溫固化，通過彈簧即可引出電信號。

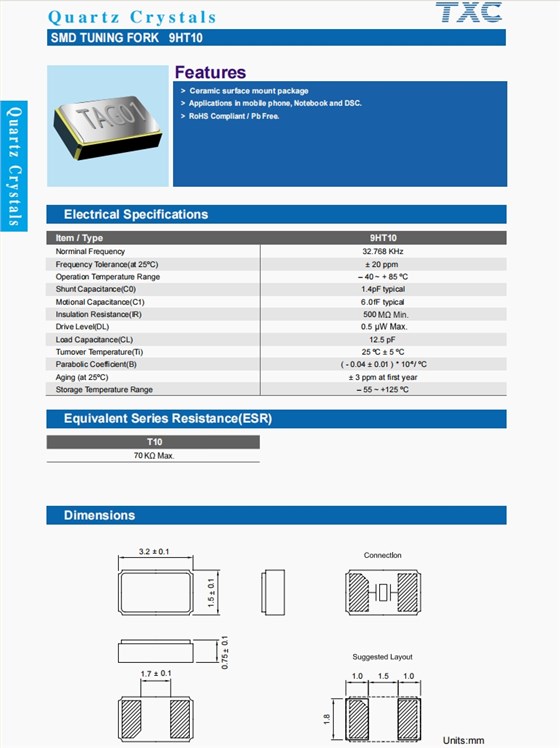

9H03270042石英晶體諧振器,3215貼片晶體，參數表

編碼	9H03270042
品牌	TXC
型號	9HT10
頻率	32.768kHz
精度	±20ppm
負載電容	12.5pF
工作溫度	-40°C ~ 85°
尺寸	3.2mm*1.5mm

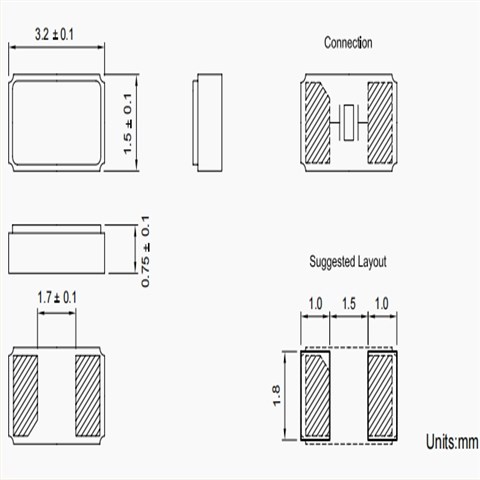

9H03270042石英晶體諧振器,3215貼片晶體，尺寸圖

Mfr Part #	臺晶晶振	Series	Frequency	Frequency Tolerance	Load Capacitance	Operating Temperature
9HT10-32.768KDZF-T	TXC CORPORATION	9HT10	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
9HT10-32.768KBZF-T	TXC CORPORATION	9HT10	32.768kHz	±50ppm	12.5pF	-40°C ~ 85°C
9HT10-32.768KBZB-T	TXC CORPORATION	9HT10	32.768kHz	±50ppm	6pF	-40°C ~ 85°C
9HT10-32.768KBZC-T	TXC CORPORATION	9HT10	32.768kHz	±50ppm	9pF	-40°C ~ 85°C
9HT10-32.768KAZF-T	TXC CORPORATION	9HT10	32.768kHz	±30ppm	12.5pF	-40°C ~ 85°C
9HT10-32.768KAZY-T	TXC CORPORATION	9HT10	32.768kHz	±30ppm	7pF	-40°C ~ 85°C
9HT10-32.768KDZY-T	TXC CORPORATION	9HT10	32.768kHz	±20ppm	7pF	-40°C ~ 85°C
9HT10-32.768KEZF-T	TXC CORPORATION	9HT10	32.768kHz	±10ppm	12.5pF	-40°C ~ 85°C
9HT10-32.768KDZC-T	TXC CORPORATION	9HT10	32.768kHz	±20ppm	9pF	-40°C ~ 85°C
9HT10-32.768KBZY-T	TXC CORPORATION	9HT10	32.768kHz	±50ppm	7pF	-40°C ~ 85°C
9HT10-32.768KAZB-T	TXC CORPORATION	9HT10	32.768kHz	±30ppm	6pF	-40°C ~ 85°C
9HT10-32.768KDZB-T	TXC CORPORATION	9HT10	32.768kHz	±20ppm	6pF	-40°C ~ 85°C
9HT10-32.768KAZC-T	TXC CORPORATION	9HT10	32.768kHz	±30ppm	9pF	-40°C ~ 85°C
9HT10-32.768KEZY-T	TXC CORPORATION	9HT10	32.768kHz	±10ppm	7pF	-40°C ~ 85°C
9HT10-32.768KEZC-T	TXC CORPORATION	9HT10	32.768kHz	±10ppm	9pF	-40°C ~ 85°C
9HT11-32.768KEZY-T	TXC CORPORATION	9HT10	32.768kHz	±10ppm	7pF	-40°C ~ 85°C
9H03270036	TXC CORPORATION	9HT10	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
9H03200019	TXC CORPORATION	9HT10	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
9H03200031	TXC CORPORATION	9HT10	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
9H03200042	TXC CORPORATION	9HT10	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
9H03220005	TXC CORPORATION	9HT10	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
9H03220008	TXC CORPORATION	9HT10	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
9H03220009	TXC CORPORATION	9HT10	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
9H03270011	TXC CORPORATION	9HT10	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
9H03270040	TXC CORPORATION	9HT10	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
9H03270052	TXC CORPORATION	9HT10	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
9H03270059	TXC CORPORATION	9HT10	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
9H03277003	TXC CORPORATION	9HT10	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
9H03277005	TXC CORPORATION	9HT10	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
9H03200036	TXC CORPORATION	9HT10	32.768kHz	±20ppm	6pF	-40°C ~ 85°C
9H03200021	TXC CORPORATION	9HT10	32.768kHz	±20ppm	7pF	-40°C ~ 85°C
9H03200034	TXC CORPORATION	9HT10	32.768kHz	±20ppm	7pF	-40°C ~ 85°C
9H03200022	TXC CORPORATION	9HT10	32.768kHz	±20ppm	9pF	-40°C ~ 85°C
