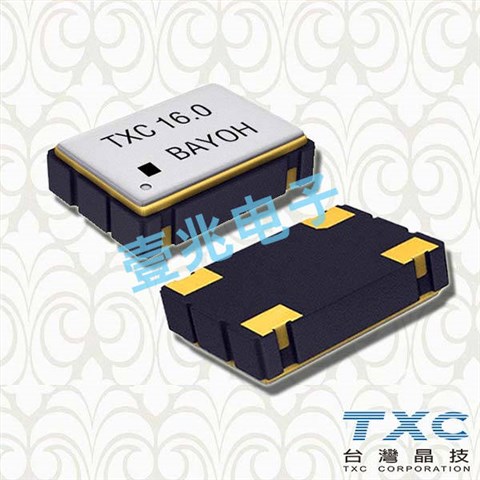

7C-25.000MBE-T振蕩器,5032有源貼片晶體

產品簡介

7C-25.000MBE-T振蕩器,5032有源貼片晶體，編碼：7C-25.000MBE-T，型號：7C，工作溫度：-40°C ~ 85°C，尺寸：5.0mm*3.2mm，頻率：25 MHz，精度：±50ppm，電壓：3.3V，電流：30mA，臺產晶振，進口石英晶體振蕩器，TXC晶振，有源晶振SPXO，XO振蕩器，貼片有源晶體，頻率范圍:1MHZ至170MHZ,SMD接縫密封陶瓷封裝，電源電壓:1.8V ~ 3.3V ，CMOS輸出，三態功能可用外部尺寸長:5.0 x寬:3.2 x高:1.2 ，符合RoHS標準且無鉛，產品廣泛應用于網絡、服務器、存儲 無線通信光纖通道、以太網、筆記本電腦、硬盤、固態硬盤、顯卡、計算機外圍設備音頻、視頻、游戲、打印機、DSC IP CAM，消費品。

產品詳情

7C-25.000MBE-T振蕩器,5032有源貼片晶體，參數表

編碼	7C-25.000MBE-T
品牌	TXC
型號	7C
頻率	25 MHz
精度	±50ppm
電壓	3.3V
電流	30mA
工作溫度	-40°C ~ 85°C
尺寸	5.0mm*3.2mm

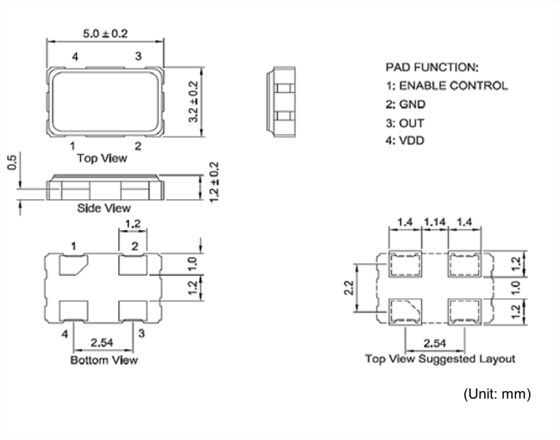

7C-25.000MBE-T振蕩器,5032有源貼片晶體，尺寸圖

Mfr Part #	有源晶振SPXO	Series	Type	Frequency	Output	Voltage - Supply	Frequency Stability
7C-25.000MBE-T	TXC CORPORATION	7C	XO (Standard)	25 MHz	CMOS	3.3V	±50ppm
7C-40.000MBE-T	TXC CORPORATION	7C	XO (Standard)	40 MHz	CMOS	3.3V	±50ppm
7C-25.000MCB-T	TXC CORPORATION	7C	XO (Standard)	25 MHz	CMOS	2.5V	±50ppm
7C-26.000MBB-T	TXC CORPORATION	7C	XO (Standard)	26 MHz	CMOS	3.3V	±50ppm
7C-28.63636MBB-T	TXC CORPORATION	7C	XO (Standard)	28.63636 MHz	CMOS	3.3V	±50ppm
7C-26.000MBA-T	TXC CORPORATION	7C	XO (Standard)	26 MHz	CMOS	3.3V	±25ppm
7C-25.000MBA-T	TXC CORPORATION	7C	XO (Standard)	25 MHz	CMOS	3.3V	±25ppm
7C-4.000MBB-T	TXC CORPORATION	7C	XO (Standard)	4 MHz	CMOS	3.3V	±50ppm
7C-50.000MBE-T	TXC CORPORATION	7C	XO (Standard)	50 MHz	CMOS	3.3V	±50ppm
7C-40.000MCB-T	TXC CORPORATION	7C	XO (Standard)	40 MHz	CMOS	2.5V	±50ppm
7C-24.576MBA-T	TXC CORPORATION	7C	XO (Standard)	24.576 MHz	CMOS	3.3V	±25ppm
7C-27.000MBA-T	TXC CORPORATION	7C	XO (Standard)	27 MHz	CMOS	3.3V	±25ppm
7C-40.000MBA-T	TXC CORPORATION	7C	XO (Standard)	40 MHz	CMOS	3.3V	±25ppm
7C-48.000MBE-T	TXC CORPORATION	7C	XO (Standard)	48 MHz	CMOS	3.3V	±50ppm
7C-6.000MBB-T	TXC CORPORATION	7C	XO (Standard)	6 MHz	CMOS	3.3V	±50ppm
7C-16.000MBB-T	TXC CORPORATION	7C	XO (Standard)	16 MHz	CMOS	3.3V	±50ppm
7C-6.000MBA-T	TXC CORPORATION	7C	XO (Standard)	6 MHz	CMOS	3.3V	±25ppm
7C-14.31818MBA-T	TXC CORPORATION	7C	XO (Standard)	14.31818 MHz	CMOS	3.3V	±25ppm
7C-33.3330MBA-T	TXC CORPORATION	7C	XO (Standard)	33.333 MHz	CMOS	3.3V	±25ppm
7C-133.3330MDB-T	TXC CORPORATION	7C	XO (Standard)	133.333 MHz	CMOS	1.8V	±50ppm
7C-75.000MDB-T	TXC CORPORATION	7C	XO (Standard)	75 MHz	CMOS	1.8V	±50ppm
7C-80.000MDB-T	TXC CORPORATION	7C	XO (Standard)	80 MHz	CMOS	1.8V	±50ppm
7C-100.000MDB-T	TXC CORPORATION	7C	XO (Standard)	100 MHz	CMOS	1.8V	±50ppm
7C-100.000MBE-T	TXC CORPORATION	7C	XO (Standard)	100 MHz	CMOS	3.3V	±50ppm
7C-75.000MBE-T	TXC CORPORATION	7C	XO (Standard)	75 MHz	CMOS	3.3V	±50ppm
7C-77.760MBE-T	TXC CORPORATION	7C	XO (Standard)	77.76 MHz	CMOS	3.3V	±50ppm
7C-80.000MEA-T	TXC CORPORATION	7C	XO (Standard)	80 MHz	CMOS	2.8V	±25ppm
7C-100.000MDE-T	TXC CORPORATION	7C	XO (Standard)	100 MHz	CMOS	1.8V	±50ppm
7C-133.3330MDE-T	TXC CORPORATION	7C	XO (Standard)	133.333 MHz	CMOS	1.8V	±50ppm
7C-125.000MBE-T	TXC CORPORATION	7C	XO (Standard)	125 MHz	CMOS	3.3V	±50ppm
7C-133.000MBE-T	TXC CORPORATION	7C	XO (Standard)	133 MHz	CMOS	3.3V	±50ppm
7C-156.250MBE-T	TXC CORPORATION	7C	XO (Standard)	156.25 MHz	CMOS	3.3V	±50ppm
7C-100.000MBF-T	TXC CORPORATION	7C	XO (Standard)	100 MHz	CMOS	3.3V	±100ppm
7C-4.000MBA-T	TXC CORPORATION	7C	XO (Standard)	4 MHz	CMOS	3.3V	±25ppm
7C-8.000MBA-T	TXC CORPORATION	7C	XO (Standard)	8 MHz	CMOS	3.3V	±25ppm
