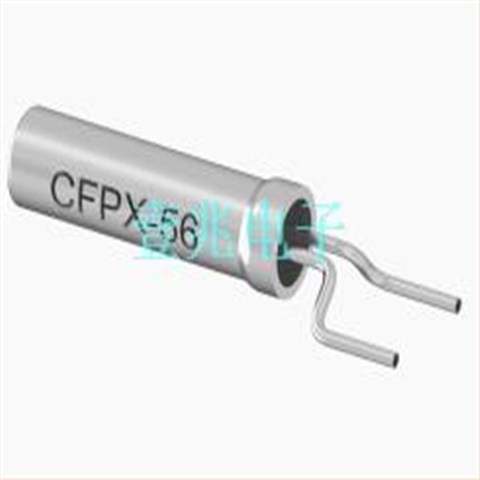

LFXTAL025159REEL石英晶體,CFPX-56兩腳插件晶振,

產品簡介

LFXTAL025159REEL石英晶體,CFPX-56兩腳插件晶振，編碼：LFXTAL025159REEL，型號：CFPX-56，工作溫度：-40℃ ~ 85°C，尺寸：1.8mm*6.0mm，頻率：32.768 kHz，精度：±20ppm，負載電容：12.5pF，英國進口晶振，IQD石英晶體諧振器，石英晶振，貼片晶振，32.768貼片晶振，2x 6毫米手表水晶，帶預成型支腳，用于制作SMD 包裹。適合實時時鐘應用，智能手機，智能手表，工業設備，車載設備，網絡設備，無線電話，無線通信，計算機等應用。

產品詳情

LFXTAL025159REEL石英晶體,CFPX-56兩腳插件晶振，參數表

編碼	LFXTAL025159REEL
品牌	IQD
型號	CFPX-56
頻率	32.768 kHz
精度	±20ppm
負載電容	12.5pF
工作溫度	-40℃ ~ 85°C
尺寸	1.8mm*6.0mm

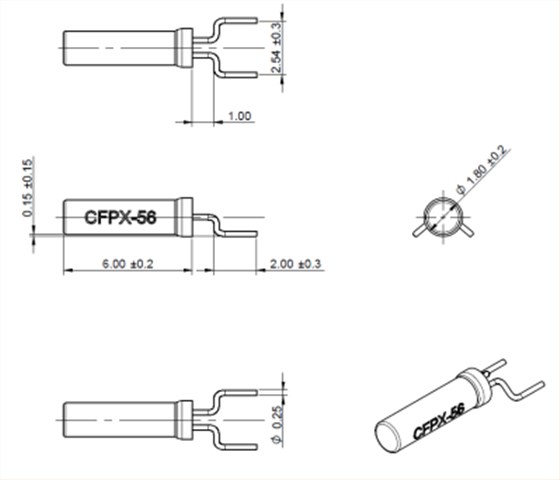

LFXTAL025159REEL石英晶體,CFPX-56兩腳插件晶振，尺寸圖

Mfr Part #	貼片石英晶體	Series	Frequency	Frequency Tolerance	Load Capacitance	Operating Temperature
LFXTAL069395RL3K	IQD Frequency Products	CFPX-218	16.384 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL025159REEL	IQD Frequency Products	CFPX-56	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
LFXTAL069383REEL	IQD Frequency Products	CFPX-218	24 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL063334REEL	IQD Frequency Products	CFPX-218	25 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL069405REEL	IQD Frequency Products	CFPX-218	27 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL069392REEL	IQD Frequency Products	CFPX-218	16 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL068297REEL	IQD Frequency Products	CFPX-218	16 MHz	±10ppm	8pF	-20°C ~ 75°C
LFXTAL069407REEL	IQD Frequency Products	CFPX-218	30 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL082082CUTT	IQD Frequency Products	CFPX-218	24 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL069381REEL	IQD Frequency Products	CFPX-218	20 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL071952RL3K	IQD Frequency Products	CFPX-218	12 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL025159BULK	IQD Frequency Products	CFPX-56	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
LFXTAL081865RL3K	IQD Frequency Products	CFPX-218	26 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL082080RL3K	IQD Frequency Products	CFPX-218	19.2 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL078207RL3K	IQD Frequency Products	CFPX-218	32 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL072844RL3K	IQD Frequency Products	CFPX-218	30 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL082084RL3K	IQD Frequency Products	CFPX-218	-	±10ppm	10pF	-20°C ~ 70°C
LFXTAL082081RL3K	IQD Frequency Products	CFPX-218	-	±10ppm	10pF	-20°C ~ 70°C
LFXTAL078719RL3K	IQD Frequency Products	CFPX-218	-	±10ppm	10pF	-20°C ~ 70°C
LFXTAL082082RL3K	IQD Frequency Products	CFPX-218	24 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL082087RL3K	IQD Frequency Products	CFPX-218	40 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL082088RL3K	IQD Frequency Products	CFPX-218	50 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL069400REEL	IQD Frequency Products	CFPX-218	18.432 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL050991REEL	IQD Frequency Products	CFPX-218	26 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL069387REEL	IQD Frequency Products	CFPX-218	24.576 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL069390REEL	IQD Frequency Products	CFPX-218	32 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL069404REEL	IQD Frequency Products	CFPX-218	19.2 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL071952REEL	IQD Frequency Products	CFPX-218	12 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL082084CUTT	IQD Frequency Products	CFPX-218	27 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL082087CUTT	IQD Frequency Products	CFPX-218	40 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL082081CUTT	IQD Frequency Products	CFPX-218	20 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL078207REEL	IQD Frequency Products	CFPX-218	32 MHz	±10ppm	10pF	-20°C ~ 70°C
