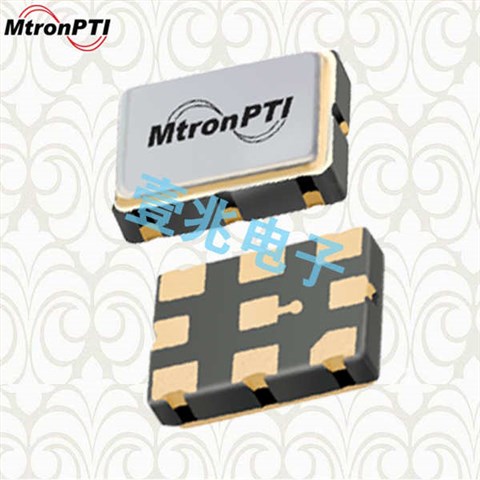

M2120S002 622.08, 644.5313,7050差分晶體,M21x晶體振蕩器

產品簡介

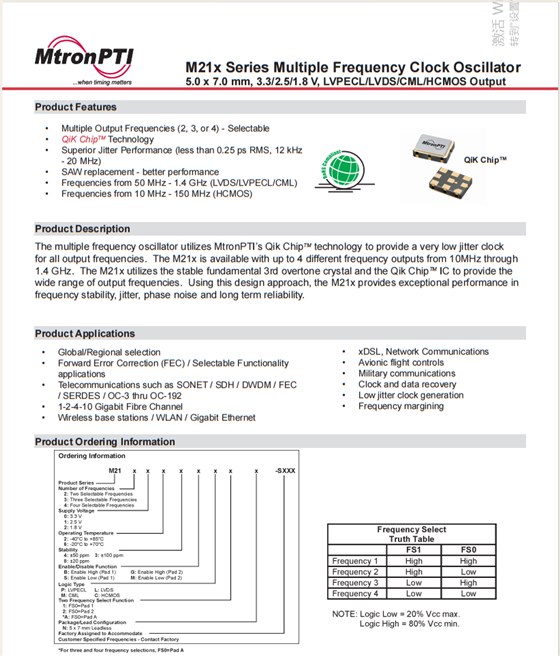

M2120S002 622.08, 644.5313,7050差分晶體,M21x晶體振蕩器，編碼：M2120S002 622.08, 644.5313，型號：M21x系列晶振，工作溫度：-40°C to +85°C，精度：±20ppm，尺寸：7.0*5.0mm，頻率：622.08MHz，電壓：3.3V，輸出方式：LVPECL，美國進口晶振，差分輸出振蕩器，差分晶體，OSC石英晶振，石英晶體振蕩器，多頻振蕩器利用MtronPTI的Qik ChipTM技術來提供非常低抖動的時鐘適用于所有輸出頻率。M21x有多達4種不同的頻率輸出，從10MHz到 1.4 GHz。M21x利用穩定的基頻三次泛音晶體和Qik ChipTM IC來提供輸出頻率范圍寬。使用這種設計方法，M21x在以下方面提供了卓越的性能頻率穩定性、抖動、相位噪聲和長期可靠性。被應用在1-2-4-10千兆位光纖通道無線基站/ WLAN /千兆以太網 xDSL網絡通信航空電子飛行控制軍事通信時鐘和數據恢復 低抖動時鐘生成頻率余量微調。

產品詳情

M2120S002 622.08, 644.5313,7050差分晶體,M21x晶體振蕩器，參數表

編碼	M2120S002 622.08, 644.5313
品牌	MtronPTI晶振
型號	M21x
頻率	622.08MHz
精度	±20ppm
輸出方式	LVPECL
電壓	3.3V
工作溫度	-40°C ~ 85°C

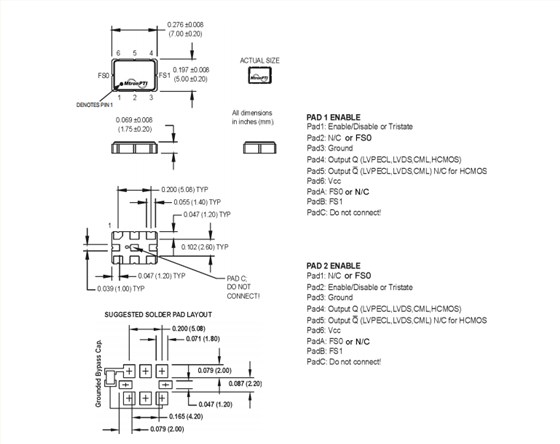

M2120S002 622.08, 644.5313,7050差分晶體,M21x晶體振蕩器，尺寸圖

Part Number	XO振蕩器	Oscillator Type	Frequency	Frequency Tolerance (ppm)	Package	Temperature Range
M220168MPJ 156.250000	M220x	XO	156.25	±20 ppm	9.0 X 14.0 mm	-20°C to +70°C
M2120S002 622.08, 644.5313	M21x	XO	622.08	±20 ppm	5.0 x 7.0 mm	-40°C to +85°C
M2120S003 669.3265, 670.8386	M21x	XO	70.8386	±20 ppm	5.0 x 7.0 mm	-40°C to +85°C
M2140S010 100, 125, 156.25, 312.5	M21x	XO	100	±20 ppm	5.0 x 7.0 mm	-40°C to +85°C
M2140S020 100, 125, 156.25, 161.1328125	M21x	XO	100	±20 ppm	5.0 x 7.0 mm	-40°C to +85°C
M2140S023 75, 108.1, 113, 332	M21x	XO	108.1	±20 ppm	5.0 x 7.0 mm	See chart
M2140S025 75, 108.1, 113, 332	M21x	XO	108.1	±20 ppm	5.0 x 7.0 mm	-40°C to +85°C
M2200S014 40.000000	M220x	XO	40	±20 ppm	9.0 X 14.0 mm	-40°C to +85°C
M2200S015 84.000000	M220x	XO	84	±20 ppm	9.0 X 14.0 mm	-40°C to +85°C
M220024BPJ 500.000000	M220x	XO	500	±50 ppm	9.0 X 14.0 mm	-40°C to +85°C
M220024BPJ 750.000000	M220x	XO	750	±50 ppm	9.0 X 14.0 mm	-40°C to +85°C
M220024MPJ 1360.000000	M220x	XO	1,360.00	±50 ppm	9.0 X 14.0 mm	-40°C to +85°C
M220024SPJ 196.608000	M220x	XO	196.608	±50 ppm	9.0 X 14.0 mm	-40°C to +85°C
M220024UPJ 389.600000	M220x	XO	389.6	±50 ppm	9.0 X 14.0 mm	-40°C to +85°C
M220064UPJ 644.530000	M220x	XO	644.53	±50 ppm	9.0 X 14.0 mm	-20°C to +70°C
M225014FAN 25.000000	M2250	XO	25	±50 ppm	5.0 x 7.0 mm	0°C to +70°C
M225014FAN 50.000000	M2250	XO	50	±50 ppm	5.0 x 7.0 mm	0°C to +70°C
M225014TCN 125.000000	M2250	XO	125	±50 ppm	5.0 x 7.0 mm	0°C to +70°C
M225014TCN 25.000000	M2250	XO	25	±50 ppm	5.0 x 7.0 mm	0°C to +70°C
M225024FCN 25.000000	M2250	XO	25	±50 ppm	5.0 x 7.0 mm	-40°C to +85°C
M225024TCN 25.000000	M2250	XO	25	±50 ppm	5.0 x 7.0 mm	-40°C to +85°C
M225064TAN 25.000000	M2250	XO	25	±50 ppm	5.0 x 7.0 mm	-20°C to +70°C
