蘋果手機iPhone14Pro芯片A16支持衛星通信通話LVDS愛普生差分晶振X1G004281000100

來源：壹兆電子查看手機網址

掃一掃!

蘋果手機iPhone14Pro芯片A16支持衛星通信通話LVDS愛普生差分晶振X1G004281000100

掃一掃!

瀏覽：- 發布日期：2022-10-08 16:13:56【大中小】

分享到：

蘋果手機iPhone14Pro芯片A16支持衛星通信通話LVDS愛普生差分晶振X1G004281000100

還有Photonic Engine這類新軟件特性;和發布會上反復強調的Crash Detection;和傳言甚久的衛星通信電話emergency SOS viasatellite似乎適用范圍是受限的.系統層面的這些更新發布會報道文章.目前iPhone14非Pro版沿用舊芯片,能部分看出半導體和尖端制造工藝的窘迫.愛普生差分晶振我們知道消費電子市場如今相當不景氣,智能手機出貨量正持續下跌;此前我們也談過為什么消費者的換機周期在延長.而iPhone14對于老芯片的沿用,無非是這一現狀的外在體現;以及是否也能說明A16和A15大概真的沒多大差距?

LVDS愛普生差分晶振X1G004281000100,蘋果手機iPhone14Pro芯片A16衛星通信晶振

愛普生有源晶振編碼	型號	頻率	長X寬X高	輸出波	電源電壓	工作溫度	頻差	最大值
X1G004271010900	SG5032EAN	250.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm	≤ 65.0 mA
X1G004271011600	SG5032EAN	133.330000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm	≤ 65.0 mA
X1G004271011700	SG5032EAN	133.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm	≤ 65.0 mA
X1G004271011800	SG5032EAN	133.333000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm	≤ 65.0 mA
X1G004271011900	SG5032EAN	174.703125 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C	+/-20 ppm	≤ 65.0 mA
X1G004271012100	SG5032EAN	161.132813 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm	≤ 65.0 mA
X1G004271012200	SG5032EAN	425.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm	≤ 65.0 mA
X1G004271012300	SG5032EAN	500.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm	≤ 65.0 mA

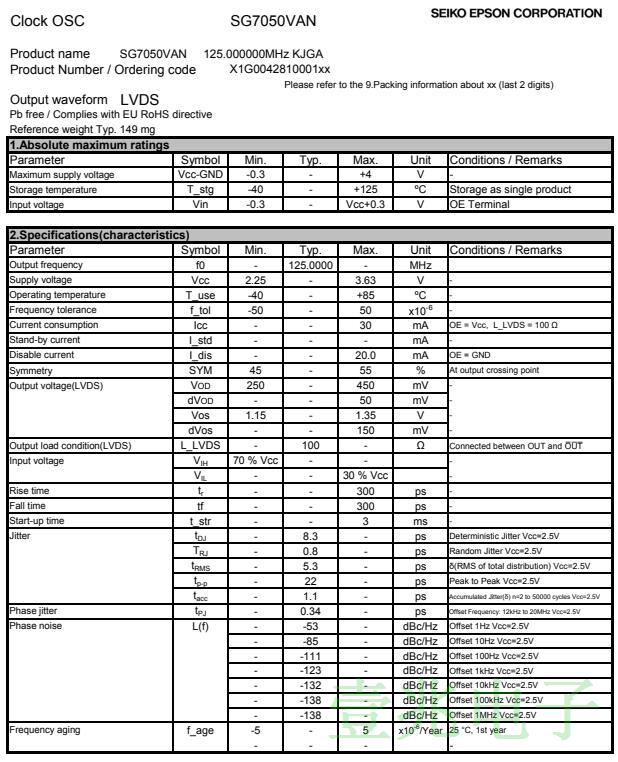

X1G004281000100	SG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm	≤ 30.0 mA
X1G004281000200	SG7050VAN	125.006250 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm	≤ 30.0 mA
X1G004281000400	SG7050VAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm	≤ 30.0 mA
X1G004281000500	SG7050VAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm	≤ 30.0 mA
X1G004281000600	SG7050VAN	400.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm	≤ 30.0 mA
X1G004281000800	SG7050VAN	212.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm	≤ 30.0 mA
X1G004281001000	SG7050VAN	148.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm	≤ 30.0 mA
X1G004281001100	SG7050VAN	75.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm	≤ 30.0 mA
X1G004281001200	SG7050VAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm	≤ 30.0 mA
X1G004281001300	SG7050VAN	155.520000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm	≤ 30.0 mA
X1G004281001400	SG7050VAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm	≤ 30.0 mA
X1G004281001500	SG7050VAN	312.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm	≤ 30.0 mA
X1G004281001600	SG7050VAN	312.515625 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm	≤ 30.0 mA
X1G004281001700	SG7050VAN	161.132800 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm	≤ 30.0 mA
X1G004281001900	SG7050VAN	700.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm	≤ 30.0 mA
X1G004281002000	SG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm	≤ 30.0 mA
X1G004281002100	SG7050VAN	125.006250 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm	≤ 30.0 mA

當然有可能iPhone14的RAM容量更大雖然應當仍是LPDDR4X,而且從官網目前的信息來看,iPhone14所用的A15芯片應該都是5核GPU,另外就是iPhone14加入的一些新特性,日本進口晶振像是有6.7寸屏的iPhone14Plus;劉海屏上面的那片True Depth系統換新;非Pro還在沿用老的A15芯片早在今年3月就爆料過iPhone14的非Pro版會繼續沿用A15芯片也就是iPhone13的舊芯片.目前蘋果還真的在重新用A15.iPhone14和iPhone14Plus繼續用A15.這是蘋果第一次在新iPhone上用舊芯片;也就給了iPhone12、13用戶一個不換手機的理由芯片不換,劉海屏都還是那個劉海屏,攝像頭也不給4800萬像素.

LVDS愛普生差分晶振X1G004281000100,蘋果手機iPhone14Pro芯片A16衛星通信晶振
