日本進口愛普生晶振VG3225EFN，是一款VCXO壓控晶振，LV-PECL差分輸出振蕩器，小體積尺寸3.2x2.5mm，六腳貼片晶振，有源晶振，電源電壓3.3V，頻率范圍25MHz至250MHz，任意一頻點具有低電源電壓，滿足產品低消耗電流的特點，該產品具有小體積輕薄型，低抖動，低功耗，低損耗，低耗能，低電平等特點，能夠輕易識別網絡信號以及精確的處理雙極信號.被廣泛用于通訊設備，智能手機，GPS，機頂盒，光端機，安防設備及各種頻率控制設備上.

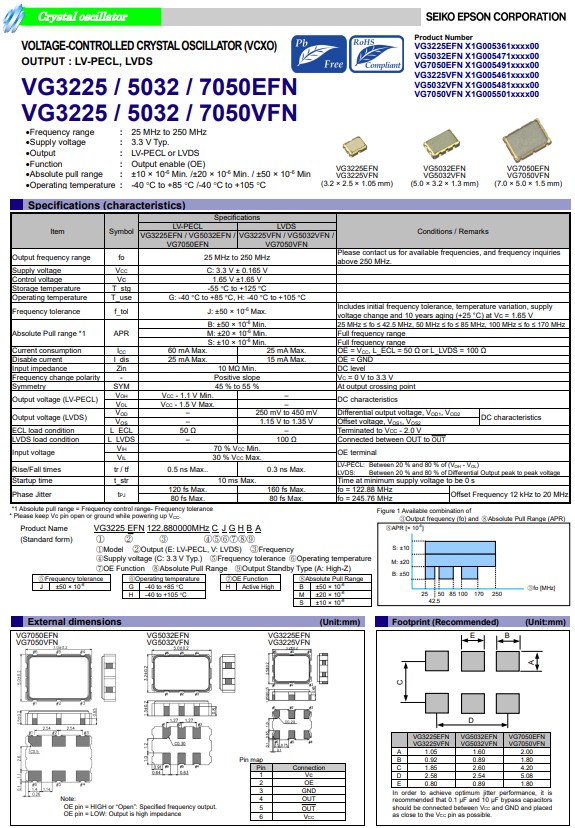

愛普生VG3225EFN壓控晶振X1G005361001500任意一頻點具有低電源電壓特點

Product Number	有源晶振	Frequency	LxWxH	Output Wave	Supply Voltage
X1G005361000100	VG3225EFN	122.880000 MHz	3.20 x 2.50 x 1.05 mm	LV-PECL	3.135 to 3.465 V
X1G005361001100	VG3225EFN	148.352000 MHz	3.20 x 2.50 x 1.05 mm	LV-PECL	3.135 to 3.465 V
X1G005361001200	VG3225EFN	148.500000 MHz	3.20 x 2.50 x 1.05 mm	LV-PECL	3.135 to 3.465 V
X1G005361001300	VG3225EFN	153.600000 MHz	3.20 x 2.50 x 1.05 mm	LV-PECL	3.135 to 3.465 V
X1G005361001400	VG3225EFN	76.800000 MHz	3.20 x 2.50 x 1.05 mm	LV-PECL	3.135 to 3.465 V
X1G005361001500	VG3225EFN	200.000000 MHz	3.20 x 2.50 x 1.05 mm	LV-PECL	3.135 to 3.465 V
X1G005361001600	VG3225EFN	125.000000 MHz	3.20 x 2.50 x 1.05 mm	LV-PECL	3.135 to 3.465 V
X1G005361001700	VG3225EFN	122.880000 MHz	3.20 x 2.50 x 1.05 mm	LV-PECL	3.135 to 3.465 V
X1G005361060200	VG3225EFN	245.760000 MHz	3.20 x 2.50 x 1.05 mm	LV-PECL	3.135 to 3.465 V
X1G005361060400	VG3225EFN	208.000000 MHz	3.20 x 2.50 x 1.05 mm	LV-PECL	3.135 to 3.465 V
X1G005361060600	VG3225EFN	204.800000 MHz	3.20 x 2.50 x 1.05 mm	LV-PECL	3.135 to 3.465 V
