511ACA156M250CAG 3225 156.2500M LVPECL 3.3V 20PP 6P Skyworks
頻率：100KHZ-250MHZ
尺寸：3.2mmx2.5mm
Si510/Si511 XO采用美國納斯達克Skyworks Solutions先進的DSPLL技術，可提供從100 kHz到250 MHz的任何頻率。與傳統的XO不同，每個輸出頻率需要不同的差分有源晶振晶體，Si510/Si511使用一個固定晶體和美國納斯達克Skyworks Solutions的專有DSPLL合成器來生成這個范圍內的任何晶振頻率.這種基于集成電路的方法允許晶體諧振器提供增強的可靠性，改進的機械穩健性和出色的穩定性.此外該解決方案提供了卓越的電源噪聲抑制，簡化了低抖動時鐘發生器511ACA156M250CAG晶振,3225 156.2500M LVPECL差分晶振,美國Skyworks6腳有源晶振
訂購熱線：0755-27876236
Si510/Si511 XO采用美國納斯達克Skyworks Solutions先進的DSPLL技術，可提供從100 kHz到250 MHz的任何頻率。與傳統的XO不同，每個輸出頻率需要不同的差分有源晶振晶體，Si510/Si511使用一個固定晶體和美國納斯達克Skyworks Solutions的專有DSPLL合成器來生成這個范圍內的任何晶振頻率.這種基于集成電路的方法允許晶體諧振器提供增強的可靠性，改進的機械穩健性和出色的穩定性.此外該解決方案提供了卓越的電源噪聲抑制，簡化了低抖動時鐘發生器
511ACA156M250CAG晶振,3225 156.2500M LVPECL差分晶振,美國Skyworks6腳有源晶振
The Si510/Si511 XO utilizes Skyworks Solutions' advanced DSPLL technology
to provide any frequency from 100 kHz to 250 MHz. Unlike a traditional XO
where a different crystal is required for each output frequency, the Si510/511
uses one fixed crystal and Skyworks Solutions’ proprietary DSPLL
synthesizer to generate any frequency across this range. This IC-based
approach allows the crystal resonator to provide enhanced reliability,
improved mechanical robustness, and excellent stability. In addition, this
solution provides superior supply noise rejection, simplifying low jitter clock
generation in noisy environments. Crystal ESR and DLD are individually
production-tested to guarantee performance and enhance reliability. The
Si510/511 is factory-configurable for a wide variety of user specifications,
including frequency, supply voltage, output format, output enable polarity,
and stability. Specific configurations are factory-programmed at time of
shipment, eliminating long lead times and non-recurring engineering charges
associated with custom frequency oscillators.
支持任何頻率
100khz至250mhz
有源晶振低抖動操作
2 - 4周的交貨期
總穩定性包括10年老化
全面的生產測試覆蓋范圍包括晶體ESR和
片上LDO穩壓器，用于電源噪聲濾波
Supports any frequency from
100 kHz to 250 MHz
Low jitter operation
n 2 to 4 week lead times
n Total stability includes 10-year
aging
n Comprehensive production test
coverage includes crystal ESR and
DLD
n On-chip LDO regulator for power
supply noise filtering
3.3, 2.5，或1.8 V操作
差分石英晶振(LVPECL, LVDS，
HCSL)或CMOS輸出選項
可選集成1:2 CMOS扇出緩沖器
在OE和電源上進行微弱抑制

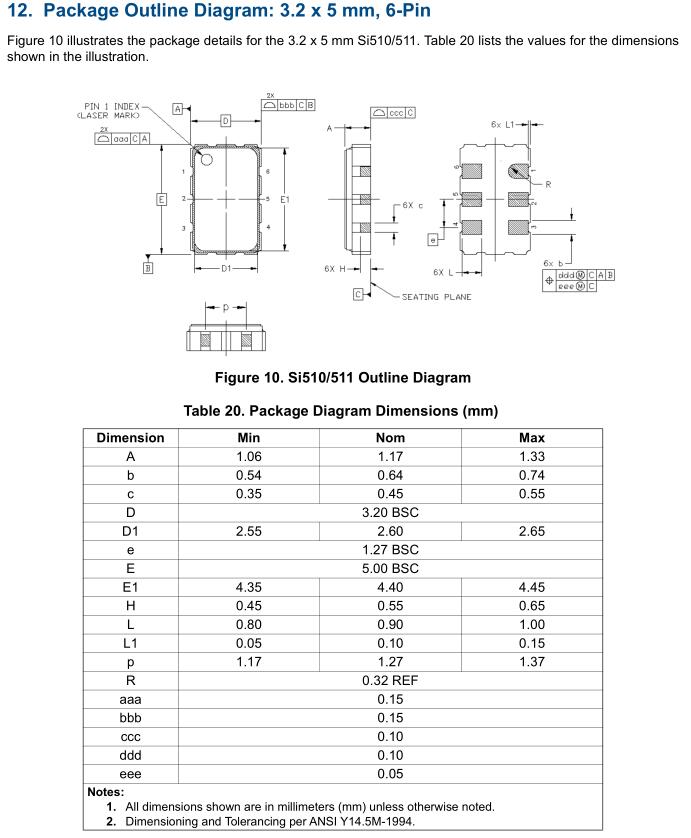

行業標準5 × 7、3.2 × 5和2.5 × 3.2 mm封裝
無鉛，符合RoHS標準
-40至85℃操作
3.3, 2.5, or 1.8 V operation
Differential (LVPECL, LVDS,
HCSL) or CMOS output options
n Optional integrated 1:2 CMOS
fanout buffer
n Runt suppression on OE and
power on
n Industry standard 5 x 7, 3.2 x 5,
and 2.5 x 3.2 mm packages
n Pb-free, RoHS compliant
n –40 to 85 oC operation511ACA156M250CAG晶振,3225 156.2500M LVPECL差分晶振,美國Skyworks6腳有源晶振
|
參數 |
象征 |
測試條件 |
最小值 |
典型值 |
麥克斯 |
單位 |
|
周期抖動 （有效值） |
JPRMS |
10k 樣本1 |
— |
— |
1.3 |
附言 |
|
周期抖動
|
JPPKPK |
10k 樣本1 |
— |
— |
11 |
附言 |
|
相位抖動 （有效值） |
φJ(rèn) |
1.875 MHz 至 20 MHz 集成帶寬2 |
— |
0.31 |
0.5 |
附言 |
|
12 kHz 至 20 MHz 集成帶寬2 |
— |
0.8 |
1.0 |
附言 |
||
|
相位噪聲， 156.25MHZ |
φN |
100HZ |
— |
–86 |
— |
分貝/赫茲 |
|
1KHZ |
— |
–109 |
— |
分貝/赫茲 |
||
|
10KHZ |
— |
–116 |
— |
分貝/赫茲 |
||
|
100KHZ |
— |
–123 |
— |
分貝/赫茲 |
||
|
1MHZ |
— |
–136 |
— |
分貝/赫茲 |
||
|
添加劑有效值 抖動由于 外部電源 電源噪聲3 |
JPSR |
10 kHz 正弦噪聲 |
— |
3.0 |
— |
附言 |
|
100 kHz 正弦噪聲 |
— |
3.5 |
— |
附言 |
||
|
500 kHz 正弦噪聲 |
— |
3.5 |
— |
附言 |
||
|
1 MHz 正弦噪聲 |
— |
3.5 |
— |
附言 |
||
|
|
零售 |
LVPECL 輸出，156.25 MHz，偏移>10 kHz |
— |
–75 |
— |
分貝 |
|
筆記： 1. 適用于輸出頻率：74.17582、74.25、75、77.76、100、106.25、125、148.35165、148.5、150、155.52、156.25、212.5、250 MHz。 2. 適用于輸出頻率：100、106.25、125、148.35165、148.5、150、155.52、156.25、212.5 和 250 MHz。 3. 156.25 MHz. 由于將正弦波噪聲添加到 VDD （2.5/3.3 V = 100 mVPP），導致輸出時鐘抖動增加。 |
||||||
石英晶體振蕩器SONET/SDH/OTN n
n 千兆以太網 n
n 光纖通道/SAS/SATA n
n PCI Express n
3G-SDI/HD-SDI/SDI
電信交換機/路由器
FPGA/ASIC 時鐘生成511ACA156M250CAG晶振,3225 156.2500M LVPECL差分晶振,美國Skyworks6腳有源晶振
| 晶振編碼 | 晶振品牌 | 晶振參數 | 型號 | 電壓 | 頻差 | 晶振溫度 | 腳位 | 晶振尺寸 |
| 511ACA156M250CAG | Skyworks | XO 156.2500MHZ LVPECL | Si511 | 3.3V | ±20ppm | -40°C ~ 85°C | 6 | 3225 |
| 511FCA80M0000CAG | Skyworks | XO 80.0000MHZ LVDS | Si511 | 2.5V | ±20ppm | -40°C ~ 85°C | 6 | 3225 |
| 510CBA33M3333CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA33M3333CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 511FCA000292CAG | Skyworks | XO 161.1328MHZ LVDS | Si511 | 2.5V | ±20ppm | -40°C ~ 85°C | 6 | 3225 |
| 511FCA156M250CAG | Skyworks | XO 156.2500MHZ LVDS | Si511 | 2.5V | ±20ppm | -40°C ~ 85°C | 6 | 3225 |
| 510CBA000282CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA8M19200CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBAM250000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA25M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510GBB19M2000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 2.5V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA50M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA2M04800CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510GBA50M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 2.5V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA26M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA100M000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA000268CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA33M3333CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA27M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA24M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA40M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBAM800000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA4M09600CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA100M000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA000346CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA20M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA12M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA16M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA24M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510GBA004678CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 2.5V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA48M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA20M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA106M250CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA8M00000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA76M8000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA80M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA58M9824CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBB50M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA75M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA50M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBB25M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA125M000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510GBA125M000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 2.5V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA90M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA48M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA125M000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA000346CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA12M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510GBA25M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 2.5V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA114M285CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA33M3300CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA107M520CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA40M6800CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA59M1360CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA72M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA1M00000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA10M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA25M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510GAA24M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 2.5V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510GAA50M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 2.5V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CAA24M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CAA100M000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CAAM460800CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CAA004695CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CAB50M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510GAB29M9710CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 2.5V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KAA50M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CAAM500000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CAA81M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510GAA110M000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 2.5V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CAA75M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CAA50M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CAA3M58400CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CAAM983400CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KAA27M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CAA40M6800CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CAA12M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CAB1M00000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CAA7M37280CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CAB25M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CAA14M7000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CAA80M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CAA33M3300CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KAA100M000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CAA32M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CAA48M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CAA004719CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CAA28M6363CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CAA19M2000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KAA25M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CAA10M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CAA25M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CAA91M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CAA30M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CAB100M000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CAA20M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KCA133M333CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KCA004669CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KCA144M000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA144M000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA156M250CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA155M520CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA133M000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA004669CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA150M000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KCA40M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA8M70400CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KCAM128000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KCAM250000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KCA27M0950CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA60M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA20M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA33M3333CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA1M25000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510GCA36M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 2.5V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA30M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCAM102400CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KCA000307CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA3M07200CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA14M7000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KCA33M3330CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA22M5792CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KCA125M000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KCA22M5792CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA75M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA38M8000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA004719CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA40M6800CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA100M000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA4M00000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KCA33M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KCA12M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA114M285CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KCB30M7200CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KCA33M3333CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510GCA100M000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 2.5V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA12M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA50M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KCA100M000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA38M4000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KCA104M000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA66M6660CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KCA25M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA16M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KCA30M7200CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510GCA125M000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 2.5V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA32M7680CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KCA66M6660CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA26M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA24M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KCA80M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA27M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA24M5760CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA33M3300CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA8M00000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCAM409600CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KCA50M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA107M500CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA40M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KCA10M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA33M3330CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KCA24M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA10M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA125M000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA48M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA000346CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CCA25M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±20ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CAA170M000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KAA144M000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510GAA144M000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 2.5V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KAA160M000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±50ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA7M37280CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510GBA25M0000CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 2.5V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA25M0000CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA76M8000CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA72M0000CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA80M0000CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA125M000CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBB25M0000CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA75M0000CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA8M00000CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA12M0000CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBAM250000CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA1M00000CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA8M19200CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBB50M0000CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA59M1360CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510GBA125M000CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 2.5V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA000346CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA27M0000CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510GBB19M2000CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 2.5V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA25M0000CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA100M000CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA200M000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 515CAA16M7770CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 3.3V | ±20ppm | -40°C ~ 85°C | 6 | 3225 |
| 515GAA54M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 2.5V | ±20ppm | -40°C ~ 85°C | 6 | 3225 |
| 515CBA32M7680CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 3.3V | ±20ppm | -40°C ~ 85°C | 6 | 3225 |
| 515CAA12M2880CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 3.3V | ±20ppm | -40°C ~ 85°C | 6 | 3225 |
| 515CBA27M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 3.3V | ±20ppm | -40°C ~ 85°C | 6 | 3225 |
| 515GCA27M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 2.5V | ±20ppm | -40°C ~ 85°C | 6 | 3225 |
| 515GCA10M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 2.5V | ±20ppm | -40°C ~ 85°C | 6 | 3225 |
| 515CAA004711CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 3.3V | ±20ppm | -40°C ~ 85°C | 6 | 3225 |
| 515CCA12M8000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 3.3V | ±20ppm | -40°C ~ 85°C | 6 | 3225 |
| 515CCA125M000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 3.3V | ±20ppm | -40°C ~ 85°C | 6 | 3225 |
| 515CAA27M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 3.3V | ±20ppm | -40°C ~ 85°C | 6 | 3225 |
| 515CCA2M04800CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 3.3V | ±20ppm | -40°C ~ 85°C | 6 | 3225 |
| 515GAA32M7680CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 2.5V | ±20ppm | -40°C ~ 85°C | 6 | 3225 |
| 515CCA65M0000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 3.3V | ±20ppm | -40°C ~ 85°C | 6 | 3225 |
| 515CCAM100000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 3.3V | ±20ppm | -40°C ~ 85°C | 6 | 3225 |
| 515CCA8M00000CAGR | Skyworks | DIFFERENTIAL/SINGLE-ENDED SINGLE | Si515 | 3.3V | ±20ppm | -40°C ~ 85°C | 6 | 3225 |
| 510KBA12M0000CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA90M0000CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA10M0000CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA33M3300CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA24M0000CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510GBA50M0000CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 2.5V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA4M09600CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA20M0000CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA58M9824CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA40M0000CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA106M250CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA000346CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA20M0000CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA000282CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA16M0000CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA125M000CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA40M6800CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA100M000CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA50M0000CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA26M0000CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA24M0000CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA107M520CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA48M0000CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA50M0000CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA000268CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA33M3333CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510CBA2M04800CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 3.3V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510GBA004678CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 2.5V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
| 510KBA48M0000CAG | Skyworks | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si510 | 1.8V | ±25ppm | -40°C ~ 85°C | 4 | 3225 |
深圳市壹兆電子科技有限公司
聯系人：龔成
電話：0755--27876236聯系人：龔成
QQ：769468702
手機：13590198504
郵箱:zhaoxiandz@163.com
網站:http://ellentracy.cn
511ACA156M250CAG晶振,3225 156.2500M LVPECL差分晶振,美國Skyworks6腳有源晶振
采購：511ACA156M250CAG 3225 156.2500M LVPECL 3.3V 20PP 6P Skyworks
- *聯系人：
- *手機：
- 公司名稱：
- 郵箱：
- *采購意向：
-
*驗證碼：
跟此產品相關的產品 / Related Products
壹兆產品中心
Product Center
晶振廠家
臺產晶振
日產晶振
歐美晶振
- CTS晶振
- 微晶晶振
- 瑞康晶振
- 康納溫菲爾德
- 高利奇晶振
- Jauch晶振
- AbraconCrystal
- 維管晶振
- ECScrystal晶振
- 日蝕晶振
- 拉隆晶振
- 格林雷晶振
- SiTimeCrystal
- IDTcrystal晶振
- Pletronics晶振
- Statek晶振
- AEK晶振
- AEL晶振
- Cardinal晶振
- Crystek晶振
- Euroquartz晶振
- FOX晶振
- Frequency晶振
- GEYER晶振
- ILSI晶振
- MMDCOMP晶振
- MtronPTI晶振
- QANTEK晶振
- QuartzCom晶振
- QuartzChnik晶振
- SUNTSU晶振
- Transko晶振
- WI2WI晶振
- 韓國三呢晶振
- ACT晶振
- MTI-Milliren晶振
- LiHom晶振
- Rubyquartz晶振
- Oscilent晶振
- SHINSUNG晶振
- ITTI晶振
- PDI晶振
- C-TECH晶振
- KVG晶振
- IQD晶振
- Microchip晶振
- Silicon晶振
- Fortiming晶振
- CORE晶振
- NIPPON晶振
- NIC晶振
- QVS晶振
- Bomar晶振
- Bliley晶振
- GED晶振
- Filtronetics晶振
- STD晶振
- Q-Tech晶振
- Anderson晶振
- Wenzel晶振
- NEL晶振
- EM晶振
- PETERMANN晶振
- FCD-Tech晶振
- HEC晶振
- FMI晶振
- Macrobizes晶振
- AXTAL晶振
- ARGO晶振
- Skyworks晶振
- Renesas瑞薩晶振
32.768K
有源晶振
貼片晶振
應用領域
聯系壹兆電子Contact us
咨詢熱線：86-0755-27876236
電話：86-0755-27876236
手機：135-9019-8504
QQ：769468702
地址：中國廣東深圳市寶安區沙井街道上星咸夫大廈F座2號903
