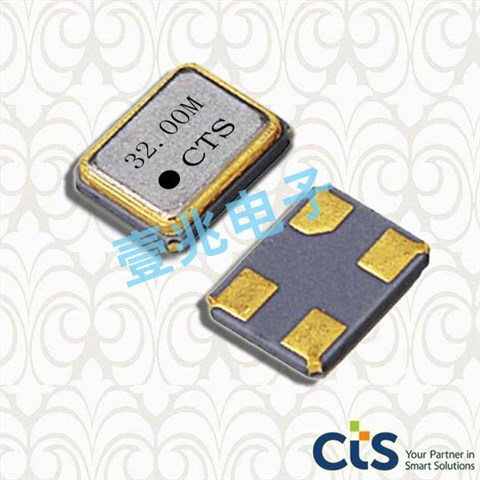

402F271XXCJR,2016貼片晶體,美國CTS晶振

產品簡介

402F271XXCJR,2016貼片晶體,美國CTS晶振，編碼：402F271XXCJR，型號：402系列晶振，工作溫度：-20°C ~ 70°C，尺寸：2.0*1.6mm，頻率：27.12MHz，負載電容：9pF，精度：±15ppm，CTS晶振，無源晶振，標準2.0毫米x 1.6mm毫米縫焊包基本晶體設計頻率范圍為16–60 MHz 頻率容差，20ppm標準 頻率穩定性，30ppm標準 工作溫度為-40℃至+85℃ 膠帶和卷軸包裝標準，EIA-481，402型是一種低成本石英晶體諧振器，廣泛應用于商業領域，包括可穿戴和手持電子產品、筆記本電腦、平板電腦、計算機外設、藍牙、ZigBee和USB接口。

產品詳情

402F271XXCJR,2016貼片晶體,美國CTS晶振，參數表

PARAMETER

VALUE

Frequency Range

16MHz to 60MHz

Operating Mode

Fundamental

Crystal Cut

AT-Cut

Frequency Tolerance @ +25°C

±20ppm, Standard

Frequency Stability Tolerance
[Operating Temperature Range, Referenced to +25°C Reading]

±30ppm, Standard

Operating Temperature Ranges

-10°C to +60°C

-20°C to +70°C

-30°C to +85°C

-40°C to +85°C

Equivalent Series Resistance[Maximum]

16MHz - <20MHz

120 Ohms

20MHz - <30MHz

100 Ohms

30MHz - <36MHz

80 Ohms

36MHz - 60MHz

60 Ohms

Load Capacitance

See Ordering Information

Shunt Capacitance[C0]

3.0pF Typical, 5.0pF Maximum

Drive Level

10µW Typ., 200µW Max.

Aging @ +25°C

±3ppm/yr Typical

Insulation Resistance

500M Ohms @ DC 100V

Storage Temperature Range

-40°C to +90°C

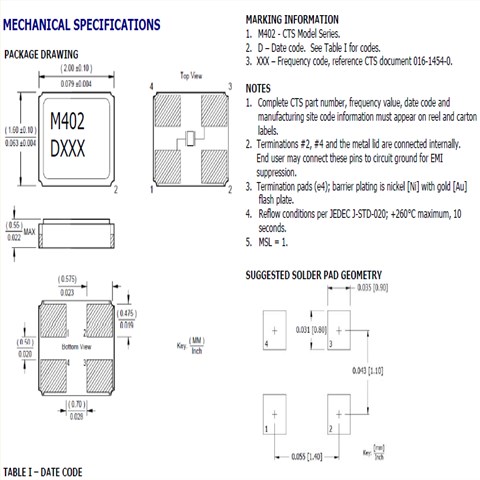

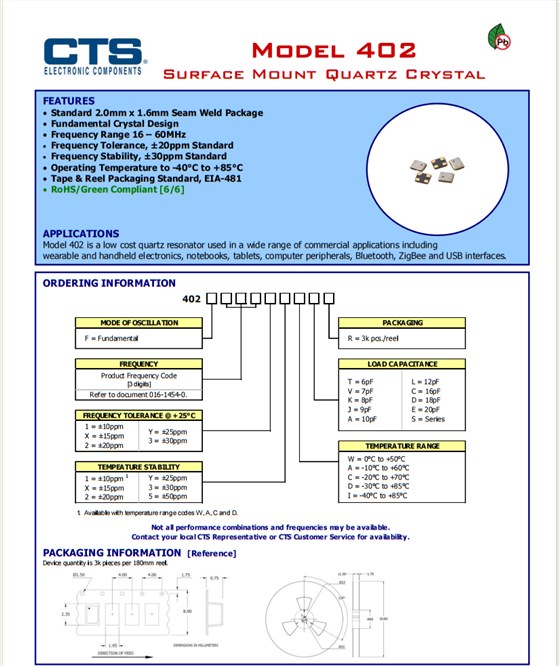

402F271XXCJR,2016貼片晶體,美國CTS晶振，尺寸圖

Manufacturer Part Number原廠編碼	西迪斯美國進口晶振	Series型號	Type 系列	Frequency	Frequency Tolerance頻率偏差	Load Capacitance負載電容	Operating Temperature工作溫度
402F271XXCKR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±15ppm	8pF	-20°C ~ 70°C
402F271XXCJR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±15ppm	9pF	-20°C ~ 70°C
402F271XXCAR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±15ppm	10pF	-20°C ~ 70°C
402F271XXCLR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±15ppm	12pF	-20°C ~ 70°C
402F271XXCDR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±15ppm	18pF	-20°C ~ 70°C
402F27133CKR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±30ppm	8pF	-20°C ~ 70°C
402F27133CJR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±30ppm	9pF	-20°C ~ 70°C
402F27133CAR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±30ppm	10pF	-20°C ~ 70°C
402F27133CLR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±30ppm	12pF	-20°C ~ 70°C
402F27133CDR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±30ppm	18pF	-20°C ~ 70°C
402F2711XIKR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±10ppm	8pF	-40°C ~ 85°C
402F2711XIJR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±10ppm	9pF	-40°C ~ 85°C
402F2711XIAR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±10ppm	10pF	-40°C ~ 85°C
402F2711XILR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±10ppm	12pF	-40°C ~ 85°C
402F2711XIDR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±10ppm	18pF	-40°C ~ 85°C
402F27112IKR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±10ppm	8pF	-40°C ~ 85°C
402F27112IJR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±10ppm	9pF	-40°C ~ 85°C
402F27112IAR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±10ppm	10pF	-40°C ~ 85°C
402F27112ILR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±10ppm	12pF	-40°C ~ 85°C
402F27112IDR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±10ppm	18pF	-40°C ~ 85°C
402F27122IKR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±20ppm	8pF	-40°C ~ 85°C
402F27122IJR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±20ppm	9pF	-40°C ~ 85°C
402F27122IAR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±20ppm	10pF	-40°C ~ 85°C
402F27122ILR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±20ppm	12pF	-40°C ~ 85°C
402F27122IDR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±20ppm	18pF	-40°C ~ 85°C
402F27111CKR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±10ppm	8pF	-20°C ~ 70°C
402F27111CJR	CTS-Frequency Controls	402	MHz Crystal	27.12MHz	±10ppm	9pF	-20°C ~ 70°C
