CX5Z-ARB2C5-70-7.3728D18,CX5無源晶體,Cardinal美國進口晶振

產品簡介

CX5Z-ARB2C5-70-7.3728D18,CX5無源晶體,Cardinal美國進口晶振，無源晶體，石英晶體晶振，編碼：CX5Z-ARB2C5-70-7.3728D18，型號：CX5系列晶振，工作溫度：-40°C ~ 125°C，精度：±20ppm，尺寸：7.2*5.2mm，頻率：7.3728 MHz，負載電容：18pF，貼片石英晶體，石英晶體，貼片晶體，微型薄型表面貼裝晶體，封裝是自動化表面貼裝的理想選擇組裝和回流實踐，帶卷包裝，AT切割水晶，被廣泛應用于藍牙無線局域網物聯(lián)網上。

產品詳情

CX5Z-ARB2C5-70-7.3728D18,CX5無源晶體,Cardinal美國進口晶振，無源晶體，石英晶體晶振，編碼：CX5Z-ARB2C5-70-7.3728D18，型號：CX5系列晶振，工作溫度：-40°C ~ 125°C，精度：±20ppm，尺寸：7.2*5.2mm，頻率：7.3728 MHz，負載電容：18pF，貼片石英晶體，石英晶體，貼片晶體，微型薄型表面貼裝晶體，封裝是自動化表面貼裝的理想選擇組裝和回流實踐，帶卷包裝，AT切割水晶，被廣泛應用于藍牙無線局域網物聯(lián)網上。

CX5Z-ARB2C5-70-7.3728D18,CX5無源晶體,Cardinal美國進口晶振，參數(shù)表

編碼	CX5Z-ARB2C5-70-7.3728D18
品牌	Cardinal晶振
型號	CX5
頻率	7.3728 MHz
精度	±20ppm
負載電容	18pF
工作溫度	-40°C ~ 125°C

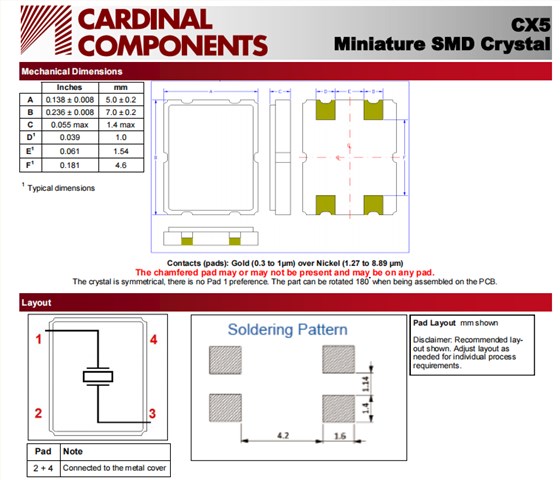

CX5Z-ARB2C5-70-7.3728D18,CX5無源晶體,Cardinal美國進口晶振，尺寸圖

Mfr Part #	晶體諧振器	Series	Frequency	Frequency Tolerance	Load Capacitance	Operating Temperature
CX5Z-A2B2C5-70-8.0D18	Cardinal Components Inc.	CX5	8 MHz	±20ppm	18pF	-40°C ~ 85°C
CX5Z-ARB2C5-70-7.3728D18	Cardinal Components Inc.	CX5	7.3728 MHz	±20ppm	18pF	-40°C ~ 125°C
CX5Z-A5B2C5-40-24.0D18	Cardinal Components Inc.	CX5	24 MHz	±20ppm	18pF	-20°C ~ 70°C
CX5Z-A2B2C5-40-12.0D18	Cardinal Components Inc.	CX5	12 MHz	±20ppm	18pF	-40°C ~ 85°C
CX5Z-A5B2C5-40-12.0D18	Cardinal Components Inc.	CX5	12 MHz	±20ppm	18pF	-20°C ~ 70°C
CX5Z-A5B2C5-40-10.0D18	Cardinal Components Inc.	CX5	10 MHz	±20ppm	18pF	-20°C ~ 70°C
CX5Z-A2B2C5-40-10.0D18	Cardinal Components Inc.	CX5	10 MHz	±20ppm	18pF	-40°C ~ 85°C
CX5Z-A1B2C5-40-24.0D18	Cardinal Components Inc.	CX5	24 MHz	±20ppm	18pF	-10°C ~ 70°C
CX5Z-A5B2C5-40-24.576D18	Cardinal Components Inc.	CX5	24.576 MHz	±20ppm	18pF	-20°C ~ 70°C
CX5Z-A5B2C5-70-7.37280D18	Cardinal Components Inc.	CX5	7.3728 MHz	±20ppm	18pF	-20°C ~ 70°C
CX5Z-A2B2C5-40-25D18	Cardinal Components Inc.	CX5	25 MHz	±20ppm	18pF	-40°C ~ 85°C
CX5Z-A5B2C5-50-16.0D18	Cardinal Components Inc.	CX5	16 MHz	±20ppm	18pF	-20°C ~ 70°C
CX5Z-A5B2C5-40-25D18	Cardinal Components Inc.	CX5	25 MHz	±20ppm	18pF	-20°C ~ 70°C
CX5Z-A0B2C5-50-16.0D18	Cardinal Components Inc.	CX5	16 MHz	±20ppm	18pF	-10°C ~ 60°C
CX5Z-A5B2C5-40-27.0D18	Cardinal Components Inc.	CX5	27 MHz	±20ppm	18pF	-20°C ~ 70°C
CX5Z-A5B2C5-70-8.0D18	Cardinal Components Inc.	CX5	8 MHz	±20ppm	18pF	-20°C ~ 70°C
