ECS-122.8-20-20A-TR,CSM-8,7050貼片晶振,四腳貼片晶振，美國進口晶振，晶體諧振器，石英晶體晶振，型號：CSM-8系列晶振，編碼為：ECS-122.8-20-20A-TR,頻率為：12.288MHz，負載電容為：20Pf,尺寸：7*5mm,工作溫度為：-10°C ~ 70°C，石英晶振本身體積小,超薄型石英晶體諧振器,特別適用于有目前高速發展的高端電子數碼產品,因為晶振本身小型化需求的市場領域,小型薄型是對應陶瓷諧振器（偏差大）和普通的石英晶體諧振器（偏差?。┑闹虚g領域的一種性價比較出色的產品.產品廣泛用于筆記本電腦,無線電話,衛星導航HDD, SSD, USB, Blu-ray等用途,符合無鉛焊接的高溫回流焊曲線特性。
ECS-122.8-20-20A-TR,CSM-8,7050貼片晶振，參數表
| 編碼 | ECS-122.8-20-20A-TR |
| 品牌 | ECS 晶振 |
| 型號 | CSM-8 |
| 頻率 | 12.288MHz |
| 工作溫度 |
-10°C ~ 70°C |
| 尺寸 | 7*5mm |

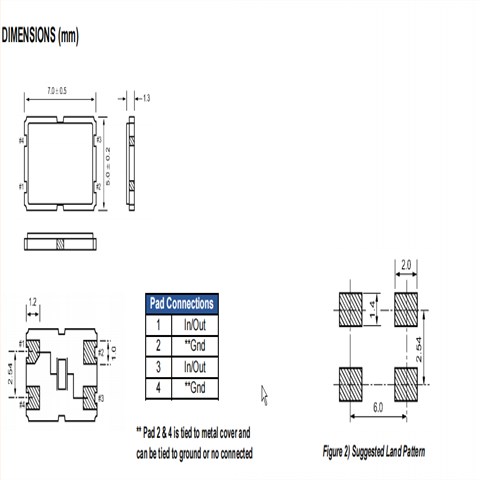

ECS-122.8-20-20A-TR,CSM-8,7050貼片晶振，尺寸圖
| Manufacturer Part Number原廠編碼 | 貼片晶振 | Series型號 | Frequency | Operating Temperature工作溫度 |
| ECS-80-20-20A-TR | ECS 晶振 | CSM-8 | 8MHz | -10°C ~ 70°C |
| ECS-80-20-20A-TR | ECS 晶振 | CSM-8 | 8MHz | -10°C ~ 70°C |
| ECS-80-20-20A-TR | ECS 晶振 | CSM-8 | 8MHz | -10°C ~ 70°C |
| ECS-240-12-20A-TR | ECS 晶振 | CSM-8 | 24MHz | -10°C ~ 70°C |
| ECS-240-12-20A-TR | ECS 晶振 | CSM-8 | 24MHz | -10°C ~ 70°C |
| ECS-240-12-20A-TR | ECS 晶振 | CSM-8 | 24MHz | -10°C ~ 70°C |
| ECS-100-S-20A-TR | ECS 晶振 | CSM-8 | 10MHz | -10°C ~ 70°C |
| ECS-100-S-20A-TR | ECS 晶振 | CSM-8 | 10MHz | -10°C ~ 70°C |
| ECS-100-S-20A-TR | ECS 晶振 | CSM-8 | 10MHz | -10°C ~ 70°C |
| ECS-400-S-20A-TR | ECS 晶振 | CSM-8 | 40MHz | -10°C ~ 70°C |
| ECS-400-S-20A-TR | ECS 晶振 | CSM-8 | 40MHz | -10°C ~ 70°C |
| ECS-400-S-20A-TR | ECS 晶振 | CSM-8 | 40MHz | -10°C ~ 70°C |
| ECS-200-S-20A-TR | ECS 晶振 | CSM-8 | 20MHz | -10°C ~ 70°C |
| ECS-200-S-20A-TR | ECS 晶振 | CSM-8 | 20MHz | -10°C ~ 70°C |
| ECS-200-S-20A-TR | ECS 晶振 | CSM-8 | 20MHz | -10°C ~ 70°C |
| ECS-320-S-20A-F-TR | ECS 晶振 | CSM-8 | 32MHz | -10°C ~ 70°C |
| ECS-320-S-20A-F-TR | ECS 晶振 | CSM-8 | 32MHz | -10°C ~ 70°C |
| ECS-320-S-20A-F-TR | ECS 晶振 | CSM-8 | 32MHz | -10°C ~ 70°C |
| ECS-120-20-20A-TR | ECS 晶振 | CSM-8 | 12MHz | -10°C ~ 70°C |
| ECS-120-20-20A-TR | ECS 晶振 | CSM-8 | 12MHz | -10°C ~ 70°C |
| ECS-120-20-20A-TR | ECS 晶振 | CSM-8 | 12MHz | -10°C ~ 70°C |
| ECS-98.3-20-20A-TR | ECS 晶振 | CSM-8 | 9.8304MHz | -10°C ~ 70°C |
| ECS-98.3-20-20A-TR | ECS 晶振 | CSM-8 | 9.8304MHz | -10°C ~ 70°C |
| ECS-98.3-20-20A-TR | ECS 晶振 | CSM-8 | 9.8304MHz | -10°C ~ 70°C |
