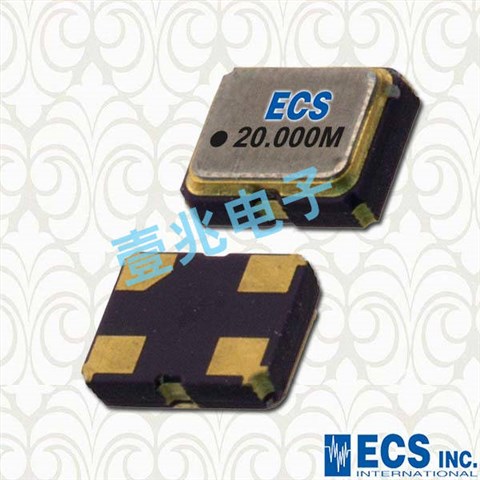

ECS-1618-240-BN-TR,ECS-1618石英晶體振蕩器,2016貼片晶振

產品簡介

ECS-1618-240-BN-TR,ECS-1618石英晶體振蕩器,2016貼片晶振，四腳貼片晶振，型號：ECS-1618系列晶振，編碼為：ECS-1618-240-BN-TR,頻率為：24MHz，尺寸：2.0*1.6mm，工作溫度為：﹣40℃ ~ 85°C，ECS-1618 SMD時鐘晶體振蕩器 ECS-1618（+1.8V）超小型貼片振蕩器非常適合當今的高密度應用，產品被廣泛應用于,平板筆記本,GPS系統,光纖通道,千兆以太網,串行ATA,串行連接SCSI,PCI-Express的SDH/SONET發射基站等領域.符合RoHS/無鉛.

產品詳情

ECS-1618-240-BN-TR,ECS-1618石英晶體振蕩器,2016貼片晶振，四腳貼片晶振，型號：ECS-1618系列晶振，編碼為：ECS-1618-240-BN-TR,頻率為：24MHz，尺寸：2.0*1.6mm，工作溫度為：﹣40℃ ~ 85°C，ECS-1618 SMD時鐘晶體振蕩器ECS-1618（+1.8V）超小型貼片振蕩器非常適合當今的高密度應用，產品被廣泛應用于,平板筆記本,GPS系統,光纖通道,千兆以太網,串行ATA,串行連接SCSI,PCI-Express的SDH/SONET發射基站等領域.符合RoHS/無鉛.

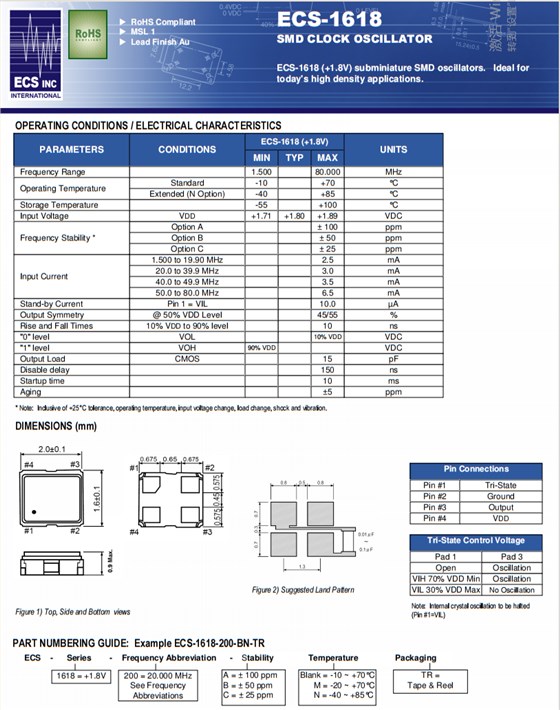

ECS-1618-240-BN-TR,ECS-1618石英晶體振蕩器,2016貼片晶振，參數表

PARAMETERS

CONDITIONS

ECS-1618 (+1.8V)

UNITS

MIN

TYP

MAX

Frequency Range

MHz

Operating Temperature

Standard

-10

+70

°C

Extended (N Option)

-40

+85

°C

Storage Temperature

-55

+100

°C

Input Voltage

VDD

+1.71

+1.80

+1.89

VDC

Frequency Stability *

Option A

± 100

ppm

Option B

± 50

ppm

Option C

± 25

ppm

Input Current

1.500 to 19.90 MHz

2.5

20.0 to 39.9 MHz

3.0

40.0 to 49.9 MHz

3.5

50.0 to 80.0 MHz

6.5

Stand-by Current

Pin 1 = VIL

10.0

µA

Output Symmetry

@ 50% VDD Level

45/55

Rise and Fall Times

10% VDD to 90% level

"0" level

VOL

10% VDD

VDC

"1" level

VOH

90% VDD

VDC

Output Load

CMOS

Disable delay

150

Startup time

Aging

±5

ppm

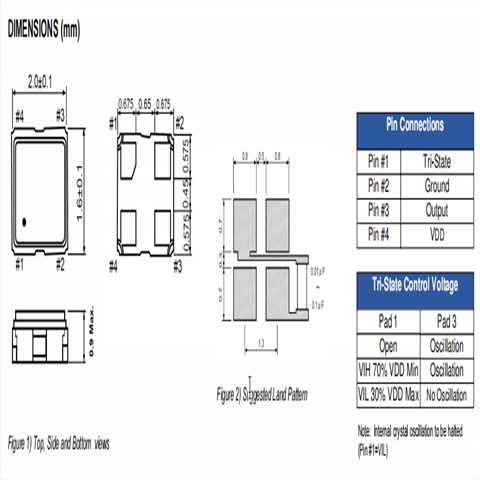

ECS-1618-240-BN-TR,ECS-1618石英晶體振蕩器,2016貼片晶振，尺寸圖

Manufacturer Part Number原廠代碼	壹兆晶振廠家	Series型號	Frequency 頻率	Operating Temperature工作溫度
ECS-1618-300-BN-TR	ECS晶振	ECS-1618	30MHz	-40°C ~ 85°C
ECS-1618-300-BN-TR	ECS晶振	ECS-1618	30MHz	-40°C ~ 85°C
ECS-1618-300-BN-TR	ECS晶振	ECS-1618	30MHz	-40°C ~ 85°C
ECS-1618-060-BN-TR	ECS晶振	ECS-1618	6MHz	-40°C ~ 85°C
ECS-1618-060-BN-TR	ECS晶振	ECS-1618	6MHz	-40°C ~ 85°C
ECS-1618-060-BN-TR	ECS晶振	ECS-1618	6MHz	-40°C ~ 85°C
ECS-1618-120-BN-TR	ECS晶振	ECS-1618	12MHz	-40°C ~ 85°C
ECS-1618-120-BN-TR	ECS晶振	ECS-1618	12MHz	-40°C ~ 85°C
ECS-1618-120-BN-TR	ECS晶振	ECS-1618	12MHz	-40°C ~ 85°C
ECS-1618-192-BN-TR	ECS晶振	ECS-1618	19.2MHz	-40°C ~ 85°C
ECS-1618-192-BN-TR	ECS晶振	ECS-1618	19.2MHz	-40°C ~ 85°C
ECS-1618-192-BN-TR	ECS晶振	ECS-1618	19.2MHz	-40°C ~ 85°C
ECS-1618-260-BN-TR	ECS晶振	ECS-1618	26MHz	-40°C ~ 85°C
ECS-1618-260-BN-TR	ECS晶振	ECS-1618	26MHz	-40°C ~ 85°C
ECS-1618-260-BN-TR	ECS晶振	ECS-1618	26MHz	-40°C ~ 85°C
ECS-1618-480-BN-TR	ECS晶振	ECS-1618	48MHz	-40°C ~ 85°C
ECS-1618-480-BN-TR	ECS晶振	ECS-1618	48MHz	-40°C ~ 85°C
ECS-1618-480-BN-TR	ECS晶振	ECS-1618	48MHz	-40°C ~ 85°C
ECS-1618-270-BN-TR	ECS晶振	ECS-1618	27MHz	-40°C ~ 85°C
ECS-1618-270-BN-TR	ECS晶振	ECS-1618	27MHz	-40°C ~ 85°C
ECS-1618-270-BN-TR	ECS晶振	ECS-1618	27MHz	-40°C ~ 85°C
ECS-1618-240-BN-TR	ECS晶振	ECS-1618	24MHz	-40°C ~ 85°C
ECS-1618-240-BN-TR	ECS晶振	ECS-1618	24MHz	-40°C ~ 85°C
ECS-1618-240-BN-TR	ECS晶振	ECS-1618	24MHz	-40°C ~ 85°C
