402F2401XIAR,美國CTS晶振,2016貼片晶振

產品簡介

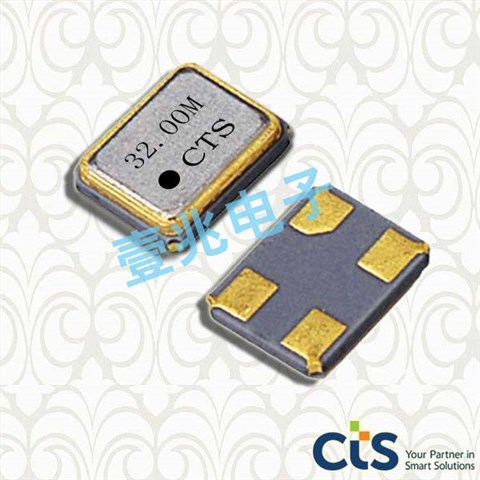

402F2401XIAR,美國CTS晶振,2016貼片晶振，編碼：402F2401XIAR，型號：CTS系列晶振，工作溫度：-40°C ~ 85°C，尺寸：2.0*1.6mm，頻率：24MHz，負載電容：10pF，精度：±10ppm，進口晶振，西迪斯美國進口晶振，標準2.0毫米x 1.6mm毫米縫焊組件基本晶體設計頻率范圍為16–60 MHz 頻率容差，20ppm標準頻率穩(wěn)定性，30ppm標準工作溫度為-40℃至+85℃ 膠帶和卷軸包裝標準，EIA-481，402型是一種低成本石英諧振器，廣泛應用于商業(yè)領域，包括可穿戴和手持電子產品、筆記本電腦、平板電腦、計算機外設、藍牙、ZigBee和USB接口。

產品詳情

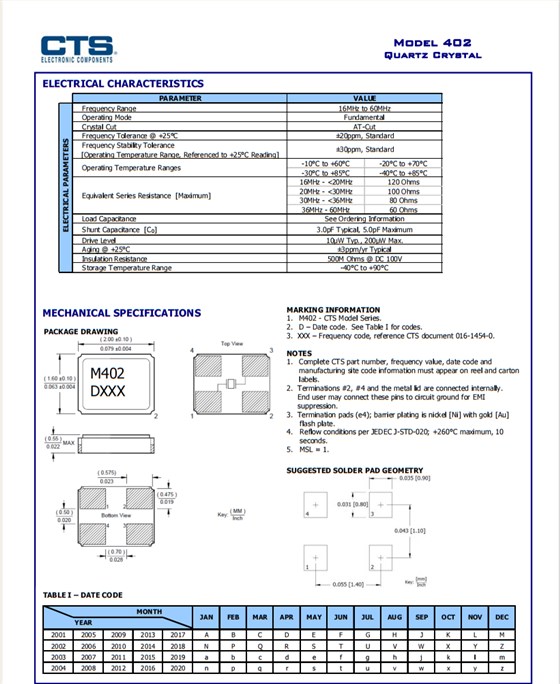

402F2401XIAR,美國CTS晶振,2016貼片晶振，參數表

PARAMETER

VALUE

Frequency Range

16MHz to 60MHz

Operating Mode

Fundamental

Crystal Cut

AT-Cut

Frequency Tolerance @ +25°C

±20ppm, Standard

Frequency Stability Tolerance
[Operating Temperature Range, Referenced to +25°C Reading]

±30ppm, Standard

Operating Temperature Ranges

-10°C to +60°C

-20°C to +70°C

-30°C to +85°C

-40°C to +85°C

Equivalent Series Resistance[Maximum]

16MHz - <20MHz

120 Ohms

20MHz - <30MHz

100 Ohms

30MHz - <36MHz

80 Ohms

36MHz - 60MHz

60 Ohms

Load Capacitance

See Ordering Information

Shunt Capacitance[C0]

3.0pF Typical, 5.0pF Maximum

Drive Level

10µW Typ., 200µW Max.

Aging @ +25°C

±3ppm/yr Typical

Insulation Resistance

500M Ohms @ DC 100V

Storage Temperature Range

-40°C to +90°C

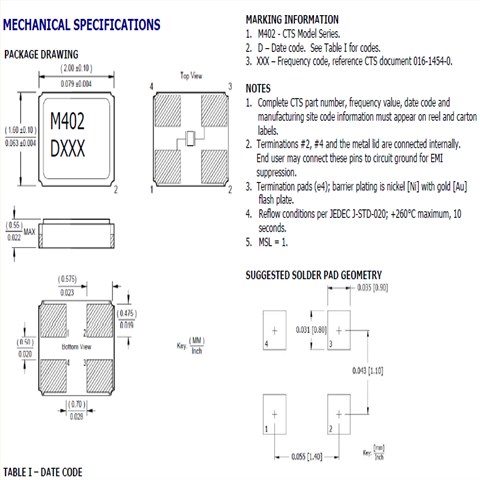

402F2401XIAR,美國CTS晶振,2016貼片晶振，尺寸圖

Manufacturer Part Number原廠編碼	壹兆晶振廠家	Series型號	Frequency	Frequency Stability頻率穩(wěn)定度	Frequency Tolerance頻率偏差	Load Capacitance負載電容	ESR (Equivalent Series Resistance)電阻	Operating Temperature工作溫度
402F2401XIAR	CTS-Frequency Controls	402	24MHz	±15ppm	±10ppm	10pF	100 Ohm	-40°C ~ 85°C
402F2401XIAR	CTS-Frequency Controls	402	24MHz	±15ppm	±10ppm	10pF	100 Ohm	-40°C ~ 85°C
402F2401XIAR	CTS-Frequency Controls	402	24MHz	±15ppm	±10ppm	10pF	100 Ohm	-40°C ~ 85°C
402F2501XIAR	CTS-Frequency Controls	402	25MHz	±15ppm	±10ppm	10pF	100 Ohm	-40°C ~ 85°C
402F2501XIAR	CTS-Frequency Controls	402	25MHz	±15ppm	±10ppm	10pF	100 Ohm	-40°C ~ 85°C
402F2501XIAR	CTS-Frequency Controls	402	25MHz	±15ppm	±10ppm	10pF	100 Ohm	-40°C ~ 85°C
402F27011CAR	CTS-Frequency Controls	402	27MHz	±10ppm	±10ppm	10pF	100 Ohm	-20°C ~ 70°C
402F27011CAR	CTS-Frequency Controls	402	27MHz	±10ppm	±10ppm	10pF	100 Ohm	-20°C ~ 70°C
402F27011CAR	CTS-Frequency Controls	402	27MHz	±10ppm	±10ppm	10pF	100 Ohm	-20°C ~ 70°C
402F30011CAR	CTS-Frequency Controls	402	30MHz	±10ppm	±10ppm	10pF	80 Ohm	-20°C ~ 70°C
402F30011CAR	CTS-Frequency Controls	402	30MHz	±10ppm	±10ppm	10pF	80 Ohm	-20°C ~ 70°C
402F30011CAR	CTS-Frequency Controls	402	30MHz	±10ppm	±10ppm	10pF	80 Ohm	-20°C ~ 70°C
402F38411CAR	CTS-Frequency Controls	402	38.4MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
402F38411CAR	CTS-Frequency Controls	402	38.4MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
402F38411CAR	CTS-Frequency Controls	402	38.4MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
402F2001XIAR	CTS-Frequency Controls	402	20MHz	±15ppm	±10ppm	10pF	100 Ohm	-40°C ~ 85°C
402F2001XIAR	CTS-Frequency Controls	402	20MHz	±15ppm	±10ppm	10pF	100 Ohm	-40°C ~ 85°C
402F2001XIAR	CTS-Frequency Controls	402	20MHz	±15ppm	±10ppm	10pF	100 Ohm	-40°C ~ 85°C
402F4001XIAR	CTS-Frequency Controls	402	40MHz	±15ppm	±10ppm	10pF	60 Ohm	-40°C ~ 85°C
402F4001XIAR	CTS-Frequency Controls	402	40MHz	±15ppm	±10ppm	10pF	60 Ohm	-40°C ~ 85°C
402F4001XIAR	CTS-Frequency Controls	402	40MHz	±15ppm	±10ppm	10pF	60 Ohm	-40°C ~ 85°C
402F24011CAR	CTS-Frequency Controls	402	24MHz	±10ppm	±10ppm	10pF	100 Ohm	-20°C ~ 70°C
402F24011CAR	CTS-Frequency Controls	402	24MHz	±10ppm	±10ppm	10pF	100 Ohm	-20°C ~ 70°C
402F24011CAR	CTS-Frequency Controls	402	24MHz	±10ppm	±10ppm	10pF	100 Ohm	-20°C ~ 70°C
402F3201XIAR	CTS-Frequency Controls	402	32MHz	±15ppm	±10ppm	10pF	80 Ohm	-40°C ~ 85°C
402F3201XIAR	CTS-Frequency Controls	402	32MHz	±15ppm	±10ppm	10pF	80 Ohm	-40°C ~ 85°C
402F3201XIAR	CTS-Frequency Controls	402	32MHz	±15ppm	±10ppm	10pF	80 Ohm	-40°C ~ 85°C
402F32011CAR	CTS-Frequency Controls	402	32MHz	±10ppm	±10ppm	10pF	80 Ohm	-20°C ~ 70°C
402F32011CAR	CTS-Frequency Controls	402	32MHz	±10ppm	±10ppm	10pF	80 Ohm	-20°C ~ 70°C
402F32011CAR	CTS-Frequency Controls	402	32MHz	±10ppm	±10ppm	10pF	80 Ohm	-20°C ~ 70°C
402F160XXCKR	CTS-Frequency Controls	402	16MHz	±15ppm	±15ppm	8pF	120 Ohm	-20°C ~ 70°C
