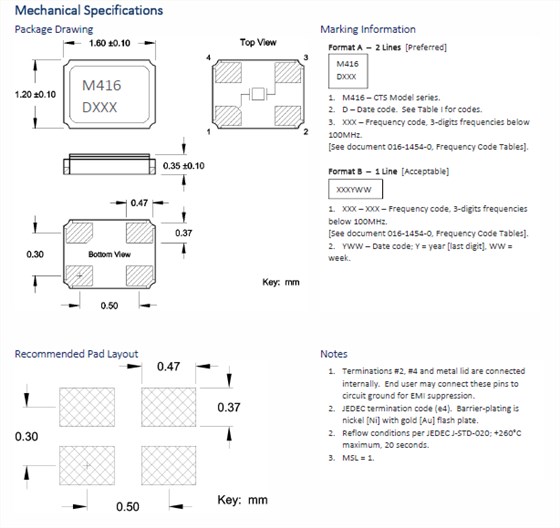

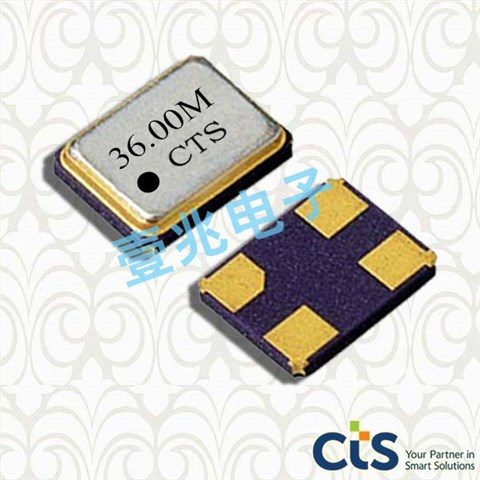

416F38025ILR石英晶體,1612諧振器，編碼：416F38025ILR，型號：416系列晶振，工作溫度：-40°C ~ 85°C，尺寸：1.6*1.2mm，頻率：38MHz，負載電容：12pF，精度：±20ppm，視圖晶體諧振器，進口晶振，西迪斯美國進口晶振，密封陶瓷表面貼裝封裝
基本晶體設計
頻率范圍24–80 MHz
頻率容差，20ppm標準
頻率穩定性，20ppm標準
工作溫度范圍為-40℃至+85℃
膠帶和卷軸包裝，EIA‐418，可穿戴和手持電子設備
無線通信
FPGA/微控制器
計算機外圍設備
USB接口
測量設備
消費電子產品
高密度板布局。
416F38025ILR石英晶體,1612諧振器，參數表
| 原廠編碼 |
416F38025ILR |
| 品牌 | CTS晶振 |
| 型號 | 416 |
| 頻率 | 38MHz |
| 頻率偏差 | ±20ppm |
| 負載電容 | 12pF |
| 工作溫度 | -40°C ~ 85°C |
| Manufacturer Part Number原廠編碼 | 壹兆晶振廠家 | Series型號 | Frequency | Frequency Tolerance頻率偏差 | Load Capacitance負載電容 | Operating Temperature工作溫度 |
| 416F26022CKR | CTS-Frequency Controls | 416 | 26MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F26022CKR | CTS-Frequency Controls | 416 | 26MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F26022CKR | CTS-Frequency Controls | 416 | 26MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F27022CKR | CTS-Frequency Controls | 416 | 27MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F27022CKR | CTS-Frequency Controls | 416 | 27MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F27022CKR | CTS-Frequency Controls | 416 | 27MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F48022CKR | CTS-Frequency Controls | 416 | 48MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F48022CKR | CTS-Frequency Controls | 416 | 48MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F48022CKR | CTS-Frequency Controls | 416 | 48MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F52022CKR | CTS-Frequency Controls | 416 | 52MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F52022CKR | CTS-Frequency Controls | 416 | 52MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F52022CKR | CTS-Frequency Controls | 416 | 52MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F24022IKR | CTS-Frequency Controls | 416 | 24MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F24022IKR | CTS-Frequency Controls | 416 | 24MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F24022IKR | CTS-Frequency Controls | 416 | 24MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F32022IKR | CTS-Frequency Controls | 416 | 32MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F32022IKR | CTS-Frequency Controls | 416 | 32MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F32022IKR | CTS-Frequency Controls | 416 | 32MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F48022IKR | CTS-Frequency Controls | 416 | 48MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F48022IKR | CTS-Frequency Controls | 416 | 48MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F48022IKR | CTS-Frequency Controls | 416 | 48MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F52022IKR | CTS-Frequency Controls | 416 | 52MHz | ±20ppm | 8pF | -40°C ~ 85°C |
