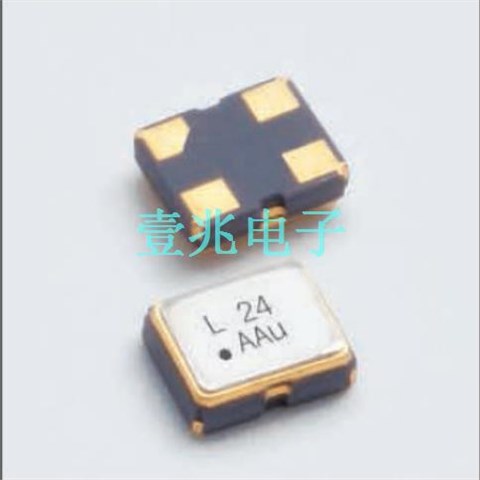

S2M025T-24.000-X-R,2520差分輸出振蕩器,AKER有源石英晶振

產品簡介

S2M025T-24.000-X-R,2520差分輸出振蕩器,AKER有源石英晶振，編碼：S2M025T-24.000-X-R，型號：S2，工作溫度：-40°C ~ 85°C，尺寸：2.5*2.0mm，頻率：24MHz，精度：±25ppm，電壓：1.62V ~ 3.63V，電流：12mA，輸出方式：HCMOS，臺產晶振，石英晶體振蕩器，有源貼片晶振，差分有源晶振，差分石英晶體振蕩器，差分貼片晶體振蕩器，OSC石英晶振，差分晶振具有低電平，低抖動，低功耗、相位低，噪音低，損耗低、精密穩定等特性。那該如何選擇差分晶振，首先要確認好頻率，然后是電壓，時鐘邏輯類型，封裝體積，工作溫度以及頻率穩定度(精度ppm)。差分晶振頻率范圍寬,頻率高,精度范圍可控制在25PPM。(起始偏差，工作穩定范圍內的溫度特性,電壓電壓變化，負載容量變化長期變化(1年@25'℃)包括振動和沖擊)，差分晶振振動啟動時間最小動作電壓為0秒，電源電壓范圍在2.5V/3.3V。

產品詳情

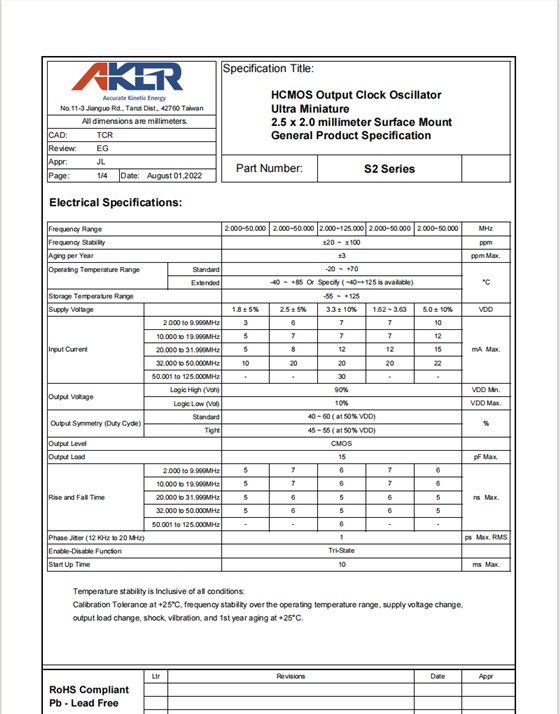

S2M025T-24.000-X-R,2520差分輸出振蕩器,AKER有源石英晶振，參數表

編碼	S2M025T-24.000-X-R
品牌	AKER
型號	S2
頻率	24MHz
精度	±25ppm
電壓	1.62V ~ 3.63V
電流	12mA
工作溫度	40°C ~ 85°C
輸出方式	HCMOS
尺寸	2.5*2.0mm

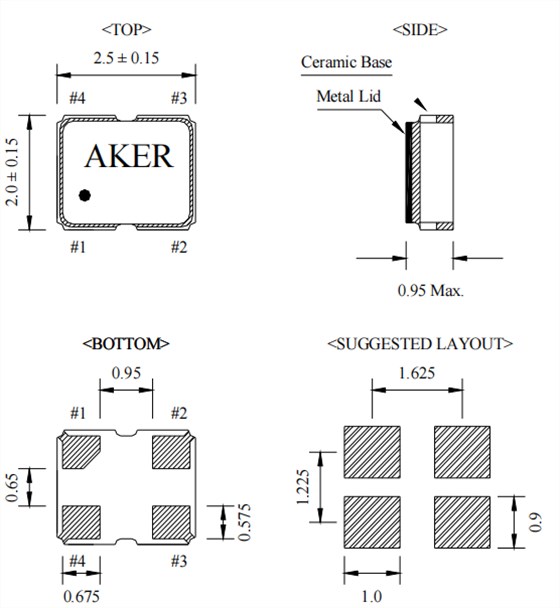

S2M025T-24.000-X-R,2520差分輸出振蕩器,AKER有源石英晶振，尺寸圖

Mfr Part #	時鐘晶體振蕩器	Series	Type	Frequency	Output	Voltage - Supply	Frequency Stability	Operating Temperature	Current - Supply (Max)
S2M025T-24.000-X-R	Aker Technology Corp	S2	XO (Standard)	24 MHz	HCMOS	1.62V ~ 3.63V	±25ppm	-40°C ~ 85°C	12mA
S73305-20.000-X-15-R	Aker Technology Corp	S7	XO (Standard)	20 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C	7mA
S73305T-25.000-R	Aker Technology Corp	S7	XO (Standard)	25 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C	7mA
S73305T-25.000-X-15-R	Aker Technology Corp	S7	XO (Standard)	25 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C	7mA
S733025T-25.000-15-R	Aker Technology Corp	S7	XO (Standard)	25 MHz	HCMOS	3.3V	±25ppm	-20°C ~ 70°C	7mA
S73305T-32.000-R	Aker Technology Corp	S7	XO (Standard)	32 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C	7mA
S73305T-11.2896-X-30-R	Aker Technology Corp	S7	XO (Standard)	11.2896 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C	7mA
S73305T-50.000-X-R	Aker Technology Corp	S7	XO (Standard)	50 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C	12mA
S533025T-25.000-R	Aker Technology Corp	S5	XO (Standard)	25 MHz	HCMOS	3.3V	±25ppm	-20°C ~ 70°C	12mA
S73310-60.000-X-15-R	Aker Technology Corp	S7	XO (Standard)	60 MHz	HCMOS	3.3V	±100ppm	-40°C ~ 85°C	25mA
S3M025T-8.000-R	Aker Technology Corp	S3	XO (Standard)	8 MHz	HCMOS	1.62V ~ 3.63V	±25ppm	-20°C ~ 70°C	7mA
S3M05T-8.000-R	Aker Technology Corp	S3	XO (Standard)	8 MHz	HCMOS	1.62V ~ 3.63V	±50ppm	-20°C ~ 70°C	7mA
S333025T-25.000-X-R	Aker Technology Corp	S3	XO (Standard)	25 MHz	HCMOS	3.3V	±25ppm	-40°C ~ 85°C	12mA
S533025T-25.000-X-R	Aker Technology Corp	S5	XO (Standard)	25 MHz	HCMOS	3.3V	±25ppm	-40°C ~ 85°C	12mA
S325025T-25.000-X-R	Aker Technology Corp	S3	XO (Standard)	25 MHz	HCMOS	2.5V	±25ppm	-40°C ~ 85°C	8mA
S218025T-24.000-R	Aker Technology Corp	S2	XO (Standard)	24 MHz	HCMOS	1.8V	±25ppm	-20°C ~ 70°C	5mA
S2M05T-24.000-R	Aker Technology Corp	S2	XO (Standard)	24 MHz	HCMOS	1.62V ~ 3.63V	±50ppm	-20°C ~ 70°C	12mA
S23305T-50.000-R	Aker Technology Corp	S2	XO (Standard)	50 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C	20mA
S233025T-25.000-R	Aker Technology Corp	S2	XO (Standard)	25 MHz	HCMOS	3.3V	±25ppm	-20°C ~ 70°C	12mA
S23305T-26.000-R	Aker Technology Corp	S2	XO (Standard)	26 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C	12mA
S23305T-50.000-X-R	Aker Technology Corp	S2	XO (Standard)	50 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C	20mA
S2M025T-25.000-X-R	Aker Technology Corp	S2	XO (Standard)	25 MHz	HCMOS	1.62V ~ 3.63V	±25ppm	-40°C ~ 85°C	12mA
S73305T-125.000-R	Aker Technology Corp	S7	XO (Standard)	125 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C	30mA
S53305T-125.000-X-R	Aker Technology Corp	S5	XO (Standard)	125 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C	40mA
S11805T-25.000-X1-R	Aker Technology Corp	S1 X1	XO (Standard)	25 MHz	CMOS	1.8V	±50ppm	-40°C ~ 85°C	5mA
