XRCTD32M000N1P1AR0,1210晶振,陶瓷村田晶振

產品簡介

XRCTD32M000N1P1AR0,1210晶振,陶瓷村田晶振 ，編碼：XRCTD32M000N1P1AR0，型號：XRCTD，工作溫度：-30°C ~ 85°C，尺寸：1.2mm*1.0mm，頻率：32 MHz，精度：±10ppm，負載電容：6pF，小型貼片晶振1210，進口晶振，陶瓷村田晶振，貼片晶體，于村田的優秀封裝技術和高級石英晶體元件，實現小尺寸和高精度晶體單元，特征：該系列可用于必要的應用，用于高精度頻率，.晶體單元尺寸極小（1210），并且有助于減少安裝面積，該系列符合RoHS指令，不含鉛。

產品詳情

XRCTD32M000N1P1AR0,1210晶振,陶瓷村田晶振，編碼：XRCTD32M000N1P1AR0，型號：XRCTD，工作溫度：-30°C ~ 85°C，尺寸：1.2mm*1.0mm，頻率：32 MHz，精度：±10ppm，負載電容：6pF，小型貼片晶振1210，進口晶振，陶瓷村田晶振，貼片晶體，于村田的優秀封裝技術和高級石英晶體元件，實現小尺寸和高精度晶體單元，特征：該系列可用于必要的應用，用于高精度頻率，.晶體單元尺寸極?。?210），并且有助于減少安裝面積，該系列符合RoHS指令，不含鉛。

XRCTD32M000N1P1AR0,1210晶振,陶瓷村田晶振，參數表

編碼	XRCTD32M000N1P1AR0
品牌	muRata
型號	XRCTD
頻率	32 MHz
精度	±10ppm
負載電容	6pF
工作溫度	-30°C ~ 85°C
尺寸	1.2mm*1.0mm

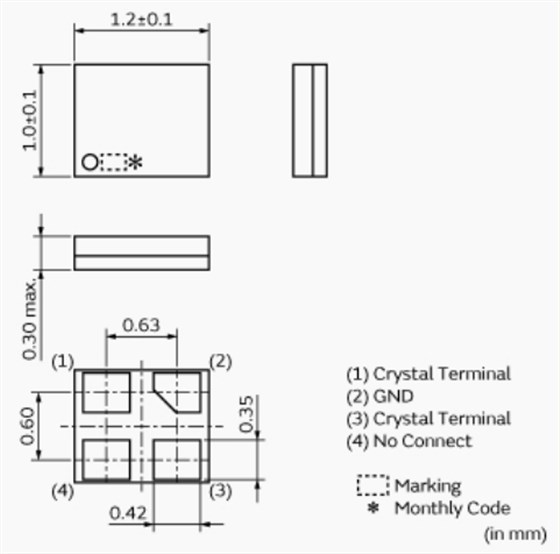

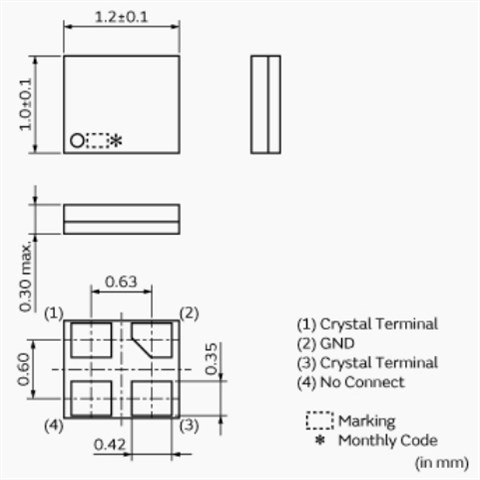

XRCTD32M000N1P1AR0,1210晶振,陶瓷村田晶振，尺寸圖

Mfr Part #	貼片晶體	Series	Frequency	Frequency Stability	Frequency Tolerance	Load Capacitance
XRCPB26M000F2P00R0	Murata Electronics	XRCPB	26 MHz	±20ppm	±20ppm	6pF
XRCTD32M000N1P1AR0	Murata Electronics	XRCTD	32 MHz	±20ppm	±10ppm	6pF
XRCMD32M000FXP53R0	Murata Electronics	XRCMD	32 MHz	±20ppm	±30ppm	6pF
XRCPB24M000F0Z00R0	Murata Electronics	XRCPB	24 MHz	±100ppm	±100ppm	6pF
XRCPB24M000F2P00R0	Murata Electronics	XRCPB	24 MHz	±20ppm	±20ppm	6pF
XRCPB24M576F0L00R0	Murata Electronics	XRCPB	24.576 MHz	±50ppm	±100ppm	6pF
XRCPB25M000F0Z00R0	Murata Electronics	XRCPB	25 MHz	±100ppm	±100ppm	6pF
XRCPB25M000F3M00R0	Murata Electronics	XRCPB	25 MHz	±40ppm	±30ppm	6pF
XRCPB27M000F2P00R0	Murata Electronics	XRCPB	27 MHz	±20ppm	±20ppm	6pF
XRCPB32M000F0L00R0	Murata Electronics	XRCPB	32 MHz	±50ppm	±100ppm	6pF
XRCPB40M000F0L00R0	Murata Electronics	XRCPB	40 MHz	±50ppm	±100ppm	6pF
XRCPB48M000F4M00R0	Murata Electronics	XRCPB	48 MHz	±40ppm	±45ppm	6pF
XRCPB24M000F0L00R0	Murata Electronics	XRCPB	24 MHz	±50ppm	±100ppm	6pF
XRCPB24M000F3N00R0	Murata Electronics	XRCPB	24 MHz	±30ppm	±30ppm	6pF
XRCPB24M576F0Z00R0	Murata Electronics	XRCPB	24.576 MHz	±100ppm	±100ppm	6pF
XRCPB25M000F0L00R0	Murata Electronics	XRCPB	25 MHz	±50ppm	±100ppm	6pF
XRCPB25M000F2P00R0	Murata Electronics	XRCPB	25 MHz	±20ppm	±20ppm	6pF
XRCPB26M000F0L00R0	Murata Electronics	XRCPB	26 MHz	±50ppm	±100ppm	6pF
XRCPB26M000F0Z00R0	Murata Electronics	XRCPB	26 MHz	±100ppm	±100ppm	6pF
XRCPB26M000F3N00R0	Murata Electronics	XRCPB	26 MHz	±30ppm	±30ppm	6pF
XRCPB27M000F0L00R0	Murata Electronics	XRCPB	27 MHz	±50ppm	±100ppm	6pF
XRCPB27M120F0L00R0	Murata Electronics	XRCPB	27.12 MHz	±50ppm	±100ppm	6pF
XRCPB27M120F2P00R0	Murata Electronics	XRCPB	27.12 MHz	±20ppm	±20ppm	6pF
XRCPB30M000F0L00R0	Murata Electronics	XRCPB	30 MHz	±50ppm	±100ppm	6pF
XRCPB30M000F0Z00R0	Murata Electronics	XRCPB	30 MHz	±100ppm	±100ppm	6pF
