C3E-16.000-18-3030-X-R,AKER石英晶體,C3E無源貼片晶振
頻率:16 MHz
尺寸:3.2*2.5mm
C3E-16.000-18-3030-X-R,AKER石英晶體,C3E無源貼片晶振,編碼:C3E-16.000-18-3030-X-R,型號:C3E,工作溫度:-40°C ~ 85°C,尺寸:3.2*2.5mm,頻率:16MHz,精度:±30ppm,負載電容:18pF,進口石英晶振,無源晶振,貼片晶振,石英晶體晶振,石英貼片晶體,3.2x2.5mm 貼片晶振在極端嚴酷的環境 條件下也能發揮穩定的起振特性,本身具有耐熱,耐振,耐沖擊等優良的耐環境特性.產品適用于數碼電子,智能手機,智能手表,智能家具家電,時鐘鐘表,無線局域網,藍牙。

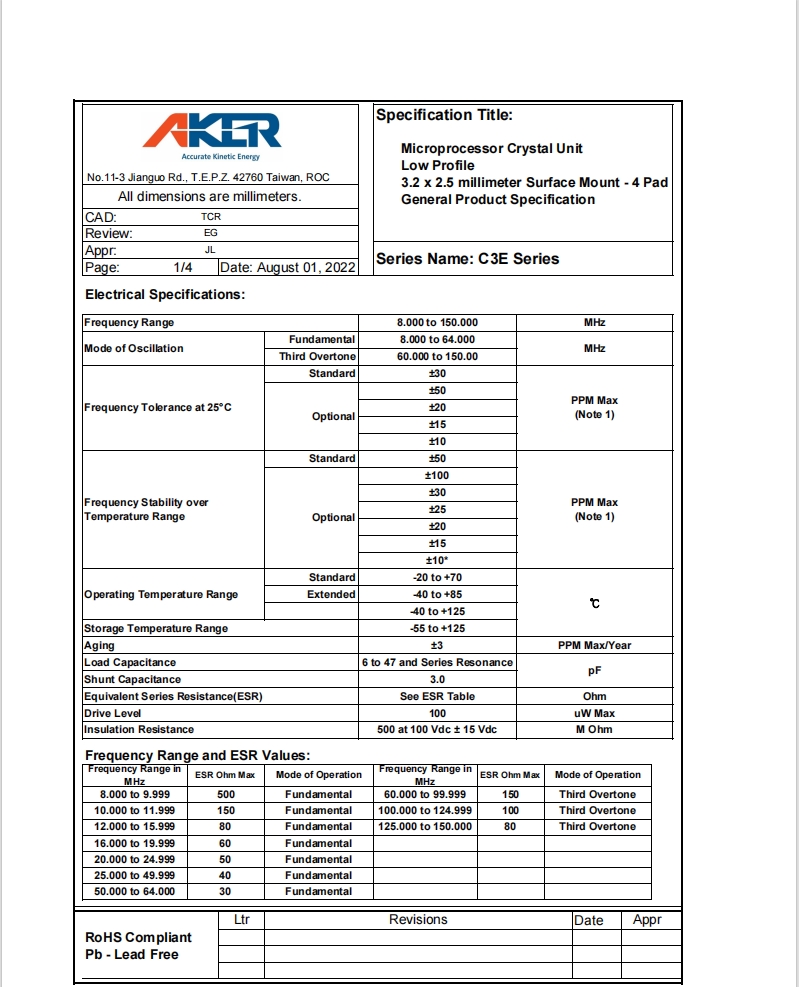

C3E-16.000-18-3030-X-R,AKER石英晶體,C3E無源貼片晶振,參數表
編碼 | C3E-16.000-18-3030-X-R |
品牌 | AKER |
型號 | C3E |
頻率 | 16MHz |
精度 |
±30ppm |
負載電容 | 18pF |
工作溫度 |
40°C ~ 85°C |
尺寸 | 3.2*2.5mm |
Mfr Part # | 臺產晶振 | Series | Frequency | Frequency Tolerance | Load Capacitance | Operating Temperature |
C3E-16.000-18-3030-X-R | Aker Technology Corp | C3E | 16 MHz | ±30ppm | 18pF | -40°C ~ 85°C |
C3E-20.000-12-3030-X-R | Aker Technology Corp | C3E | 20 MHz | ±30ppm | 12pF | -40°C ~ 85°C |
C3E-16.000-12-3030-R | Aker Technology Corp | C3E | 16 MHz | ±30ppm | 12pF | -20°C ~ 70°C |
C3E-25.000-18-3030-R | Aker Technology Corp | C3E | 25 MHz | ±30ppm | 18pF | -20°C ~ 70°C |
C3E-12.000-18-3030-R | Aker Technology Corp | C3E | 12 MHz | ±30ppm | 18pF | -20°C ~ 70°C |
C3E-25.000-18-2030-R | Aker Technology Corp | C3E | 25 MHz | ±20ppm | 18pF | -40°C ~ 85°C |
C3E-12.000-8-3030-R | Aker Technology Corp | C3E | 12 MHz | ±30ppm | 8pF | -20°C ~ 70°C |
C3E-25.000-8-1010-R | Aker Technology Corp | C3E | 25 MHz | ±10ppm | 8pF | -10°C ~ 70°C |
C3E-25.000-8-1520-R | Aker Technology Corp | C3E | 25 MHz | ±15ppm | 8pF | -20°C ~ 70°C |
C3E-16.000-12-3030-X-R | Aker Technology Corp | C3E | 16 MHz | ±30ppm | 12pF | -40°C ~ 85°C |
C3E-32.000-10-1010-R | Aker Technology Corp | C3E | 32 MHz | ±10ppm | 10pF | -10°C ~ 70°C |
C3E-12.000-8-1520-R | Aker Technology Corp | C3E | 12 MHz | ±15ppm | 8pF | -20°C ~ 70°C |
C3E-32.000-12-1010-R | Aker Technology Corp | C3E | 32 MHz | ±10ppm | 12pF | -10°C ~ 70°C |
C3E-25.000-8-1015-R | Aker Technology Corp | C3E | 25 MHz | ±10ppm | 8pF | -20°C ~ 70°C |
C3E-12.000-18-3030-X-R | Aker Technology Corp | C3E | 12 MHz | ±30ppm | 18pF | -40°C ~ 85°C |
C3E-25.000-12-3030-X-R | Aker Technology Corp | C3E | 25 MHz | ±30ppm | 12pF | -40°C ~ 85°C |
C3E-25.000-10-3030-X-R | Aker Technology Corp | C3E | 25 MHz | ±30ppm | 10pF | -40°C ~ 85°C |
C3E-24.000-8-1015-R | Aker Technology Corp | C3E | 24 MHz | ±10ppm | 8pF | -20°C ~ 70°C |
C3E-24.000-10-1010-R | Aker Technology Corp | C3E | 24 MHz | ±10ppm | 10pF | -10°C ~ 70°C |
C3E-32.000-12-1530-X-R | Aker Technology Corp | C3E | 32 MHz | ±15ppm | 12pF | -40°C ~ 85°C |
C3E-12.000-8-1010-R | Aker Technology Corp | C3E | 12 MHz | ±10ppm | 8pF | -10°C ~ 70°C |
C3E-16.000-8-1015-R | Aker Technology Corp | C3E | 16 MHz | ±10ppm | 8pF | -20°C ~ 70°C |
C3E-32.000-10-1015-R | Aker Technology Corp | C3E | 32 MHz | ±10ppm | 10pF | -20°C ~ 70°C |
C3E-24.000-12-1530-X-R | Aker Technology Corp | C3E | 24 MHz | ±15ppm | 12pF | -40°C ~ 85°C |
C3E-24.000-12-3030-X-R | Aker Technology Corp | C3E | 24 MHz | ±30ppm | 12pF | -40°C ~ 85°C |
C3E-24.000-18-1010-R | Aker Technology Corp | C3E | 24 MHz | ±10ppm | 18pF | -10°C ~ 70°C |
C3E-20.000-10-1530-X-R | Aker Technology Corp | C3E | 20 MHz | ±15ppm | 10pF | -40°C ~ 85°C |
C3E-25.000-8-1530-X-R | Aker Technology Corp | C3E | 25 MHz | ±15ppm | 8pF | -40°C ~ 85°C |
C3E-24.000-12-1015-X-R | Aker Technology Corp | C3E | 24 MHz | ±10ppm | 12pF | -40°C ~ 85°C |
C3E-24.000-10-1015-X-R | Aker Technology Corp | C3E | 24 MHz | ±10ppm | 10pF | -40°C ~ 85°C |
