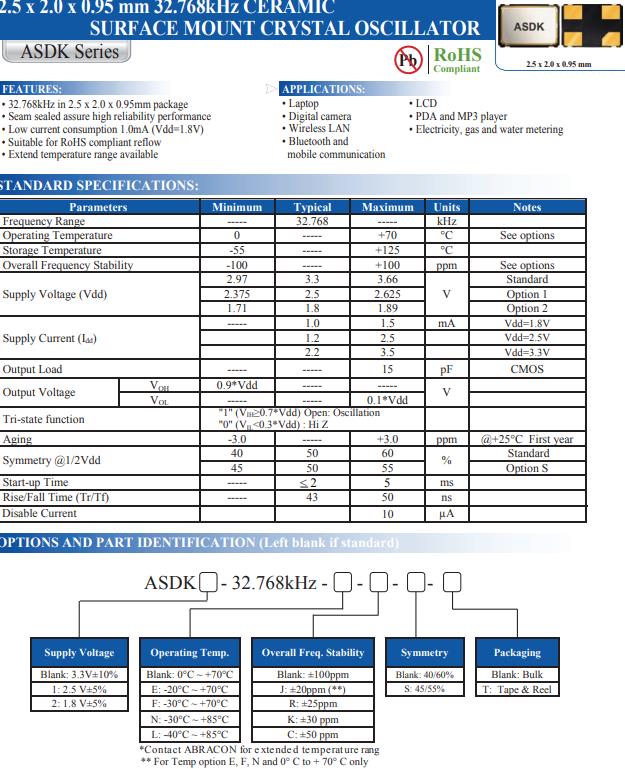

艾博康發布低抖動的四腳有源32.768K晶振ASDK1-32.768KHZ-LRT
最大頻率偏差超過溫度被指定為最多±25ppm,穩定性通常保持在±10ppm超過工業溫度范圍(-40°C到+85°C),如圖5所示。
艾博康發布低抖動的四腳有源32.768K晶振ASDK1-32.768KHZ-LRT,ASADV, ASDDV和ASEDV連續電壓振蕩器系列是設計來面對電池驅動應用的挑戰。電池本質上是一種可變的能源損耗電壓作為負載和使用的函數。AbraconCrystal的連續電壓振蕩器系列中的CMOS集成電路通過集成寬范圍電壓調節器消除了偏置依賴性??紤]到系統電源預算的緊張,當前的消耗也被保持在最低限度。
Manufacturer Part Number | 四腳有源晶振 | Series | Type 類型 | Frequency 頻率 | Voltage - Supply電壓 | Operating Temperature 工作溫度 |
ABLJO-V-98.304MHZ-T | Abracon晶振 | ABLJO | VCXO | 98.304MHz | 3.3V | -40°C ~ 85°C |
ABLJO-V-100.000MHZ-T | Abracon晶振 | ABLJO | VCXO | 100MHz | 3.3V | -40°C ~ 85°C |
ABLJO-V-106.250MHZ-T | Abracon晶振 | ABLJO | VCXO | 106.25MHz | 3.3V | -40°C ~ 85°C |
ASG2-LJ-200.000MHZ-513301 | Abracon晶振 | ASG2-LJ | XO (Standard) | 200MHz | 2.5V | -40°C ~ 85°C |
ASVV-77.760MHZ-L50-N102-T | Abracon晶振 | ASVV | VCXO | 77.76MHz | 3.3V | -40°C ~ 85°C |
ASG-C-V-A-10.000MHZ | Abracon晶振 | ASG-C | VCXO | 10MHz | 3.3V | -40°C ~ 85°C |
ASG-C-V-A-19.200MHZ | Abracon晶振 | ASG-C | VCXO | 19.2MHz | 3.3V | -40°C ~ 85°C |
ASG-C-V-A-19.440MHZ | Abracon晶振 | ASG-C | VCXO | 19.44MHz | 3.3V | -40°C ~ 85°C |
ASG-C-V-A-20.000MHZ | Abracon晶振 | ASG-C | VCXO | 20MHz | 3.3V | -40°C ~ 85°C |
ASG-C-V-A-24.576MHZ | Abracon晶振 | ASG-C | VCXO | 24.756MHz | 3.3V | -40°C ~ 85°C |
ASG-C-V-A-25.000MHZ | Abracon晶振 | ASG-C | VCXO | 25MHz | 3.3V | -40°C ~ 85°C |
ASG-C-V-A-38.880MHZ | Abracon晶振 | ASG-C | VCXO | 38.88MHz | 3.3V | -40°C ~ 85°C |
ASG-C-V-A-50.000MHZ | Abracon晶振 | ASG-C | VCXO | 50MHz | 3.3V | -40°C ~ 85°C |
ASG-C-V-B-10.000MHZ | Abracon晶振 | ASG-C | VCXO | 10MHz | 2.5V | -40°C ~ 85°C |
ASG-C-V-B-19.200MHZ | Abracon晶振 | ASG-C | VCXO | 19.2MHz | 2.5V | -40°C ~ 85°C |
ASG-C-V-B-19.440MHZ | Abracon晶振 | ASG-C | VCXO | 19.44MHz | 2.5V | -40°C ~ 85°C |
ASG-C-V-B-20.000MHZ | Abracon晶振 | ASG-C | VCXO | 20MHz | 2.5V | -40°C ~ 85°C |
The stability over temperature is also a priority metric given the automotive, aerospace, transportation, and alternative variable temperature environments that this oscillator family is expected to encounter.
The maximum frequency deviation over temperature is specified to be at most ±25ppm, and the stability typically stays within a ±10ppm over an industrial temperature range (-40°C to +85°C), as shown in Fig. 5.
The ASADV, ASDDV, and ASEDV Continuous Voltage oscillator series are designed to confront the challenges of battery-powered applications. A battery is essentially a variable energy source with a depleting voltage as a function of load and usage. The CMOS integrated circuits within Abracon’s Continuous Voltage oscillator family remove the bias dependency by integrating a wide-range voltage regulator. The current consumption is also kept to a minimum with tight system power budgets in mind.
