百利通亞陶晶振YJ系列VCXO具有廣泛的可拉性,YNETHE125,壓控晶體振蕩器,ECERA晶振

返回列表 來源：壹兆電子 查看手機網址
掃一掃!百利通亞陶晶振YJ系列VCXO具有廣泛的可拉性,YNETHE125,壓控晶體振蕩器,ECERA晶振掃一掃!
 瀏覽：- 發布日期：2022-07-04 13:31:54【大 中 小】
分享到：

DIODES百利通亞陶晶振所生產的石英晶振,貼片晶振,有源晶體振蕩器,壓電石英晶體元器件、壓電石英晶體、壓控有源晶振廣泛應用于智能設備,汽車電子,無線通訊,網絡通信,精密儀器,GPS衛星,網絡控制器,全球GPS定位系統等領域.工程、銷售、倉儲和物流辦事處設在臺北,香港、曼徹斯特、上海、深圳、中國、韓國、慕尼黑、德國、以及世界各地的支持辦事處.

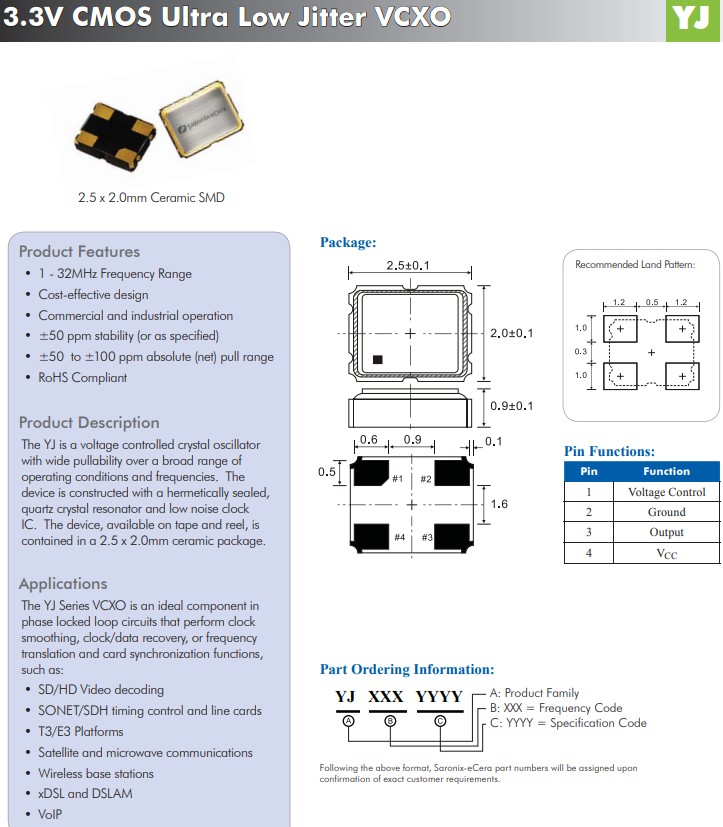

百利通亞陶晶振YJ系列是一種壓控晶體振蕩器，在廣泛的工作條件和頻率范圍內具有廣泛的可拉性。該器件由密封的石英晶體諧振器和低噪聲時鐘IC構成。該器件采用卷帶包裝，采用2.5x2.0mm陶瓷封裝。YJ系列VCXO是執行時鐘平滑、時鐘/數據恢復或頻率轉換和卡同步功能的鎖相環電路中的理想組件。

百利通亞陶晶振YJ系列VCXO具有廣泛的可拉性,YNETHE125,壓控晶體振蕩器,ECERA晶振

HX3127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm -40°C ~ 105°C
HX21480001 Diodes Incorporated SaRonix-eCera™ HX 48MHz ±50ppm -40°C ~ 105°C
HX21480001 Diodes Incorporated SaRonix-eCera™ HX 48MHz ±50ppm -40°C ~ 105°C
HX21480001 Diodes Incorporated SaRonix-eCera™ HX 48MHz ±50ppm -40°C ~ 105°C
NX7031E0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm -40°C ~ 85°C
NX7031E0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm -40°C ~ 85°C
NX7031E0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm -40°C ~ 85°C
HX2127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm -40°C ~ 105°C
HX2127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm -40°C ~ 105°C
HX2127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm -40°C ~ 105°C
SHPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm -40°C ~ 85°C
SHPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm -40°C ~ 85°C
SHPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm -40°C ~ 85°C
SQPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm -40°C ~ 85°C
SQPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm -40°C ~ 85°C
SQPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm -40°C ~ 85°C
SN10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
SN10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
SN10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
SQA000001 Diodes Incorporated SaRonix-eCera™ SQ 100MHz ±50ppm -40°C ~ 85°C
SQA000001 Diodes Incorporated SaRonix-eCera™ SQ 100MHz ±50ppm -40°C ~ 85°C
SQA000001 Diodes Incorporated SaRonix-eCera™ SQ 100MHz ±50ppm -40°C ~ 85°C
NX53D3301Z Diodes Incorporated SaRonix-eCera™ NX 133.333333MHz ±50ppm -40°C ~ 85°C
NX53D3301Z Diodes Incorporated SaRonix-eCera™ NX 133.333333MHz ±50ppm -40°C ~ 85°C
NX53D3301Z Diodes Incorporated SaRonix-eCera™ NX 133.333333MHz ±50ppm -40°C ~ 85°C
JT2553P0016.369000 Diodes Incorporated SaRonix-eCera™ JT 16.369MHz ±500ppb -40°C ~ 85°C
JT2553P0016.369000 Diodes Incorporated SaRonix-eCera™ JT 16.369MHz ±500ppb -40°C ~ 85°C
JT2553P0016.369000 Diodes Incorporated SaRonix-eCera™ JT 16.369MHz ±500ppb -40°C ~ 85°C
JT15260001 Diodes Incorporated SaRonix-eCera™ JT 26MHz ±500ppb -30°C ~ 85°C
JT15260001 Diodes Incorporated SaRonix-eCera™ JT 26MHz ±500ppb -30°C ~ 85°C
JT15260001 Diodes Incorporated SaRonix-eCera™ JT 26MHz ±500ppb -30°C ~ 85°C
百利通亞陶晶振YJ系列VCXO具有廣泛的可拉性,YNETHE125,壓控晶體振蕩器,ECERA晶振
特征：

小體積尺寸2.5x2.0mm貼片晶振
頻率范圍：1-32MHz
高性價比的設計
商業和工業運營
±50ppm 穩定性（或按規定）
±50至±100ppm 絕對（凈）牽引范圍
符合RoHS標準
應用：
標清/高清視頻解碼
SONET/SDH 時序控制和線卡
T3/E3平臺
衛星和微波通信
無線基站
xDSL和DSLAM
網絡電話

NX72F5506Z Diodes Incorporated SaRonix-eCera™ NX 155.52MHz ±50ppm -20°C ~ 70°C
NX72F5506Z Diodes Incorporated SaRonix-eCera™ NX 155.52MHz ±50ppm -20°C ~ 70°C
NX72F5506Z Diodes Incorporated SaRonix-eCera™ NX 155.52MHz ±50ppm -20°C ~ 70°C
NX72F6208Z Diodes Incorporated SaRonix-eCera™ NX 156.25MHz ±50ppm -20°C ~ 70°C
NX72F6208Z Diodes Incorporated SaRonix-eCera™ NX 156.25MHz ±50ppm -20°C ~ 70°C
NX72F6208Z Diodes Incorporated SaRonix-eCera™ NX 156.25MHz ±50ppm -20°C ~ 70°C
HX51706001 Diodes Incorporated SaRonix-eCera™ HX 70.656MHz ±50ppm -40°C ~ 105°C
HX51706001 Diodes Incorporated SaRonix-eCera™ HX 70.656MHz ±50ppm -40°C ~ 105°C
HX51706001 Diodes Incorporated SaRonix-eCera™ HX 70.656MHz ±50ppm -40°C ~ 105°C
HX7011C0020.000000 Diodes Incorporated SaRonix-eCera™ HX 20MHz ±25ppm -40°C ~ 105°C
HX7011C0020.000000 Diodes Incorporated SaRonix-eCera™ HX 20MHz ±25ppm -40°C ~ 105°C
HX7011C0020.000000 Diodes Incorporated SaRonix-eCera™ HX 20MHz ±25ppm -40°C ~ 105°C
PBF620074Z Diodes Incorporated SaRonix-eCera™ PB 156.25MHz ±50ppm -20°C ~ 70°C
PBF620074Z Diodes Incorporated SaRonix-eCera™ PB 156.25MHz ±50ppm -20°C ~ 70°C
PBF620074Z Diodes Incorporated SaRonix-eCera™ PB 156.25MHz ±50ppm -20°C ~ 70°C
NX3241E0100.000000 Diodes Incorporated SaRonix-eCera™ NX 100MHz ±50ppm -40°C ~ 85°C
NX3241E0100.000000 Diodes Incorporated SaRonix-eCera™ NX 100MHz ±50ppm -40°C ~ 85°C
NX3241E0100.000000 Diodes Incorporated SaRonix-eCera™ NX 100MHz ±50ppm -40°C ~ 85°C
PXC500007 Diodes Incorporated SaRonix-eCera™ PX 125MHz ±50ppm -20°C ~ 70°C
PXC500007 Diodes Incorporated SaRonix-eCera™ PX 125MHz ±50ppm -20°C ~ 70°C
PXC500007 Diodes Incorporated SaRonix-eCera™ PX 125MHz ±50ppm -20°C ~ 70°C
NX73K0004Z Diodes Incorporated SaRonix-eCera™ NX 200MHz ±50ppm -40°C ~ 85°C
NX73K0004Z Diodes Incorporated SaRonix-eCera™ NX 200MHz ±50ppm -40°C ~ 85°C
NX73K0004Z Diodes Incorporated SaRonix-eCera™ NX 200MHz ±50ppm -40°C ~ 85°C
NX7021E0150.000000 Diodes Incorporated SaRonix-eCera™ NX 150MHz ±50ppm -40°C ~ 85°C
NX7021E0150.000000 Diodes Incorporated SaRonix-eCera™ NX 150MHz ±50ppm -40°C ~ 85°C
NX7021E0150.000000 Diodes Incorporated SaRonix-eCera™ NX 150MHz ±50ppm -40°C ~ 85°C
NX5041D0100.000000 Diodes Incorporated SaRonix-eCera™ NX 100MHz ±25ppm -40°C ~ 85°C
NX5041D0100.000000 Diodes Incorporated SaRonix-eCera™ NX 100MHz ±25ppm -40°C ~ 85°C
NX5041D0100.000000 Diodes Incorporated SaRonix-eCera™ NX 100MHz ±25ppm -40°C ~ 85°C

1

Product Parameters

ProductSeries YJ_3
Family VCXO
Legacy PN None
Output Logic CMOS
SupplyVoltage 3.3
PullRange 50 to 100 ppm
Freq Range (MHz) 1 to 52
Jitter RMS (ps) <2 ps RMS
Package Type Ceramic Seam
Package Size (mm) 2.5 x 2.0 x 0.9
Pads 4
NotRecommended 0

百利通亞陶晶振YJ系列VCXO具有廣泛的可拉性,YNETHE125,壓控晶體振蕩器,ECERA晶振

產品參數：

產品系列 YJ_3
家庭 VCXO石英晶體振蕩器
舊版 PN 沒有任何
輸出邏輯 CMOS
電源電壓 3.3V
拉距 50至100ppm
頻率范圍 (MHz) 1MHz至52MHz
抖動均方根 (ps) <2 ps RMS
包裝類型 陶瓷縫
包裝尺寸2.5x2.0x0.9mm
墊 4
不建議 0

NX7021D0148.500000 Diodes Incorporated SaRonix-eCera™ NX 148.5MHz ±25ppm -40°C ~ 85°C
NX7021D0148.500000 Diodes Incorporated SaRonix-eCera™ NX 148.5MHz ±25ppm -40°C ~ 85°C
NX7021D0148.500000 Diodes Incorporated SaRonix-eCera™ NX 148.5MHz ±25ppm -40°C ~ 85°C
NX3221E0150.000000 Diodes Incorporated SaRonix-eCera™ NX 150MHz ±50ppm -40°C ~ 85°C
NX3221E0150.000000 Diodes Incorporated SaRonix-eCera™ NX 150MHz ±50ppm -40°C ~ 85°C
NX3221E0150.000000 Diodes Incorporated SaRonix-eCera™ NX 150MHz ±50ppm -40°C ~ 85°C
SNSAS2150 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 150MHz ±50ppm -20°C ~ 70°C
SNSAS2150 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 150MHz ±50ppm -20°C ~ 70°C
SNSAS2150 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 150MHz ±50ppm -20°C ~ 70°C
PD10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
PD10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
PD10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
PDF620008Z Diodes Incorporated SaRonix-eCera™ PD 156.25MHz ±50ppm -40°C ~ 85°C
PDF620008Z Diodes Incorporated SaRonix-eCera™ PD 156.25MHz ±50ppm -40°C ~ 85°C
PDF620008Z Diodes Incorporated SaRonix-eCera™ PD 156.25MHz ±50ppm -40°C ~ 85°C
NX72G1102Z Diodes Incorporated SaRonix-eCera™ NX 161.132812MHz ±50ppm -20°C ~ 70°C
NX72G1102Z Diodes Incorporated SaRonix-eCera™ NX 161.132812MHz ±50ppm -20°C ~ 70°C
NX72G1102Z Diodes Incorporated SaRonix-eCera™ NX 161.132812MHz ±50ppm -20°C ~ 70°C
NX7032C0200.000000 Diodes Incorporated SaRonix-eCera™ NX 200MHz ±50ppm -20°C ~ 70°C
NX7032C0200.000000 Diodes Incorporated SaRonix-eCera™ NX 200MHz ±50ppm -20°C ~ 70°C
NX7032C0200.000000 Diodes Incorporated SaRonix-eCera™ NX 200MHz ±50ppm -20°C ~ 70°C
UX52F62008 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -20°C ~ 70°C
UX52F62008 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -20°C ~ 70°C
UX52F62008 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -20°C ~ 70°C
UX54F62001 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX54F62001 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX54F62001 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
NX72W2201Z Diodes Incorporated SaRonix-eCera™ NX 322.265625MHz ±50ppm -20°C ~ 70°C
NX72W2201Z Diodes Incorporated SaRonix-eCera™ NX 322.265625MHz ±50ppm -20°C ~ 70°C
NX72W2201Z Diodes Incorporated SaRonix-eCera™ NX 322.265625MHz ±50ppm -20°C ~ 70°C
JX5021E0156.250000 Diodes Incorporated SaRonix-eCera™ JX 156.25MHz ±50ppm -40°C ~ 85°C
JX5021E0156.250000 Diodes Incorporated SaRonix-eCera™ JX 156.25MHz ±50ppm -40°C ~ 85°C
JX5021E0156.250000 Diodes Incorporated SaRonix-eCera™ JX 156.25MHz ±50ppm -40°C ~ 85°C
UX73F62003 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX73F62003 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX73F62003 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX52F6204Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX52F6204Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX52F6204Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX72F6214Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
百利通亞陶晶振YJ系列VCXO具有廣泛的可拉性,YNETHE125,壓控晶體振蕩器,ECERA晶振

壓控晶振（VCXO）是通過紅外加控制電壓使振蕩效率可變或是可以調制的石英晶體振蕩器，其振蕩頻率由晶體決定，可用控制電壓在小范圍內進行頻率調整。VCXO大多用于鎖相技術、頻率負反饋調制的目的。 控制電壓范圍一般為0V至2V或0V至3V。VCXO的調諧范圍為±100ppm至±200ppm。
