ECS-.327-7-34B-TR,32.768K晶振,3215貼片晶振
頻率:32.768KHz

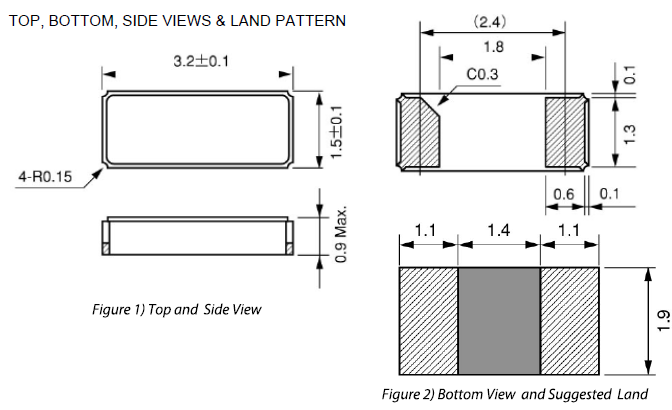

尺寸:3.2*1.5mm
ECS-.327-7-34B-TR,32.768K晶振,3215貼片晶振,型號:ECX-31B系列晶振,編碼為:ECS-.327-7-34B-TR,頻率:32.768KHz,尺寸:3.2*1.5mm,工作溫度為:﹣40°C ~ 85°C,石英晶振,貼片晶振,微型ECX-31B是最具成本效益的SMD調諧今天叉水晶,3.2 x 1.5 x 0.9毫米陶瓷封裝理想的高密度電路板,擴展中的產品溫度和頻率容差低至10 ppm,手機晶體,產品體積小,特別適用于各種小巧的便攜式消費電子數碼產品,在移動通信領域得到了廣泛的應用,晶振產品本身可發揮優良的電氣特性,滿足無鉛焊接的高溫回流溫度曲線要求.

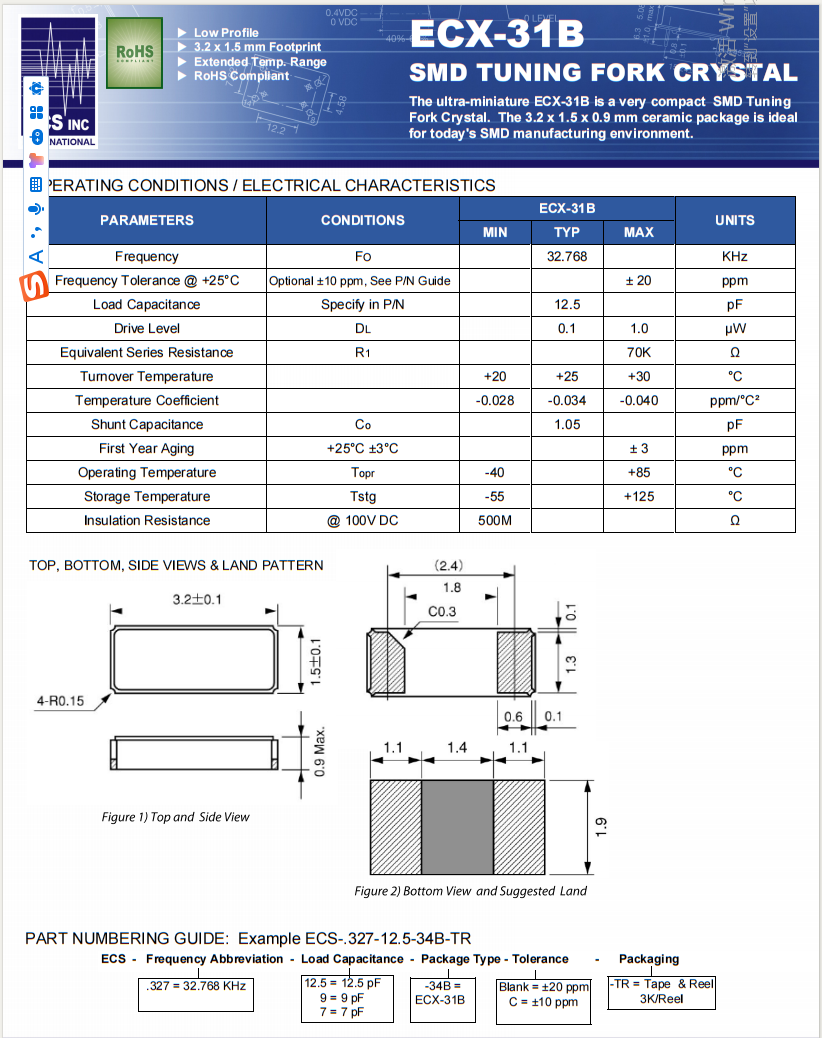

ECS-.327-7-34B-TR,32.768K晶振,3215貼片晶振,參數表
PARAMETERS | CONDITIONS | ECX-31B | UNITS | ||||||||||||||
MIN | TYP | MAX | |||||||||||||||
Frequency | FO | 32.768 | KHz | ||||||||||||||
Frequency Tolerance @ +25°C | Optional ±10 ppm, See P/N Guide | ± 20 | ppm | ||||||||||||||
Load Capacitance | Specify in P/N | 12.5 | pF | ||||||||||||||
Drive Level | DL | 0.1 | 1.0 | µW | |||||||||||||
Equivalent Series Resistance | R1 | 70K | Ω | ||||||||||||||
Turnover Temperature | +20 | +25 | +30 | °C | |||||||||||||
Temperature Coefficient | -0.028 | -0.034 | -0.040 | ppm/°C² | |||||||||||||
Shunt Capacitance | Co | 1.05 | pF | ||||||||||||||
First Year Aging | +25°C ±3°C | ± 3 | ppm | ||||||||||||||
Operating Temperature | Topr | -40 | +85 | °C | |||||||||||||
Storage Temperature | Tstg | -55 | +125 | °C | |||||||||||||
Insulation Resistance | @ 100V DC | 500M | Ω |
Manufacturer Part Number原廠編碼 | 晶振廠家 | Series型號 | Type 系列 | Frequency | Operating Temperature 工作溫度 |
ECS-.327-12.5-34B-TR | ECS 晶振 | ECX-31B | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
ECS-.327-12.5-34B-TR | ECS 晶振 | ECX-31B | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
ECS-.327-12.5-34B-TR | ECS 晶振 | ECX-31B | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
ECS-.327-7-34B-TR | ECS 晶振 | ECX-31B | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
ECS-.327-7-34B-TR | ECS 晶振 | ECX-31B | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
ECS-.327-7-34B-TR | ECS 晶振 | ECX-31B | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
ECS-.327-12.5-34B-C-TR | ECS 晶振 | ECX-31B | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
ECS-.327-12.5-34B-C-TR | ECS 晶振 | ECX-31B | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
ECS-.327-12.5-34B-C-TR | ECS 晶振 | ECX-31B | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
ECS-.327-9-34B-TR | ECS 晶振 | ECX-31B | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
ECS-.327-9-34B-TR | ECS 晶振 | ECX-31B | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
ECS-.327-9-34B-TR | ECS 晶振 | ECX-31B | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
ECS-.327-7-34B-C-TR | ECS 晶振 | ECX-31B | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
ECS-.327-7-34B-C-TR | ECS 晶振 | ECX-31B | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
ECS-.327-7-34B-C-TR | ECS 晶振 | ECX-31B | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
ECS-.327-9-34B-C-TR | ECS 晶振 | ECX-31B | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
ECS-.327-9-34B-C-TR | ECS 晶振 | ECX-31B | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
ECS-.327-9-34B-C-TR | ECS 晶振 | ECX-31B | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
聯系人:龔成
QQ:769468702
手機:13590198504
郵箱:[email protected]
網站:http://ellentracy.cn
采購:ECS-.327-7-34B-TR,32.768K晶振,3215貼片晶振
- *聯系人:
- *手機:
- 公司名稱:
- 郵箱:
- *采購意向:
- *驗證碼:
跟此產品相關的產品 / Related Products

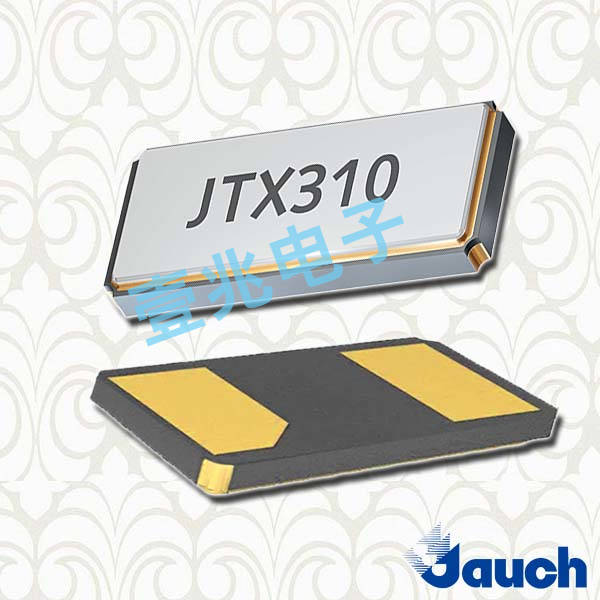

- Q 0.032768-JTX310-12.5-20-T1-HMR-LF,Jauch晶振,3215貼片晶振
- Q 0.032768-JTX310-12.5-20-T1-HMR-LF,Jauch晶振,3215貼片晶振,編碼:Q 0.032768-JTX310-12.5-20-T1-HMR-LF,型號:JTX310系列晶振,工作溫度:-40°C ~ 85°C,尺寸:3.2*1.5mm,頻率:32.768kHz,負載電容:12.5pF,精度:±20pm,石英貼片晶體,美國進口晶振,Jauch Oscillator ,32.768千赫 n可選的額外防震版本 回流焊接溫度:最高260°C,n包裝高度最大為0.9毫米,適用于數碼電子,智能手機,智能家具家電,無線通信,醫療設備等用途。

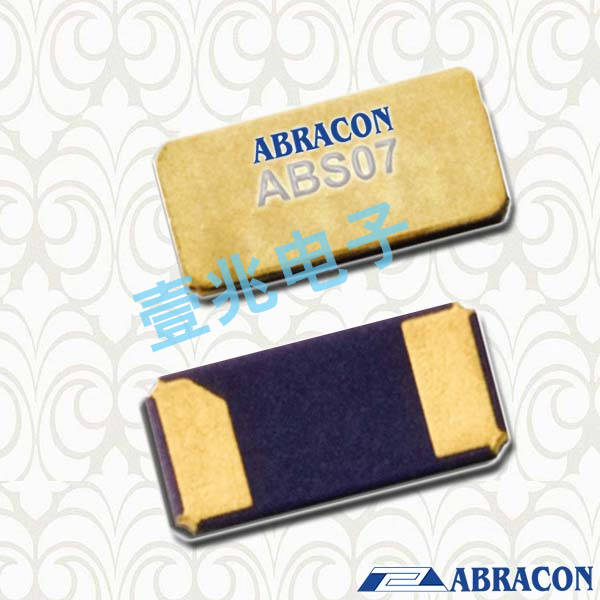

- ABS07-157-32.768 KHZ-T,ABS07無源晶振,3215貼片晶振
