ECS-RTC-3225-5609適用于便攜式電池供電的小尺寸電子設備
32.768KHz是款實時時鐘晶振，它的作用是可以產生時序電路基準信號。而之所以選用32.768K是因為它是2的15次冪，是因為可以很精確的得到一秒的計時。不僅如此，包括所有的實時時鐘晶振一般都是32.768K或其倍頻。32.768K晶振的負載電容都是12.5pf。常用32.768K晶振的電子產品有智能手機、智能手表、安防和可穿戴設備等等。也還有很多生活類、工業類電子也會常用到這款頻率的進口晶振

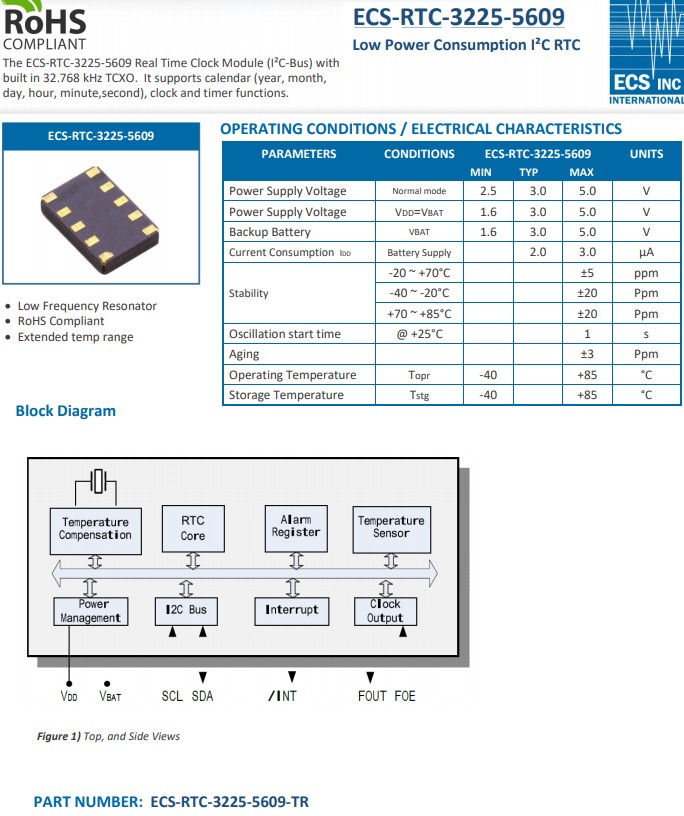

ECS晶振ECS-RTC-3225-5609是一個I2C總線接口實時時鐘(RTC),具有低功耗和嵌入式32.768kHz TCXO溫補晶振。精確的溫度傳感器和溫度補償電路確保時鐘精度。RTC支持日歷、時鐘和定時器功能，包括閏年補償。小體積尺寸3.2mmx2.5mmx1.0mm封裝，ECS-RTC-3225-5609適用于便攜式電池供電的小尺寸電子設備。
| 原廠代碼 | 品牌 | ECS石英晶體 | 頻率 | 工作溫度 |
| ECS-VXO-73-32.768-TR | ECS Crystal | ECS-VXO-73 | 32.768MHz | -10°C ~ 70°C |
| ECS-VXO-73-32.768-TR | ECS Crystal | ECS-VXO-73 | 32.768MHz | -10°C ~ 70°C |
| ECS-VXO-73-32.768-TR | ECS Crystal | ECS-VXO-73 | 32.768MHz | -10°C ~ 70°C |
| ECS-327KE-TR | ECS Crystal | ECS-327KE | 32.768kHz | -40°C ~ 85°C |
| ECS-327KE-TR | ECS Crystal | ECS-327KE | 32.768kHz | -40°C ~ 85°C |
| ECS-327KE-TR | ECS Crystal | ECS-327KE | 32.768kHz | -40°C ~ 85°C |
| ECS-327SMO-TR | ECS Crystal | ECS-327SMO | 32.768kHz | -40°C ~ 85°C |
| ECS-327SMO-TR | ECS Crystal | ECS-327SMO | 32.768kHz | -40°C ~ 85°C |
| ECS-327SMO-TR | ECS Crystal | ECS-327SMO | 32.768kHz | -40°C ~ 85°C |
| ECS-8FMX-327.6-TR | ECS Crystal | ECS-8FX | 32.768MHz | -40°C ~ 85°C |
| ECX-H25BN-32.768 | ECS Crystal | ECSpressCON™ ECX-H | 32.768MHz | -40°C ~ 85°C |
| ECX-H25CM-32.768 | ECS Crystal | ECSpressCON™ ECX-H | 32.768MHz | -20°C ~ 70°C |
| ECX-H35BN-32.768 | ECS Crystal | ECSpressCON™ ECX-H | 32.768MHz | -40°C ~ 85°C |
| ECX-H35CM-32.768 | ECS Crystal | ECSpressCON™ ECX-H | 32.768MHz | -20°C ~ 70°C |
| ECX-H23CM-32.768 | ECS Crystal | ECSpressCON™ ECX-H | 32.768MHz | -20°C ~ 70°C |
| ECX-H27BN-32.768 | ECS Crystal | ECSpressCON™ ECX-H | 32.768MHz | -40°C ~ 85°C |
| ECX-H27CM-32.768 | ECS Crystal | ECSpressCON™ ECX-H | 32.768MHz | -20°C ~ 70°C |
| ECX-H37BN-32.768 | ECS Crystal | ECSpressCON™ ECX-H | 32.768MHz | -40°C ~ 85°C |
| ECX-H37CM-32.768 | ECS Crystal | ECSpressCON™ ECX-H | 32.768MHz | -20°C ~ 70°C |
| ECX-H33BN-32.768 | ECS Crystal | ECSpressCON™ ECX-H | 32.768MHz | -40°C ~ 85°C |
| ECX-H33CM-32.768 | ECS Crystal | ECSpressCON™ ECX-H | 32.768MHz | -20°C ~ 70°C |
| ECX-H22BN-32.768 | ECS Crystal | ECSpressCON™ ECX-H | 32.768MHz | -40°C ~ 85°C |
| ECX-H22CM-32.768 | ECS Crystal | ECSpressCON™ ECX-H | 32.768MHz | -20°C ~ 70°C |
| ECX-H32BN-32.768 | ECS Crystal | ECSpressCON™ ECX-H | 32.768MHz | -40°C ~ 85°C |
| ECX-H32CM-32.768 | ECS Crystal | ECSpressCON™ ECX-H | 32.768MHz | -20°C ~ 70°C |
| ECS-327KO-TR | ECS Crystal | ECS-327KO | 32.768kHz | -40°C ~ 85°C |
| ECS-327KO-TR | ECS Crystal | ECS-327KO | 32.768kHz | -40°C ~ 85°C |
| ECS-327KO-TR | ECS Crystal | ECS-327KO | 32.768kHz | -40°C ~ 85°C |
特點:
小體積尺寸：3.2x2.5x1.0mm有源晶振
電源電壓:1.6至5.0V
低功耗:2uA(典型值。)
內置32.768kHz TCXO
工作溫度范圍:-40℃至+85℃
高穩定性
自動備用電源切換功能
周期可調的定時器輸出功能
應用：計算機，服務器，嵌入式系統，物聯網，超低功耗，數字時鐘
