ECS-3225SMV-250-FP-TR非常適合低功耗便攜式工業和物聯網應用

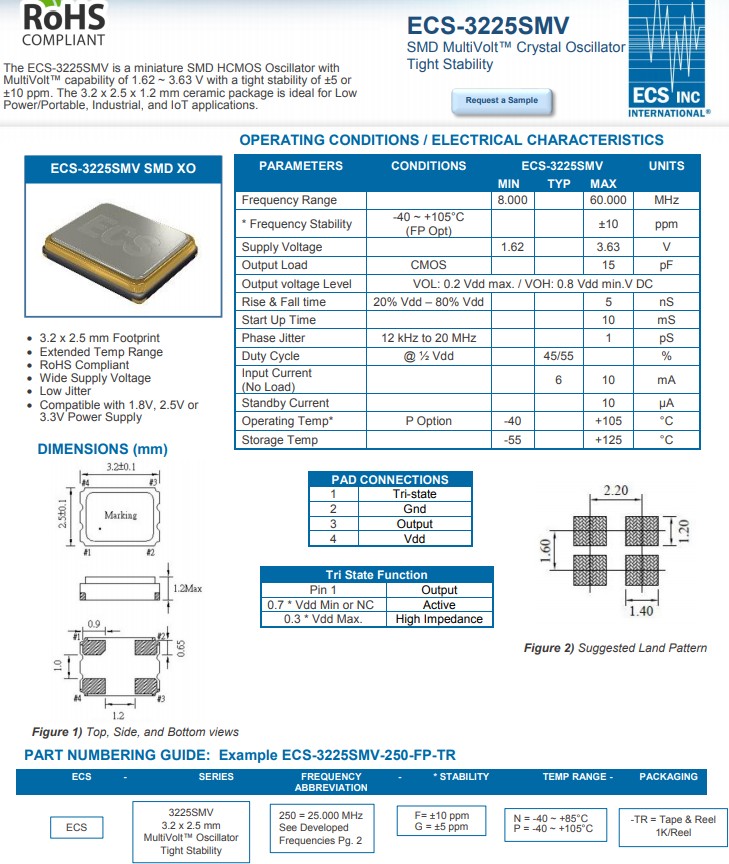

ECS晶振ECS-3225SMV是一款微型SMD HCMOS晶體振蕩器,低功耗、固定頻率、低抖動、MultiVolt表面貼裝晶體振蕩器。具有 MultiVolt能力為1.62V至3.63V,緊密穩定性為±5或10ppm,采用3.2x2.5x1.2mm (LWH)封裝,以節省電路板空間。MultiVolt特性允許客戶將同一器件用于多種設計,從而降低認證要求和庫存。ECS-3225SMV-250-FP-TR非常適合低功耗便攜式、工業和物聯網應用。
ECS-3225SMV-250-FP-TR非常適合低功耗便攜式工業和物聯網應用
特點:
小體積尺寸:3.2x2.5mm石英晶體振蕩器
多伏1.6V至3.63V
兼容1.8V、2.5V或3.3V電源
低抖動:1pS
符合RoHS 2和REACH標準
MSL 1號
鉛飾面金
FN選項:10ppm,-40℃至+85℃
FP選項:10ppm,-40℃至+105℃
GP選項:5ppm,-40℃至+105℃
應用:物聯網,存儲設備,集裝箱卸貨與傳輸系統,航行,醫療(非維持生命),移動設備,產業的,無線設備,通用微處理器,測試設備,IP攝像機
原廠代碼 | 品牌 | 型號 | 頻率 | 工作溫度 |
ECS-3225S33-250-FN-TR | ECS Crystal | ECS-3225S | 25MHz | -40°C ~ 85°C |
ECS-3225S33-250-FN-TR | ECS Crystal | ECS-3225S | 25MHz | -40°C ~ 85°C |
ECS-3225S33-250-FN-TR | ECS Crystal | ECS-3225S | 25MHz | -40°C ~ 85°C |
ECS-3225S33-260-FN-TR | ECS Crystal | ECS-3225S | 26MHz | -40°C ~ 85°C |
ECS-3225S33-260-FN-TR | ECS Crystal | ECS-3225S | 26MHz | -40°C ~ 85°C |
ECS-3225S33-260-FN-TR | ECS Crystal | ECS-3225S | 26MHz | -40°C ~ 85°C |
ECS-3225S33-400-FN-TR | ECSCrystal晶振 | ECS-3225S | 40MHz | -40°C ~ 85°C |
ECS-3225S33-400-FN-TR | ECS Crystal | ECS-3225S | 40MHz | -40°C ~ 85°C |
ECS-3225S33-400-FN-TR | ECS Crystal | ECS-3225S | 40MHz | -40°C ~ 85°C |
ECS-3225S25-240-FN-TR | ECS Crystal | ECS-3225S | 24MHz | -40°C ~ 85°C |
ECS-3225S25-240-FN-TR | ECS Crystal | ECS-3225S | 24MHz | -40°C ~ 85°C |
ECS-3225S25-240-FN-TR | ECS Crystal | ECS-3225S | 24MHz | -40°C ~ 85°C |
ECS-3225S25-250-FN-TR | ECS Crystal | ECS-3225S | 25MHz | -40°C ~ 85°C |
ECS-3225S25-250-FN-TR | ECS Crystal | ECS-3225S | 25MHz | -40°C ~ 85°C |
ECS-3225S25-250-FN-TR | ECS Crystal | ECS-3225S | 25MHz | -40°C ~ 85°C |
ECS-3225S18-160-FN-TR | ECS Crystal | ECS-3225S | 16MHz | -40°C ~ 85°C |
ECS-3225S18-160-FN-TR | ECS Crystal | ECS-3225S | 16MHz | -40°C ~ 85°C |
ECS-3225S18-160-FN-TR | ECS Crystal | ECS-3225S | 16MHz | -40°C ~ 85°C |
ECS-3225S18-200-FN-TR | ECS Crystal | ECS-3225S | 20MHz | -40°C ~ 85°C |
ECS-3225S18-200-FN-TR | ECS Crystal | ECS-3225S | 20MHz | -40°C ~ 85°C |
ECS-3225S18-200-FN-TR | ECS Crystal | ECS-3225S | 20MHz | -40°C ~ 85°C |
ECS-3225S18-240-FN-TR | ECS Crystal | ECS-3225S | 24MHz | -40°C ~ 85°C |
ECS-3225S18-240-FN-TR | ECS Crystal | ECS-3225S | 24MHz | -40°C ~ 85°C |
ECS-3225S18-240-FN-TR | ECS Crystal | ECS-3225S | 24MHz | -40°C ~ 85°C |
ECS-3225S18-270-FN-TR | ECS Crystal | ECS-3225S | 27MHz | -40°C ~ 85°C |
ECS-3225S18-270-FN-TR | ECS Crystal | ECS-3225S | 27MHz | -40°C ~ 85°C |
ECS-3225S18-270-FN-TR | ECS Crystal | ECS-3225S | 27MHz | -40°C ~ 85°C |
圖片 | 編碼 | 頻率 | 頻率穩定性 | 工作溫度 |
ECS-3225SMV-100-FP-TR | 10 MHz | ±10ppm | -40°C ~ +105°C | |
ECS-3225SMV-100-GP-TR | 10 MHz | ±5ppm | -40°C ~ +105°C | |
ECS-3225SMV-120-FP-TR | 12 MHz | ±10ppm | -40°C ~ +105°C | |
ECS-3225SMV-160-FP-TR石英晶振 | 16 MHz | ±10ppm | -40°C ~ +105°C | |
ECS-3225SMV-192-FP-TR | 19.2 MHz | ±10ppm | -40°C ~ +105°C | |
ECS-3225SMV-240-FP-TR | 24 MHz | ±10ppm | -40°C ~ +105°C | |
ECS-3225SMV-250-FP-TR | 25 MHz | ±10ppm | -40°C ~ +105°C |
