石英諧振器,12.87170 KX-327FT晶振,GEYER晶體諧振器

頻率:32.768KHz

尺寸:1.6mmx1.0mm

石英諧振器,12.87170  KX-327FT晶振,GEYER晶體諧振器,公差:±20 ppm,工作溫度:-40°C~+85°C,儲存溫度范圍:-55°C~+125°C,尺寸:1.6mmx1.0mm,頻率:32.768KHz,進口1610晶振,無源晶振,晶體諧振器,石英進口晶振,貼片晶振,具有:耐熱,低損耗,高質量,耐環境等特點,應用于:智能穿戴設備,手機平板,小型便捷式。一般民用機器等。
訂購熱線:0755-27876236
QQ咨詢 點擊這里給我發消息

石英諧振器,12.87170  KX-327FT晶振,GEYER晶體諧振器,公差:±20 ppm,工作溫度:-40°C~+85°C,儲存溫度范圍:-55°C~+125°C尺寸:1.6mmx1.0mm,頻率:32.768KHz,進口1610晶振,無源晶振,晶體諧振器,石英進口晶振,貼片晶振,具有:耐熱,低損耗,高質量,耐環境等特點,應用于:智能穿戴設備,手機平板,小型便捷式。一般民用機器等。

質量是GEYER晶振成功案例的基礎。作為提供陶瓷面晶振產品領域的國際活躍專家,我們深知全面客戶服務的意義和以客戶需求為中心的物流設計。通過集中我們在亞洲工廠的主要生產,德國的高端生產以及專業和高性能的開發和服務團隊,我們是可靠的合作伙伴。另外,根據DIN ISO 9001:2008,GEYER ELECTRONIC當然也獲得了認證。GEYER晶振,貼片晶振,KX-C晶振

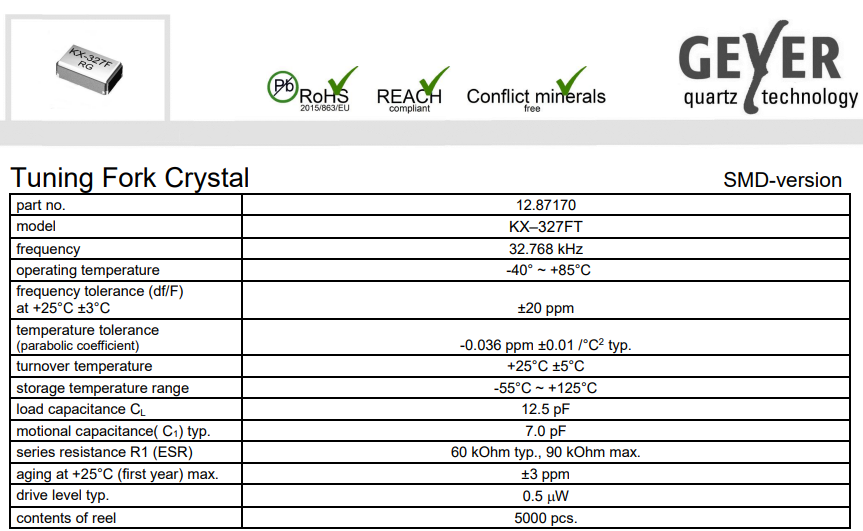

石英諧振器,12.87170  KX-327FT晶振,GEYER晶體諧振器,參數表

part no. 12.87170
model貼片晶振 KX–327FT
 frequency 32.768 kHz
operating temperature -40° ~ +85°C
 frequency tolerance (df/F)
at +25°C ±3°C
±20 ppm
 temperature tolerance
  (parabolic coefficient)
-0.036 ppm ±0.01 / °C2 typ.
 turnover temperature +25°C ±5°C
storage temperature range -55°C ~ +125°C
 load capacitance CL 12.5 pF
motional capacitance( C1 ) typ. 7.0 pF
series resistance R1 (ESR) 60 kOhm typ., 90 kOhm max.
aging at +25°C (first year) max. ±3 ppm
drive level typ. 0.5 W
contents of reel 5000 pcs.

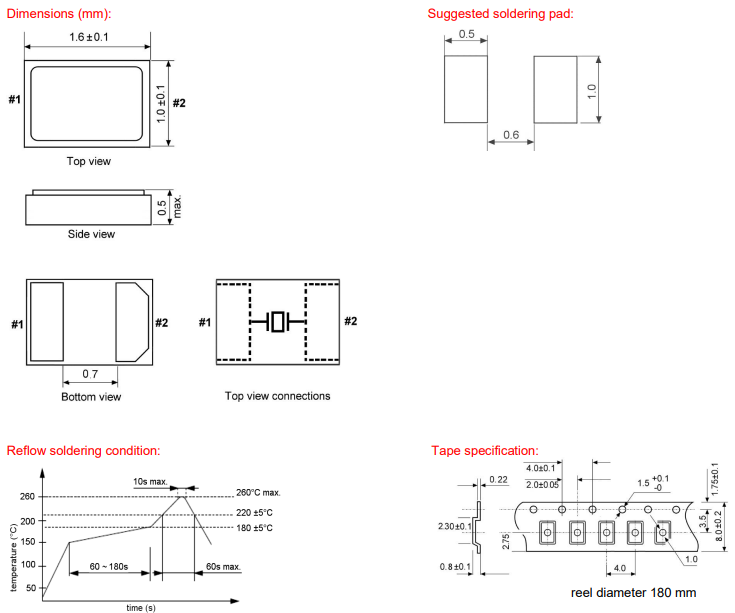

石英諧振器,12.87170  KX-327FT晶振,GEYER晶體諧振器,尺寸圖

KX-327FT-1

KX-327FT


原廠編碼 供應商 描述 型號 標準頻率 頻率容差 頻率穩定性 工作溫度范圍
12.85536 Geyer 晶振 CYSTAL 40.0MHZ 8PF SMD KX-5T 40 MHz ±20ppm ±10ppm -40°C ~ 85°C
12.84816 Geyer 晶振 Crystal 25.0MHz 8pF SMD KX-4 25 MHz ±50ppm ±30ppm -20°C ~ 70°C
12.88722 石英晶振 Crystal 16.0Mhz SMD KX-7T 12pF, KX-7T 16 MHz ±25ppm ±10ppm -20°C ~ 70°C
12.84805 Geyer 晶振 Crystal 27.120MHz 8pF SMD KX-4 27.12 MHz ±30ppm ±30ppm -40°C ~ 85°C
12.86509 Geyer 晶振 Cystal 48.0Mhz 10pF SMD KX-6 48 MHz ±50ppm ±30ppm -20°C ~ 70°C
12.8902 Geyer 晶振 Crystal 32.0Mhz SMD KX-9A 16pF, KX-9A 32 MHz ±10ppm ±30ppm -20°C ~ 70°C
12.84813 Geyer 晶振 Crystal 27.120MHz 8pF SMD KX-4 27.12 MHz ±15ppm ±10ppm -40°C ~ 85°C
12.60233 Geyer 晶振 CRYSTAL 25.0MHZ 12PF SMD KX-7T 25 MHz ±20ppm ±20ppm -40°C ~ 85°C
12.85515 Geyer 晶振 CYSTAL 27.0MHZ 8PF SMD KX-5 27 MHz ±50ppm ±30ppm -20°C ~ 70°C
12.86544 Geyer 晶振 Crystal 16.0Mhz 10pF SMD KX-7E 24 MHz ±120ppm ±30ppm -40°C ~ 105°C
12.85547 Geyer 晶振 CYSTAL 26.0MHZ 8PF SMD KX-5T 26 MHz ±20ppm ±10ppm -40°C ~ 85°C
12.8919 Geyer 晶振 Crystal 8.0Mhz SMD KX-9AT 16pF, KX-9AT 8 MHz ±30ppm ±100ppm -40°C ~ 85°C
12.85562 Geyer 晶振 CYSTAL 50.0MHZ 8PF SMD KX-5T 50 MHz ±50ppm ±30ppm -40°C ~ 85°C
12.60208 Geyer 晶振 CRYSTAL 26.0MHZ 8PF SMD KX-7T 26 MHz ±10ppm ±20ppm -40°C ~ 85°C
12.86531 Geyer 晶振 Cystal 16.0Mhz 10pF SMD KX-6T 16 MHz ±100ppm ±30ppm -40°C ~ 85°C
12.88664 Geyer 晶振 Crystal 14.3181800Mhz 12pF SMD KX-7 14.31818 MHz ±50ppm ±30ppm -20°C ~ 70°C
12.89495 Geyer 晶振 Crystal 8.0Mhz SMD KX-9BH 8pF, 4 KX-9BH 8 MHz ±50ppm ±50ppm -20°C ~ 70°C
12.89103 Geyer 晶振 Crystal 10.0Mhz SMD KX-9AE 16pF, KX-9AE 10 MHz ±50ppm ±30ppm -40°C ~ 105°C
12.887 Geyer 晶振 Crystal 30.0Mhz 12pF SMD KX-7 30 MHz ±50ppm ±30ppm -20°C ~ 70°C
12.89131 Geyer 晶振 Crystal 48.0Mhz SMD KX-9AT 16pF, KX-9AT 48 MHz ±50ppm ±30ppm -40°C ~ 85°C
12.86512 Geyer 晶振 Cystal 20.0Mhz 10pF SMD KX-6 20 MHz ±50ppm ±30ppm -20°C ~ 70°C
12.89126 Geyer 晶振 Crystal 13.560Mhz SMD KX-9AE 16p KX-9A 13.56 MHz ±120ppm ±30ppm -40°C ~ 105°C
12.8655 Geyer 晶振 Crystal 16.0Mhz 10pF SMD KX-6E 16 MHz ±150ppm ±30ppm -40°C ~ 105°C
12.86526 Geyer 晶振 Cystal 26.0Mhz 10pF SMD KX-6T 26 MHz ±20ppm ±10ppm -40°C ~ 85°C
12.6009 Geyer 晶振 CRYSTAL 24.0MHZ 12PF SMD KX-7T 24 MHz ±20ppm ±20ppm -40°C ~ 85°C
12.88701 Geyer 晶振 Crystal 40.0Mhz 12pF SMD KX-7T 40 MHz ±100ppm ±30ppm -40°C ~ 85°C
12.88493 Geyer 晶振 Crystal 33.33Mhz SMD KX-7T 12pF, KX-7T 33.33333 MHz ±100ppm ±30ppm -40°C ~ 85°C
12.85521 Geyer 晶振 CYSTAL 26.0MHZ 10PF SMD KX-5T 26 MHz ±20ppm ±10ppm -40°C ~ 85°C
12.89078 Geyer 晶振 Crystal 27.0Mhz SMD KX-9AT 16pF, KX-9AT 27 MHz ±150ppm ±30ppm -40°C ~ 85°C
12.86517 Geyer 晶振 Cystal 24.0Mhz 10pF SMD KX-6 24 MHz ±50ppm ±30ppm -20°C ~ 70°C
12.84812 Geyer 晶振 Crystal 25.0MHz 8pF SMD KX-4 25 MHz ±50ppm ±30ppm -40°C ~ 85°C
12.88508 Geyer 晶振 Crystal 24.0Mhz 12pF SMD KX-7T 24 MHz ±50ppm ±20ppm -40°C ~ 85°C
12.88711 Geyer 晶振 Crystal 25.0Mhz SMD KX-7T 12pF, KX-7T 25 MHz ±30ppm ±30ppm -40°C ~ 85°C
12.85519 Geyer 晶振 CYSTAL 20.0MHZ 8PF SMD KX-5T 20 MHz ±50ppm ±20ppm -40°C ~ 85°C
12.89027 Geyer 晶振 Crystal 25.0Mhz SMD KX-9A 16pF, KX-9A 25 MHz ±30ppm ±30ppm -20°C ~ 70°C
12.85539 Geyer 晶振 CYSTAL 40.0MHZ 8PF SMD KX-5T 48 MHz ±20ppm ±10ppm -40°C ~ 85°C
12.88721 Geyer 晶振 Crystal 16.0Mhz 12pF SMD KX-7T 16 MHz ±30ppm ±30ppm -20°C ~ 70°C
12.88667 Geyer 晶振 Crystal 25.0Mhz SMD KX-7 12pF, 4 KX-7 25 MHz ±50ppm ±30ppm -20°C ~ 70°C
12.85517 Geyer 晶振 CYSTAL 54.0MHZ 8PF SMD KX-5T 54 MHz ±100ppm ±30ppm -40°C ~ 85°C
12.89017 Geyer 晶振 Crystal 13.560Mhz SMD KX-9A 16pF KX-9A 13.56 MHz ±50ppm ±30ppm -20°C ~ 70°C
12.89082 Geyer 晶振 Crystal 26.0Mhz SMD KX-9AT 16pF, KX-9AT 26 MHz ±50ppm ±30ppm -40°C ~ 85°C
12.60075 Geyer 晶振 Cystal 30.0Mhz 8pF SMD KX-7 30 MHz ±50ppm ±30ppm -40°C ~ 125°C
12.89155 Geyer 晶振 Crystal 32.0Mhz SMD KX-9AT 16pF, KX-9AT 32 MHz ±30ppm ±30ppm -40°C ~ 85°C
12.88522 Geyer 晶振 Crystal 11.059200Mhz 12pF SMD KX-7T 11.0592 MHz ±50ppm ±30ppm -20°C ~ 70°C
12.88752 Geyer 晶振 Crystal 10.0Mhz 12pF SMD KX-7 10 MHz ±50ppm ±30ppm -20°C ~ 70°C
12.85569 Geyer 晶振 CYSTAL 27.120MHZ 8PF SMD KX-5T 27.12 MHz ±15ppm ±10ppm -40°C ~ 85°C
12.88565 Geyer 晶振 Crystal 8.0Mhz 12pF SMD KX-7E 8 MHz ±50ppm ±30ppm -20°C ~ 70°C
12.85538 Geyer 晶振 CYSTAL 24.5760MHZ 8PF SMD KX-5T 24.576 MHz ±100ppm ±30ppm -40°C ~ 85°C
12.86533 Geyer 晶振 Cystal 26.0Mhz 10pF SMD KX-6T 26 MHz ±100ppm ±30ppm -40°C ~ 85°C
12.89209 Geyer 晶振 Crystal 16.0Mhz SMD KX-9AE 20pF, KX-9AE 16 MHz ±50ppm ±30ppm -40°C ~ 105°C
12.8652 Geyer 晶振 Cystal 27.0Mhz 10pF SMD KX-6 27 MHz ±50ppm ±30ppm -20°C ~ 70°C
12.86574 Geyer 晶振 Crystal 27.0Mhz 8pF SMD KX-6F 27 MHz ±150ppm ±30ppm -40°C ~ 125°C
12.85541 Geyer 晶振 CYSTAL 30.0MHZ 8PF SMD KX-5 30 MHz ±30ppm ±30ppm -20°C ~ 70°C
12.84818 Geyer 晶振 Crystal 24.0MHz 8pF SMD KX-4 24 MHz ±50ppm ±30ppm -20°C ~ 70°C
12.86527 Geyer 晶振 Cystal 20.0Mhz 10pF SMD KX-6T 20 MHz ±15ppm ±10ppm -40°C ~ 85°C
12.85534 Geyer 晶振 CYSTAL 27.0MHZ 8PF SMD KX-5T 27 MHz ±50ppm ±30ppm -40°C ~ 85°C
12.86505 Geyer 晶振 Cystal 26.0Mhz 10pF SMD KX-6 26 MHz ±50ppm ±30ppm -20°C ~ 70°C
12.60024 Geyer 晶振 Cystal 27.0Mhz 12pF SMD KX-7E 27 MHz ±100ppm ±30ppm -40°C ~ 105°C
12.84803 Geyer 晶振 Crystal 26.0MHz 8pF SMD KX-4 26 MHz ±20ppm ±10ppm -40°C ~ 85°C
12.85518 Geyer 晶振 CYSTAL 20.0MHZ 8PF SMD KX-5E 20 MHz ±50ppm ±30ppm -40°C ~ 105°C
12.8873 Geyer 晶振 Crystal 26.0Mhz 12pF SMD KX-7T 26 MHz ±50ppm ±30ppm -40°C ~ 85°C
12.86556 Geyer 晶振 Crystal 40.0Mhz 8pF SMD KX-6T 40 MHz ±20ppm ±10ppm -40°C ~ 85°C
12.88643 Geyer 晶振 Crystal 14.3181800Mhz 12pF SMD KX-7T 14.31818 MHz ±50ppm ±30ppm -40°C ~ 85°C
12.86511 Geyer 晶振 Crystal 18.4320Mhz 10pF SMD KX-6 18.432 MHz ±50ppm ±30ppm -20°C ~ 70°C
12.88523 Geyer 晶振 Crystal 40.0Mhz 12pF SMD KX-7F 40 MHz ±50ppm ±30ppm -40°C ~ 125°C
12.89288 Geyer 晶振 Crystal 24.5760Mhz SMD KX-9AT 20 KX-9AT 24.576 MHz ±30ppm ±20ppm -40°C ~ 85°C
12.86536 Geyer 晶振 Crystal 14.318180Mhz 10pF SMD KX-6 14.31818 MHz ±50ppm ±30ppm -20°C ~ 70°C
12.89029 Geyer 晶振 Crystal 27.0Mhz SMD KX-9A 16pF, KX-9A 27 MHz ±50ppm ±30ppm -20°C ~ 70°C
12.88799 Geyer 晶振 Crystal 12.0Mhz 10pF SMD KX-7 12 MHz ±30ppm ±30ppm -20°C ~ 70°C
12.8481 Geyer 晶振 Crystal 48.0MHz 8pF SMD KX-4 48 MHz ±50ppm ±30ppm -40°C ~ 85°C
12.84814 Geyer 晶振 Crystal 32.0MHz 8pF SMD KX-4 32 MHz ±15ppm ±10ppm -40°C ~ 85°C
12.88756 Geyer 晶振 Crystal 10.0Mhz 12pF SMD KX-7E 26 MHz ±50ppm ±10ppm -40°C ~ 105°C
12.8556 Geyer 晶振 CYSTAL 16.0MHZ 8PF SMD KX-5T 16 MHz ±30ppm ±30ppm -40°C ~ 85°C
12.86561 Geyer 晶振 Crystal 40.0Mhz 10pF SMD KX-6T 40 MHz ±20ppm ±10ppm -40°C ~ 85°C
12.8877 Geyer 晶振 Crystal 30.0Mhz 12pF SMD KX-7T 30 MHz ±10ppm ±10ppm -25°C ~ 80°C
12.86564 Geyer 晶振 Crystal 14.318180Mhz 10pF SMD KX-6T 14.31818 MHz ±100ppm ±30ppm -40°C ~ 85°C
12.86592 Geyer 晶振 Crystal 25.0Mhz SMD KX-6T 12pF, KX-6T 25 MHz ±20ppm ±10ppm -40°C ~ 85°C
12.87159 Geyer 晶振 CRYSTAL 32.7680kHz 12.5pF SMD KX-327NHT 32.768 kHz -0.035ppm ±20ppm -40°C ~ 85°C
12.87163 Geyer 晶振 CRYSTAL 32.768KHZ 7PF SMD KX-327RT 32.768 kHz -0.036ppm ±20ppm -40°C ~ 85°C
12.87151 Geyer 晶振 CRYSTAL 32.7680kHz 9pF SMD KX-327NHT 32.768 kHz -0.035ppm ±30ppm -40°C ~ 85°C
12.8717 Geyer 晶振 CRYSTAL 32.7680KHZ 12.5PF SMD KX-327FT 32.768 kHz - ±20ppm -40°C ~ 85°C
12.87148 Geyer 晶振 CRYSTAL 32.7680KHZ 7PF SMD KX-327NHT 32.768 kHz -0.035ppm ±20ppm -40°C ~ 85°C
12.87106 Geyer 晶振 CRYSTAL 32.768KHZ 7PF SMD KX-327XST 32.768 kHz ±20ppm ±20ppm -40°C ~ 85°C
12.8716 Geyer 晶振 CYSTAL 32.7680KHZ 12.5PF SMD KX-327RT 32.768 kHz ±20ppm ±20ppm -40°C ~ 85°C
12.87143 Geyer 晶振 CRYSTAL 32.768KHz 9pF SMD KX-327NHT 32.768 kHz -0.035ppm ±20ppm -40°C ~ 85°C
12.84801 Geyer 晶振 Crystal 26.0MHz 8pF SMD KX-4 26 MHz ±50ppm ±30ppm -20°C ~ 70°C
12.8718 Geyer 晶振 Crystal 32.7680kHz 9pF SMD KX-327NHF 32.768 kHz -0.03ppm ±20ppm -40°C ~ 125°C
12.87147 Geyer 晶振 CRYSTAL 32.768KHz 7pF SMD KX-327NHT 32.768 kHz - ±10ppm -40°C ~ 85°C
12.87081 Geyer 晶振 CRYSTAL 32.768KHZ 6PF SMD KX-327NHT 32.768 kHz -0.035ppm ±20ppm -40°C ~ 85°C
12.87149 Geyer 晶振 CRYSTAL 32.7680KHZ 9PF SMD KX-327NHT 32.768 kHz -0.035ppm ±20ppm -40°C ~ 85°C
12.87156 Geyer 晶振 CRYSTAL 32.768KHz 12.5pF SMD KX-327NHT 32.768 kHz -0.035ppm ±20ppm -40°C ~ 85°C
12.87154 Geyer 晶振 CRYSTAL 32.768KHz 12.5pF SMD KX-327NHT 32.768 kHz -0.035ppm ±20ppm -40°C ~ 85°C
12.87174 Geyer 晶振 CRYSTAL 32.768KHz 7pF SMD KX-327FT 32.768 kHz -0.036ppm ±20ppm -40°C ~ 85°C
12.87114 Geyer 晶振 Cystal 32.7680Khz 12.5pF SMD KX-327ST 32.768 kHz -0.034ppm, ±0.006ppm ±20ppm -40°C ~ 85°C
12.8715 Geyer 晶振 CRYSTAL 32.7680KHZ 12.5PF SMD KX-327NHT 32.768 kHz -0.035ppm ±20ppm -40°C ~ 85°C
12.87181 Geyer 晶振 CRYSTAL 32.7680KHZ 12.5PF SMD KX-327NHF 32.768 kHz -0.03ppm ±20ppm -40°C ~ 125°C
12.60023 Geyer 晶振 Cystal 48.0Mhz 12pF SMD KX-7E 48 MHz ±50ppm ±30ppm -40°C ~ 105°C
12.85559 Geyer 晶振 CYSTAL 40.0MHZ 8PF SMD KX-5 40 MHz ±50ppm ±30ppm -20°C ~ 70°C
