時鐘振蕩器,12.95335 KXO-V95E,GEYER晶體振蕩器
頻率:100.0MHz
尺寸:2.5mmx2.0mm
時鐘振蕩器,12.95335 KXO-V95E,GEYER晶體振蕩器,公差:±30 ppm,工作溫度:-40°C~+105°C,儲存溫度范圍:-40°C~+105°C,尺寸:2.5mmx2.0mm,頻率:100.0MHz,進口晶體振蕩器,無鉛環保晶振,時鐘晶體振蕩器,貼片晶振,石英晶振,有源晶振,具有:耐高溫,耐磨損,耐使用,輕薄型等特點,應用于:安防系統,安保系統,無線局域網,藍牙模塊晶振,汽車音響,汽車電子控制板等。
GEYER晶振,作為全球企業可持續的社會的實現,集團一體推進地球環境保全活動。推進了環境考慮的產品和服務的陶瓷面石英晶體諧振器產品和服務。為了提供社會,努力維護地球環境。遵守環境相關的法令、條例、限制、協定及其他要求事項,環境負荷的降低和污染的防止努力。

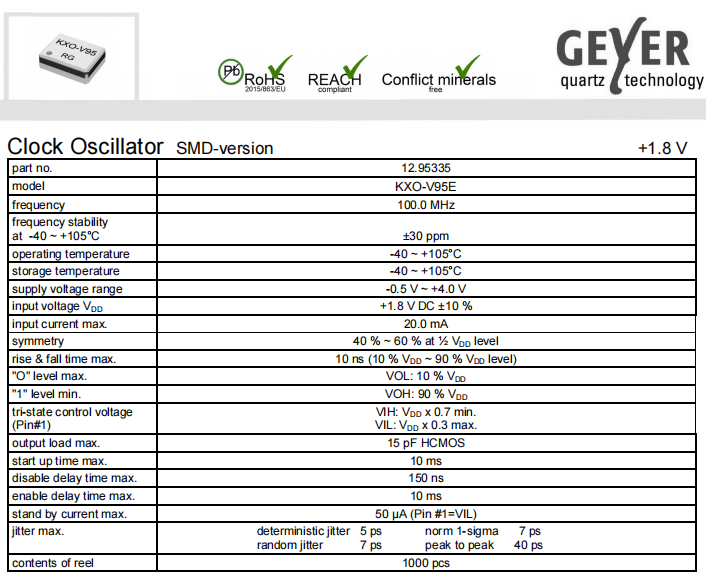

時鐘振蕩器,12.95335 KXO-V95E,GEYER晶體振蕩器,參數表
part no.
12.95335
model石英晶振
KXO-V95E
frequency
100.0 MHz
±30 ppm
operating temperature
-40 ~ +105°C
storage temperature
-40 ~ +105°C
supply voltage range
-0.5 V ~ +4.0 V
input voltage VDD
+1.8 V DC ± 10 %
input current max.
20.0 mA
symmetry
40 % ~ 60 % at ½ VDD level
rise & fall time max.
10 ns ( 10 % VDD ~ 90 % VDD level)
"O" level max.
VOL: 10 % VDD
"1" level min.
VOH: 90 % VDD
output load max.
15 pF HCMOS
start up time max.
10 ms
disable delay time max.
150 ns
enable delay time max.
10 ms
stand by current max.
50 pA (Pin #1=VIL)
jitter max.
contents of reel
1000 pcs

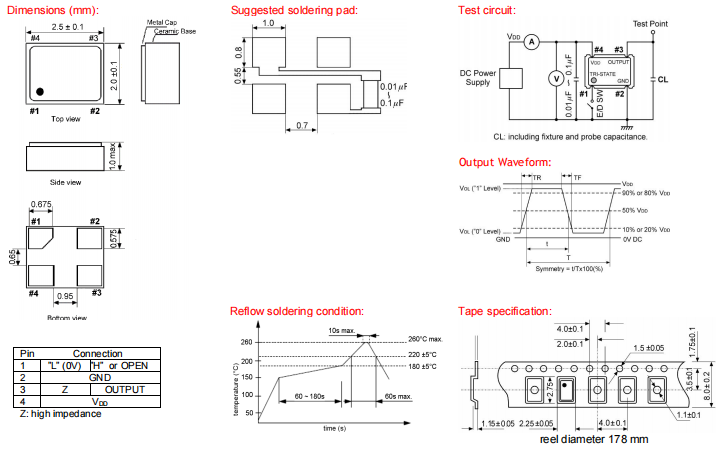

時鐘振蕩器,12.95335 KXO-V95E,GEYER晶體振蕩器,尺寸圖
編碼 | 晶振廠家 | 描述 | 型號 | 標準頻率 | 頻率容差 | 工作溫度 |
12.95582 | Geyer 晶振 | XTAL OSC XO 14.7456MHZ SMD | KXO-V95 | 14.7456 MHz | ±50ppm | -40°C ~ 85°C |
12.95549 | Geyer 晶振 | XTAL OSC XO 32.0000MHZ SMD | KXO-V95T | 32 MHz | ±50ppm | -40°C ~ 85°C |
12.95531 | Geyer 晶振 | XTAL OSC XO 3.6864MHZ SMD | KXO-V95T | 3.6864 MHz | ±50ppm | -40°C ~ 85°C |
12.90328 | Geyer 晶振 | XTAL OSC XO 16.0000MHZ CMOS SMD | KXO-V94T | 16 MHz | ±50ppm | -40°C ~ 85°C |
12.90321 | Geyer 晶振 | XTAL OSC XO 14.7456MHZ HCMOS SMD | KXO-V94 | 14.7456 MHz | ±50ppm | -40°C ~ 85°C |
12.95545 | Geyer 晶振 | XTAL OSC XO 20.0000MHZ SMD | KXO-V95T | 20 MHz | ±50ppm | -40°C ~ 85°C |
12.95103 | Geyer 晶振 | XTAL OSC XO 32.0000MHZ SMD | KXO-V96T | 32 MHz | ±50ppm | -40°C ~ 85°C |
12.9558 | Geyer 晶振 | XTAL OSC XO 3.579545MHZ SMD | KXO-V95 | 3.579545 MHz | ±50ppm | -20°C ~ 70°C |
12.95094 | Geyer 晶振 | XTAL OSC XO 14.31818MHZ SMD | KXO-V96T | 14.31818 MHz | ±50ppm | -40°C ~ 85°C |
12.95034 | Geyer 晶振 | XTAL OSC XO 20.0000MHZ SMD | KXO-V96T | 20 MHz | ±50ppm | -40°C ~ 85°C |
12.95542 | Geyer 晶振 | XTAL OSC XO 12.0000MHZ SMD | KXO-V95T | 12 MHz | ±50ppm | -40°C ~ 85°C |
12.94474 | Geyer 晶振 | XTAL OSC XO 27.0000MHZ SMD | KXO-V97T | 27 MHz | ±100ppm | -40°C ~ 85°C |
12.90343 | Geyer 晶振 | XTAL OSC XO 12.0000MHZ SMD | KXO-V94T | 12 MHz | ±50ppm | -40°C ~ 85°C |
12.90325 | Geyer 晶振 | XTAL OSC XO 3.6864MHZ HCMOS SMD | KXO-V94 | 3.6864 MHz | ±50ppm | -40°C ~ 85°C |
12.90311 | Geyer 晶振 | XTAL OSC XO 14.7456MHZ HCMOS SMD | KXO-V94 | 14.7456 MHz | ±100ppm | -40°C ~ 85°C |
12.95128 | Geyer 晶振 | XTAL OSC XO 27.0000MHZ SMD | KXO-V96E | 27 MHz | ±50ppm | -40°C ~ 85°C |
12.95102 | Geyer 晶振 | XTAL OSC XO 80.0000MHZ SMD | KXO-V96T | 80 MHz | ±50ppm | -40°C ~ 85°C |
12.90333 | Geyer 晶振 | XTAL OSC XO 40.0000MHZ SMD | KXO-V94T | 40 MHz | ±50ppm | -40°C ~ 85°C |
12.90337 | Geyer 晶振 | XTAL OSC XO 26.0000MHZ SMD | KXO-V94T | 26 MHz | ±50ppm | -40°C ~ 85°C |
12.94273 | Geyer 晶振 | XTAL OSC XO 32.0000MHZ SMD | KXO-V97T | 32 MHz | ±100ppm | -40°C ~ 85°C |
12.94365 | Geyer 晶振 | XTAL OSC XO 14.31818MHZ SMD | KXO-V97T | 14.31818 MHz | ±100ppm | -40°C ~ 85°C |
12.95546 | Geyer 晶振 | XTAL OSC XO 26.0000MHZ SMD | KXO-V95T | 26 MHz | ±50ppm | -40°C ~ 85°C |
12.92106 | Geyer 晶振 | XTAL OSC XO 65.0000MHZ SMD | KXO-V97T | 65 MHz | ±100ppm | -40°C ~ 85°C |
12.95571 | Geyer 晶振 | XTAL OSC XO 32.7680KHZ SMD | KXO-V95T | 32.768 kHz | ±30ppm | -40°C ~ 85°C |
12.90344 | Geyer 晶振 | XTAL OSC XO 4.0000MHZ SMD | KXO-V94T | 4 MHz | ±50ppm | -40°C ~ 85°C |
12.95538 | Geyer 晶振 | XTAL OSC XO 27.1200MHZ SMD | KXO-V95 | 27.12 MHz | ±50ppm | -20°C ~ 70°C |
12.94364 | Geyer 晶振 | XTAL OSC XO 48.0000MHZ SMD | KXO-V97T | 48 MHz | ±100ppm | -40°C ~ 85°C |
12.95568 | Geyer 晶振 | XTAL OSC XO 48.0000MHZ SMD | KXO-V95F | 48 MHz | ±50ppm | -40°C ~ 85°C |
12.90324 | Geyer 晶振 | XTAL OSC XO 27.0000MHZ HCMOS SMD | KXO-V94 | 27 MHz | ±50ppm | -40°C ~ 85°C |
12.94609 | Geyer 晶振 | XTAL OSC XO 1.0000MHZ SMD | KXO-V99 | 1 MHz | ±50ppm | -40°C ~ 85°C |
12.95101 | Geyer 晶振 | XTAL OSC XO 48.0000MHZ SMD | KXO-V96T | 48 MHz | ±50ppm | -40°C ~ 85°C |
12.92146 | Geyer 晶振 | XTAL OSC XO 22.1184MHZ SMD | KXO-V97T | 22.1184 MHz | ±100ppm | -40°C ~ 85°C |
12.90327 | Geyer 晶振 | XTAL OSC XO 48.0000MHZ HCMOS SMD | KXO-V94T | 48 MHz | ±50ppm | -40°C ~ 85°C |
12.95091 | Geyer 晶振 | XTAL OSC XO 10.0000MHZ SMD | KXO-V96T | 10 MHz | ±50ppm | -40°C ~ 85°C |
12.94449 | Geyer 晶振 | XTAL OSC XO 18.4320MHZ SMD | KXO-V97T | 18.432 MHz | ±100ppm | -40°C ~ 85°C |
12.94456 | 石英晶體振蕩器 | XTAL OSC XO 3.6864MHZ SMD | KXO-V97T | 3.6864 MHz | ±100ppm | -40°C ~ 85°C |
12.95551 | Geyer 晶振 | XTAL OSC XO 48.0000MHZ SMD | KXO-V95T | 48 MHz | ±50ppm | -40°C ~ 85°C |
12.90322 | Geyer 晶振 | XTAL OSC XO 20.0000MHZ CMOS SMD | KXO-V94T | 20 MHz | ±50ppm | -40°C ~ 85°C |
12.95524 | Geyer 晶振 | XTAL OSC XO 25.0000MHZ SMD | KXO-V95E | 25 MHz | ±100ppm | -40°C ~ 85°C |
12.9034 | Geyer 晶振 | XTAL OSC XO 32.7680KHZ SMD | KXO-V94T | 32.768 kHz | ±20ppm | -40°C ~ 85°C |
12.95543 | Geyer 晶振 | XTAL OSC XO 14.31818MHZ SMD | KXO-V95T | 14.31818 MHz | ±50ppm | -40°C ~ 85°C |
12.95104 | Geyer 晶振 | XTAL OSC XO 32.7680KHZ SMD | KXO-V96-18 | 32.768 kHz | ±50ppm | -20°C ~ 70°C |
12.94422 | Geyer 晶振 | XTAL OSC XO 11.0592MHZ SMD | KXO-V97T | 11.0592 MHz | ±100ppm | -40°C ~ 85°C |
12.95548 | Geyer 晶振 | XTAL OSC XO 4.0000MHZ SMD | KXO-V95T | 4 MHz | ±50ppm | -40°C ~ 85°C |
12.90307 | Geyer 晶振 | XTAL OSC XO 1.8432MHZ HCMOS SMD | KXO-V94 | 1.8432 MHz | ±50ppm | -40°C ~ 85°C |
