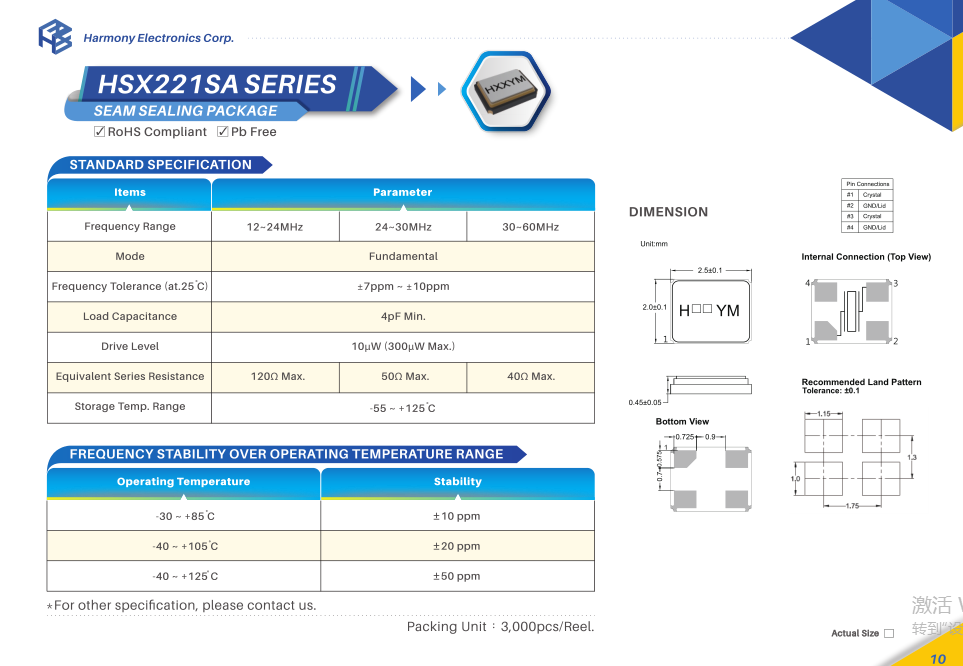

HSX221SA貼片無源晶振,X2B040000BC1H-DHZ進口晶振
頻率:40 MHz

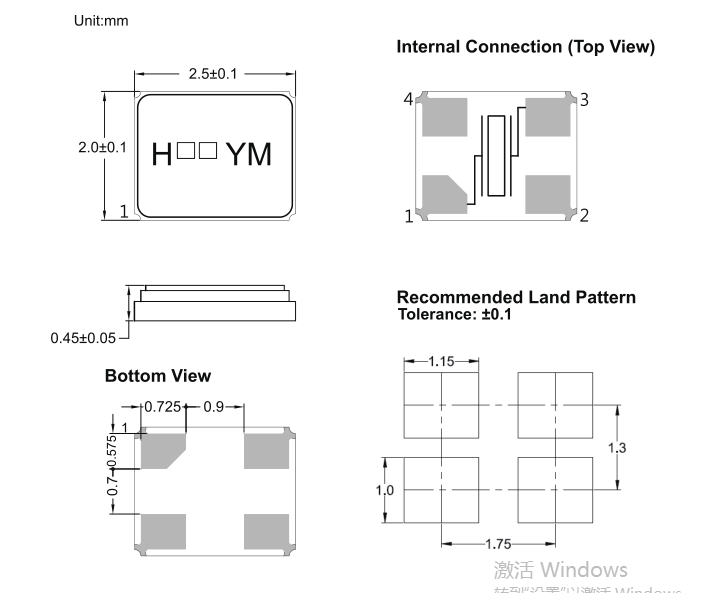

尺寸:2.5mm*2.0mm
HSX221SA貼片無源晶振,X2B040000BC1H-DHZ進口晶振,編碼:X2B040000BC1H-DHZ,型號:HSX221SA,工作溫度:-30°C ~ 85°C,尺寸:2.5mm*2.0mm,頻率:40MHz,精度:±10ppm,負載電容:12pF,進口石英晶振,貼片無源晶振,晶體諧振器,石英晶體晶振,SMD晶體,石英晶振,無源晶振,HELE貼片晶體,小體積2520貼片晶振,具有輕薄小的特點,被廣泛應用于智能手機,智能家居家電,無線電話,網絡設備,工業設備,醫療設備等用途。
HSX221SA貼片無源晶振,X2B040000BC1H-DHZ進口晶振 ,參數表
編碼 |
X2B040000BC1H-DHZ |
品牌 | HELE |
型號 | HSX221SA |
頻率 | 40MHz |
精度 |
±10ppm |
負載電容 |
12pF |
工作溫度 |
-30°C ~ 85°C |
尺寸 | 2.5mm*2.0mm |
Mfr Part # | 晶體諧振器 | Series | Frequency | Frequency Tolerance | Load Capacitance | Operating Temperature |
X3S027000BA1H-U | Harmony Electronics Corp / H.ELE. | HSX321S | 27 MHz | ±10ppm | 10pF | -30°C ~ 85°C |
X3S024000B91H-HS | Harmony Electronics Corp / H.ELE. | HSX321S | 24 MHz | ±10ppm | 9pF | - |
X3S027120BA1H-X | Harmony Electronics Corp / H.ELE. | HSX321S | 27.12 MHz | ±10ppm | 10pF | -40°C ~ 105°C |
X3S032000BC1HA-CHPZ | Harmony Electronics Corp / H.ELE. | HSX321S | 32 MHz | ±10ppm | 12pF | -30°C ~ 85°C |
X3S016000DI1H-HW | Harmony Electronics Corp / H.ELE. | HSX321S | 16 MHz | ±20ppm | 18pF | -40°C ~ 105°C |
X3S012000FI1H-HV | Harmony Electronics Corp / H.ELE. | HSX321S | 12 MHz | ±30ppm | 18pF | -40°C ~ 125°C |
X3S025000D81H-HU | Harmony Electronics Corp / H.ELE. | HSX321S | 25 MHz | ±20ppm | 8pF | -40°C ~ 105°C |
X3S026000B91H-NZ | Harmony Electronics Corp / H.ELE. | HSX321S | 26 MHz | ±10ppm | 9pF | -30°C ~ 85°C |
X2B026000M81H-HS | Harmony Electronics Corp / H.ELE. | HSX221SA | 26 MHz | ±7ppm | 8pF | - |
X2B016000BA1H-U | Harmony Electronics Corp / H.ELE. | HSX221SA | 16 MHz | ±10ppm | 10pF | -30°C ~ 85°C |
X2B012000BC1H-U | Harmony Electronics Corp / H.ELE. | HSX221SA | 12 MHz | ±10ppm | 12pF | -40°C ~ 105°C |
X2B040000BC1H-DHZ | Harmony Electronics Corp / H.ELE. | HSX221SA | 40 MHz | ±10ppm | 12pF | -30°C ~ 85°C |
X2C025000DZ1H-U | Harmony Electronics Corp / H.ELE. | HSX211S | 25 MHz | ±20ppm | 6pF | -40°C ~ 105°C |
X2C032000BA1H-HZ | Harmony Electronics Corp / H.ELE. | HSX211S | 32 MHz | ±10ppm | 10pF | - |
X2C024000DZ1H-HU | Harmony Electronics Corp / H.ELE. | HSX211S | 24 MHz | ±20ppm | 6pF | -40°C ~ 105°C |
X2C016000B81H-R | Harmony Electronics Corp / H.ELE. | HSX211S | 16 MHz | ±10ppm | 8pF | -30°C ~ 85°C |
X2C026000BC1H-Z | Harmony Electronics Corp / H.ELE. | HSX211S | 26 MHz | ±10ppm | 12pF | -30°C ~ 85°C |
X1C032000B81H-HR | Harmony Electronics Corp / H.ELE. | HSX111S | 32 MHz | ±10ppm | 8pF | - |
X1C024000B81H-HV | Harmony Electronics Corp / H.ELE. | HSX111S | 24 MHz | ±10ppm | 8pF | - |
X2C048000L71HH-CEHZ | Harmony Electronics Corp / H.ELE. | HSX211S | 48 MHz | ±8ppm | 11.1pF | - |
X2R026000BZ1HAZ-DHPZ | Harmony Electronics Corp / H.ELE. | HSX221SR | 26 MHz | ±10ppm | 7pF | -30°C ~ 105°C |
X1R038400B81HA-CEHPZ | Harmony Electronics Corp / H.ELE. | HSX111SR | 38.4 MHz | - | 8pF | - |
X2U026000B81HBZ-DHPZ | Harmony Electronics Corp / H.ELE. | HSX211SR | 26 MHz | ±10ppm | 8pF | -40°C ~ 105°C |
X2R026000B91HZ-DEHPZ | Harmony Electronics Corp / H.ELE. | HSX221SR | 26 MHz | ±10ppm | 9pF | -30°C ~ 85°C |
X2R019200BZ1H-CHZ | Harmony Electronics Corp / H.ELE. | HSX221SR | 19.2 MHz | ±10ppm | 7pF | -30°C ~ 85°C |
X2U019200BZ1H-CEHQZ | Harmony Electronics Corp / H.ELE. | HSX211SR | 19.2 MHz | ±10ppm | 7pF | -40°C ~ 105°C |
X2U038400B81H-EPQZ | Harmony Electronics Corp / H.ELE. | HSX211SR | 38.4 MHz | ±10ppm | 8pF | -30°C ~ 85°C |
X1R052000B81HZ-DEHPZ | Harmony Electronics Corp / H.ELE. | HSX111SR | 52 MHz | - | 8pF | -40°C ~ 105°C |
X12A040000BZ1H-HZ | Harmony Electronics Corp / H.ELE. | HSX1210A | 40 MHz | ±12ppm | 6pF | -20°C ~ 85°C |
