405C35B16M00000,CTS晶振,5032貼片晶振

產品簡介

405C35B16M00000,CTS晶振,5032貼片晶振，編碼：405C35B16M00000，型號：405系列晶振，工作溫度：-20°C ~ 70°C，尺寸：5.0*3.2mm，頻率：16MHz，負載電容：13pF，精度：±30ppm，貼片石英晶體，CTS貼片晶振，美國進口晶振，標準5.0毫米x 3.2mm毫米縫焊組件基本晶體設計頻率范圍6.76438–54 MHz 頻率容差，30ppm標準頻率穩定性，30ppm標準工作溫度為-40℃至+85℃ 溫度和驅動電平下的穩定頻率膠帶和卷軸包裝標準，EIA-481，405型是一種低成本石英諧振器，廣泛應用于商業領域包括WLAN/WiMax/WiFi、A/V、藍牙、ZigBee和USB接口、筆記本電腦、計算機外圍設備和便攜式設備。

產品詳情

405C35B16M00000,CTS晶振,5032貼片晶振，參數表

PARAMETER

VALUE

Frequency Range

6.76438MHz to 54MHz

Operating Mode

Fundamental

Crystal Cut

AT-Cut

Frequency Tolerance @ +25°C

±30ppm, Standard

Frequency Stability Tolerance
[Operating Temperature Range, Referenced to +25°C Reading]

±30ppm, Standard

Operating Temperature Ranges

-20°C to +70°C

-30°C to +85°C

-40°C to +85°C

Equivalent Series Resistance[Maximum]

6.76438MHz - <11MHz

80 Ohms

11MHz - <15MHz

60 Ohms

15MHz - <35MHz

50 Ohms

35MHz - 54MHz

40 Ohms

Load Capacitance

See Ordering Information

Shunt Capacitance[C0]

5.0pF Typical, 7.0pF Maximum

Drive Level

10µW Typ., 200µW Max.

Aging @ +25°C

±3ppm/yr Typical

Insulation Resistance

500M Ohms @ DC 100V

Storage Temperature Range

-40°C to +100°C

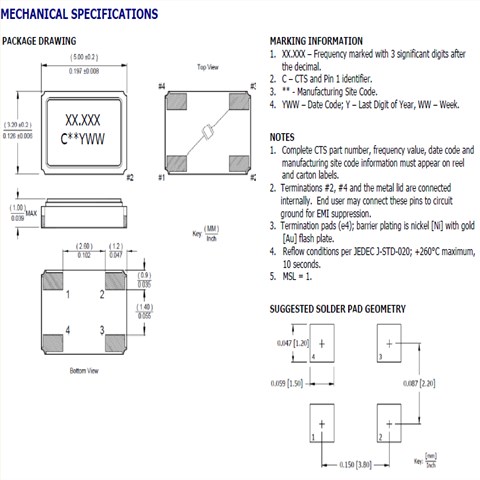

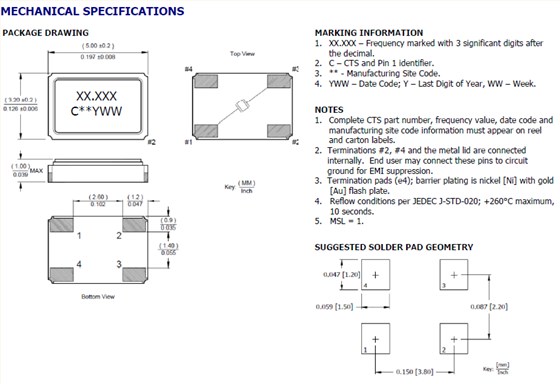

405C35B16M00000,CTS晶振,5032貼片晶振，尺寸圖

Manufacturer Part Number原廠編碼	晶振廠家	Series型號	Frequency	Frequency Stability頻率穩定度	Frequency Tolerance頻率偏差	Load Capacitance負載電容	ESR (Equivalent Series Resistance)電阻	Operating Temperature工作溫度
405C35B16M00000	CTS-Frequency Controls	405	16MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
405C35B16M00000	CTS-Frequency Controls	405	16MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
405C35B16M00000	CTS-Frequency Controls	405	16MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
405I35D12M00000	CTS-Frequency Controls	405	12MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
405I35D12M00000	CTS-Frequency Controls	405	12MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
405I35D12M00000	CTS-Frequency Controls	405	12MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
405C35B25M00000	CTS-Frequency Controls	405	25MHz	±50ppm	±30ppm	13pF	50 Ohm	-20°C ~ 70°C
405C35B25M00000	CTS-Frequency Controls	405	25MHz	±50ppm	±30ppm	13pF	50 Ohm	-20°C ~ 70°C
405C35B25M00000	CTS-Frequency Controls	405	25MHz	±50ppm	±30ppm	13pF	50 Ohm	-20°C ~ 70°C
405I35D25M00000	CTS-Frequency Controls	405	25MHz	±50ppm	±30ppm	18pF	50 Ohm	-40°C ~ 85°C
405I35D25M00000	CTS-Frequency Controls	405	25MHz	±50ppm	±30ppm	18pF	50 Ohm	-40°C ~ 85°C
405I35D25M00000	CTS-Frequency Controls	405	25MHz	±50ppm	±30ppm	18pF	50 Ohm	-40°C ~ 85°C
405C35D12M00000	CTS-Frequency Controls	405	12MHz	±50ppm	±30ppm	18pF	80 Ohm	-20°C ~ 70°C
405C35D12M00000	CTS-Frequency Controls	405	12MHz	±50ppm	±30ppm	18pF	80 Ohm	-20°C ~ 70°C
405C35D12M00000	CTS-Frequency Controls	405	12MHz	±50ppm	±30ppm	18pF	80 Ohm	-20°C ~ 70°C
405C35B12M00000	CTS-Frequency Controls	405	12MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
405C35B12M00000	CTS-Frequency Controls	405	12MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
405C35B12M00000	CTS-Frequency Controls	405	12MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
405C35B24M00000	CTS-Frequency Controls	405	24MHz	±50ppm	±30ppm	13pF	50 Ohm	-20°C ~ 70°C
405C35B24M00000	CTS-Frequency Controls	405	24MHz	±50ppm	±30ppm	13pF	50 Ohm	-20°C ~ 70°C
405C35B24M00000	CTS-Frequency Controls	405	24MHz	±50ppm	±30ppm	13pF	50 Ohm	-20°C ~ 70°C
405C35D27M00000	CTS-Frequency Controls	405	27MHz	±50ppm	±30ppm	18pF	50 Ohm	-20°C ~ 70°C
405C35D27M00000	CTS-Frequency Controls	405	27MHz	±50ppm	±30ppm	18pF	50 Ohm	-20°C ~ 70°C
405C35D27M00000	CTS-Frequency Controls	405	27MHz	±50ppm	±30ppm	18pF	50 Ohm	-20°C ~ 70°C
405C35B16M36800	CTS-Frequency Controls	405	16.368MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
