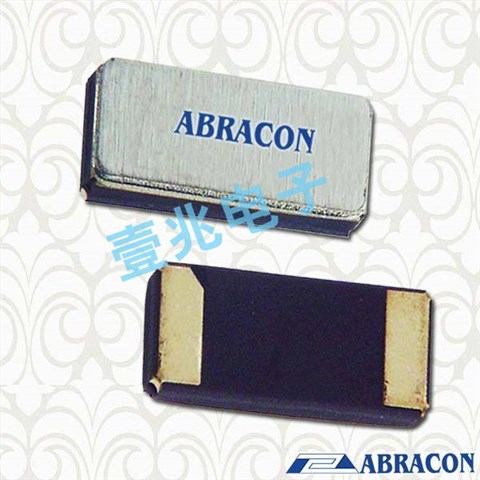

ABS07W美國進口晶振,ABS07W-32.768KHZ-K-1-T,3215貼片晶體

產品簡介

ABS07W美國進口晶振,ABS07W-32.768KHZ-K-1-T,3215貼片晶體,，編碼為：ABS07W-32.768KHZ-K-1-T，型號：ABS07W系列晶振，公差:±10ppm，工作溫度：-40°C ~ 125°C，尺寸：3.2mmx1.5mm，頻率：32.768kHz，負載電容：3pF，無源晶振，3215晶體，3.0pF的極低電鍍負載，非常適合可穿戴設備，無線和物聯網應用同時針對長期工作環境下的ESR進行了優化溫度范圍小3.2x1.5x0.9 mm SMD封裝，非常適合空間受限的設計提供10 ppm設定容差接縫密封包裝具有長期可靠性。

產品詳情

ABS07W美國進口晶振,ABS07W-32.768KHZ-K-1-T,3215貼片晶體，編碼為：ABS07W-32.768KHZ-K-1-T，型號：ABS07W系列晶振，公差:±10ppm，工作溫度：-40°C ~ 125°C，尺寸：3.2mmx1.5mm，頻率：32.768kHz，負載電容：3pF，無源晶振，3215晶體，3.0pF的極低電鍍負載，非常適合可穿戴設備，無線和物聯網應用同時針對長期工作環境下的ESR進行了優化溫度范圍小3.2x1.5x0.9 mm SMD封裝，非常適合空間受限的設計提供10 ppm設定容差接縫密封包裝具有長期可靠性。

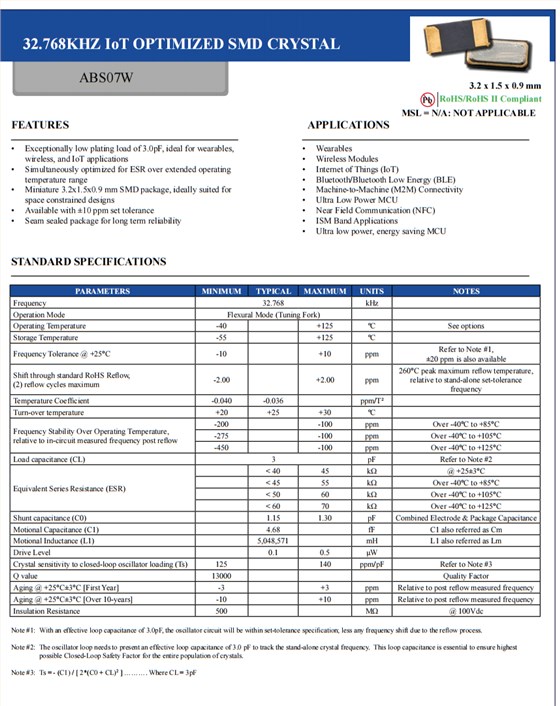

ABS07W美國進口晶振,ABS07W-32.768KHZ-K-1-T,3215貼片晶體，參數表

原廠編碼	ABS07W-32.768KHZ-K-1-T
品牌	Abracon晶振
型號	ABS07W
頻率	32.768kHz
頻率偏差	±10ppm
負載電容	3pF
工作溫度-	-40°C ~ 125°C

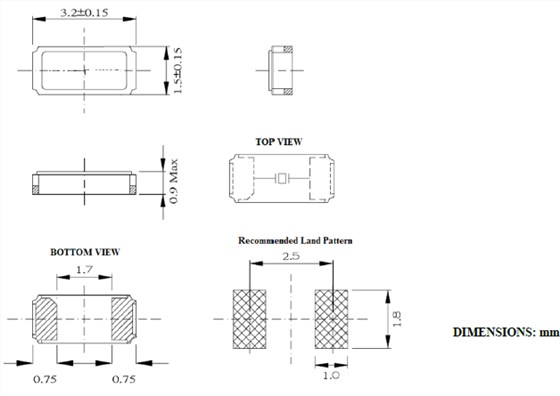

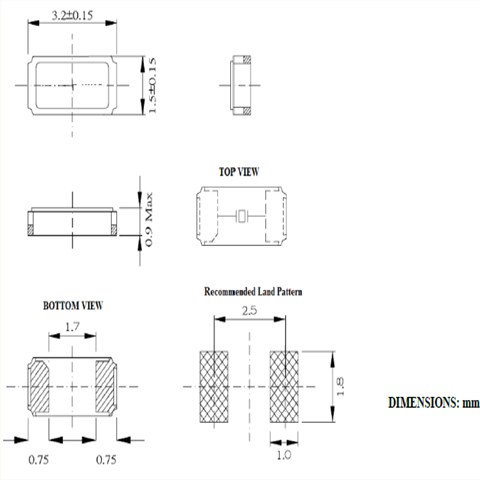

ABS07W美國進口晶振,ABS07W-32.768KHZ-K-1-T,3215貼片晶體，尺寸圖

Manufacturer Part Number 原廠編碼	壹兆晶振廠家	Series型號	Frequency頻率	Frequency Tolerance頻率偏差	Load Capacitance負載電容	Operating Temperature 工作溫度
ABS10-32.768KHZ-T	Abracon 晶振	ABS10	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
ABS10-32.768KHZ-T	Abracon 晶振	ABS10	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
ABS10-32.768KHZ-T	Abracon 晶振	ABS10	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
ABS10-32.768KHZ-7-T	Abracon 晶振	ABS10	32.768kHz	±20ppm	7pF	-40°C ~ 85°C
ABS10-32.768KHZ-7-T	Abracon 晶振	ABS10	32.768kHz	±20ppm	7pF	-40°C ~ 85°C
ABS10-32.768KHZ-7-T	Abracon 晶振	ABS10	32.768kHz	±20ppm	7pF	-40°C ~ 85°C
ABS10-32.768KHZ-9-T	Abracon 晶振	ABS10	32.768kHz	±20ppm	9pF	-40°C ~ 85°C
ABS10-32.768KHZ-9-T	Abracon 晶振	ABS10	32.768kHz	±20ppm	9pF	-40°C ~ 85°C
ABS10-32.768KHZ-9-T	Abracon 晶振	ABS10	32.768kHz	±20ppm	9pF	-40°C ~ 85°C
ABS09-32.768KHZ-9-T	Abracon 晶振	ABS09	32.768kHz	±20ppm	9pF	-40°C ~ 85°C
ABS09-32.768KHZ-9-T	Abracon 晶振	ABS09	32.768kHz	±20ppm	9pF	-40°C ~ 85°C
ABS09-32.768KHZ-9-T	貼片晶振	ABS09	32.768kHz	±20ppm	9pF	-40°C ~ 85°C
ABS09-32.768KHZ-T	Abracon 晶振	ABS09	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
ABS09-32.768KHZ-T	Abracon 晶振	ABS09	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
ABS09-32.768KHZ-T	Abracon 晶振	ABS09	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
ABS10-32.768KHZ-1-T	Abracon 晶振	ABS10	32.768kHz	±10ppm	12.5pF	-40°C ~ 85°C
ABS10-32.768KHZ-1-T	Abracon 晶振	ABS10	32.768kHz	±10ppm	12.5pF	-40°C ~ 85°C
ABS10-32.768KHZ-1-T	Abracon 晶振	ABS10	32.768kHz	±10ppm	12.5pF	-40°C ~ 85°C
ABS09-32.768KHZ-7-T	Abracon 晶振	ABS09	32.768kHz	±20ppm	7pF	-40°C ~ 85°C
ABS09-32.768KHZ-7-T	Abracon 晶振	ABS09	32.768kHz	±20ppm	7pF	-40°C ~ 85°C
ABS09-32.768KHZ-7-T	Abracon 晶振	ABS09	32.768kHz	±20ppm	7pF	-40°C ~ 85°C
ABS09-32.768KHZ-1-T	Abracon 晶振	ABS09	32.768kHz	±10ppm	12.5pF	-40°C ~ 85°C
ABS09-32.768KHZ-1-T	Abracon 晶振	ABS09	32.768kHz	±10ppm	12.5pF	-40°C ~ 85°C
ABS09-32.768KHZ-1-T	Abracon 晶振	ABS09	32.768kHz	±10ppm	12.5pF	-40°C ~ 85°C
ABS10-32.768KHZ-4-T	Abracon 晶振	ABS10	32.768kHz	±30ppm	12.5pF	-40°C ~ 85°C
ABS09-32.768KHZ-4-T	Abracon 晶振	ABS09	32.768kHz	±30ppm	12.5pF	-40°C ~ 85°C
ABS07W-32.768KHZ-D-1-T	Abracon 晶振	ABS07W	32.768kHz	±10ppm	3pF	-40°C ~ 85°C
ABS07W-32.768KHZ-D-2-T	Abracon 晶振	ABS07W	32.768kHz	±20ppm	3pF	-40°C ~ 85°C
ABS07W-32.768KHZ-J-2-T	Abracon 晶振	ABS07W	32.768kHz	±20ppm	3pF	-40°C ~ 105°C
ABS07W-32.768KHZ-J-1-T	Abracon 晶振	ABS07W	32.768kHz	±10ppm	3pF	-40°C ~ 105°C
ABS07W-32.768KHZ-K-2-T	Abracon 晶振	ABS07W	32.768kHz	±20ppm	3pF	-40°C ~ 125°C
ABS07W-32.768KHZ-K-1-T	Abracon 晶振	ABS07W	32.768kHz	±10ppm	3pF	-40°C ~ 125°C
