5x7貼片晶體,H13-8.000-18-3030-EXT-TR,拉隆晶體諧振器

產品簡介

5x7貼片晶體,H13-8.000-18-3030-EXT-TR,拉隆晶體諧振器 ，編碼：H13-8.000-18-3030-EXT-TR，型號：H13，工作溫度：-40°C ~ 85°C，尺寸：7.0mm*5.0mm，頻率：8MHz，精度：±30ppm，負載電容：18pF，美國進口晶振，石英晶體諧振器，拉隆OSC晶振 ，貼片石英晶體，石英晶振，貼片晶振，具有重量輕，精度偏差小，性能高特點，產品廣泛應用于智能手機，計算機，平板電腦，手機導航，智能家具家電，無線局域網等用途。

產品詳情

5x7貼片晶體,H13-8.000-18-3030-EXT-TR,拉隆晶體諧振器，編碼：H13-8.000-18-3030-EXT-TR，型號：H13，工作溫度：-40°C ~ 85°C，尺寸：7.0mm*5.0mm，頻率：8MHz，精度：±30ppm，負載電容：18pF，美國進口晶振，石英晶體諧振器，拉隆OSC晶振 ，貼片石英晶體，石英晶振，貼片晶振，具有重量輕，精度偏差小，性能高特點，產品廣泛應用于智能手機，計算機，平板電腦，手機導航，智能家具家電，無線局域網等用途。

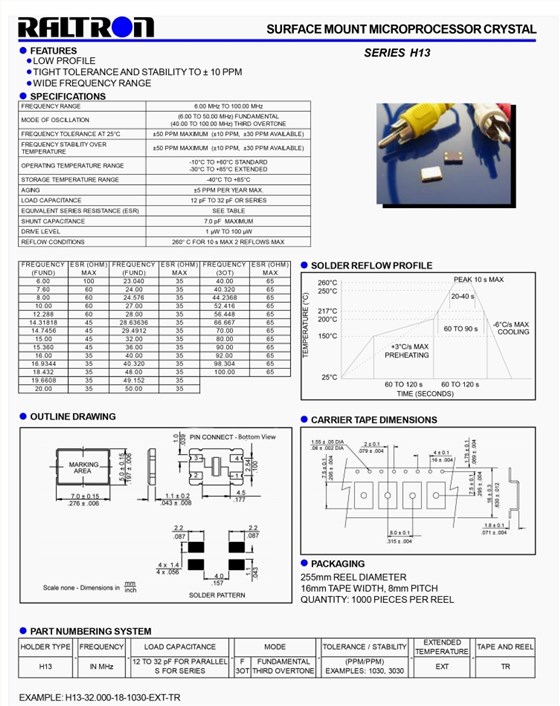

5x7貼片晶體,H13-8.000-18-3030-EXT-TR,拉隆晶體諧振器，參數表

編碼	H13-8.000-18-3030-EXT-TR
品牌	Raltron
型號	H13
頻率	8MHz
精度	±30ppm
負載電容	18pF
工作溫度	-40°C ~ 85°C
尺寸	7.0mm*5.0mm

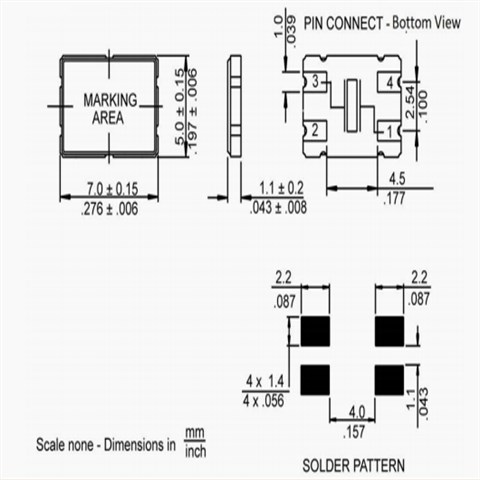

5x7貼片晶體,H13-8.000-18-3030-EXT-TR,拉隆晶體諧振器，尺寸圖

Mfr Part #	貼片石英晶體	Series	Frequency	Frequency Tolerance	Load Capacitance	Operating Temperature
H130B-8.000-18-3030-EXT-TR	Raltron Electronics	H130B	8 MHz	±30ppm	18pF	-40°C ~ 85°C
H130B-16.000-18-3030-EXT-TR	Raltron Electronics	H130B	16 MHz	±30ppm	18pF	-40°C ~ 85°C
H130B-12.000-18-3030-TR	Raltron Electronics	H130B	12 MHz	±30ppm	18pF	-20°C ~ 70°C
H130B-24.000-18-3030-EXT-TR	Raltron Electronics	H130B	24 MHz	±30ppm	18pF	-40°C ~ 85°C
H130A-8.000-8-2030-TR	Raltron Electronics	H130A	8 MHz	±20ppm	8pF	-20°C ~ 70°C
H13-8.000-18-3030-EXT-TR	Raltron Electronics	H13	8 MHz	±30ppm	18pF	-40°C ~ 85°C
H130B-25.000-12-F-EXT-TR	Raltron Electronics	H130B	25 MHz	±50ppm	12pF	-40°C ~ 85°C
H130B-25.000-20-F-3030-TR	Raltron Electronics	H130B	25 MHz	±30ppm	20pF	-20°C ~ 70°C
H130B-18.432-18-EXT-TR	Raltron Electronics	H130B	18.432 MHz	±50ppm	18pF	-40°C ~ 85°C
H130A-24.000-18-2030-EXT-TR	Raltron Electronics	H130A	24 MHz	±20ppm	18pF	-40°C ~ 85°C
H130B-50.000-16-F-1010-TR	Raltron Electronics	H130B	50 MHz	±10ppm	16pF	-10°C ~ 60°C
H13-6.000-16-5050-EXT-TR	Raltron Electronics	H13	6 MHz	±50ppm	16pF	-30°C ~ 85°C
H130B-12.000-16-2525-EXT-TR	Raltron Electronics	H130B	12 MHz	±25ppm	16pF	-40°C ~ 85°C
H130B-24.576-22-F-EXT-TR	Raltron Electronics	H130B	24.576 MHz	±50ppm	22pF	-40°C ~ 85°C
H130A-25.000-18-F-2030-EXT-TR	Raltron Electronics	H130A	25 MHz	±20ppm	18pF	-40°C ~ 85°C
H130A-24.000-8-2030-TR-NS1	Raltron Electronics	H130A	24 MHz	±20ppm	8pF	-20°C ~ 70°C
H130B-25.000-10-F-1010-EXT-TR	Raltron Electronics	H130B	25 MHz	±10ppm	10pF	-40°C ~ 85°C
H130A-12.000-8-TR	Raltron Electronics	H130A	12 MHz	±50ppm	8pF	-20°C ~ 70°C
H130A-12.000-18-2030-EXT-TR	Raltron Electronics	H130A	12 MHz	±20ppm	18pF	-40°C ~ 85°C
H130B-25.000-18-F-1030-EXT-TR	Raltron Electronics	H130B	25 MHz	±10ppm	18pF	-40°C ~ 85°C
H13-6.000-18-3030-EXT-TR	Raltron Electronics	H13	6 MHz	±30ppm	18pF	-40°C ~ 85°C
H13-24.000-18-1020-EXT-TR	Raltron Electronics	H13	24 MHz	±10ppm	18pF	-30°C ~ 85°C
H130B-12.000-12-3030-EXT-TR	Raltron Electronics	H130B	12 MHz	±30ppm	12pF	-40°C ~ 85°C
H130B-27.000-20-F-TR	Raltron Electronics	H130B	27 MHz	±50ppm	20pF	-20°C ~ 70°C
H130B-12.288-12-EXT-TR	Raltron Electronics	H130B	12.288 MHz	±50ppm	12pF	-40°C ~ 85°C
H130B-40.000-18-F-1015-EXT-TR	Raltron Electronics	H130B	40 MHz	±10ppm	18pF	-40°C ~ 85°C
H130B-20.000-20-2050-EXT-TR	Raltron Electronics	H130B	20 MHz	±20ppm	20pF	-40°C ~ 85°C
H130B-11.0592-22-3030-EXT-TR	Raltron Electronics	H130B	11.0592 MHz	±30ppm	22pF	-40°C ~ 85°C
H130B-20.000-12-3030-TR	Raltron Electronics	H130B	20 MHz	±30ppm	12pF	-20°C ~ 70°C
H130A-25.000-18-F-3030-TR	Raltron Electronics	H130A	25 MHz	±30ppm	18pF	-20°C ~ 70°C
H13-25.000-20-F-2030-TR-NS1	Raltron Electronics	H13	25 MHz	±20ppm	20pF	-10°C ~ 60°C
H130A-8.000-18-2030-EXT-TR	Raltron Electronics	H130A	8 MHz	±20ppm	18pF	-40°C ~ 85°C
H130B-16.000-18-2020-TR	Raltron Electronics	H130B	16 MHz	±20ppm	18pF	-20°C ~ 70°C
