CCPD-034-50-200.000,7050差分石英晶體,Crystek進口晶振

產品簡介

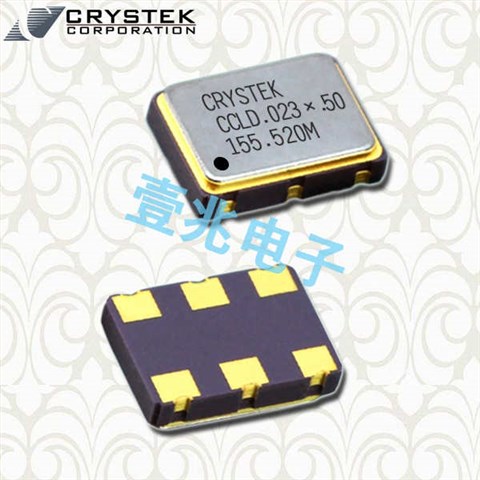

CCPD-034-50-200.000,7050差分石英晶體,Crystek進口晶振，編碼：CCPD-034-50-200.000，型號：CCPD-034，工作溫度：0°C ~ 70°C，尺寸：7.0mm*5.0mm，頻率：200MHz，精度：±50ppm，電壓：3.3V，電流：88mA，輸出方式：LVPECL，Crystek石英貼片晶體，差分輸出振蕩器，石英晶體振蕩器，5x7貼片晶體，美國進口晶振，工作電壓為3.3V的時鐘振蕩器，振蕩器采用高Q晶體設計，提供極低的抖動和相位噪聲，中不存在次諧波輸出信號，應用于平板電腦，數碼電子產品，網絡設備，測試和測量設備，工業設備，醫療設備，無線通信，無線基站等應用。

產品詳情

CCPD-034-50-200.000,7050差分石英晶體,Crystek進口晶振，參數表

編碼	CCPD-034-50-200.000
品牌	Crystek
型號	CCPD-034
頻率	200MHz
精度	±50ppm
電壓	3.3V
電流	88mA
輸出方式	LVPECL
工作溫度	0°C ~ 70°C
尺寸	7.0mm*5.0mm

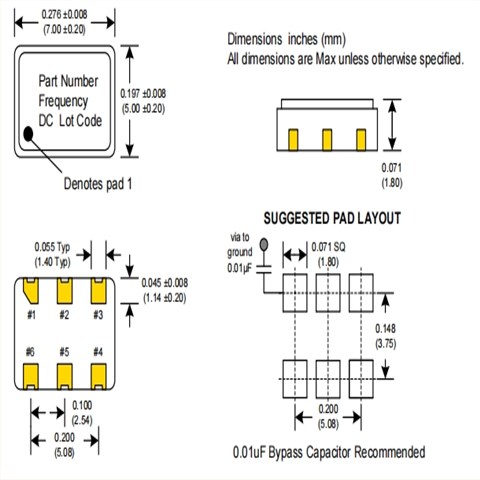

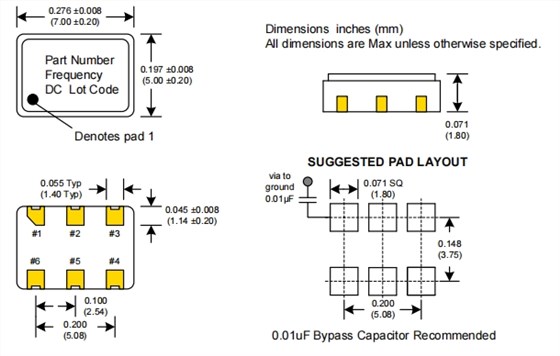

CCPD-034-50-200.000,7050差分石英晶體,Crystek進口晶振，尺寸圖

Mfr Part #	石英晶體振蕩器	Series	Type	Frequency	Output	Voltage - Supply
CCPD-034-50-200.000	Crystek Corporation	CCPD-034	XO (Standard)	200 MHz	LVPECL	3.3V
CCPD-575X-20-100.000	Crystek Corporation	CCPD-575	XO (Standard)	100 MHz	LVPECL	3.3V
CCPD-575X-20-125.000	Crystek Corporation	CCPD-575	XO (Standard)	125 MHz	LVPECL	3.3V
CCPD-575X-50-100.000	Crystek Corporation	CCPD-575	XO (Standard)	100 MHz	LVPECL	3.3V
CCPD-575X-20-80.000	Crystek Corporation	CCPD-575	XO (Standard)	80 MHz	LVPECL	3.3V
CCPD-034X-50-200.000	Crystek Corporation	CCPD-034	XO (Standard)	200 MHz	LVPECL	3.3V
CCPD-034-50-250.000	Crystek Corporation	CCPD-034	XO (Standard)	250 MHz	LVPECL	3.3V
CCPD-034M-50-245.760	Crystek Corporation	CCPD-034	XO (Standard)	245.76 MHz	LVPECL	3.3V
CCPD-034M-50-250	Crystek Corporation	CCPD-034	XO (Standard)	250 MHz	LVPECL	3.3V
CCPD-034X-50-250.000	Crystek Corporation	CCPD-034	XO (Standard)	250 MHz	LVPECL	3.3V
CCPD-575X-50-122.880	Crystek Corporation	CCPD-575	XO (Standard)	122.88 MHz	LVPECL	3.3V
CCPD-034-50-212.500	Crystek Corporation	CCPD-034	XO (Standard)	212.5 MHz	LVPECL	3.3V
CCPD-034-50-311.040	Crystek Corporation	CCPD-034	XO (Standard)	311.04 MHz	LVPECL	3.3V
CCPD-034-50-312.500	Crystek Corporation	CCPD-034	XO (Standard)	312.5 MHz	LVPECL	3.3V
CCPD-034-400.000	Crystek Corporation	CCPD-034	XO (Standard)	400 MHz	LVPECL	3.3V
CCPD-034M-50-212.500	Crystek Corporation	CCPD-034	XO (Standard)	212.5 MHz	LVPECL	3.3V
CCPD-034M-50-311.040	Crystek Corporation	CCPD-034	XO (Standard)	311.04 MHz	LVPECL	3.3V
CCPD-034X-50-212.500	Crystek Corporation	CCPD-034	XO (Standard)	212.5 MHz	LVPECL	3.3V
CCPD-034X-50-311.040	Crystek Corporation	CCPD-034	XO (Standard)	311.04 MHz	LVPECL	3.3V
CCPD-912X-25-100	Crystek Corporation	CCPD-912	XO (Standard)	100 MHz	LVPECL	3.3V
CCPD-912X-25-106.25	Crystek Corporation	CCPD-912	XO (Standard)	106.25 MHz	LVPECL	3.3V
CCPD-912X-25-125	Crystek Corporation	CCPD-912	XO (Standard)	125 MHz	LVPECL	3.3V
CCPD-912X-25-155.52	Crystek Corporation	CCPD-912	XO (Standard)	155.52 MHz	LVPECL	3.3V
CCPD-912X-25-156.25	Crystek Corporation	CCPD-912	XO (Standard)	156.25 MHz	LVPECL	3.3V
CCPD-912X-25-161.1328	Crystek Corporation	CCPD-912	XO (Standard)	161.1328 MHz	LVPECL	3.3V
CCPD-912X-25-77.76	Crystek Corporation	CCPD-912	XO (Standard)	77.76 MHz	LVPECL	3.3V
