7050六腳差分晶體,CCLD-033-50-100.000,Crystek晶振

產品簡介

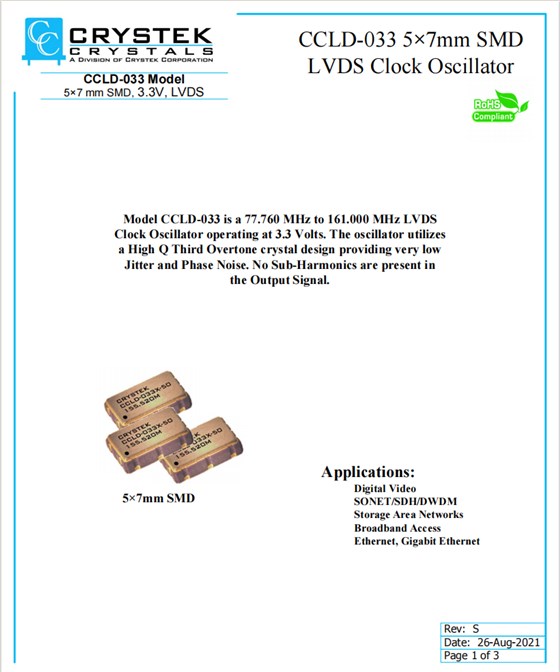

7050六腳差分晶體,CCLD-033-50-100.000,Crystek晶振，編碼：CCLD-033-50-100.000，型號：CCLD，工作溫度：0°C ~ 70°C，尺寸：7.0mm*5.0mm，頻率：100MHz，精度：±50ppm，電壓：3.3V，電流：66mA，輸出方式：LVDS，差分輸出振蕩器，有源晶振SPXO，時鐘晶體振蕩器，石英晶體振蕩器，有源7050貼片晶振，CCLD-033型號是一款77.760mhz至161.000mhz的LVDS，工作電壓為3.3伏的時鐘振蕩器，振蕩器利用了高Q第三泛音晶體設計提供非常低的抖動和相位噪聲，不存在次諧波輸出信號，產品廣泛應用于數字視頻，SONET/SDH/DWDM，存儲區域網絡，寬帶接入，以太網，千兆以太網。

產品詳情

7050六腳差分晶體,CCLD-033-50-100.000,Crystek晶振，參數表

編碼	CCLD-033-50-100.000
品牌	Crystek
型號	CCLD
頻率	100MHz
精度	±50ppm
電壓	3.3V
電流	66mA
輸出方式	LVDS
工作溫度	0°C ~ 70°C
尺寸	7.0mm*5.0mm

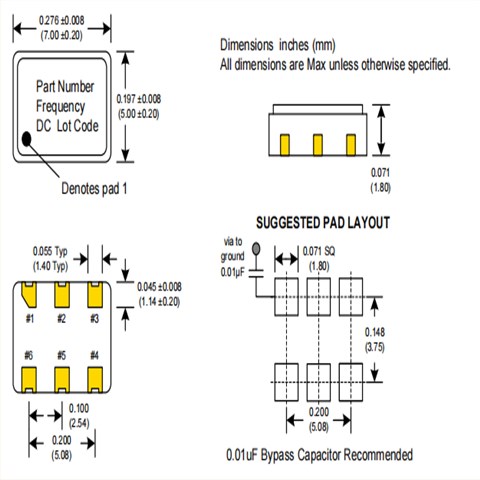

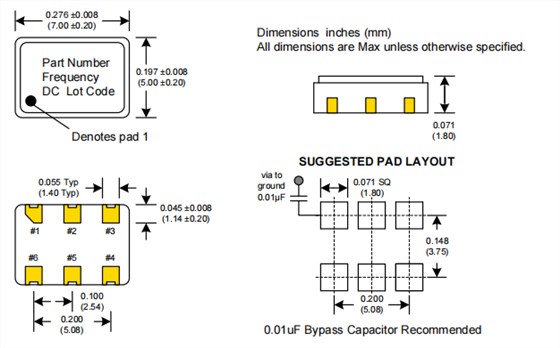

7050六腳差分晶體,CCLD-033-50-100.000,Crystek晶振，尺寸圖

Mfr Part #	有源7050貼片晶振	Series	Type	Frequency	Output	Voltage - Supply
CCLD-033-50-100.000	Crystek Corporation	CCLD	XO (Standard)	100 MHz	LVDS	3.3V
CCLD-033-50-125.000	Crystek Corporation	CCLD	XO (Standard)	125 MHz	LVDS	3.3V
CCLD-033-50-156.250	Crystek Corporation	CCLD	XO (Standard)	156.25 MHz	LVDS	3.3V
CCPD-034-50-200.000	Crystek Corporation	CCPD-034	XO (Standard)	200 MHz	LVPECL	3.3V
CCPD-033-50-156.250	Crystek Corporation	CCPD-033	XO (Standard)	156.25 MHz	LVPECL	3.3V
CCPD-033-50-161.1328	Crystek Corporation	CCPD-033	XO (Standard)	161.1328 MHz	LVPECL	3.3V
CCPD-033-50-100.000	Crystek Corporation	CCPD-033	XO (Standard)	100 MHz	LVPECL	3.3V
CCPD-033-50-106.250	Crystek Corporation	CCPD-033	XO (Standard)	106.25 MHz	LVPECL	3.3V
CCPD-033-50-77.760	Crystek Corporation	CCPD-033	XO (Standard)	77.76 MHz	LVPECL	3.3V
CCO-083-100.000	Crystek Corporation	CCO	XO (Standard)	100 MHz	Sine Wave	3.3V
CCPD-033X-50-77.760	Crystek Corporation	CCPD-033	XO (Standard)	77.76 MHz	LVPECL	3.3V
CCPD-033X-25-77.76	Crystek Corporation	CCPD-033	XO (Standard)	77.76 MHz	LVPECL	3.3V
CCPD-033X-50-100.00	Crystek Corporation	CCPD-033	XO (Standard)	100 MHz	LVPECL	3.3V
CCPD-033X-25-100	Crystek Corporation	CCPD-033	XO (Standard)	100 MHz	LVPECL	3.3V
CCPD-033X-50-106.250	Crystek Corporation	CCPD-033	XO (Standard)	106.25 MHz	LVPECL	3.3V
CCPD-033X-50-125.000	Crystek Corporation	CCPD-033	XO (Standard)	125 MHz	LVPECL	3.3V
CCLD-033-50-133.000	Crystek Corporation	CCLD	XO (Standard)	133 MHz	LVDS	3.3V
CCPD-033X-25-106.25	Crystek Corporation	CCPD-033	XO (Standard)	106.25 MHz	LVPECL	3.3V
CCPD-033X-25-125	Crystek Corporation	CCPD-033	XO (Standard)	125 MHz	LVPECL	3.3V
CCPD-033-50-155.520	Crystek Corporation	CCPD-033	XO (Standard)	155.52 MHz	LVPECL	3.3V
CCPD-033M-50-156.250	Crystek Corporation	CCPD-033	XO (Standard)	156.25 MHz	LVPECL	3.3V
CCPD-033X-50-155.520	Crystek Corporation	CCPD-033	XO (Standard)	155.52 MHz	LVPECL	3.3V
CCPD-033X-50-156.250	Crystek Corporation	CCPD-033	XO (Standard)	156.25 MHz	LVPECL	3.3V
CCPD-033X-25-155.520	Crystek Corporation	CCPD-033	XO (Standard)	155.52 MHz	LVPECL	3.3V
CCPD-033X-25-156.25	Crystek Corporation	CCPD-033	XO (Standard)	156.25 MHz	LVPECL	3.3V
CCPD-033-50-125.000	Crystek Corporation	CCPD-033	XO (Standard)	125 MHz	LVPECL	3.3V
CCPD-033X-50-161.1328	Crystek Corporation	CCPD-033	XO (Standard)	161.1328 MHz	LVPECL	3.3V
CCPD-033X-25-161.1328	Crystek Corporation	CCPD-033	XO (Standard)	161.1328 MHz	LVPECL	3.3V
CCPD-034X-50-200.000	Crystek Corporation	CCPD-034	XO (Standard)	200 MHz	LVPECL	3.3V
CCPD-034-50-250.000	Crystek Corporation	CCPD-034	XO (Standard)	250 MHz	LVPECL	3.3V
CCPD-034M-50-245.760	Crystek Corporation	CCPD-034	XO (Standard)	245.76 MHz	LVPECL	3.3V
