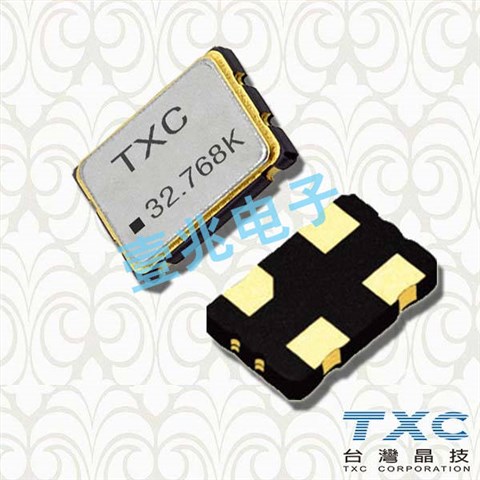

32.768K有源晶振,7WZ-32.768KBD-T晶體振蕩器

產品簡介

32.768K有源晶振,7WZ-32.768KBD-T晶體振蕩器，編碼：7WZ-32.768KBD-T，型號：7WZ，工作溫度：-40°C ~ 85°C，尺寸：7.0mm*5.0mm，頻率：32.768 kHz，精度：±25ppm，電壓：2.5V，電流：3mA，臺灣進口晶振，有源晶振，時鐘晶體振蕩器，XO振蕩器，帶電壓32.768K晶振，進口石英晶體振蕩器，有源7050貼片晶振，頻率范圍： 32.768 kHz，SMD接縫密封陶瓷封裝，電源電壓： 1.8V ~ 3.3V，CMOS輸出，符合RoHS標準& Pb免費，產品廣泛應用于時鐘鐘表，音頻，視頻，游戲機，服務器，路由器，安全設備，軍事設備，數碼電子產品。

產品詳情

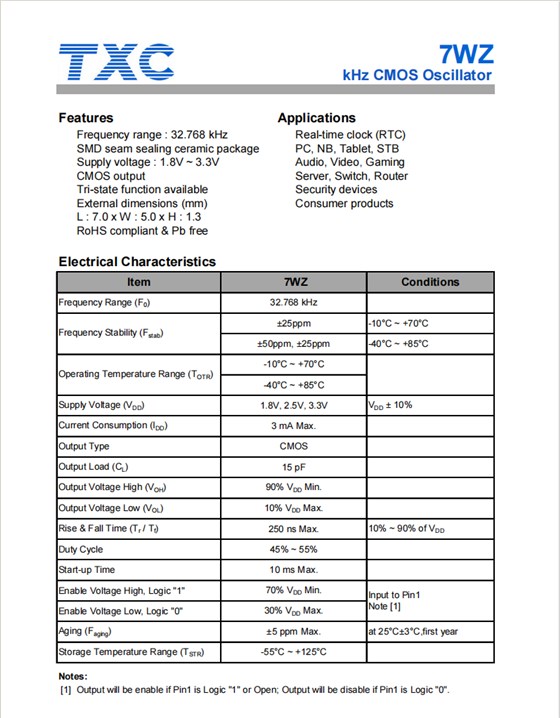

32.768K有源晶振,7WZ-32.768KBD-T晶體振蕩器，參數表

編碼	7WZ-32.768KBD-T
品牌	TXC
型號	7WZ
頻率	32.768 kHz
精度	±25ppm
電壓	2.5V
電流	3mA
工作溫度	-40°C ~ 85°C
尺寸	7.0mm*5.0mm

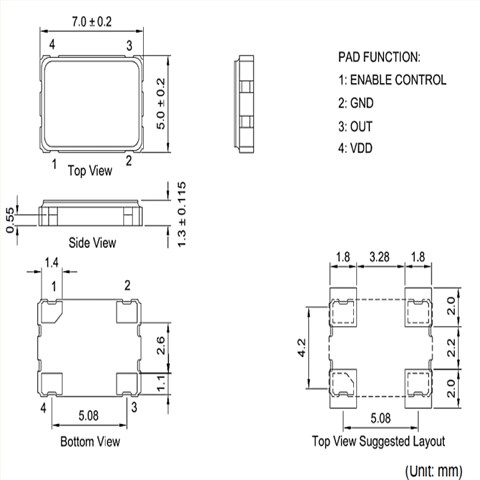

32.768K有源晶振,7WZ-32.768KBD-T晶體振蕩器，尺寸圖

Mfr Part #	臺產晶振	Series	Type	Frequency	Output	Voltage - Supply	Frequency Stability	Operating Temperature
7X-50.000MBE-T	TXC CORPORATION	7X	XO (Standard)	50 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
7X-19.200MBA-T	TXC CORPORATION	7X	XO (Standard)	19.2 MHz	CMOS	3.3V	±25ppm	-10°C ~ 70°C
7X-26.000MBA-T	TXC CORPORATION	7X	XO (Standard)	26 MHz	CMOS	3.3V	±25ppm	-10°C ~ 70°C
7X-26.000MBB-T	TXC CORPORATION	7X	XO (Standard)	26 MHz	CMOS	3.3V	±50ppm	-10°C ~ 70°C
7X-48.000MBB-T	TXC CORPORATION	7X	XO (Standard)	48 MHz	CMOS	3.3V	±50ppm	-10°C ~ 70°C
7X-25.000MBE-T	TXC CORPORATION	7X	XO (Standard)	25 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
7X-38.400MBE-T	TXC CORPORATION	7X	XO (Standard)	38.4 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
7X-30.000MBE-T	TXC CORPORATION	7X	XO (Standard)	30 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
7X-26.000MBE-T	TXC CORPORATION	7X	XO (Standard)	26 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
7X-30.000MBB-T	TXC CORPORATION	7X	XO (Standard)	30 MHz	CMOS	3.3V	±50ppm	-10°C ~ 70°C
7X-38.400MBA-T	TXC CORPORATION	7X	XO (Standard)	38.4 MHz	CMOS	3.3V	±25ppm	-10°C ~ 70°C
7X-50.000MBB-T	TXC CORPORATION	7X	XO (Standard)	50 MHz	CMOS	3.3V	±50ppm	-10°C ~ 70°C
7X-48.000MBE-T	TXC CORPORATION	7X	XO (Standard)	48 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
7X-24.576MBB-T	TXC CORPORATION	7X	XO (Standard)	24.576 MHz	CMOS	3.3V	±50ppm	-10°C ~ 70°C
7X-12.000MBA-T	TXC CORPORATION	7X	XO (Standard)	12 MHz	CMOS	3.3V	±25ppm	-10°C ~ 70°C
7X-19.200MBB-T	TXC CORPORATION	7X	XO (Standard)	19.2 MHz	CMOS	3.3V	±50ppm	-10°C ~ 70°C
7X-48.000MBA-T	TXC CORPORATION	7X	XO (Standard)	48 MHz	CMOS	3.3V	±25ppm	-10°C ~ 70°C
7X-25.000MBA-T	TXC CORPORATION	7X	XO (Standard)	25 MHz	CMOS	3.3V	±25ppm	-10°C ~ 70°C
7XL-1.8432MDD-T	TXC CORPORATION	7XL	XO (Standard)	1.8432 MHz	CMOS	1.8V	±25ppm	-40°C ~ 85°C
7XL-4.000MDD-T	TXC CORPORATION	7XL	XO (Standard)	4 MHz	CMOS	1.8V	±25ppm	-40°C ~ 85°C
7XL-10.000MBD-T	TXC CORPORATION	7XL	XO (Standard)	10 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
7XL-25.000MBD-T	TXC CORPORATION	7XL	XO (Standard)	25 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
7XL-30.000MDD-T	TXC CORPORATION	7XL	XO (Standard)	30 MHz	CMOS	1.8V	±25ppm	-40°C ~ 85°C
7XL-8.192MDD-T	TXC CORPORATION	7XL	XO (Standard)	8.192 MHz	CMOS	1.8V	±25ppm	-40°C ~ 85°C
7XL-20.000MBD-T	TXC CORPORATION	7XL	XO (Standard)	20 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
7XL-8.192MBD-T	TXC CORPORATION	7XL	XO (Standard)	8.192 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
7XL-16.000MBD-T	TXC CORPORATION	7XL	XO (Standard)	16 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
7XL-125.000MDD-T	TXC CORPORATION	7XL	XO (Standard)	125 MHz	CMOS	1.8V	±25ppm	-40°C ~ 85°C
7XL-27.000MDD-T	TXC CORPORATION	7XL	XO (Standard)	27 MHz	CMOS	1.8V	±25ppm	-40°C ~ 85°C
7XL-10.000MDD-T	TXC CORPORATION	7XL	XO (Standard)	10 MHz	CMOS	1.8V	±25ppm	-40°C ~ 85°C
7XL-125.000MBD-T	TXC CORPORATION	7XL	XO (Standard)	125 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
7XL-7.3728MDD-T	TXC CORPORATION	7XL	XO (Standard)	7.3728 MHz	CMOS	1.8V	±25ppm	-40°C ~ 85°C
7XL-48.000MBD-T	TXC CORPORATION	7XL	XO (Standard)	48 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
7XL-20.000MDD-T	TXC CORPORATION	7XL	XO (Standard)	20 MHz	CMOS	1.8V	±25ppm	-40°C ~ 85°C
7XL-100.000MBD-T	TXC CORPORATION	7XL	XO (Standard)	100 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
