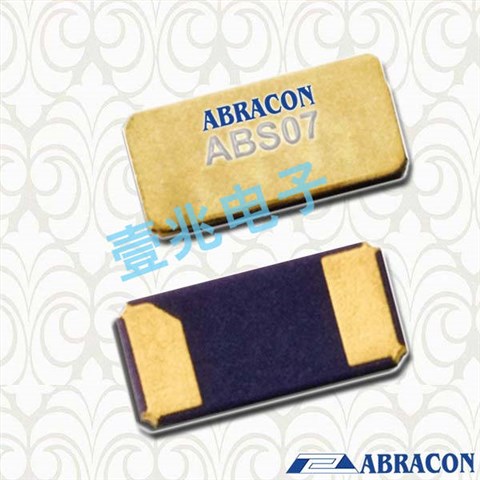

ABS07-32.768KHZ-6-4-T,ABS07石英晶振,3215晶振

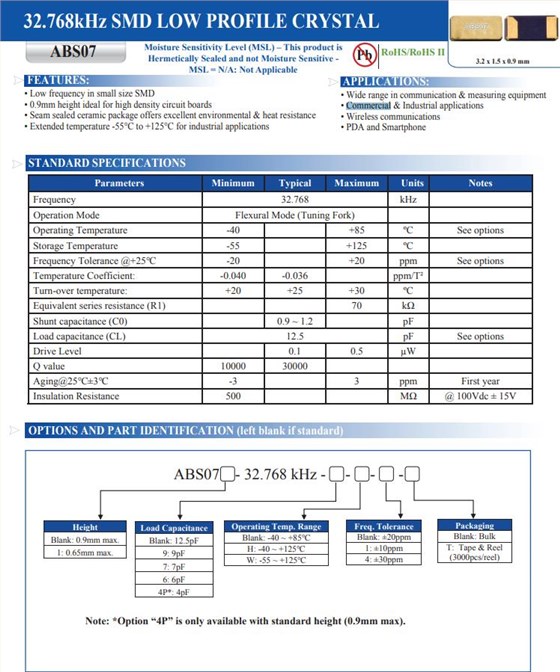

Parameters
Minimum
Typical
Maximum
Units
Notes
Frequency
32.768
kHz
Operation Mode
Flexural Mode (Tuning Fork)
Operating Temperature
-40
+85
ºC
See options
Storage Temperature
-55
+125
ºC
Frequency Tolerance @+25°C
-20
+20
ppm
See options
Temperature Coefficient:
-0.040
-0.036
ppm/T²
Turn-over temperature:
+20
+25
+30
ºC
Equivalent series resistance (R1)
70
kΩ
Shunt capacitance (C0)
0.9 ~ 1.2
pF
Load capacitance (CL)
12.5
pF
See options
Drive Level
0. 1
0.5
µW
Q value
10000
30000
Aging@25°C±3°C
-3
3
ppm
First year
Insulation Resistance
500
MΩ
@ 100Vdc ± 15V
Mfr Part # | 晶振廠家 | Series | Frequency |
ABS07AIG-32.768KHZ-9-T | Abracon LLC | ABS07AIG | 32.768 kHz |
ABS07AIG-32.768KHZ-7-T | Abracon LLC | ABS07AIG | 32.768 kHz |
ABS07AIG-32.768KHZ-9-D-T | Abracon LLC | ABS07AIG | 32.768 kHz |
ABS07AIG-32.768KHZ-6-D-T | Abracon LLC | ABS07AIG | 32.768 kHz |
ABS07AIG-32.768KHZ-6-T | Abracon LLC | ABS07AIG | 32.768 kHz |
ABS07AIG-32.768KHZ-T | Abracon LLC | ABS07AIG | 32.768 kHz |
ABS07-32.768KHZ-6-4-T | Abracon LLC | ABS07 | 32.768 kHz |
ABS07-32.768KHZ-4-T | Abracon LLC | ABS07 | 32.768 kHz |
ABS07-32.768KHZ-9-H-T | Abracon LLC | ABS07 | 32.768 kHz |
ABS07-LR-32.768KHZ-6-T | Abracon LLC | ABS07-LR | 32.768 kHz |
ABS07AIG-32.768KHZ-9-1-T | Abracon LLC | ABS07AIG | 32.768 kHz |
ABS07AIG-32.768KHZ-D-T | Abracon LLC | ABS07AIG | 32.768 kHz |
ABS07-LR-32.768KHZ-6-1-T | Abracon LLC | ABS07-LR | 32.768 kHz |
ABS07-32.768KHZ-9-4-T | Abracon LLC | ABS07 | 32.768 kHz |
ABS07AIG-32.768KHZ-1-T | Abracon LLC | ABS07AIG | 32.768 kHz |
ABS07-32.768KHZ-9-T | Abracon LLC | ABS07 | 32.768 kHz |
ABS07-120-32.768KHZ-T | Abracon LLC | ABS07 | 32.768 kHz |
ABS07-32.768KHZ-7-T | Abracon LLC | ABS07 | 32.768 kHz |
ABS07-32.768KHZ-6-T | Abracon LLC | ABS07 | 32.768 kHz |
ABS07-166-32.768KHZ-T | Abracon LLC | ABS07 | 32.768 kHz |
ABS07-32.768KHZ-T | Abracon LLC | ABS07 | 32.768 kHz |
