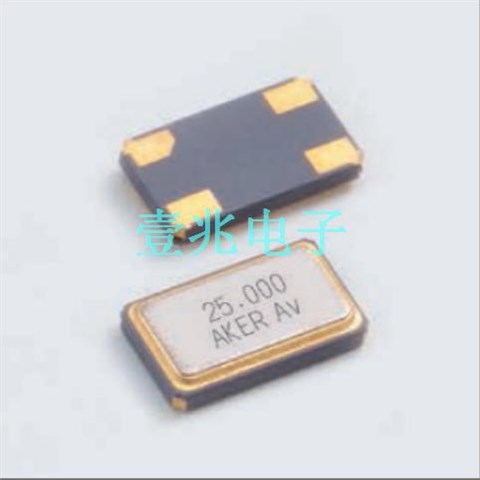

石英AKER晶體,C6S-16.000-12-5050-X-R,6035晶振

產品簡介

石英AKER晶體,C6S-16.000-12-5050-X-R,6035晶振，編碼：C6S-16.000-12-5050-X-R，型號：C6S，工作溫度：-40°C ~ 85°C，尺寸：6.0mm*3.5mm，頻率：16MHz，精度：±50ppm，負載電容：12pF，無源貼片晶振，石英晶振，SMD晶體，貼片石英晶體，進口6035貼片晶振，晶體諧振器，AKER石英晶體，具有體積小，重量輕，精度偏差小特點，產品廣泛應用于數碼電子產品，無線電話，智能手機，無線局域網等用途。

產品詳情

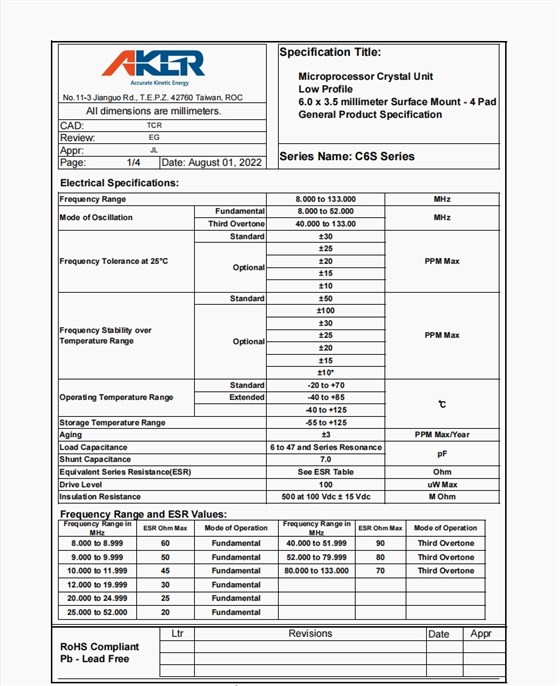

石英AKER晶體,C6S-16.000-12-5050-X-R,6035晶振，參數表

編碼	C6S-16.000-12-5050-X-R
品牌	AKER
型號	C6S
頻率	16MHz
精度	±50ppm
負載電容	12pF
工作溫度	-40°C ~ 85°C
尺寸	6.0mm*3.5mm

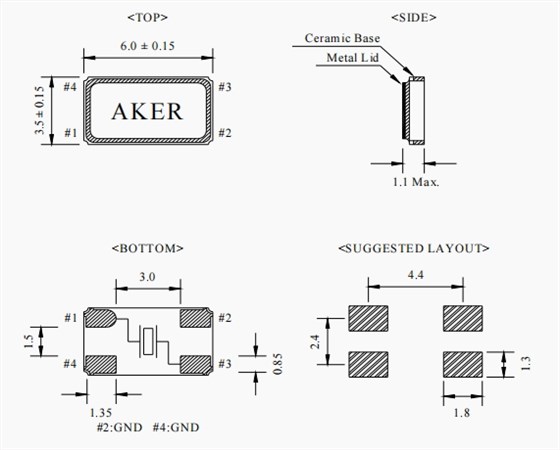

石英AKER晶體,C6S-16.000-12-5050-X-R,6035晶振，尺寸圖

Mfr Part #	貼片石英晶體	Series	Frequency	Frequency Tolerance	Load Capacitance	Operating Temperature
C3E-16.000-18-3030-X-R	Aker Technology Corp	C3E	16 MHz	±30ppm	18pF	-40°C ~ 85°C
C3E-20.000-12-3030-X-R	Aker Technology Corp	C3E	20 MHz	±30ppm	12pF	-40°C ~ 85°C
C3E-16.000-12-3030-R	Aker Technology Corp	C3E	16 MHz	±30ppm	12pF	-20°C ~ 70°C
C3E-25.000-18-3030-R	Aker Technology Corp	C3E	25 MHz	±30ppm	18pF	-20°C ~ 70°C
C3E-12.000-18-3030-R	Aker Technology Corp	C3E	12 MHz	±30ppm	18pF	-20°C ~ 70°C
C3E-25.000-18-2030-R	Aker Technology Corp	C3E	25 MHz	±20ppm	18pF	-40°C ~ 85°C
C3E-12.000-8-3030-R	Aker Technology Corp	C3E	12 MHz	±30ppm	8pF	-20°C ~ 70°C
C3E-25.000-8-1010-R	Aker Technology Corp	C3E	25 MHz	±10ppm	8pF	-10°C ~ 70°C
C3E-25.000-8-1520-R	Aker Technology Corp	C3E	25 MHz	±15ppm	8pF	-20°C ~ 70°C
C3E-16.000-12-3030-X-R	Aker Technology Corp	C3E	16 MHz	±30ppm	12pF	-40°C ~ 85°C
C3E-32.000-10-1010-R	Aker Technology Corp	C3E	32 MHz	±10ppm	10pF	-10°C ~ 70°C
C3E-12.000-8-1520-R	Aker Technology Corp	C3E	12 MHz	±15ppm	8pF	-20°C ~ 70°C
C3E-32.000-12-1010-R	Aker Technology Corp	C3E	32 MHz	±10ppm	12pF	-10°C ~ 70°C
C3E-25.000-8-1015-R	Aker Technology Corp	C3E	25 MHz	±10ppm	8pF	-20°C ~ 70°C
C3E-12.000-18-3030-X-R	Aker Technology Corp	C3E	12 MHz	±30ppm	18pF	-40°C ~ 85°C
C3E-25.000-12-3030-X-R	Aker Technology Corp	C3E	25 MHz	±30ppm	12pF	-40°C ~ 85°C
C3E-25.000-10-3030-X-R	Aker Technology Corp	C3E	25 MHz	±30ppm	10pF	-40°C ~ 85°C
C3E-24.000-8-1015-R	Aker Technology Corp	C3E	24 MHz	±10ppm	8pF	-20°C ~ 70°C
C3E-24.000-10-1010-R	Aker Technology Corp	C3E	24 MHz	±10ppm	10pF	-10°C ~ 70°C
C3E-32.000-12-1530-X-R	Aker Technology Corp	C3E	32 MHz	±15ppm	12pF	-40°C ~ 85°C
C3E-12.000-8-1010-R	Aker Technology Corp	C3E	12 MHz	±10ppm	8pF	-10°C ~ 70°C
C3E-16.000-8-1015-R	Aker Technology Corp	C3E	16 MHz	±10ppm	8pF	-20°C ~ 70°C
C3E-32.000-10-1015-R	Aker Technology Corp	C3E	32 MHz	±10ppm	10pF	-20°C ~ 70°C
C3E-24.000-12-1530-X-R	Aker Technology Corp	C3E	24 MHz	±15ppm	12pF	-40°C ~ 85°C
C3E-24.000-12-3030-X-R	Aker Technology Corp	C3E	24 MHz	±30ppm	12pF	-40°C ~ 85°C
C3E-24.000-18-1010-R	Aker Technology Corp	C3E	24 MHz	±10ppm	18pF	-10°C ~ 70°C
C3E-20.000-10-1530-X-R	Aker Technology Corp	C3E	20 MHz	±15ppm	10pF	-40°C ~ 85°C
C3E-25.000-8-1530-X-R	Aker Technology Corp	C3E	25 MHz	±15ppm	8pF	-40°C ~ 85°C
C3E-24.000-12-1015-X-R	Aker Technology Corp	C3E	24 MHz	±10ppm	12pF	-40°C ~ 85°C
C3E-24.000-10-1015-X-R	Aker Technology Corp	C3E	24 MHz	±10ppm	10pF	-40°C ~ 85°C
