X2R026000BZ1HAZ-DHPZ,HSX221SR晶振,加高石英晶振

產品簡介

X2R026000BZ1HAZ-DHPZ,HSX221SR晶振,加高石英晶振，編碼：X2R026000BZ1HAZ-DHPZ，型號：HSX221SR，工作溫度：-30°C ~ 105°C，尺寸：2.5mm*2.0mm，頻率：26MHz，精度：±10ppm，負載電容：7pF，加高晶振，石英晶體諧振器，無源貼片晶振，進口晶振，石英晶體晶振，小體積2520貼片晶振，石英晶體諧振器是一個通用的規格尺寸,采用正常的接縫密封可靠的方法。晶振產品從低頻率1.8MHz的頻帶,在極寬的頻率范圍內,適用于高頻率的基頻和泛音。無論的各種無線通信設備和控制設備,如移動通信的應用中,工業和消費,以及大眾數碼產品,顯示適用于所有的應用程序的特性和性能。

產品詳情

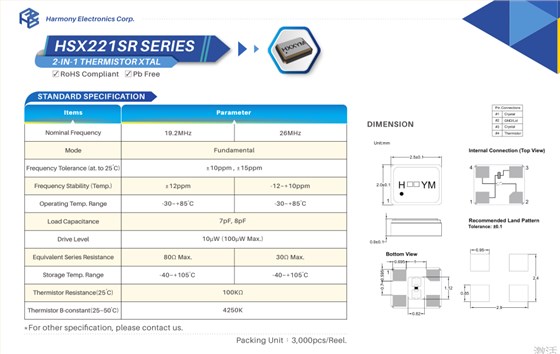

X2R026000BZ1HAZ-DHPZ,HSX221SR晶振,加高石英晶振，參數表

編碼	X2R026000BZ1HAZ-DHPZ
品牌	HELE
型號	HSX321SR
頻率	26MHz
精度	±10ppm
負載電容	7pF
工作溫度	-30°C ~ 105°C
尺寸	2.5mm*2.0mm

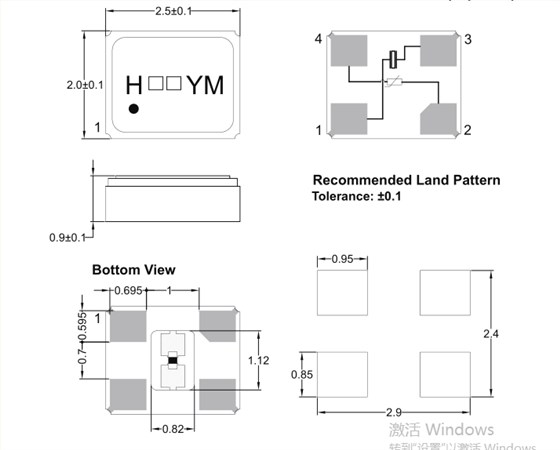

X2R026000BZ1HAZ-DHPZ,HSX221SR晶振,加高石英晶振，尺寸圖

Mfr Part #	貼片石英晶體	Series	Frequency	Frequency Tolerance	Load Capacitance	Operating Temperature
X3S027000BA1H-U	Harmony Electronics Corp / H.ELE.	HSX321S	27 MHz	±10ppm	10pF	-30°C ~ 85°C
X3S024000B91H-HS	Harmony Electronics Corp / H.ELE.	HSX321S	24 MHz	±10ppm	9pF	-
X3S027120BA1H-X	Harmony Electronics Corp / H.ELE.	HSX321S	27.12 MHz	±10ppm	10pF	-40°C ~ 105°C
X3S032000BC1HA-CHPZ	Harmony Electronics Corp / H.ELE.	HSX321S	32 MHz	±10ppm	12pF	-30°C ~ 85°C
X3S016000DI1H-HW	Harmony Electronics Corp / H.ELE.	HSX321S	16 MHz	±20ppm	18pF	-40°C ~ 105°C
X3S012000FI1H-HV	Harmony Electronics Corp / H.ELE.	HSX321S	12 MHz	±30ppm	18pF	-40°C ~ 125°C
X3S025000D81H-HU	Harmony Electronics Corp / H.ELE.	HSX321S	25 MHz	±20ppm	8pF	-40°C ~ 105°C
X3S026000B91H-NZ	Harmony Electronics Corp / H.ELE.	HSX321S	26 MHz	±10ppm	9pF	-30°C ~ 85°C
X2B026000M81H-HS	Harmony Electronics Corp / H.ELE.	HSX221SA	26 MHz	±7ppm	8pF	-
X2B016000BA1H-U	Harmony Electronics Corp / H.ELE.	HSX221SA	16 MHz	±10ppm	10pF	-30°C ~ 85°C
X2B012000BC1H-U	Harmony Electronics Corp / H.ELE.	HSX221SA	12 MHz	±10ppm	12pF	-40°C ~ 105°C
X2B040000BC1H-DHZ	Harmony Electronics Corp / H.ELE.	HSX221SA	40 MHz	±10ppm	12pF	-30°C ~ 85°C
X2C025000DZ1H-U	Harmony Electronics Corp / H.ELE.	HSX211S	25 MHz	±20ppm	6pF	-40°C ~ 105°C
X2C032000BA1H-HZ	Harmony Electronics Corp / H.ELE.	HSX211S	32 MHz	±10ppm	10pF	-
X2C024000DZ1H-HU	Harmony Electronics Corp / H.ELE.	HSX211S	24 MHz	±20ppm	6pF	-40°C ~ 105°C
X2C016000B81H-R	Harmony Electronics Corp / H.ELE.	HSX211S	16 MHz	±10ppm	8pF	-30°C ~ 85°C
X2C026000BC1H-Z	Harmony Electronics Corp / H.ELE.	HSX211S	26 MHz	±10ppm	12pF	-30°C ~ 85°C
X1C032000B81H-HR	Harmony Electronics Corp / H.ELE.	HSX111S	32 MHz	±10ppm	8pF	-
X1C024000B81H-HV	Harmony Electronics Corp / H.ELE.	HSX111S	24 MHz	±10ppm	8pF	-
X2C048000L71HH-CEHZ	Harmony Electronics Corp / H.ELE.	HSX211S	48 MHz	±8ppm	11.1pF	-
X2R026000BZ1HAZ-DHPZ	Harmony Electronics Corp / H.ELE.	HSX221SR	26 MHz	±10ppm	7pF	-30°C ~ 105°C
X1R038400B81HA-CEHPZ	Harmony Electronics Corp / H.ELE.	HSX111SR	38.4 MHz	-	8pF	-
X2U026000B81HBZ-DHPZ	Harmony Electronics Corp / H.ELE.	HSX211SR	26 MHz	±10ppm	8pF	-40°C ~ 105°C
X2R026000B91HZ-DEHPZ	Harmony Electronics Corp / H.ELE.	HSX221SR	26 MHz	±10ppm	9pF	-30°C ~ 85°C
X2R019200BZ1H-CHZ	Harmony Electronics Corp / H.ELE.	HSX221SR	19.2 MHz	±10ppm	7pF	-30°C ~ 85°C
X2U019200BZ1H-CEHQZ	Harmony Electronics Corp / H.ELE.	HSX211SR	19.2 MHz	±10ppm	7pF	-40°C ~ 105°C
X2U038400B81H-EPQZ	Harmony Electronics Corp / H.ELE.	HSX211SR	38.4 MHz	±10ppm	8pF	-30°C ~ 85°C
X1R052000B81HZ-DEHPZ	Harmony Electronics Corp / H.ELE.	HSX111SR	52 MHz	-	8pF	-40°C ~ 105°C
X12A040000BZ1H-HZ	Harmony Electronics Corp / H.ELE.	HSX1210A	40 MHz	±12ppm	6pF	-20°C ~ 85°C
