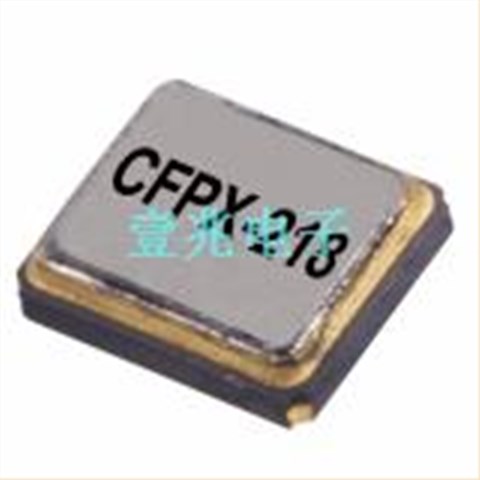

2520貼片晶體,CFPX-218諧振器,LFXTAL069395RL3K

產品簡介

2520貼片晶體,CFPX-218諧振器,LFXTAL069395RL3K，英國進口晶振，無源貼片晶體，編碼：LFXTAL069395RL3K，型號：CFPX-218，工作溫度：-40℃ ~ 85°C，尺寸：2.5mm*2.0mm，頻率：16.384 MHz，精度：±20ppm，負載電容：10pF，貼片石英晶體，晶體諧振器，石英晶體晶振，SMD晶體，石英晶振，2520進口晶振，密封的標準2.5 x 2mm SMD晶體，帶有接縫密封金屬蓋的陶瓷包裝。2520mm體積的晶振,可以說是目前小型數碼產品的福音,目前超小型的智能手機里面所應用的就是小型的石英晶振,該產品最適用于無線通訊系統,無線局域網。

產品詳情

2520貼片晶體,CFPX-218諧振器,LFXTAL069395RL3K，參數表

編碼	LFXTAL069395RL3K
品牌	IQD
型號	CFPX-218
頻率	16.384 MHz
精度	±20ppm
負載電容	10pF
工作溫度	-40℃ ~ 85°C
尺寸	2.5mm*2.0mm

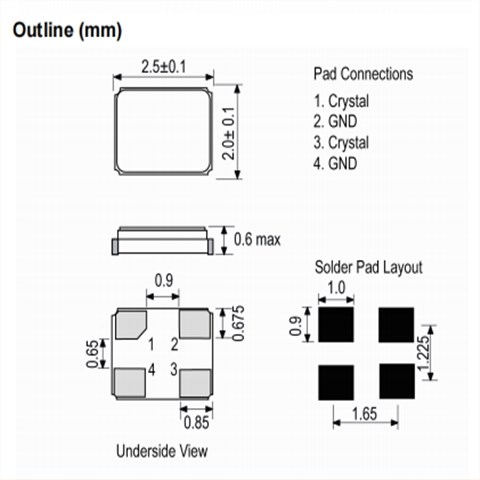

2520貼片晶體,CFPX-218諧振器,LFXTAL069395RL3K，尺寸圖

Mfr Part #	進口晶振2520	Series	Frequency	Frequency Tolerance	Load Capacitance	Operating Temperature
LFXTAL069395RL3K	IQD Frequency Products	CFPX-218	16.384 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL069383REEL	IQD Frequency Products	CFPX-218	24 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL063334REEL	IQD Frequency Products	CFPX-218	25 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL069405REEL	IQD Frequency Products	CFPX-218	27 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL069392REEL	IQD Frequency Products	CFPX-218	16 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL068297REEL	IQD Frequency Products	CFPX-218	16 MHz	±10ppm	8pF	-20°C ~ 75°C
LFXTAL069407REEL	IQD Frequency Products	CFPX-218	30 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL082082CUTT	IQD Frequency Products	CFPX-218	24 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL069381REEL	IQD Frequency Products	CFPX-218	20 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL071952RL3K	IQD Frequency Products	CFPX-218	12 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL081865RL3K	IQD Frequency Products	CFPX-218	26 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL082080RL3K	IQD Frequency Products	CFPX-218	19.2 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL078207RL3K	IQD Frequency Products	CFPX-218	32 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL072844RL3K	IQD Frequency Products	CFPX-218	30 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL082084RL3K	IQD Frequency Products	CFPX-218	-	±10ppm	10pF	-20°C ~ 70°C
LFXTAL082081RL3K	IQD Frequency Products	CFPX-218	-	±10ppm	10pF	-20°C ~ 70°C
LFXTAL078719RL3K	IQD Frequency Products	CFPX-218	-	±10ppm	10pF	-20°C ~ 70°C
LFXTAL082082RL3K	IQD Frequency Products	CFPX-218	24 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL082087RL3K	IQD Frequency Products	CFPX-218	40 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL082088RL3K	IQD Frequency Products	CFPX-218	50 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL069400REEL	IQD Frequency Products	CFPX-218	18.432 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL050991REEL	IQD Frequency Products	CFPX-218	26 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL069387REEL	IQD Frequency Products	CFPX-218	24.576 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL069390REEL	IQD Frequency Products	CFPX-218	32 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL069404REEL	IQD Frequency Products	CFPX-218	19.2 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL071952REEL	IQD Frequency Products	CFPX-218	12 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL082084CUTT	IQD Frequency Products	CFPX-218	27 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL082087CUTT	IQD Frequency Products	CFPX-218	40 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL082081CUTT	IQD Frequency Products	CFPX-218	20 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL078207REEL	IQD Frequency Products	CFPX-218	32 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL081865CUTT	IQD Frequency Products	CFPX-218	26 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL082088CUTT	IQD Frequency Products	CFPX-218	50 MHz	±10ppm	10pF	-20°C ~ 70°C
