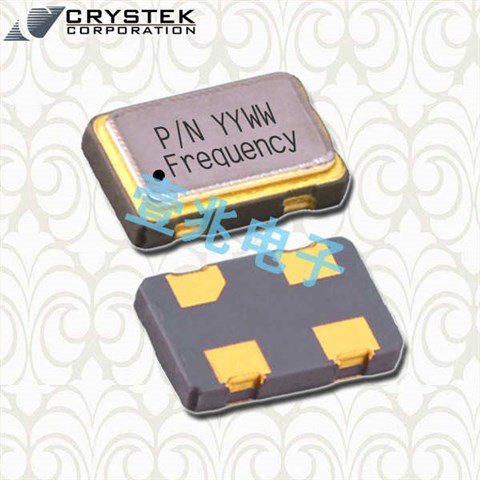

CE3391-19.440,C33差分貼片晶振,Crystek晶體振蕩器

產品簡介

CE3391-19.440,C33差分貼片晶振,Crystek晶體振蕩器，編碼：CE3391-19.440，型號：C33，工作溫度：﹣40°C ~ 85°C，尺寸：7.2mm*5.2mm，頻率：19.44MHz，精度：±25ppm，電壓：3.3V，電流：18mA，輸出方式：HCMOS，差分晶振，時鐘晶體振蕩器，貼片晶體，美國進口晶振，差分石英晶振，具有低抖動，低損耗，低耗能，低電平。低電壓，低衰減，低相噪，低相位，低功耗，高性能，高精度，高溫度等特性，產品廣泛應用于網絡設備，路由器，無線電話，數碼電子產品，無線局域網，手機導航，時鐘鐘表等應用

產品詳情

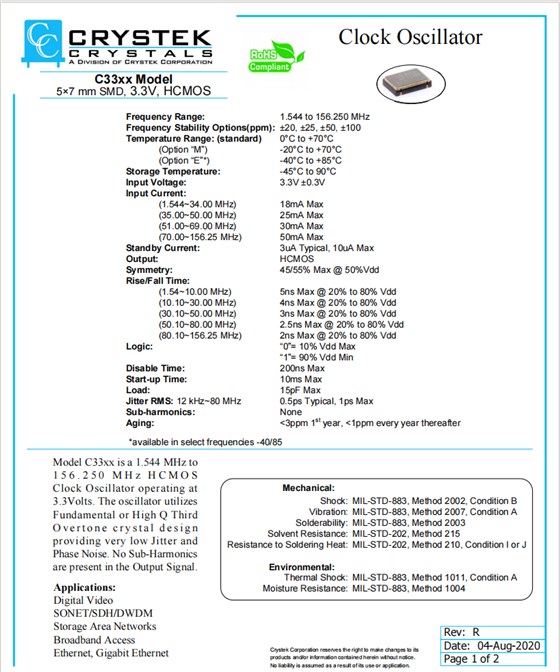

CE3391-19.440,C33差分貼片晶振,Crystek晶體振蕩器，參數表

編碼	CE3391-19.440
品牌	Crystek
型號	C33
頻率	19.44MHz
精度	±25ppm
電壓	3.3V
電流	18mA
輸出方式	HCMOS
工作溫度	﹣40°C ~ 85°C
尺寸	7.2mm*5.2mm

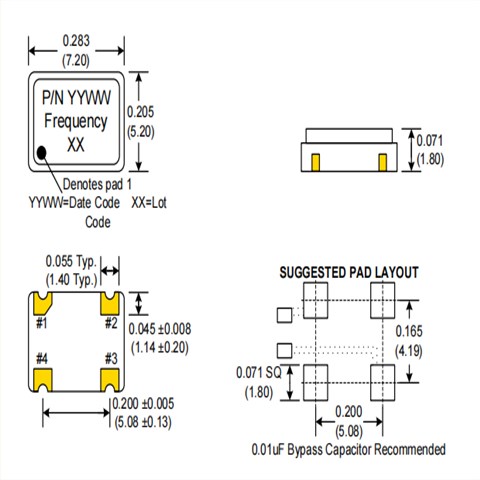

CE3391-19.440,C33差分貼片晶振,Crystek晶體振蕩器，尺寸圖

Mfr Part #	美國進口晶振瑞斯克	Series	Type	Frequency	Output	Voltage - Supply
C3391-4.096	Crystek Corporation	C33	XO (Standard)	4.096 MHz	HCMOS	3.3V
CE3391-19.440	Crystek Corporation	C33	XO (Standard)	19.44 MHz	HCMOS	3.3V
C3390-1.544	Crystek Corporation	C33	XO (Standard)	1.544 MHz	HCMOS	3.3V
C3390-1.843200	Crystek Corporation	C33	XO (Standard)	1.8432 MHz	HCMOS	3.3V
C3390-10.000	Crystek Corporation	C33	XO (Standard)	10 MHz	HCMOS	3.3V
C3390-12.000	Crystek Corporation	C33	XO (Standard)	12 MHz	HCMOS	3.3V
C3390-12.288	Crystek Corporation	C33	XO (Standard)	12.288 MHz	HCMOS	3.3V
C3390-12.352	Crystek Corporation	C33	XO (Standard)	12.352 MHz	HCMOS	3.3V
C3390-14.318180	Crystek Corporation	C33	XO (Standard)	14.31818 MHz	HCMOS	3.3V
C3390-15.360	Crystek Corporation	C33	XO (Standard)	15.36 MHz	HCMOS	3.3V
C3390-16.000	Crystek Corporation	C33	XO (Standard)	16 MHz	HCMOS	3.3V
C3390-16.384	Crystek Corporation	C33	XO (Standard)	16.384 MHz	HCMOS	3.3V
C3390-18.432	Crystek Corporation	C33	XO (Standard)	18.432 MHz	HCMOS	3.3V
C3390-19.440	Crystek Corporation	C33	XO (Standard)	19.44 MHz	HCMOS	3.3V
C3390-2.048	Crystek Corporation	C33	XO (Standard)	2.048 MHz	HCMOS	3.3V
C3390-20.000	Crystek Corporation	C33	XO (Standard)	20 MHz	HCMOS	3.3V
C3390-20.480	Crystek Corporation	C33	XO (Standard)	20.48 MHz	HCMOS	3.3V
C3390-24.000	Crystek Corporation	C33	XO (Standard)	24 MHz	HCMOS	3.3V
C3390-24.576	Crystek Corporation	C33	XO (Standard)	24.576 MHz	HCMOS	3.3V
C3390-24.704	Crystek Corporation	C33	XO (Standard)	24.704 MHz	HCMOS	3.3V
C3390-25.000	Crystek Corporation	C33	XO (Standard)	25 MHz	HCMOS	3.3V
C3390-3.686400	Crystek Corporation	C33	XO (Standard)	3.6864 MHz	HCMOS	3.3V
C3390-30.000	Crystek Corporation	C33	XO (Standard)	30 MHz	HCMOS	3.3V
C3390-32.000	Crystek Corporation	C33	XO (Standard)	32 MHz	HCMOS	3.3V
C3390-32.768	Crystek Corporation	C33	XO (Standard)	32.768 MHz	HCMOS	3.3V
C3390-33.000	Crystek Corporation	C33	XO (Standard)	33 MHz	HCMOS	3.3V
C3390-33.333	Crystek Corporation	C33	XO (Standard)	33.333 MHz	HCMOS	3.3V
C3390-34.368	Crystek Corporation	C33	XO (Standard)	34.368 MHz	HCMOS	3.3V
